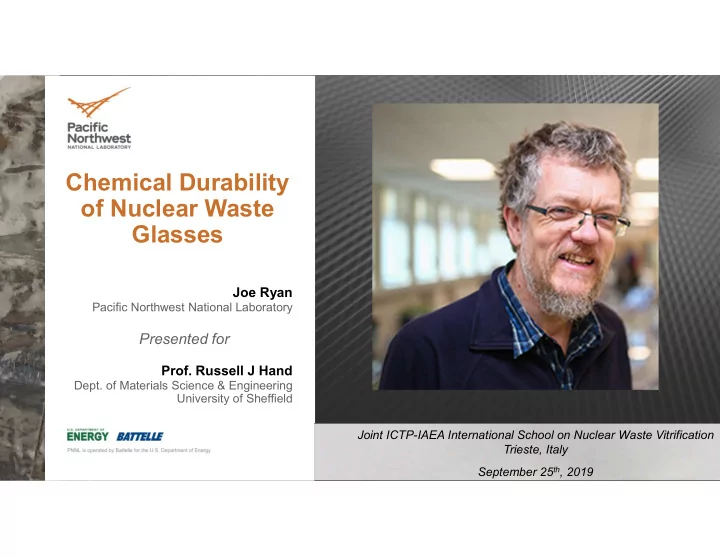

slide-1
SLIDE 1

Chemical Durability

  • f Nuclear Waste

Glasses

Joe Ryan

Pacific Northwest National Laboratory Joint ICTP-IAEA International School on Nuclear Waste Vitrification Trieste, Italy September 25th, 2019

  • Prof. Russell J Hand
  • Dept. of Materials Science & Engineering

University of Sheffield

Presented for

slide-2
SLIDE 2

The most important criterion

Nuclear waste disposal requires:

Controlled release of disposed radionuclides Long-term control: 105 to 106 years

2

Mechanisms behind rate laws must be

Well understood Scientifically defensible International consensus desirable

Enable the reliance on the native durability of the waste form Decrease necessity for engineered barrier systems Universality to various repository environments Increased public confidence and better data for regulatory approval

To demonstrate long-term durability of glass, we must understand the mechanisms that govern radionuclide release over all time scales

Glass artifact images used courtesy of the Corning Museum of Glass

Strachan et al.. Applied Geochemistry 41, 107-114 (2014)

What do we get?

slide-3
SLIDE 3

Durability testing for nuclear waste glasses

What do we want to know?

How quickly do species leach out of the glass? What happens physically to the glass during corrosion?

How can we assess this?

Um… stick it in water? Yes, but for how long? And…

What factors do we need to consider? Extrinsic:

pH and chemistry of the attacking solution Temperature Time Experimental conditions (SA/V, mixing, etc.)

Intrinsic:

Glass composition Glass structure / homogeneity Processing considerations (Tf, stress, shape, etc.) Internal radiation

Vienna et al. 2001

3

slide-4
SLIDE 4

Glass is not glass is not glass…

Waste glasses are designed to meet specific physical, chemical, and regulatory compliance constraints Glasses are designed specifically for waste compositions to be immobilized, examples:

US tank waste primarily composed of cold chemicals with high composition variability and low radioactivity French UOx HLW is primarily fission products with consistent composition and high radioactivity US ILAW (Immobilized Low-Activity Waste) is designed for high alkali content and high throughput Some UK glasses need to accommodate high Mg contents Russian (and others) alumino-phosphate systems

4

Regulatory Compliance Phase Stability Loading and Cost Melter Corrosion Radiation Stability Conductivity Viscosity Chemical Durability Vienna 2014 & The Simpsons

slide-5
SLIDE 5

Yes, but…

5

Boro-alumino-silicate glasses do behave similarly in similar conditions … so let’s put them in some water!

slide-6
SLIDE 6

How glass corrodes

(dilute conditions)

6

Alteration Time

Stage I Behavior Solution Pristine Glass

Surface Evolution

“ “?

Rates at 90°C and pH 10 typically ~30 g m-2 d-1 This equates to ~1cm corrosion in only ~30 years But this never happens …thank goodness

slide-7
SLIDE 7

Ok, maybe not THAT much water…

Can be REALLY slow... Accelerate the test by

Increased surface area (powders) Increased temperature Getters / Complexants Seeds

7

When glass ions accumulate in solution, various “interesting things” begin to occur

… so let’s put them in STILL water!

slide-8
SLIDE 8

How glass corrodes

(static conditions)

8

Alteration Time

Stage I Behavior Transitional Behavior Pristine Glass Solution Interdiffusion Interdiffusion Porous Gel Layer

slide-9
SLIDE 9

How glass corrodes

(static conditions)

9

Alteration Time

Stage I Behavior Transitional Behavior Stage II Behavior Pristine Glass Solution Interdiffusion Porous Gel Layer Secondary Alteration Products

slide-10
SLIDE 10

How glass corrodes

(static conditions)

10

Alteration Time

Stage I Behavior Transitional Behavior Stage II Behavior

Stage III Behavior(?)

Solution Interdiffusion Secondary Alteration Products Pristine Glass Cracked Porous Gel Layer Gin et al. GCA, 151, 68–85(2015)

slide-11
SLIDE 11

Pristine Glass Ion-exchanged glass Porous Alteration Products (gel layer) Solution

  • Cryst. Alt.

Products

So what’s going on?

11

Interphase

rate = f(precip),f(gel), f(IEX), f(RF), f(dissol),

The behavior of glass at all times is generally believed to result from a combination of many mechanistic processes at work:

  • Dissolution of the network
  • Solid-state diffusion within otherwise

undisturbed glass

  • Transformation of glass into gel at the active

reaction front

  • Transport limitations in gel/altered regions
  • Condensation/Precipitation reactions

to form alteration phases from solution

  • .

Explaining long-term behavior requires a combination of mechanisms! f(Comp) f(precip), f(gel), f(IEX) f(RF), f(dissol), f(Comp)

Precipitation, Near-field, and Stage III: Alteration Phase Transport: Reaction front: Dissolution: Solid-state Diffusion: Glass Composition:

slide-12
SLIDE 12

Dissolution Mechanisms

slide-13
SLIDE 13

Example Reaction Rate Model (without transport)

Forward dissolution rate, rf = the rate at which glass dissolves into solution at specific values of the T and pH in the absence of back reactions Dissolution rate most likely to be directly impacted by structure and composition of glass

13

ri = normalized glass dissolution rate (based on element i), g m-2 d-1 rf = forward glass dissolution rate, g m-2 d-1 vi = stoichiometric coefficient for element i in glass k0 = intrinsic rate constant, g m-2 d-1 aH+ = hydrogen ion activity η = pH power law coefficient (dependent on pH regime)

potential exp 1 +other terms

a i i H g

E Q r v k a RT K

 

                      

Ea = apparent activation energy, J mol-1 R = gas constant, J mol-1 K-1 T = absolute temperature, K Q = ion-activity product of rate controlling species Kg = pseudo-equilibrium constant for glass σ = reaction order (Temkin coefficient)

1 rf

slide-14
SLIDE 14

Isolation of Individual Effects

Single-pass flow-through test (SPFT, ASTM C1662) can be used to measure effects of individual parameters Measure impacts of pH, T, [H4SiO4] and [Al(OH)4

  • ]

Avoid feed-back effects by high flow rate/surface area (q/s)

14

Neeway et al. 2017 Abraitis et al. 2000

slide-15
SLIDE 15

pH and Temperature Impacts

Hydrolysis rate depends on:

Bond length and bond angle (stretched O-Si-O bonds favor hydrolysis) Site protonation (high or low pH) Energetics (temperature)

Arrhenius fit seems best for temperature profile Some debate on how best to associate full pH dependence curve

15

𝑆 = 𝑙 𝑓𝑦𝑞 −𝐹 𝑆𝑈 𝑏

+ 𝑓𝑦𝑞 −𝐹

𝑆𝑈 + 𝑓𝑦𝑞 −𝐹 𝑆𝑈 𝑏

  • pH(T)

2 4 6 8 10 12

log(Dissolution Rate) [mol/(m

2 s)]

  • 10
  • 9
  • 8
  • 7
  • 6
  • 5

log(Dissolution Rate) [g/(m2 d)]

  • 2
  • 1

1

25oC 50oC 70oC 90oC

DM Strachan, (2017) Geochimica et Cosmochimica Acta, 219, 111-123

slide-16
SLIDE 16

Modeling the Data for Individual Glass

Measure rf of glass with systematic variation in pH and T Fit data to linear equation:

16

log[ ] log[ ] log[ ]

f a

e r k pH E RT      

Log[k0] = 8.37 ± 0.92 gm-2d-1 η = 0.396 ± 0.060 Ea = 81.6 ± 6.1 kJmol-1 R2 = 0.983 RMSE = 0.141

slide-17
SLIDE 17

Glass Composition Effects on Forward Rate

17

19 glasses all measured by SPFT with systematic variation in pH (7 to 13) and T (23° to 90°C) Include broad range of compositions (US HLW glasses, US LAW glasses, International glasses)

Vienna et al. (2018) npj Materials Degradation 2, 22

slide-18
SLIDE 18

Simultaneously Fit rf to pH, T, and Composition

Model explaining 90% of variation in log[rf] data

  • btained with no composition effects

(R2

fit = 0.896, R2 val = 0.894, RMSE = 0.323)

Three glasses have noticeably higher log[rf] Composition effects only found in log[k0] term Composition effects model shows most significant composition effect is estimated fraction tetrahedra from [4]B (f[4]B)

Effect non-linear, best modeled by step-function change

18

slide-19
SLIDE 19

End Result

19

( ) 2 1 ( )

log( ) below threshold 7.09 0.421 76,200 log[ ( )] log( ) above threshold 7.86 0.421 76,200

T f T

e pH RT r g m d e pH RT

 

                      

  • 4
  • 3
  • 2
  • 1

1 2 3 7 8 9 10 11 12 log[rf, g m-2 d-1] pH(T) 90°C 70°C 40°C 23°C

  • 4
  • 3
  • 2
  • 1

1 2 3 7 8 9 10 11 12 log[rf, g m-2 d-1] pH(T) 90°C 70°C 40°C 23°C

  • 4
  • 3
  • 2
  • 1

1 2 3 7 8 9 10 11 12 log[rf, g m-2 d-1] pH(T) 90°C 70°C 40°C 23°C

  • 4
  • 3
  • 2
  • 1

1 2 3 7 8 9 10 11 12 log[rf, g m-2 d-1] pH(T) 90°C 70°C 40°C 23°C

  • 4
  • 3
  • 2
  • 1

1 2 3 7 8 9 10 11 12 log[rf, g m-2 d-1] pH(T) 70°C 40°C 90°C 23°C

Vienna et al. 2018

slide-20
SLIDE 20

Forward Rate Parameter Correlation

Because there are three parameters with only two variables (T and pH), parameters are correlated:

[logk0,η] = 30% [logk0,Ea] = 81% [Ea,η] = 30%

Although there are some differences in forward rate, the general behaviors are the same for all compositions

20

slide-21
SLIDE 21

Summary of Modeling Results

Composition effects on rf in caustic solution are relatively small over a broad composition space They are best modeled using a f[4]B = 0.22 threshold with rate being composition independent above and below the threshold The exact location of the threshold and any composition effects outside of the regions tested here are uncertain

21

Most alumino-borosilicate glasses behave similarly in terms of initial forward rate

log (rf, g m-2 d-1) - Actual log (rf, g m-2 d-1) - Predicted 1

  • 1
  • 2
  • 3

Vienna et al. (2018) npj Materials Degradation 2, 22

slide-22
SLIDE 22

Condensation Mechanisms

slide-23
SLIDE 23

Impact of species in solution on dissolution

23

Ferrand et al. 2006 Abraitis et al. 2000

Not really “condensation”, rather “slowing dissolution” When network ions in solution build up, the dissolution rates decrease Most dramatic and obvious from silicon, but aluminum also is impactful Observed silicon response seems VERY technique dependent May be the fact that the reactions do not work in isolation, but rather involve many ions in concert

slide-24
SLIDE 24

Condensation Mechanisms

Reformation of amorphous structure is ongoing during corrosion Thermodynamic pathways include amorphous alteration layers as well as crystalline phases

24

Si + O Si H2O Si OH 2

  • OH

O Si Si O H + H O+ Si Si HO- + H H3O+ H2O O Si Si H3O+ + O Si Si O H + H HO- O- Si Si O H + H2O + O Si Si

  • OH

+ High-pH case Low-pH case Si + O Si H2O Si OH 2 H3O+ By Pschemp, CC BY-SA 3.0

slide-25
SLIDE 25

Condensation Mechanisms

25

Si OH OH OH HO Si OH OH O- M+ HO

Basic conditions with salts Acidic conditions

Si OH OH O- HO

Basic conditions

More small species available → More Ostwald Ripening → Larger structures

Ostwald Ripening

Gel structure Larger gel structure Free silica

Si OH O- O- HO

Iler, R. The Chemistry of Silica: Solubility, Polymerization, Colloid and Surface Properties, and Biochemistry; John Wiley & Sons, Inc.: United States, 1979.

Explains smaller structures for SG-3

Reiser et al. (2019) ACS Omega https://doi.org/10.1021/acsomega.9b00491 and npj-Materials Degradation (in proof)

slide-26
SLIDE 26

Problems with affinity-based models

Amorphous materials CAN be in equilibrium with solution When taken to logical conclusion, a purely affinity-based model requires the precipitation of secondary phases for corrosion to continue Which can be done (and is included in most models), but brings up some major questions:

Why does dissolution still

  • ccur at silica “saturation”?

Why does the silica concentration continue to increase?

26

IEX GEL PRI

1

Pierce et al. (2011), Integrated Disposal Facility FY 2011 Glass Testing Summary Report, PNNL-20781

slide-27
SLIDE 27

Solid-state Diffusion Mechanisms

slide-28
SLIDE 28

Solid-state Diffusion Types

While interdiffusion is traceable, there is a question of whether it impacts durability The reaction that dissociates water is much more impactful… increasing pH Also can potentially release some radionuclides directly, but not a major source

28

Si-O-M + H2O  Si-OH + OH + M+ Interdiffusion: Molecular Diffusion: Alkali Reaction:

     

2 2 2

2

tot m H O OH

OH H O H O D D t x x x                    

 

1

A B B B B A

D D D C D C D    

slide-29
SLIDE 29

Interdiffusion

Different species exhibit different profiles Profiles also vary significantly with glass composition Depths are not consistent Not a simple or isolated process

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 100 200 300 400 500 Lithium 6/7 Ratio Approximate Sputter Depth (nm) pre-swap 1 day 7 days 49 days LAW Glass

29

slide-30
SLIDE 30

Alkali mobility is a function of alkali type and local structure

The inward diffusion of A and outward diffusion of B are not independent but are coupled through ion exchange The diffusion of species can also be increased near the interface with a structural factor, α The diffusion equation was solved on a 1D grid using finite difference method

30

0.0 0.2 0.4 0.6 0.8 1.0 1.2 500 1000 1500

CJ6 - 90°C - 7Li Interdiffusion

normalized to exchangeable 7Li content

D(bulk)=0.5×10-20 m2/s D(surface)=1.0×10-20 m2/s 0.0 0.2 0.4 0.6 0.8 1.0 1.2 500 1000 1500

Depth (nm)

CJ6 - 90°C - Na Interdiffusion

normalized to exchangeable Na content

D(bulk)=2.0×10-20 m2/s D(surface)=4.0×10-20 m2/s

Normalized Intensity

1 /  

B A

D D b  

b C D D C D C D D D

B B A B B B B A

     1 1 ~

D C D

A

~ ) 1 ( ~ 

 

Neeway et al. J. Phys. Chem. C 2016, 120, 9374−9384

slide-31
SLIDE 31

Solid-state Diffusion Mechanism Impacts

All agree that ion exchange and molecular water infusion are diffusive processes Over the long term, these processes are expected to result in a steady-state impact This impact is very likely to be low:

Small pH increases Potential increase in buried interface reactivity

31

0 exp p a IEX

E r A t RT

       

31

Solution Pristine 382 days 730 days 9400 days

Gin et al., Chem. Geo., 2013

slide-32
SLIDE 32

Constricted Aqueous Transport Mechanisms

slide-33
SLIDE 33

Porous Gel Provenance

33

Brinker & Scherer, JNCS, 1985 Gin et al., JPhysChemC, 2011 Mellott, PhD Thesis, Penn State University, 2003

Gel composed of relatively insoluble species: Si, Al, Ca, Fe, Ln, some Na Highly porous, with SSA values from 100-800 m2/g Different in structure from glass, even when not formed by precipitation: NOT a relic Structure and formation depends strongly on glass composition pH seems to also have an impact

slide-34
SLIDE 34

Porous Gel Provenance, cont’d.

Question of whether or not silica from solution is incorporated into gel

34

Valle et al. GCA, 2010, v 72, p3412 Gin et al. GCA, 151, 68–85(2015) Gin et al., Nature Communications 6: 6360. (2015)

Yes? No?

5 10 15 20 25 30 100 200 300 400 500 Silicon 28/29 Ratio Approximate Sputter Depth (nm) pre-swap 1 day 7 days 49 days 169 days

Somewhat?

Ryan et al., unpublished

slide-35
SLIDE 35

Oscillatory behaviour

Oscillatory layers have been observed in a number of systems by a range of authors

Newton (1966) Glass Technol. 7, 22-25

Glass buried for 288 years; Hangleton – house destroyed by fire 5/31/1666; Glass fragment unearthed 1954; Buried in calcerous soil Model medieval glass after 9 years burial at Ballidon (R. Hand, U. Sheffield) Geisler et al. (2010) JNCS 356, 1458–1465 Iulia Felix shipwreck about 30km west of where you’re sitting, about 1800 years underwater with about 1800

  • bserved layers…

(Buck, Ryan, et al. in revision)

slide-36
SLIDE 36

Oscillatory behaviour

Geisler et al. GCA 158 (2015) 112–129

Initially congruent dissolution of glass Silica particles start to precipitate Grow by Ostwald ripening Interfacial solution moves away from equilibrium with external solution Transport through the silica layer becomes important

Wang et al. (2016)

  • Sci. Rep. 6, 30256

Non-linear dynamics model

slide-37
SLIDE 37

“Passivating Reactive Interphase”

Only now getting small pieces of direct evidence More data, please!!

37

Li

  • Conc. (at%)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 200 400 600 normalized intensity depth, nm 90 days, no layer 90 days, layer

D(6Li), m2/s DMSO only 5.5E-21 DMSO after 383 d H2O 3.0E-21 All H2O 7.0E-22

Yes, but how do we know it’s there?

slide-38
SLIDE 38

Problems with transport-based model

Empirical rate equation What if the Stage II rate is constant? What is the medium limiting diffusion? Why can’t we “find” it? Why is there no correlation b/w rate and gel thickness? What is diffusing? Boron? H2O?

38

Extrapolated to 100°C DB ≈ 10-29 m2·s-1

B diffusion through a-SiO2

IEX GEL PRI

The diffusion of water IN through the gel will not be slower than the diffusion

  • f dissolved species OUT of the gel

Gin et al. Nature Comm. (2018) DOI: 10.1038/s41467-018-04511-2

slide-39
SLIDE 39

Secondary Phase Precipitation Mechanisms

slide-40
SLIDE 40

Impact of Secondary Phases

Phyllosilicate-like Most common precipitates

  • bserved in glass corrosion

Mainly amorphous; more crystalline at long times Uniform surface coverage Usually surface, few inside gel Observed at long Stage II AND during Stage III Mostly precipitates – less evidence for gel tranisition

40

Valle et al. GCA, 2010, v 72, p3412 Fortner et al., 2012, FCRD-SWF-2012-000266

While this type of precipitation may influence residual rate, has low impact on performance

slide-41
SLIDE 41

Stage III Secondary Phases

Zeolite-like

Also can happen with Fe- or Mg-silicate formation Often correlated with the consumption of solution alumina, but an increase in silica in solution Acceleration of alteration can be permanent (until complete dissolution) or the system can return to a residual rate This “pulsing” can happen many times

41

0.01 0.1 1 10 100 200 300 400 500 600

Time, d

Li B Na Si NL(B) = 0.027 time 0.33 NL(B) = 0.015 exp(0.013 t)

AFCI glass NL(i), g m-2 500 1000 1500 2000 2500 3000 500 1000 1500

Si calcul B calcul C_Si (ppm) C_B (ppm)

Concentrations (mg/L) Time (d)

Si r(t) B r(t) Si exp B exp

Van Iseghem et al., GLAMOR Final Report, 2001 Ebert et al., 2011, FCRD-WAST-2011-000404 Si mg/L Ebert et al., 2011, FCRD-WAST-2011-000404

slide-42
SLIDE 42

Stage III Observations

42

pH 11.5 pH 9

Increasing pH of ISG glass corroding in static conditions initiates Stage III Stage III is often associated with higher pH conditions, but not always Si, B, Na concentrations increase while Al concentration decreases

In unperturbed static tests, [Al]  usually precedes rate acceleration

Generally, linear rate

Gin et al. 2015

slide-43
SLIDE 43

Stage III – Artificial initiation

Stage III can be induced (or initiated earlier) by seeding with certain zeolites Na-P1 and Na-P2, but not Analcime and Clinoptilolite

43

Altered Fraction [Al], mg L-1

Na-chabazite formed in test synthetic zeolite Na-P2 seed crystals

no seeds

Fournier et al. 2017 (Crum 2017, unpub)

slide-44
SLIDE 44

Temperature effect on Stage III alteration

All glasses show an alteration rate acceleration upon zeolite addition at tested conditions (21°C to 90°C) Two different activation energies:

When rate is sustained, Ea > 60 kJ/mol When the rate slows down, Ea ≈ 40 kJ/mol

Two different processes?

44

Parruzot et al. (2019) Journal of Nuclear Materials 523, 490-512

slide-45
SLIDE 45

Results from solution data

45

No zeolite addition Zeolite added at t = 0 days Zeolite added at t = 10 days No Stage III behavior Sustained Stage III (pH > 10.5) Alteration rate is slowing down (pH 9.5) Sustained Stage III (pH > 10.5) Acceleration/slow down (pH < 10.0)

slide-46
SLIDE 46

pH effect on Stage III Alteration

Stage I (forward) rates from Neeway et al. Stage II and Stage III from Parruzot et al. rStage I > rStage III > rStage II Composition of the alteration layer and solution impact Stage III behavior

46

Stage I rates: Neeway et al. (2018) Geochim. Cosmochim. Acta 226 132-148 Others: Parruzot et al. (2019) Journal of Nuclear Materials 523, 490-512

slide-47
SLIDE 47

Mathematical Corrosion Models

slide-48
SLIDE 48

General Modeling Approach

48

 

dt dC C C V F J V S dt dC

i i i v x i i min eff sol gls sol

   

FLUX OUT OF GLASS FLOW IN/OUT OF SOLUTION MINERAL FORMATION Mechanistic Models

 Aagaard-Helgeson  Residual rate  Grambow-Müller  GRAAL  ILAW PA C concentration D dispersion coef v advective flow Cs sorbed concentration Ns number of sinks/sources ρ density of EBS ϴ porosity of EBS t time S surface area V volume x depth in glass Fv flow sol solution gls glass eff effluent min mineral

SiO2(am) Al(OH)3 Etc.

Contaminant transport is modeled using the reaction-advection-dispersion equation: Solution mass balance equation (SMBE) of species i

               

s

N k s b x

k

dt dC dt dC θ dx dC v dx C d D dt dC

1 reaction sorption 2 2

Rieke and Kerisit 2015

slide-49
SLIDE 49

Predictive Models

49

res 1 H net

1 exp r K Q a RT E k r

a

                      

 

Pristine Glass Solution

Residual Rate (RR)

dx dC t r dx C d D dt dC

matrix )

(

2 2 O H2

 

Gel Layer Pristine Glass Hydr. Glass Solution

Grambow-Müller (GM)

Pristine Glass PRI Dissolved PRI Solution

GRAAL

         

sat Si diss

C ) ( 1 t C r dt dE

dt dE D r t e r dt de   

PRI hydr hydr

) ( 1

Rieke and Kerisit 2015 Pierce et al. 2004 Grambow and Muller 2001 Frugier et al. 2008, 2016 Ryan & Freedman 2015 PNNL-23503, Rev. 1 + Secondary Phases

2

ary

Phases Pristine Glass Ion Exch. Solution

ILAW PA Model

  • 1 −
  • + Secondary

Phases

slide-50
SLIDE 50

Model discrepancies have led to targeted research

Reaction affinity models: Corrosion proceeds even with high solution silica Corrosion slows at high pH, when silica is extremely soluble A thermodynamically metastable amorphous silicate is being created RIGHT ON TOP of the glass Simple geochemical sinks do not fully account for a constant “residual rate” Transport limiting models The diffusing species is not defined (boron and water both extremely unlikely) The medium limiting diffusion is poorly known (no correlation with gel thickness) Gel formation is tricky to account for (either mathematical or geochemical) Dissolution / Reprecipitation models Predicted “gap” at interface does not agree with mechanically stable gel in most conditions Gel formation not solely from reprecipitation Most of the above models do it this way anyway out of necessity

50

Pristine Glass Ion-exchanged glass Porous Alteration Products (gel layer)

  • Cryst. Alt. Products

Interphase Solution

slide-51
SLIDE 51

How to link mechanistic models to PA models

Existing models are necessarily simple Any new corrosion model will also have to be sufficiently simple to enable large-scale simulations using a more complex performance assessment model However, its formulation has to be grounded in detailed, validated mechanistic models.

51

Evaluate PA needs: rates of release from breached package Develop and parameterize mechanistic corrosion models Simplify mechanistic models to appropriate release calculations Perform in-package calculations given PA inputs Determine needs for in-package glass corrosion calculation

This is the state of the art. Better mechanistic understanding informing intelligently-simplified models are needed
