Practicing the art and science of side channel and fault attacks Jasper van Woudenberg @jzvw January 10, 2019 1 Our vision certificate recommendations countermeasures 2 Where we are today Science Art Bit of both certificate 2 weeks

slide-1
SLIDE 1

1

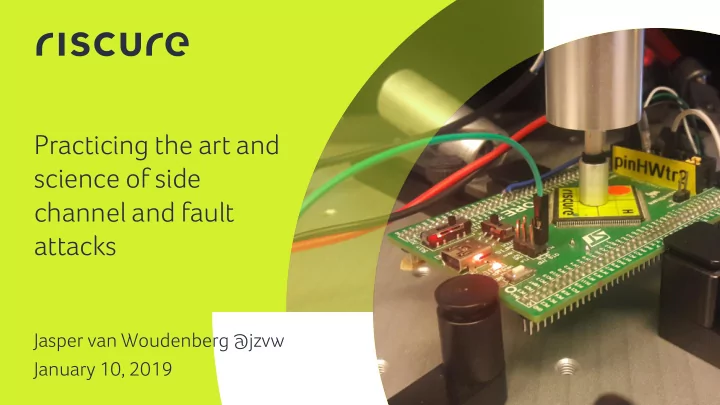

Practicing the art and science of side channel and fault attacks

Jasper van Woudenberg @jzvw January 10, 2019

slide-2
SLIDE 2

2

Our vision

recommendations certificate countermeasures

slide-3
SLIDE 3

3

Bit of both Science Art

Where we are today

recommendations certificate countermeasures DPA, TVLA DFA, FI success% Signal processing Leakage id/model Tuning FI setup

2 weeks – 2 months (single algorithm)

slide-4
SLIDE 4

4

Power side channel analysis and fault injection

slide-5
SLIDE 5

5

Bit of both Science

Where we are today

recommendations certificate countermeasures DPA, TVLA DFA, FI success%

Art

Signal processing Leakage id/model Tuning FI setup

slide-6
SLIDE 6

6

slide-7
SLIDE 7

7

Power Analysis

Leakage modeling Signal processing

slide-8
SLIDE 8

8

Signal processing

Raw trace Processed trace

slide-9
SLIDE 9

9

Misalignment

slide-10
SLIDE 10

10

Points of interest selection

Data leakage Noise Samples showing statis istic ical al dependenc ndency between intermediate (key-related) data and power consumption.

slide-11
SLIDE 11

11

EM leakage location finding

Some delivers truth but too costly Some cheaper but misleading

Pics origin: “EM-scanning” by Albert Spruyt

Key rank (5M) Ghost peak dist.(8M) Intermediates corr. (3M) Spectral intensity (1) Input corr. (1M) Output corr. (1M)

slide-12
SLIDE 12

12

Open research questions

  • How to find good EM spots

without doing T-testing on each spot

  • How to automate the combined

problem of filtering, alignment, etc?

slide-13
SLIDE 13

13

Fault injection

slide-14
SLIDE 14

14

FI output

slide-15
SLIDE 15

15

Open research questions

  • What exactly happens to a circuit

when faulted, to inform countermeasures

  • More software scalable FI attacks,

a la CLKscrew

slide-16
SLIDE 16

16

Bit of both Science

Where we are today

recommendations certificate countermeasures DPA, TVLA DFA, FI success%

Art

Signal processing Leakage id/model Tuning FI setup

slide-17
SLIDE 17

17

t: µB: µA:

Sboxes, R5

TVLA (T-testing)

MixColumns, R5

slide-18
SLIDE 18

18

Open research questions

  • How exploitable are T-spikes in

practice?

slide-19
SLIDE 19

19

DPA key recovery

Number of traces Key Byte Rank AES key bytes 0-15

slide-20
SLIDE 20

20

Open research questions

  • So far, it’s hard to beat CPA in

terms of time efficiency. New attacks are interesting if they significantly reduce attack time from acquisition to key extraction, apply to all targets, and are unsupervised (and complete start to finish in the

  • rder of weeks)
slide-21
SLIDE 21

21

Voltage (V) Length (ns)

Glitch length vs. glitch voltage (XMEGA)

slide-22
SLIDE 22

22

Open research questions

  • We rarely perform Differential

Fault Analysis. If we can exploit JTAG or Boot, we get more. How to harden those?

slide-23
SLIDE 23

23

Bit of both Science

Where we are today

recommendations certificate countermeasures DPA, TVLA DFA, FI success%

Art

Signal processing Leakage id/model Tuning FI setup

slide-24
SLIDE 24

24

Certify

  • Goal is to have objective pass/fail criteria
  • Common Criteria / EMVco / GP TEE:
  • Expertise, equipment used, time elapsed, samples used,

information available, open samples

  • (#traces not directly relevant, nor FI success %!)
  • As objective as we know how to make it
slide-25
SLIDE 25

25

Open research questions

  • What is an objective measure that

represents device security?

slide-26
SLIDE 26

26

Improve

  • We can deduce some information:
  • Timing of leakage / fault
  • Amount of leakage / fault success rate
  • Type of leakage
  • Turning this into countermeasures is nontrivial
  • Whack-a-mole happens
slide-27
SLIDE 27

27

Open research questions

  • How to automatically create

countermeasures based on test results?

  • Results on FPGA/non-secure

microcontroller do not translate to secure microcontrollers or

  • SoCs. More results on the latter

categories are needed.

slide-28
SLIDE 28

28

Current research: Deep learning for SCA

slide-29
SLIDE 29

29

Before

Leakage modeling Signal processing

slide-30
SLIDE 30

30

After

Metrics Leakage info

slide-31
SLIDE 31

31

Breaking AES with First-Order Masking

  • Target published in 2013 (http://www.dpacontest.org/v4/)
  • 40k traces available
  • AES-256 (Atmel ATMega-163 smart card)
  • Countermeasure: Rotating S-box Masking (RSM)
slide-32
SLIDE 32

32

How does DPA contest V4 masking work?

  • Masking is expensive in performance and memory
  • Rotating mask helps by pre-computing masked S-boxes
slide-33
SLIDE 33

33

Breaking AES with First-Order Masking

Neural Network: Input Layer > ConvLayer > 50 > 50 > 50 > Output Layer Training/validation/test sets: 36000/2000/2000 traces Leakage Model: HW of S-Box Out (Round 1) → 9 classes

1/9

Results for key byte 0:

The processing of 8 traces is sufficient to recover the key

slide-34
SLIDE 34

34

Open research questions

  • We rarely perform 2nd order

attacks, because sample combing is infeasible due to noise and limited time. How to find those samples efficiently?

slide-35
SLIDE 35

35

Our visualization method

Conv. Conv. Pooling Pooling Input Data Feature Map Dense Layers Output Feature Combination + Classification Feature Extraction + Dimensionality Reduction

HW = 5

slide-36
SLIDE 36

36

Results (unprotected target)

Raw trace T-test (first round key byte) Our visualization method

CPA succeeds CPA fails

slide-37
SLIDE 37

37

DL conclusions so far

  • DL can exploit and identify leakage
  • DL does SCA art + science and scales
  • Hardware crypto still presents challenges
  • DL still requires humans in tuning a network
slide-38
SLIDE 38

38

Active research areas

  • Machine learning for SCA
  • FI outside of lab conditions /

larger distance

  • Design time analysis
  • SCA on simulator
  • FI on simulator
slide-39
SLIDE 39

39

Wrapping up

slide-40
SLIDE 40

40

Conclusion

  • Automation is needed for the scale of the issues
  • Many interesting research questions lay on this path
  • We are looking to collaborate on such topics

recommendations certificate countermeasures

slide-41
SLIDE 41

41

Challenge your security
