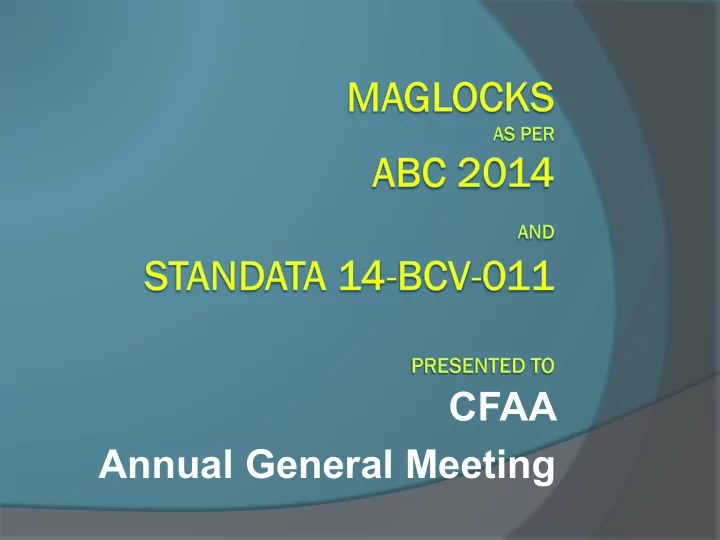

CFAA Annual General Meeting Outline for Today Information is King What is a Maglock Why do we care What is the Code (ABC 2014) What is the Standata (14-BCV-011) How we apply the Code Examples & Alternatives

slide-1
SLIDE 1

CFAA Annual General Meeting

slide-2
SLIDE 2

Outline for Today

      

Information is King What is a Maglock Why do we care What is the Code (ABC 2014) What is the Standata (14-BCV-011) How we apply the Code Examples & Alternatives

slide-3
SLIDE 3

Information is King

slide-4
SLIDE 4

What is a Maglock?

Door Hardware appliance (Lock)

 Electrically powered coil magnet  Matching armature plate  Made of stainless and ferrous metals  Generates

60 to 1800lbs of holding force

    

slide-5
SLIDE 5

Typical Office Building Single or Double

Standard Maglock

 

slide-6
SLIDE 6

 Typical in Retail Stores  Built-in Delay (15sec)  Alarmed  Signage Required

Delayed Maglock

   

slide-7
SLIDE 7

Typical in Sliding Doors Often includes Pins or “Fingers” Rarely Used as “Strength is Unreliable”

Shear Maglock

  

slide-8
SLIDE 8

 Typical in Daycare  Outdoor Rated*  Release is of Concern  Swing or Sliding Action

Gate Maglock

   

slide-9
SLIDE 9

Why do we care?

Locks the Door in both directions Requires Intervention to release Keys do not override If installed wrong, can trap people If installed correctly, can trap people

    

slide-10
SLIDE 10

What is the Code?

Alberta Fire Code 2014 Alberta Building Code 2014 ABC - Appendix A Standata (14-BCV-011) Oct 2017

   

slide-11
SLIDE 11

 Division B - Part 3

Alberta Fire Code 2014

1) Means of Egress shall be provided in buildings in conformance with the ABC.

slide-12
SLIDE 12

Division B - Part 3.4.6.16

Alberta Building Code 2014

slide-13
SLIDE 13

ABC 3.4.6.16.(1) Exit Doors must:

 Release in one action  Use no keys  Use no special devices  Require no specialized knowledge (Training)

English Translation

slide-14
SLIDE 14

 Division B - Part 3.4.6.16(2)(3)

Alberta Building Code 2014

slide-15
SLIDE 15

ABC 3.4.6.16.(2) & (3) Door Hardware:

 All Public spaces with 100+ People  All Buildings with 100+ People  All Doors exiting Dangerous areas  Require only 90N to operate  Require only 90N to swing door open

“Every Public (or Popular) door, must be

  • perable by a 90 year old 90lb Grandmother”

English Translation

slide-16
SLIDE 16

Division B - Part 3.4.6.16(4)

Alberta Building Code 2014

slide-17
SLIDE 17

ABC 3.4.6.15.(4) Maglocks must:

 Release on fire alarm  Release by a single switch (accessible by authorities)  Have no pins or latching device  Have no residual holding force  Do not require keys  Do not require special knowledge  Release by use of door hardware (single action)  Release with 90N of force or less  Release immediately or within 15 seconds*

*Requires Signage

English Translation

slide-18
SLIDE 18

Appendix A.3.4.6.15.(4)

Alberta Building Code 2014

slide-19
SLIDE 19

Appendix A.3.4.6.15.(4)

 Maglocks Should not replace regular hardware  They must not be used indiscriminately  Must be Fail-Safe in “Foreseeable Emergencies”  All maglocks must be controlled from one switch  Maglocks must not reset automatically

English Translation

slide-20
SLIDE 20

 Reset Switch (ABC A.3.4.6.15.(4))

 Single Switch is to control all Maglocks  Normally installed in or beside main fire panel  Maglocks may not rearm automatically  Switch is used to reset the Maglocks  Switch is part of the Fire alarm system  Switch is usually keyed

English Translation

slide-21
SLIDE 21

 Maglock with Panic Hardware

Code Compliant Example

slide-22
SLIDE 22

 Maglock with Panic Hardware (glass door)

Code Compliant Example

slide-23
SLIDE 23

 Maglock with Delayed Egress

Code Compliant Example

slide-24
SLIDE 24

Why they are not code compliant

 Secondary action  Ancillary device  Require specialized knowledge  Action not in direction of travel

Urban Myth (Push buttons)

slide-25
SLIDE 25

Why they are not compliant

 Secondary action  Ancillary device  Requires specialized knowledge  Action not in direction of travel

Urban Myth (Blue Pull Station)

slide-26
SLIDE 26

Retail Exit Doors

 Need to prevent shoplifting

Cash Cages & Bank Doors

 Prevent theft

911 Call Centres

 Prevent Disruptions, Terrorism & Retaliation

Hospitals & Retirement Homes

 Protect Patients & Hospital Staff

When are Maglocks used?

   

slide-27
SLIDE 27

Standata

slide-28
SLIDE 28

Acceptable Variances (e.g. alternatives)

  • r

Interpretations and/or Additional Information *Temporary until Codified

What is a “Standata”

  

slide-29
SLIDE 29

Alternative Solution for B2 & B3 Occupancies

Standata (14-BCV-011)

slide-30
SLIDE 30

B1 =

What is an “Occupancy”

slide-31
SLIDE 31

B2 = B3 =

What is a “B2” & “B3” Occupancy

 

slide-32
SLIDE 32

Standata References 3.4.6.16.(1)

Standata (14-BCV-011)

slide-33
SLIDE 33

Standata References 3.2.4.8.(4) English “B2 & B3 systems must be monitored”

Standata (14-BCV-011)

slide-34
SLIDE 34

Standata References NBC 3.4.6.16.(5)

Standata (14-BCV-011)

slide-35
SLIDE 35

Standata Reference 3.4.6.16.(5)

Group B2 & B3 Occupancies must include Fire alarm system Sprinklers Maglock that releases on Fire signal or Loss of power Manual Station at the door, to release Maglock Signage at the Door Bypass or testing of alarm is monitored Emergency Lighting at Door

English Translation

   

○ ○

   

slide-36
SLIDE 36

Standata Reference 3.4.6.16.(5)

Manual Station at the door, to release Maglock Currently not defined in the Standata Calgary Fire Marshall (Interpretation)

Nursing Home Hospital (AHS)

(Push button c/w Twist to Reset) (Blue Pull Station)

English Translation

  

slide-37
SLIDE 37

Standata References NBC A-3.4.6.16.(5)

Standata (14-BCV-011)

slide-38
SLIDE 38

Standata Reference NBC A-3.4.6.16.(5)

Maglocks in Care & Treatment Occupancies Require special provisions to reduce false alarms Transparent Alarmed Covers can be included Alarm should dissuade user from using the device Optional Device is allowed for Bypass Cardreader or Keypad can Bypass maglock Calgary Fire Marshall (Interpretation) Delayed Egress (15s) is acceptable

English Translation

      

○

slide-39
SLIDE 39

 Maglock for Dementia Ward (Nursing Home)

Code Compliant Example

Cardreader c/w Keypad (Optional) Button c/w Cover (Mandatory) Maglocks Panic Hardware Emergency Lighting Exit Sign Signage (Mandatory)

slide-40
SLIDE 40

Glass Doors

slide-41
SLIDE 41

Glass Door Alternatives

Framed Doors (Allows Traditional Hardware)

slide-42
SLIDE 42

Glass Door Alternatives

Panic Hardware

 Using Electric Strike

slide-43
SLIDE 43

Glass Door Alternatives

Wireless Battery Operated Hardware

slide-44
SLIDE 44

Glass Door Alternatives

Wireless Battery Operated Hardware

slide-45
SLIDE 45

Glass Door Alternatives

Wireless Battery Operated Hardware

slide-46
SLIDE 46

Glass Door Alternatives

Stand-alone Battery Operated

 Use Caution*

*Not all are Approved Exit Devices

slide-47
SLIDE 47

Conclusion

Maglocks always require:

 Careful Consideration  Used Sparingly  Used Safely  Find Alternatives when possible

Seek advice, if you have questions

 

slide-48
SLIDE 48

Quiz

slide-49
SLIDE 49

Quiz

Please fill in the Answer sheet Wait until everyone is finished Please pass to your neighbor for marking Please hand in your Quiz for Credit

   

slide-50
SLIDE 50

Thank You!
