Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis CFA Interpolation Detection Leszek Swirski October 15, 2009 Leszek Swirski CFA Interpolation Detection Outline CFA Introduction Interpolation Detection CFA

slide-1
SLIDE 1

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis

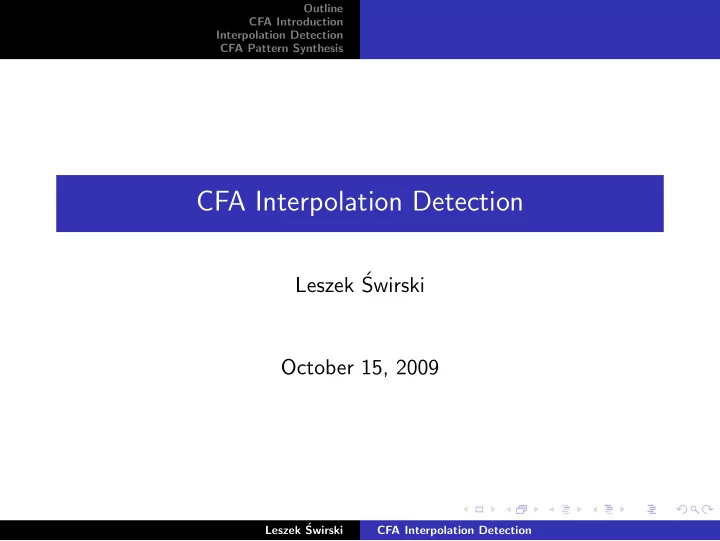

CFA Interpolation Detection

Leszek ´ Swirski October 15, 2009

Leszek ´ Swirski CFA Interpolation Detection

slide-2
SLIDE 2

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis

CFA Introduction Example Interpolation Interpolation Detection Methods Examples Identifying Forged Regions CFA Pattern Synthesis Reasoning Methods

Leszek ´ Swirski CFA Interpolation Detection

slide-3
SLIDE 3

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

CFA?

▶ “Colour Filter Array” ▶ Photosensors have no

wavelength specificity

▶ So filter RGB onto array

  • f photosensors

▶ e.g. Bayer filter

Leszek ´ Swirski CFA Interpolation Detection

slide-4
SLIDE 4

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Target Image

Leszek ´ Swirski CFA Interpolation Detection

slide-5
SLIDE 5

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Filters

Leszek ´ Swirski CFA Interpolation Detection

slide-6
SLIDE 6

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Sensor Data

Leszek ´ Swirski CFA Interpolation Detection

slide-7
SLIDE 7

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Coloured Sensor Data

Leszek ´ Swirski CFA Interpolation Detection

slide-8
SLIDE 8

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Coloured Sensor Data (Detail)

Leszek ´ Swirski CFA Interpolation Detection

slide-9
SLIDE 9

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Why interpolate?

▶ Each pixel is only R, G or B ▶ Want full colour, full size image ▶ So guess interpolate!

Leszek ´ Swirski CFA Interpolation Detection

slide-10
SLIDE 10

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Nearest Neighbour

Leszek ´ Swirski CFA Interpolation Detection

slide-11
SLIDE 11

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Nearest Neighbour

Leszek ´ Swirski CFA Interpolation Detection

slide-12
SLIDE 12

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Nearest Neighbour

Leszek ´ Swirski CFA Interpolation Detection

slide-13
SLIDE 13

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Bilinear (and other polynomials)

R and B R′/B′ = R/B ∗ 1 4 ⎡ ⎣ 1 2 1 2 4 2 1 2 1 ⎤ ⎦ G G ′ = G ∗ 1 4 ⎡ ⎣ 1 1 4 1 1 ⎤ ⎦

Leszek ´ Swirski CFA Interpolation Detection

slide-14
SLIDE 14

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Bilinear (and other polynomials)

Leszek ´ Swirski CFA Interpolation Detection

slide-15
SLIDE 15

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Bilinear (and other polynomials)

Leszek ´ Swirski CFA Interpolation Detection

slide-16
SLIDE 16

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Smooth Hue Transition

Seperate luminance (G) and chrominance (R and B). Interpolate G bilinearly G ′ = G ∗ 1 4 ⎡ ⎣ 1 1 4 1 1 ⎤ ⎦ For R (and similarly for B), interpolate the ratio R′′

ij = Rij G ′

ij , and

pointwise multiply by G R′

ij = Gij ×

⎛ ⎝R′′ ∗ 1 4 ⎡ ⎣ 1 2 1 2 4 2 1 2 1 ⎤ ⎦ ⎞ ⎠

ij

Leszek ´ Swirski CFA Interpolation Detection

slide-17
SLIDE 17

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Smooth Hue Transition

Leszek ´ Swirski CFA Interpolation Detection

slide-18
SLIDE 18

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Smooth Hue Transition

Leszek ´ Swirski CFA Interpolation Detection

slide-19
SLIDE 19

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Median filter

▶ Bilinearly filter R, G, B to get R′′, G ′′, B′′. ▶ Calculate pairwise differences (R′′ − G ′′, R′′ − B′′, G ′′ − B′′) ▶ Median filter these to get Mrg, Mrb, Mgb ▶ Each resulting pixel is CFA pixel image plus/minus appropriate

median. e.g. (1,0) is a green pixel in CFA, so R′

1,0 = G1,0 + (Mrg)1,0

G ′

1,0 = G1,0

B′

1,0 = G0,0 − (Mgb)1,0

Leszek ´ Swirski CFA Interpolation Detection

slide-20
SLIDE 20

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Median filter

Leszek ´ Swirski CFA Interpolation Detection

slide-21
SLIDE 21

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Median filter

Leszek ´ Swirski CFA Interpolation Detection

slide-22
SLIDE 22

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Gradient-Based

▶ Want to preserve edges, so ‘adaptively’ interpolate G ▶ Approximate horizontal and vertical second derivatives of R

and B and take absolutes, e.g.

  • ∂2R

∂x2

  • i,j

≈

  • Ri,j−2 + Ri,j+2

2 − Ri,j

  • ▶ Compare these H and V . If Hi,j < Vi,j, (i,j) is a horizontal

edge, so interpolate horizontally. G ′

i,j =

⎧  ⎨  ⎩

Gi,j−1+Gi,j+1 2

Hi,j < V i, j

Gi−1,j+Gi+1,j 2

Hi,j > V i, j

Gi,j−1+Gi,j+1+Gi−1,j+Gi+1,j 4

Hi,j = V i, j

Leszek ´ Swirski CFA Interpolation Detection

slide-23
SLIDE 23

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Gradient-Based

Leszek ´ Swirski CFA Interpolation Detection

slide-24
SLIDE 24

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

Gradient-Based

Leszek ´ Swirski CFA Interpolation Detection

slide-25
SLIDE 25

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Example Interpolation

And more...

▶ Adaptive Colour Plane

Has adaptive interpolation for G using first order derivative of luminance and second order derivative of chrominance, and uses adaptive interpolation again for R and B.

▶ Threshold-Based Variable Number of Gradients

Eight gradient samples taken from a 5 × 5 neighbourhood of each pixel, averages are calculated for each gradient, gradients

  • f values less than a (dynamic!) threshold are averaged, and

averages are added to/subtracted from the CFA values. (Though both are similar in principle to the gradient-based)

Leszek ´ Swirski CFA Interpolation Detection

slide-26
SLIDE 26

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Why detect?

▶ Image/Camera verification ▶ Identification of forged regions ▶ Recognition of PRCG (PhotoRealistic Computer Generated

images)

Leszek ´ Swirski CFA Interpolation Detection

slide-27
SLIDE 27

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

General idea

▶ Interpolation creates correlation ▶ Most CFA interpolation is regular and approximately linear

(especially for G)

▶ If can determine some regular correlation, image is

interpolated

Leszek ´ Swirski CFA Interpolation Detection

slide-28
SLIDE 28

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

EM Algorithm

▶ ‘Expectation-Maximisation’ ▶ Simulataneously estimate parameters of correlation (i.e. what

interpolation is used) and which points are correlated to their neighbours

▶ Two-step iterative algorithm ▶ Creates a separable parameter space

Leszek ´ Swirski CFA Interpolation Detection

slide-29
SLIDE 29

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

A statistical Achilles’ Heel

▶ Interpolation creates correlation ▶ Correlation decreases variance ▶ Variance can be measured! ▶ Periodic low variance is indicative of interpolation

Leszek ´ Swirski CFA Interpolation Detection

slide-30
SLIDE 30

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

A statistical Achilles’ Heel

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

휎2 4

휎2

Leszek ´ Swirski CFA Interpolation Detection

slide-31
SLIDE 31

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen

▶ First, high-pass filter:

h = ⎡ ⎣ 1 1 4 1 1 ⎤ ⎦

▶ Estimate variance using mean of absolutes along

anti-diagonals m(d) = ∑

x+y=d

∣(h ∗ i)x,y∣ Nd

Leszek ´ Swirski CFA Interpolation Detection

slide-32
SLIDE 32

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen

▶ Want to find periodicity, so DFT to get

  • M(ei휔)
  • ▶ Significant peaks demonstrate periodicity

▶ Green channel interpolates every other pixel, so expect a peak

at 휔 = 휋

▶ Quantify peak s as:

s =

  • M(ei휔)
  • 휔=휋

median휔{∣M(ei휔)∣}

Leszek ´ Swirski CFA Interpolation Detection

slide-33
SLIDE 33

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

Original

Leszek ´ Swirski CFA Interpolation Detection

slide-34
SLIDE 34

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

i =

Leszek ´ Swirski CFA Interpolation Detection

slide-35
SLIDE 35

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

(h ∗ i) =

Leszek ´ Swirski CFA Interpolation Detection

slide-36
SLIDE 36

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

m(d) = 0.2 0.4 0.6 0.8 1 5 ⋅ 10−2 0.1

Leszek ´ Swirski CFA Interpolation Detection

slide-37
SLIDE 37

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

  • M(ei휔)
  • =

휋 2

휋

3휋 2

2휋 50 100 150

Leszek ´ Swirski CFA Interpolation Detection

slide-38
SLIDE 38

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 1

s =

  • M(ei휔)
  • 휔=휋

median휔{∣M(ei휔)∣} = 79.2337 0.1191 = 665.0172

Leszek ´ Swirski CFA Interpolation Detection

slide-39
SLIDE 39

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

Original

Leszek ´ Swirski CFA Interpolation Detection

slide-40
SLIDE 40

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

i =

Leszek ´ Swirski CFA Interpolation Detection

slide-41
SLIDE 41

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

(h ∗ i) =

Leszek ´ Swirski CFA Interpolation Detection

slide-42
SLIDE 42

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

m(d) = 0.2 0.4 0.6 0.8 1 5 ⋅ 10−2 0.1 0.15 0.2 0.25

Leszek ´ Swirski CFA Interpolation Detection

slide-43
SLIDE 43

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

  • M(ei휔)
  • =

휋 2

휋

3휋 2

2휋 20 40 60 80 100

Leszek ´ Swirski CFA Interpolation Detection

slide-44
SLIDE 44

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 2

s =

  • M(ei휔)
  • 휔=휋

median휔{∣M(ei휔)∣} = 0.2546 0.1688 = 1.5081

Leszek ´ Swirski CFA Interpolation Detection

slide-45
SLIDE 45

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

Original

Leszek ´ Swirski CFA Interpolation Detection

slide-46
SLIDE 46

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

i =

Leszek ´ Swirski CFA Interpolation Detection

slide-47
SLIDE 47

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

(h ∗ i) =

Leszek ´ Swirski CFA Interpolation Detection

slide-48
SLIDE 48

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

m(d) = 0.2 0.4 0.6 0.8 1 2 ⋅ 10−2 4 ⋅ 10−2 6 ⋅ 10−2 8 ⋅ 10−2

Leszek ´ Swirski CFA Interpolation Detection

slide-49
SLIDE 49

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

  • M(ei휔)
  • =

휋 2

휋

3휋 2

2휋 2 4 6 8 10 12

Leszek ´ Swirski CFA Interpolation Detection

slide-50
SLIDE 50

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 3

s =

  • M(ei휔)
  • 휔=휋

median휔{∣M(ei휔)∣} = 6.1377 0.0574 = 106.8595

Leszek ´ Swirski CFA Interpolation Detection

slide-51
SLIDE 51

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

Original

Leszek ´ Swirski CFA Interpolation Detection

slide-52
SLIDE 52

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

i =

Leszek ´ Swirski CFA Interpolation Detection

slide-53
SLIDE 53

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

(h ∗ i) =

Leszek ´ Swirski CFA Interpolation Detection

slide-54
SLIDE 54

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

m(d) = 0.2 0.4 0.6 0.8 1 2 ⋅ 10−2 4 ⋅ 10−2 6 ⋅ 10−2

Leszek ´ Swirski CFA Interpolation Detection

slide-55
SLIDE 55

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

  • M(ei휔)
  • =

휋 2

휋

3휋 2

2휋 5 10 15

Leszek ´ Swirski CFA Interpolation Detection

slide-56
SLIDE 56

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Gallagher and Chen example 4

s =

  • M(ei휔)
  • 휔=휋

median휔{∣M(ei휔)∣} = 2.8713 0.0637 = 45.1039

Leszek ´ Swirski CFA Interpolation Detection

slide-57
SLIDE 57

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Problems (that aren’t)

▶ Non-linear interpolation makes this less simple ▶ JPEG introduces compression ▶ The demonstrated method doesn’t give the interpolation

parameters

▶ Can’t you fake CFA interpolation?

Leszek ´ Swirski CFA Interpolation Detection

slide-58
SLIDE 58

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Problems (that aren’t)

▶ Non-linear interpolation makes this less simple

But non-linear interpolation is still locally sufficiently linear, so it’s close enough

▶ JPEG introduces compression ▶ The demonstrated method doesn’t give the interpolation

parameters

▶ Can’t you fake CFA interpolation?

Leszek ´ Swirski CFA Interpolation Detection

slide-59
SLIDE 59

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Problems (that aren’t)

▶ Non-linear interpolation makes this less simple

But non-linear interpolation is still locally sufficiently linear, so it’s close enough

▶ JPEG introduces compression

But high-quality JPEG leaves enough information

▶ The demonstrated method doesn’t give the interpolation

parameters

▶ Can’t you fake CFA interpolation?

Leszek ´ Swirski CFA Interpolation Detection

slide-60
SLIDE 60

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Problems (that aren’t)

▶ Non-linear interpolation makes this less simple

But non-linear interpolation is still locally sufficiently linear, so it’s close enough

▶ JPEG introduces compression

But high-quality JPEG leaves enough information

▶ The demonstrated method doesn’t give the interpolation

parameters No, but we don’t need them just for detection

▶ Can’t you fake CFA interpolation?

Leszek ´ Swirski CFA Interpolation Detection

slide-61
SLIDE 61

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Problems (that aren’t)

▶ Non-linear interpolation makes this less simple

But non-linear interpolation is still locally sufficiently linear, so it’s close enough

▶ JPEG introduces compression

But high-quality JPEG leaves enough information

▶ The demonstrated method doesn’t give the interpolation

parameters No, but we don’t need them just for detection

▶ Can’t you fake CFA interpolation?

Sure, but adding such a method of detection makes forgery harder

Leszek ´ Swirski CFA Interpolation Detection

slide-62
SLIDE 62

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Methods Examples Identifying Forged Regions

Identifying Forged Regions

▶ Can identify forged regions by running the above algorithm

locally on each pixel

▶ For each pixel, estimate local (within radius n) variance

m(x, y) =

n

∑

i=−n

∣(h ∗ i)x+i,y+i∣ 2n + 1

▶ For each pixel, calculate local DFT, and from it the peak sxy ▶ Low values of sxy means pixel (x, y) part of forged region

Leszek ´ Swirski CFA Interpolation Detection

slide-63
SLIDE 63

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Reasoning Methods

Tamper hiding

▶ Tampering with a photo destroys CFA correlations ▶ Restoring CFA-like correlations hides tampering ▶ Want an image of similar size and quality

Leszek ´ Swirski CFA Interpolation Detection

slide-64
SLIDE 64

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Reasoning Methods

Na¨ ıve method

▶ Can simply sample image into CFA image, and reinterpolate ▶ Problem: Throws away 2 3 of pixel data! ▶ Similar information loss to linear kernel smoothing (e.g.

Gaussian)

Leszek ´ Swirski CFA Interpolation Detection

slide-65
SLIDE 65

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Reasoning Methods

‘Ideal’ method

▶ Can represent linear interpolation as matrix operation

y = Hx

▶ Manipulated image adds an additive residual signal

y = Hx + 휖

▶ For given H, want to find x which minimises ∥휖∥

Leszek ´ Swirski CFA Interpolation Detection

slide-66
SLIDE 66

Outline CFA Introduction Interpolation Detection CFA Pattern Synthesis Reasoning Methods

‘Ideal’ method

▶ This is a least squares problem, with solution

x = (HTH)−1HT

  • Moore-Penrose Pseudoinverse

y

▶ Can therefore synthesise a least error CFA pattern

yCFA = H(HTH)−1HTy

▶ But calculating (HTH)−1HT efficiently is tricky...

Leszek ´ Swirski CFA Interpolation Detection
