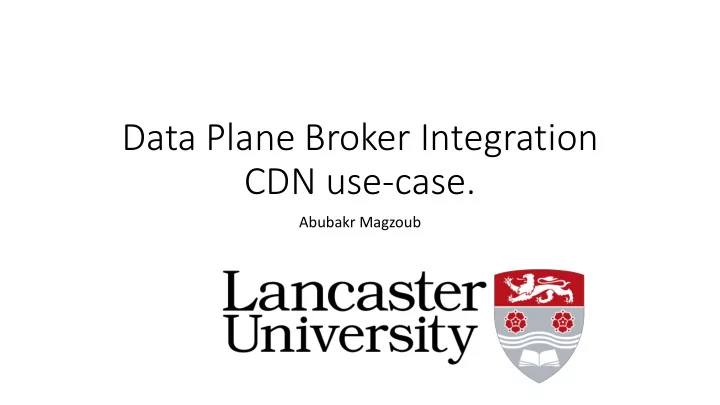

Data Plane Broker Integration CDN use-case.

Abubakr Magzoub

Content Delivery Network (CDN) Use-Case

• CDN Use case shows:
• WIM connection across sites
• Multi-sites NS deployment
• NS Scaling across multiple datacentres

Content Delivery Network (CDN) Use-Case

Creating VIMs Creating a WIM Instantiate NS Stress Scale

• CDN Use case shows:
• WIM connection across sites
• Multi-sites NS deployment
• NS Scaling across multiple datacentres

Content Delivery Network (CDN) Use-Case

Creating VIMs Creating a WIM Instantiate NS Stress Scale

• CDN Use case shows:
• WIM connection across sites
• Multi-sites NS deployment
• NS Scaling across multiple datacentres

The CDN NS consists of four VNFs:

• The client: requests content from the cache node.
• The firewall: which limit the access to the load-balancer by allowing authorised access only.
• The load-balancer: distributes all the incoming requests from the client to the available caches
• The cache nodes: serve the incoming requests.

Content Delivery Network (CDN) Use-Case

The CDN NS consists of four VNFs:

• The client: requests content from the cache node.
• The firewall: which limit the access to the load-balancer by allowing authorised access only.
• The load-balancer: distributes all the incoming requests from the client to the available caches
• The cache nodes: serve the incoming requests.

OSM

CDN Use-Case

Site1-VIM (Athens-OS) Site1-VIM (London-OS) NS MON Prometheus LB Ceilometer Gnocchi Cache Ceilometer Gnocchi Grafana FW Cache RO L2 conn. Client Client Client POL Cache Cache Cache LCM WIM DPB

Deployment across sites using OSM and DataPlane Broker (DPB)

CDN NS Deployment across sites

• Eventually, based on the increasing or decreasing number of clients who request the content from

the cache, the cache-nodes are to scale out or in. However, the bandwidth between the two datacentres has to be managed carefully as to accommodate the load of the content.

Demo
