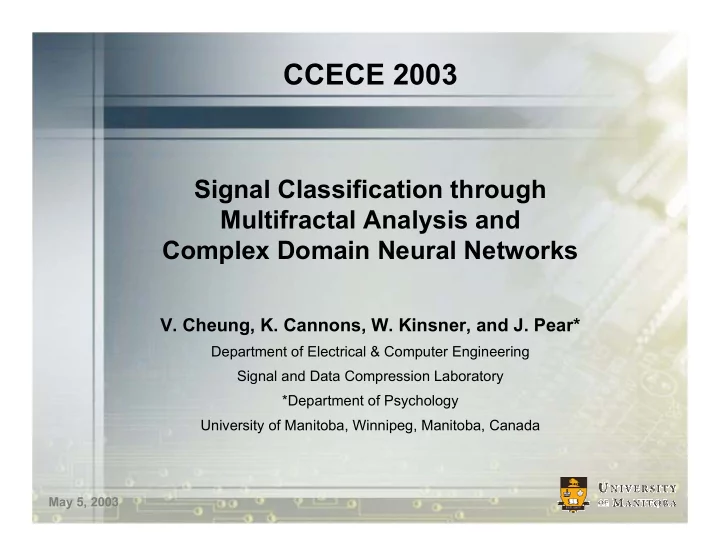

CCECE 2003 Signal Classification through Multifractal Analysis and Complex Domain Neural Networks V. Cheung, K. Cannons, W. Kinsner, and J. Pear* Department of Electrical & Computer Engineering Signal and Data Compression Laboratory

SLIDE 1

May 5, 2003

Signal Classification through Multifractal Analysis and Complex Domain Neural Networks

V. Cheung, K. Cannons, W. Kinsner, and J. Pear*

Department of Electrical & Computer Engineering Signal and Data Compression Laboratory *Department of Psychology University of Manitoba, Winnipeg, Manitoba, Canada

CCECE 2003

SLIDE 2

Cheung 1 / 16 CCECE03

Outline

Introduction
Background

► Variance fractal dimension trajectory ► Kohonen self-organizing feature map ► Probabilistic neural network ► Complex domain neural network

Experimental Results and Discussion
Conclusion

SLIDE 3

Cheung 2 / 16 CCECE03

Introduction

Classification of signals that are:

► Stochastic ► Self-affine ► Non-stationary ► Multivariate ► From non-linear systems

Eg. multi-channel speech signals, multi-lead ECGs
r EEGs

Introduction Background Results Conclusion

SLIDE 4

Cheung 3 / 16 CCECE03

Fish Dishabituation Signals

X Z Y Fish Tank Mirror

Introduction Background Results Conclusion

SLIDE 5

Cheung 4 / 16 CCECE03

System Design

Introduction Background Results Conclusion

Feature Extraction VFDT SOFM Signals Signal Classification Classification PNN CNN

SLIDE 6

Cheung 5 / 16 CCECE03

Variance Fractal Dimension Trajectory

Temporal multifractal characterization

► Calculate the variance fractal dimension of a small

segment of the signal in a sliding-window fashion over the entire signal [Kins94]

► Reveals the underlying complexity of the signal ► Provides a normalizing effect

Advantages of the variance fractal dimension

► Easy to compute

■ Measure the variance of amplitude increments at different scales

► Can be computed in real-time

Introduction Background Results Conclusion

SLIDE 7

Cheung 6 / 16 CCECE03

VFDT Plot

VFDT Introduction Background Results Conclusion

SLIDE 8

Cheung 7 / 16 CCECE03

Self-Organizing Feature Maps (SOFM)

Topology-preserving neural networks using

competitive unsupervised learning [Koho84]

Two uses in this paper

► Clustering

■ Aid in constructing the training and testing sets

► Feature Extraction

■ Dimensionality reduction

Introduction Background Results Conclusion

SLIDE 9

Cheung 8 / 16 CCECE03

Probabilistic Neural Networks

Neural network implementation of the Bayes
ptimal decision rule [Spec88]

► eg. Spam filters

Advantages

► Asympotically Bayes optimal

■ Good classifiers

► Trains orders of magnitude faster than other NNs

Disadvantages

► Slower execution than other NNs ► Require large amounts of memory

Introduction Background Results Conclusion

SLIDE 10

Cheung 9 / 16 CCECE03

Complex Domain Neural Networks (CNN)

Advantages

► Works with inputs in their natural complex valued form ► Faster training ► Better generalization

Disadvantages

► More complexity

■ Convoluted partial derivatives involving complex analysis

Ref: [Mast94]

Introduction Background Results Conclusion

SLIDE 11

Cheung 10 / 16 CCECE03

CNN Architecture

Input Layer Hidden Layer Output Layer 1 2 3

Introduction Background Results Conclusion

SLIDE 12

Cheung 11 / 16 CCECE03

Experiment #1

95% Confidence Interval: [62.77%, 70.69%] 50.00% 93 70 23 4 59.04% 65 111 12 3 92.47% 4 4 135 3 2 100.00% 24 1 Expected 4 3 2 1 Correct

Class. Rate

Experimental Average Correct Classification Rate: 66.73% VFDT

Classification

PNN

X-Axis Signals

Introduction Background Results Conclusion

SLIDE 13

Cheung 12 / 16 CCECE03

Experimental Results Summary

87 91 80 87 96 CNN X & Z 4 3 2 1 Average Rate (%) Classification Rate (%) Classifier Signal 91 95 84 95 100 PNN X & Z 58 91 47 29 63 PNN Z 67 50 59 92 100 PNN X VFDT

X-Axis Signals

VFDT

Z-Axis Signals

CNN PNN

Introduction Background Results Conclusion

SLIDE 14

Cheung 13 / 16 CCECE03

SOFM Feature Extraction

SOFM VFDT

X-Axis Signals

VFDT

Z-Axis Signals

CNN PNN 66 67 PNN X 61 58 PNN Z 88 91 PNN X & Z 85 87 CNN X & Z + SOFM VFDT Average Rate (%) Classifier Signal

Introduction Background Results Conclusion

SLIDE 15

Cheung 14 / 16 CCECE03

Conclusions

A system capable of classifying self-affine,

stochastic, non-stationary, multivariate signals

riginating from non-linear processes was

developed

Feature extraction involving variance fractal

dimensions and self-organizing feature maps shown to be effective

Probabilistic neural networks and complex domain

neural networks shown to be capable of performing the desired classification

Introduction Background Results Conclusion

SLIDE 16

Cheung 15 / 16 CCECE03

Acknowledgements

Natural Sciences and Engineering Research

Council (NSERC) of Canada

University of Manitoba

SLIDE 17

Cheung 16 / 16 CCECE03

References

[ChCa03] V. Cheung and K. Cannons, Signal Classification through Multifractal Analysis and Neural Networks. BSc Thesis. Dept. of Electrical and Computer Engineering, University of Manitoba, Winnipeg, MB, 106 pp., 2003. [Kins94]
