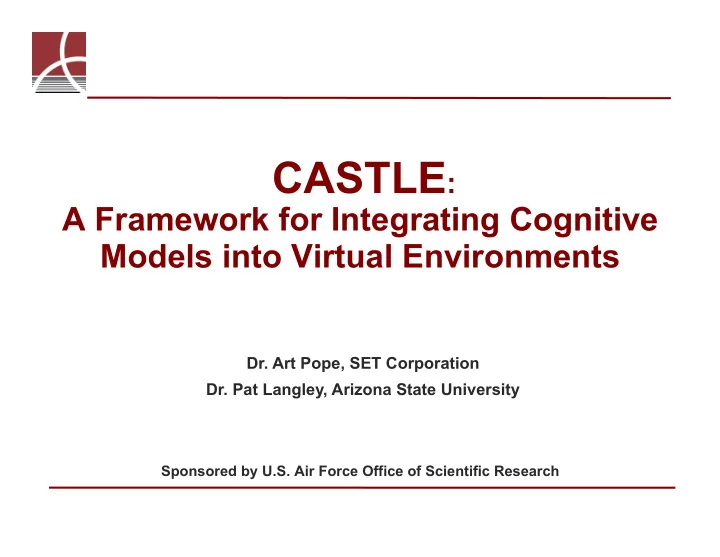

CASTLE:

A Framework for Integrating Cognitive Models into Virtual Environments

Sponsored by U.S. Air Force Office of Scientific Research

• Dr. Art Pope, SET Corporation
• Dr. Pat Langley, Arizona State University

CASTLE In a Nutshell

Virtual Environment

Human Performance Models and Data

Sensory inputs World states and events Motor controls and

• ther actions

Other Virtual Environment Simulations Cognitive Models World Model

Why a virtual environment?

Linking Cognitive Models to Military Simulations CASTLE Solves This Problem

Military Training Simulations Simulate complex, real-time 3-D worlds Standard interfaces available Both human- and machine-controlled actors Need better machine-controlled ones Computational Cognitive Models Emulate human problem solving Recently have perceptual & motor modules Allow “embodiment” in simulated worlds Need suitable problem domains

Problem: Limited integration

 Special-purpose interfaces  Little re-use across research programs  Lab-quality software  Human-like limits not always imposed

Some CASTLE Design Goals

 Scalable

– Multiple levels of complexity and fidelity – Multiple levels of sense / action abstraction

• E.g., visual input as pixels, surfaces or objects
• E.g., muscle control or “pick up x”

 Platform and language portable  Efficient

– Participation in real-time simulations *

 Accessible and extensible

– Run-time discovery of senses and actions – Full as well as biologically-constrained access to state & events

* depending on scene complexity, required fidelity, cognitive model, computing resources…

Support for Experimentation



Import world models from diverse sources



Provide tools for monitoring and control



Log data for analysis and repeatability

What’s Hard

 Simulating physics

– detecting collisions (contacts) among surfaces – integrating motion in the presence of constraints – these are computationally expensive and unstable

 Simulating optics

– building 3-D models with rich structure and texture – efficiently rendering shadows, penumbras, reflections, irradiance

 Gaming applications are driving solutions

– GPU-accelerated physics simulation – real-time ray tracing

With Consistency!

CASTLE Design

API through which cognitive model controls agent Interfaces to specific simulation environments Allows distribution across machines, languages and platforms Renders visual input for cognitive model Simulates physics for cognitive model’s agent Records world states and events Keeps cache

• f world state

Allows software to control framework Allows user to control framework

CASTLE Implementation

Ice middleware Hibernate persistence engine PostgreSQL database Java3D scene graph JOODE physics engine Portico HLA RTI

 Written in Java  Based on open source components  Data modeled and documented using UML

Attaching a Cognitive Model



Cognitive model can access API in any of several languages

– C++, Java, .NET, Python, Ruby, … – LISP via foreign function interface



Cognitive model can be on same or separate machine

–

• n same LAN or across internet gateways and firewalls

Select Actor to Control Attach Cognitive Model as Actor’s Controller Query for Actor’s Characteristics Update Simulation State

• 1. Setup
• 2. Execution

Poll Other Controllers Read Sensory Data Cogitate Output Motor Commands

Framework Cognitive Model

Connect to Simulation

Filtering — Imposing Human Limitations

 Framework imposes human-like limitations on sensory inputs,

motor outputs

 E.g., visibility, accuracy, speed, repeatability  Based on psychophysical and human performance data  Applied through mechanism accessible to experimentalists

Example: Human Visual Performance



Field of view

– Monocular: 160° (w) x 135° (h) – Binocular overlap: 120° (w) x 135° (h)



Resolution

– 60 cycles/deg. to 2.5 cycles/deg. (depends on eccentricity, contrast)



Dynamic range

– 102 : 1 in a single “exposure” – 105 : 1 in a single scene – 109 : 1 with 30 minutes adaptation



Temporal resolution

–

• Max. flicker frequency: 50-60 Hz

(depends on contrast, wavelength, extent) –

• Min. temporal separation: 15-20 ms



Movement

– Tremor: 10-30 arc-seconds; up to 80 Hz – Drift: 1-5 arc-minutes – Microsaccades: 2-120 arc-minutes in 10-20 ms – Saccades: up to 1000°/s for 20-200 ms

Example: Human Auditory Performance



Frequency response: 16 - 20,000 Hz



Sensitivity: 130 dB range

– Min.: 10-12 watts/m2 – Max.: 10 watts/m2 – Temporary Threshold Shift (TTS):

• Reduced sensitivity after exposure to >70 dB(A)



Localization accuracy

– Front: 2° horizontal, 3.5° vertical – Peripheral: 20°



Masking effects

– Frequency or simultaneous masking: inability to distinguish simultaneous sounds – Temporal masking: offset attenuation lasting 50 ms

Filtering — Summary

No. Name Description H04 Front sound localization A human can localize sounds in front to within 2 deg hor., 3.5 deg ver. H05 Peripheral sound localization A human can localize sounds to the side to within 20 deg H06 Sound masking Loud sounds mask a human's perception (detection) of quiet

• nes

H07 Sound dynamic range A human perceives sounds over a dynamic range of 130 dB H08 Distant sounds A human is given perceptual cues as to the distance of sound sources H09 Sound characterization A human can distinguish various categories of sounds, such as explosions, vehicles, and contact noises S04 Field of view A human eye has a field of view of 160x135 deg S05 Foveal resolution Foveal resolution of a human eye is 60 cycles / deg S06 Parafoveal resolution Parafoveal resolution of a human eye is 15 cycles / deg S07 Peripheral resolution Peripheral resolution of a human eye is 2.5 cycles / deg

Algorithms Parameters

Java XML

Human Performance “Spec Sheet” CASTLE Framework Models & Data

Configurable Senses and Motors



Vision sense

– any number of “eyes” – each with specified field-of-view, resolution, saccade muscles – delivers images and/or sets of visible objects



Kinesthetic sense

– delivers approximate position and force of each joint



Tactile sense

– entire visible surface is touch sensitive – 3-D “skin” surface mapped to 2-D touch position manifold – resolution and sensitivity interpolated from discrete nodes – delivers approximate position and pressure, with stochastic error



Time sense

– delivers approximate elapsed time, with stochastic error



Motors / muscles

– control hinged joints and wheels – each has maximum velocity, acceleration, torque – cognitive model can command position, velocity, or torque – commanded values are stochastically perturbed

No cheating: All cognitive model inputs and outputs are normalized, unit- less quantities with stochastic noise.

Example: Simple Humanoid Robot

monocular vision tactile sense on all surfaces stable wheeled base neck rotation shoulder & elbow rotation waist rotation pivot steering proprioception in all joints temporal sense

Example: Outdoor Urban Environment

Current Status of CASTLE Framework



Senses implemented:

– Vision: both pixel and visible surface representations – Tactile: contact location and force – Kinesthetic: joint angles and forces – Time



Actions implemented:

– Position, velocity and force control of muscles / motors on hinged and rotary joints



Simulation interfaces implemented:

– Interface to simulation environments via High-Level Architecture (HLA) – Testing with Delta3D simulation environment



Cognitive architecture interfaces implemented:

– Interface to Icarus via Common Lisp foreign function interface



Virtual environments:

– Indoor world of rooms, furniture and objects – Outdoor world of roads, buildings and vehicles



Free, open source for educational and research use
