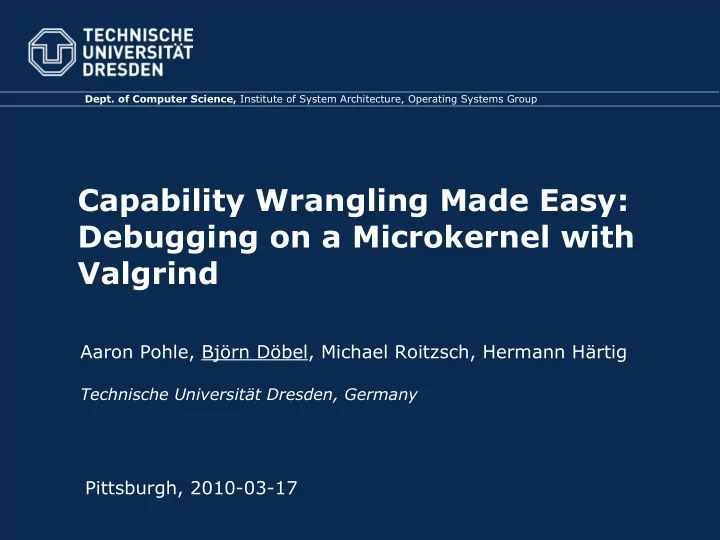

Dept. of Computer Science, Institute of System Architecture, Operating Systems Group Capability Wrangling Made Easy: Debugging on a Microkernel with Valgrind Aaron Pohle, Bjrn Dbel, Michael Roitzsch, Hermann Hrtig Technische Universitt

slide-1
SLIDE 1
  • Dept. of Computer Science, Institute of System Architecture, Operating Systems Group

Capability Wrangling Made Easy: Debugging on a Microkernel with Valgrind

Pittsburgh, 2010-03-17 Aaron Pohle, Björn Döbel, Michael Roitzsch, Hermann Härtig

Technische Universität Dresden, Germany

slide-2
SLIDE 2

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 2 / 18

Programmers Make Mistakes

void *grow_heap(unsigned size) { int idx = alloc_capability(); mem_area *mem = mem_alloc(size, idx); return mem->addr; } void shrink_heap(void *addr) { mem_free(addr); }

slide-3
SLIDE 3

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 3 / 18

Outline

  • Valgrind and Fiasco.OC
  • Porting challenges
  • CapCheck leak detector
slide-4
SLIDE 4

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 4 / 18

Valgrind: Binary Instrumentation

Valgrind Tool Client Address Space POSIX kernel interface

slide-5
SLIDE 5

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 5 / 18

Valgrind: Complex Tools

Valgrind Client

Thread 1 Thread 2

  • Shadow values
  • Consistency requirement:

Basic blocks must be atomic.

slide-6
SLIDE 6

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 6 / 18

Fiasco.OC – Capabilities

Fiasco.OC microkernel Task A Task B

1 2 3 1 2 3

A A B B C C

slide-7
SLIDE 7

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 7 / 18

Porting Valgrind to Fiasco.OC

  • POSIX environment
  • Threads
  • User-level thread control block (UTCB)

– Carries system call payload – Need one for each thread role

  • User-level memory management
slide-8
SLIDE 8

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 8 / 18

Fiasco.OC – Memory Management

Region Map Region Manager Client Thread

slide-9
SLIDE 9

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 9 / 18

Fiasco.OC – Memory Management

Region Map Valgrind Segment List Region Manager Client Thread

RM Proxy

slide-10
SLIDE 10

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 10 / 18

Page Fault Handling (Linux)

User Thread Kernel

Handle Fault

Page Fault interrupts → basic block

slide-11
SLIDE 11

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 11 / 18

Page Fault Handling (Fiasco.OC)

User Thread Kernel

Handle Fault

Page Fault interrupts → basic block

Region Manager

slide-12
SLIDE 12

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 12 / 18

Two basic blocks may execute in parallel.

Solving the Parallelism Problem

Potential solutions:

  • Eliminate atomicity assumption
  • Checkpoint & restart for basic blocks
  • Eliminate special case
slide-13
SLIDE 13

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 13 / 18

Eliminate special case

User Thread Kernel

Handle Fault

Page Fault interrupts → basic block

Region Manager

Handle Fault

slide-14
SLIDE 14

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 14 / 18

Virtual Region Manager

Valgrind Segment List Client Thread

C V VRM

slide-15
SLIDE 15

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 15 / 18

Capability bugs

  • User-level slot management

– Capability leakage

  • Advanced feature: capability overmap

– Optimization – Error

slide-16
SLIDE 16

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 16 / 18

CapCheck

  • Track CAP_ALLOC / CAP_FREE events

– Cap alloc stack trace

  • Track capability mappings

– Map stack trace

  • Track capability invocations

– Protocol ID – Detect mismatches

slide-17
SLIDE 17

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 17 / 18

Evaluation

LibC wrappers ~ 400 LoC Binary translator 13 LoC System call handling ~ 200 LoC Virtual Region Manager ~ 400 LoC CapCheck tool ~ 200 LoC

slide-18
SLIDE 18

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 18 / 18

Summary

  • Valgrind (and tools) running on Fiasco.OC
  • Memory management issues

– Virtual region manager

  • CapCheck tool for

– Detecting capability leakage – Detecting capability overmap

slide-19
SLIDE 19

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 19 / 18

Lessons Learned

  • Moving POSIX kernel features to user space
  • Capabilities aid flexibility.
slide-20
SLIDE 20

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 20 / 18

Valgrind Tools

  • MemCheck

– Memory leak detector

  • Helgrind

– Thread checker / race detector

  • CacheGrind

– Cache profiler

  • Massif

– Heap profiler

  • Chronicle-Recorder

– Memory tracer (in the works)

slide-21
SLIDE 21

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 21 / 18

Non-POSIX Difficulties: Files

  • Common in Valgrind core:

NSegment *s = VG_(lookup_nsegment)(addr); int fd = open(filename, ...) /* use segment s */

  • Problem: only works, if nsegment array stays

constant

– L4Re's open() may establish a new memory mapping modifies nsegment array →

slide-22
SLIDE 22

VEE '10, 2010-03-17 Capability Wrangling Made Easy Slide 22 / 18

Valgrind vs. Fiasco.OC Assumptions

(1) There is exactly one pager per thread. (2) There is exactly one region manager per task. (3) Basic blocks are executed atomically.
