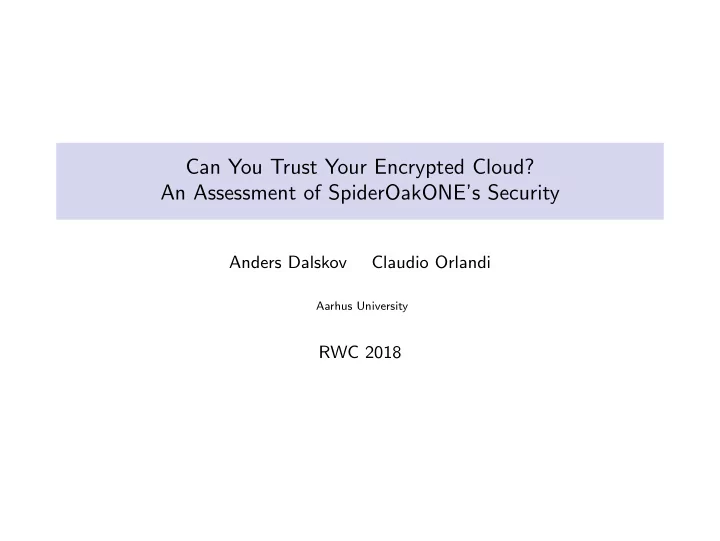

Can You Trust Your Encrypted Cloud? An Assessment of SpiderOakONEs - - PowerPoint PPT Presentation

Can You Trust Your Encrypted Cloud? An Assessment of SpiderOakONE’s Security

Anders Dalskov Claudio Orlandi

Aarhus University

RWC 2018

Agenda

I A Threat Model for Encrypted Cloud Storage (ECS). I A high-level look into a modern ECS service SpiderOakONE. I Attacks on SpiderOakONE and what we can learn from them.

Agenda

I A Threat Model for Encrypted Cloud Storage (ECS). I A high-level look into a modern ECS service SpiderOakONE. I Attacks on SpiderOakONE and what we can learn from them.

Disclaimer: All issues were reported on June 5th 2017 responsibly, and are fixed in version 6.4.0 of SpiderOakONE.

(Password) Encrypted Cloud Storage

Traditional Cloud Storage raises some privacy concerns:

(Password) Encrypted Cloud Storage

Traditional Cloud Storage raises some privacy concerns:

I Besides us, who can read our files?

(Password) Encrypted Cloud Storage

Traditional Cloud Storage raises some privacy concerns:

I Besides us, who can read our files? I What happens to the files we delete? Or when we close our account?

(Password) Encrypted Cloud Storage

Traditional Cloud Storage raises some privacy concerns:

I Besides us, who can read our files? I What happens to the files we delete? Or when we close our account? I What if the Cloud Storage company is sold?

(Password) Encrypted Cloud Storage

Traditional Cloud Storage raises some privacy concerns:

I Besides us, who can read our files? I What happens to the files we delete? Or when we close our account? I What if the Cloud Storage company is sold?

Solution: Encrypt files on the client before sending them to the server.

Threat Model

ECS should provide more security than Traditional Cloud Storage: We want our files to stay secure even if the server turns malicious.

Threat Model

ECS should provide more security than Traditional Cloud Storage: We want our files to stay secure even if the server turns malicious. ECS providers seem to agree:

I Tresorit: We believe you should never have to ‘trust’ a cloud service I LastPass: No one at LastPass can ever access your sensitive data. I sync: We can’t read your files and no one else can either I pCloud: No one, even pCloud’s administrators, will have access to your

content

I SpiderOak: No Knowledge means we know nothing about the encrypted

data you store on our servers

I . . .

Threat Model

But is a “malicious server” threat model actually used?

Threat Model

But is a “malicious server” threat model actually used? For example, SpiderOak wrote (after we’d disclosed the issues we found): When we started building SpiderOak in 2006, the threat model was an attacker who would want to compromise SpiderOak and steal customer data [...] Because this was a legacy mindset, the SpiderOak ONE backup code base is not robust against a different kind of threat model: SpiderOak, the company, as the active attacker

Threat Model

But is a “malicious server” threat model actually used? For example, SpiderOak wrote (after we’d disclosed the issues we found): When we started building SpiderOak in 2006, the threat model was an attacker who would want to compromise SpiderOak and steal customer data [...] Because this was a legacy mindset, the SpiderOak ONE backup code base is not robust against a different kind of threat model: SpiderOak, the company, as the active attacker Previous work that has examined ECS (SpiderOakONE in particular):

I Bhargavan et al (2012): External adversary. CSRF in web interface that

could be used to learn location of shared files.

I Wilson & Ateniese (2014): Only considers file sharing. Found that the

server can read files shared by the user.

Threat Model—Our attempt

Assume an honest client (client software obtained before server turns malicious).

Threat Model—Our attempt

Assume an honest client (client software obtained before server turns malicious). Informally, we try to answer the questions:

Threat Model—Our attempt

Assume an honest client (client software obtained before server turns malicious). Informally, we try to answer the questions:

• 1. Are we secure against a passive adversary? I.e. is the client’s default

behaviour secure?

Threat Model—Our attempt

Assume an honest client (client software obtained before server turns malicious). Informally, we try to answer the questions:

• 1. Are we secure against a passive adversary? I.e. is the client’s default

behaviour secure?

• 2. Are we secure against an active adversary? Is the protocols secure against

misuse? What about the client implementation?

Threat Model—Our attempt

Assume an honest client (client software obtained before server turns malicious). Informally, we try to answer the questions:

• 1. Are we secure against a passive adversary? I.e. is the client’s default

behaviour secure?

• 2. Are we secure against an active adversary? Is the protocols secure against

misuse? What about the client implementation? Formally: Indistinguishability experiment between an oracle (client) and adversary (server). Our definition only considers confidentiality. Refer to our paper for the details: https://eprint.iacr.org/2017/570

SpiderOakONE—Quick facts

SpiderOakONE is an ECS with praise/endorsements from both Edward Snowden and the EFF. Uses “No Knowledge” (and “Zero Knowledge” before that) to describe their encryption routines.

I Supports Windows, Mac and Linux (partial support for Android and iOS), I File sharing (single files and whole directories), I Written in Python =

⇒ decompilation is easy,

I Certificate Pinning + TLS =

⇒ limits scope of attacks. Our review focused on version 6.1.5, released July 2016.

SpiderOakONE—Communication

Client Server Input: password pw protocol ID pid

• Abort if invalid pid

Auth with protocol identified by pid

• !
• . . .

RPC fi (x1, . . . , xn)

• v = fi (x1, . . . , x2)

v

• !

store/process v

SpiderOakONE—Communication

Client Server Input: password pw protocol ID pid

• Abort if invalid pid

Auth with protocol identified by pid

• !
• . . .

RPC fi (x1, . . . , xn)

• v = fi (x1, . . . , x2)

v

• !

store/process v

Authentication:

I Only run on first install. I Server picks what protocol to run. (4 possible, but only 2 were observed.) I All protocols are non-standard (i.e. “home-made”).

SpiderOakONE—Communication

Client Server Input: password pw protocol ID pid

• Abort if invalid pid

Auth with protocol identified by pid

• !
• . . .

RPC fi (x1, . . . , xn)

• v = fi (x1, . . . , x2)

v

• !

store/process v

Authentication:

I Only run on first install. I Server picks what protocol to run. (4 possible, but only 2 were observed.) I All protocols are non-standard (i.e. “home-made”).

RPC:

I Everything else (data transfer, device stats, etc.) I Comprehensive: Server can call ≈ 90 different procedures on the client.

SpiderOakONE—Encryption

User files:

I File F is encrypted with kF = H(F || mk); I kF is encrypted with a per-directory key dki; I dki is encrypted with a per-account long-term

key;

I long-term keys are encrypted with

k = KDF(pw). Password pw Long-term keys (mk and others) dkn . . . dk1 ki,n ki,1

SpiderOakONE—Encryption

User files:

I File F is encrypted with kF = H(F || mk); I kF is encrypted with a per-directory key dki; I dki is encrypted with a per-account long-term

key;

I long-term keys are encrypted with

k = KDF(pw). Password changes: A password change only triggers re-encryption of the long-term secrets. I.e. no “future secrecy”. Password pw Long-term keys (mk and others) dkn . . . dk1 ki,n ki,1

Attacks

We found 4 different issues that can be leveraged for attacks on the client:

I 1 attack weakens the security of a hash derived from the user’s password

(we’ll skip this);

I 2 attacks recover the user’s password—one is completely silently! I 1 attack can in some situations recover files that are not supposed to be

shared (during sharing of other files). All but the last attack is active. Verification: All attacks was implemented and verified to work against version 6.1.5 of SpiderOakONE.

Password recovery

Recall: 2 authentication protocols were seen, yet 4 can be run.

Password recovery

Recall: 2 authentication protocols were seen, yet 4 can be run.

Client Server Input: pw Input: lst list of RSA public-keys, chl random string lst, chl

• Display FP(lst) to
• user. Continue if user

accepts a = LE(pw, lst, chl)

• !

??? I FP(lst) computes a “fingerprint” on lst using RFC1751; I LE(pw, lst, chl) computes a “layered encryption” of pw and lst using keys

from lst. I.e. a = Encpkn(Encpkn−1 . . . (Encpk1(pw || chl))).

Password recovery

Recall: 2 authentication protocols were seen, yet 4 can be run.

Client Server Input: pw Input: lst list of RSA public-keys, chl random string lst, chl

• Display FP(lst) to
• user. Continue if user

accepts a = LE(pw, lst, chl)

• !

??? I FP(lst) computes a “fingerprint” on lst using RFC1751; I LE(pw, lst, chl) computes a “layered encryption” of pw and lst using keys

from lst. I.e. a = Encpkn(Encpkn−1 . . . (Encpk1(pw || chl))). Issue: Server can pick pki s.t. it knows ski, which lets it recover pw from a.

Password recovery

FP(lst) changes when lst changes. But what should the user compare the fingerprint to?

Password recovery

FP(lst) changes when lst changes. But what should the user compare the fingerprint to? TOFU: If your SpiderOakONE Administrator has given you a fingerprint phrase and it matches the fingerprint below, or if you have not been given a fingerprint, please click “Yes” below. Otherwise click “No” and contact your SpiderOakONE Administrator. I.e. if the user does not have anything to compare FP(lst) against, then they should just accept.

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server;

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another;

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

Scenario 1:

• 1. Directory D with files F1, F2, . . . , Fn;
• 2. Move Fi to D0 and then share D;

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

Scenario 1:

• 1. Directory D with files F1, F2, . . . , Fn;
• 2. Move Fi to D0 and then share D;
• 3. But, Fi is encrypted with dkD

(obs. 2), which server knows (obs. 1);

• 4. Server can recover Fi.

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

Scenario 1:

• 1. Directory D with files F1, F2, . . . , Fn;
• 2. Move Fi to D0 and then share D;
• 3. But, Fi is encrypted with dkD

(obs. 2), which server knows (obs. 1);

• 4. Server can recover Fi.

Scenario 2:

• 1. Directory D with files F1, . . . , Fn is

shared (server knows dkD);

• 2. Sharing of D ceases;
• 3. File Fn+1 is added to D;

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

Scenario 1:

• 1. Directory D with files F1, F2, . . . , Fn;
• 2. Move Fi to D0 and then share D;
• 3. But, Fi is encrypted with dkD

(obs. 2), which server knows (obs. 1);

• 4. Server can recover Fi.

Scenario 2:

• 1. Directory D with files F1, . . . , Fn is

shared (server knows dkD);

• 2. Sharing of D ceases;
• 3. File Fn+1 is added to D;
• 4. But, dkD was not invalidated in

step 2 (obs. 3) = ⇒ Fn+1 is also encrypted under dkD;

• 5. Server can recover Fn+1.

File recovery via. directory sharing (ShareRooms)

Observations: (1) sharing directory D happens by revealing dkD (the directory key) to the server; (2) file encryptions are not updated when moving a file from

• ne directory to another; and (3) directory keys are never rotated.

Scenario 1:

• 1. Directory D with files F1, F2, . . . , Fn;
• 2. Move Fi to D0 and then share D;
• 3. But, Fi is encrypted with dkD

(obs. 2), which server knows (obs. 1);

• 4. Server can recover Fi.

Scenario 2:

• 1. Directory D with files F1, . . . , Fn is

shared (server knows dkD);

• 2. Sharing of D ceases;
• 3. File Fn+1 is added to D;
• 4. But, dkD was not invalidated in

step 2 (obs. 3) = ⇒ Fn+1 is also encrypted under dkD;

• 5. Server can recover Fn+1.

In both scenarios, files are recovered that the user took specific steps to avoid sharing.

Password recovery (again)

After installation, the user’s password is stored in plaintext on the user’s

• machine. (This avoids the user having to input it on every boot.)

Password recovery (again)

After installation, the user’s password is stored in plaintext on the user’s

• machine. (This avoids the user having to input it on every boot.)

RPC methods exist that, on input a file path, will return the file’s content if the file path matches a regular expression.

Password recovery (again)

After installation, the user’s password is stored in plaintext on the user’s

• machine. (This avoids the user having to input it on every boot.)

RPC methods exist that, on input a file path, will return the file’s content if the file path matches a regular expression. The file path for the file containing the user’s password matches this regular expression.

Password recovery (again)

After installation, the user’s password is stored in plaintext on the user’s

• machine. (This avoids the user having to input it on every boot.)

RPC methods exist that, on input a file path, will return the file’s content if the file path matches a regular expression. The file path for the file containing the user’s password matches this regular expression. Attack: The server can just “ask” the client to send the user’s password.

My 5 cents on secure application design

I Complexity. Many RPC methods and different authentication protocols

create a large attack surface.

My 5 cents on secure application design

I Complexity. Many RPC methods and different authentication protocols

create a large attack surface.

I Same secret for both authentication and encryption. All active attacks we

found were the result of using the same secret (the password) for both encryption and authentication.

My 5 cents on secure application design

I Complexity. Many RPC methods and different authentication protocols

create a large attack surface.

I Same secret for both authentication and encryption. All active attacks we

found were the result of using the same secret (the password) for both encryption and authentication.

I Different execution contexts. The client should avoid making assumptions

about the user.

Wrapping up

Talk Summary:

I Motivation for Encrypted Cloud Storage and its security requirements; I A Threat Model for ECS. Specifically, security in the presence of an either

passive or active malicious server;

I Examples of how security in a real ECS (SpiderOakONE) breaks down

when the server turns malicious.

Wrapping up

Talk Summary:

I Motivation for Encrypted Cloud Storage and its security requirements; I A Threat Model for ECS. Specifically, security in the presence of an either

passive or active malicious server;

I Examples of how security in a real ECS (SpiderOakONE) breaks down

when the server turns malicious. Concluding remark: ECS is intended to provide more, in terms of security, than traditional Cloud Storage, and the Threat Model should reflect this fact.
