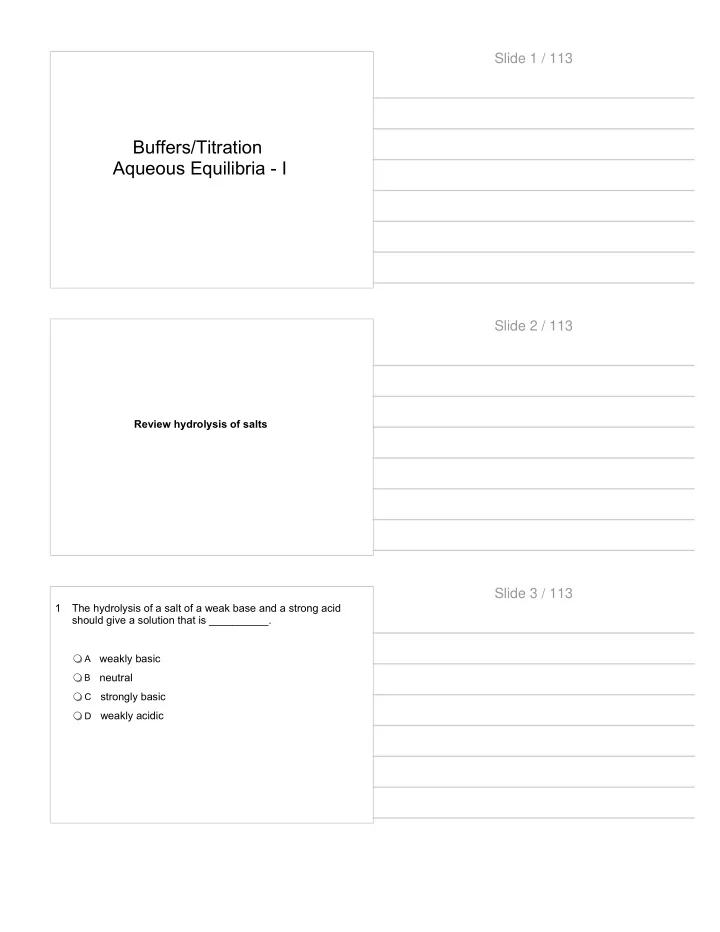

Buffers/Titration Aqueous Equilibria - I

Slide 1 / 113

Review hydrolysis of salts

Slide 2 / 113

1 The hydrolysis of a salt of a weak base and a strong acid should give a solution that is __________.

A

weakly basic

B

neutral

C

strongly basic

D

weakly acidic

Slide 3 / 113

2 A solution of one of the following is acidic. The compound is _________.

A

NaCl

B

CH3COONa

C

NH4Cl

D

NH3

Slide 4 / 113

3 Which salt would undergo hydrolyzes to form an acidic solution?

A

KCl

B

NaCl

C

NH4Cl

D

LiCl

Slide 5 / 113

4 Which substance when dissolved in water will produce a solution with a pH greater than 7?

A

CH3COOH

B

NaCl

C

NaC2H3O2

D

HCl

Slide 6 / 113

5 A basic solution would result from the hydrolysis of one

• f the ions in this compound. The compound

is__________.

A

NaNO3

B

NH4Cl

C

CH3COONa

D

CaCl2

Slide 7 / 113

6 A water solution of which compound will turn blue litmus red?

A

K2CO3

B

NH4Cl

C

NaOH

D

NaCl

Slide 8 / 113

The Common-Ion Effect

· Consider an aqueous solution of acetic acid: · If acetate ion is added to the solution, Le Châtelier 's Principle predicts that the equilibrium will shift to the left. CH3COOH(aq) + H2O(l) ↔ H3O+(aq) + CH3COO-(aq)

Slide 9 / 113

The Common-Ion Effect

“The extent of ionization of a weak electrolyte is decreased by adding to the solution a strong electrolyte that has an ion in common with the weak electrolyte.” In the following Sample Problem, compare the pH

• f a 0.20 M solution of HF with the pH of the same

solution after some NaF is added to it.

Slide 10 / 113

SAMPLE PROBLEM #1 a) Calculate the pH of a 0.20 M HFsolution. The Ka for HF is 6.8 ´ 10−4.

The Common-Ion Effect

HF(aq) H2O(l) H3O+(aq) F−(aq)

Initial 0.20 M Change

• x

+x +x At Equilibrium 0.20-x x x

HF(aq) + H2O(l) ↔ H3O+(aq) + F-(aq)

Slide 11 / 113

6.8 x 10-4 = x2 (0.20) Ka = [H3O+][F-] [HF] = 6.8 x 10-4 x2 = (0.20) (6.8 ´ 10−4) x = 0.012

So, [H+] = [F-] = 0.012 and pH = 1.93

The Common-Ion Effect

Slide 12 / 113

The Common-Ion Effect

SAMPLE PROBLEM #1 (con't) b) Calculate the pH of a for the same 0.20 M HF solution that also contains 0.10 M NaF. Ka for HF is 6.8 ´ 10−4. Ka = [H3O+][F-] [HF] = 6.8 x 10-4

Slide 13 / 113

The Common-Ion Effect

HF(aq) + H2O(l) ↔ H3O+(aq) + F-(aq) b) Calculate the pH of a for the same 0.20 M HF solution that also contains 0.10 M NaF. · We use the same equation and the same Ka expression, and set up a similar ICE chart. · But because NaF is a soluble salt, it completely dissociates, so F- is not initially zero. HF(aq) H2O(l) H3O+(aq) F−(aq)

Initial

0.20 M 0.10 M

Change at Equilibrium

Slide 14 / 113

HF(aq) H2O(l) H3O+(aq) F−(aq)

Initial 0.20 M 0.10 M Change

• x

+x +x At Equilibrium 0.20-x x 0.10 + x

The Common-Ion Effect

Slide 15 / 113

The Common-Ion Effect

Therefore, x = [H3O+] = 1.4 x 10−3 and pH = −log (1.4 x 10−3) pH = 2.87

Slide 16 / 113

The Common-Ion Effect

1.4 ´ 10−3 = x 6.8 x 10-4 = (0.10)(x) (0.20) (0.20)(6.8 x 10-4) (0.10) = x Ka =

Remember what the "x" is that you are solving for!

Slide 17 / 113

HF(aq) + H2O(l) ↔ H3O+(aq) + F-(aq) · Consider the two solutions we just examined in Sample Problem #1. · Compare the following: · How do these results support Le Chatelier's Principle?

The Common-Ion Effect

Solution Final [H3O+] pH HF 0.12 HF and NaF 1.4 x 10-3

Slide 18 / 113

The Ka for acetic acid, CH3COOH or HC2H3O2, is 1.8 x 10-5. SAMPLE PROBLEM #2 a) Calculate the pH of a 0.30 M acetic acid, CH3COOH. b) Calculate the pH of a solution containing 0.30 M acetic acid and 0.10 M sodium acetate.

The Common-Ion Effect

Slide 19 / 113

The Ka for acetic acid, CH3COOH, is 1.8 x 10-5. SAMPLE PROBLEM #2 - Answers a) Calculate the pH of a 0.30 M acetic acid solution.

The Common-Ion Effect

x2 1.8 x 10-5 = Ka = [H3O+][C2H3O2

• ]

[HC2H3O2] = 1.8 x 10-5 (0.30) x = [H3O+] = ______________ and pH = ___________

Slide 20 / 113

The Ka for acetic acid, CH3COOH or HC2H3O2, is 1.8 x 10-5. SAMPLE PROBLEM #2 - Answers (con't) b) Calculate the pH of a solution containing 0.30 M acetic acid

and 0.10 M sodium acetate.

We use the same Ka expression, except now the acetate ion concentration is not the same as [H3O+].

The Common-Ion Effect

[H3O+] (0.10) 1.8 x 10-5 = Ka = [H3O+][C2H3O2

• ]

[HC2H3O2] = 1.8 x 10-5 (0.30) So now, [H3O+] = ______________ and pH = ___________

Slide 21 / 113

HC2H3O2 (aq) + H2O (l) ↔ C2H3O2

• (aq) + H3O+(aq)

· Consider the two solutions we just examined in Sample Problem #2. · Compare the following: · How do these results support Le Chatelier's Principle?

The Common-Ion Effect

Solution [OH-] pH HC2H3O2 HC2H3O2 and NaC2H3O2

Slide 22 / 113

SAMPLE PROBLEM #3 Calculate the pH of the following solutions: a) 0.85 M nitrous acid, HNO2 b) 0.85 M HNO2 and 0.10 M potassium nitrite, KNO2 The Ka for nitrous acid is 4.5 x 10-4.

The Common-Ion Effect

Answers: a) b)

Slide 23 / 113

7 The ionization of HF will be decreased by the addition of:

A

NaCl

B

NaF

C

HCl

D

Both A and B

E

Both B and C

Slide 24 / 113

8 The dissociation of Al(OH)3 will be decreased by the addition of:

A

KOH

B

AlCl3

C

Mg(OH)2

D

Both A and B

E

A, B and C

Slide 25 / 113

9 Which of the following substances will not decrease the ionization of H3PO4?

A

K3PO4

B

HCl

C

Na3PO4

D

None of them will decrease the ionization

E

All of them will decrease the ionization

Slide 26 / 113

The Common-Ion Effect

The Common-ion effect can also be observed with weak bases. Consider the ionization of ammonia, NH3, which is a weak base.

NH3

+ H2O <---> NH4 + + OH-

Slide 27 / 113

The Common-Ion Effect

Suppose a salt of the conjugate base is added to a solution of ammonia. What effect would this have on pH?

NH3

+ H2O <---> NH4 + + OH-

As with the previous Sample Problems, let us calculate the pH of the following: a) a 0.45 M solution of NH3 b) a 0.45 M solution of NH3 that also contains 0.15 M NH4Cl, ammonium chloride -- a soluble salt that readily yields NH4

+ ions.

Slide 28 / 113

SAMPLE PROBLEM #4 Calculate the pH of the following solutions:

a) a 0.45 M solution of NH3 b) a 0.45 M solution of NH3 that also contains 0.15 M NH4Cl

The Kb for NH3 is 1.8 x 10-5.

The Common-Ion Effect

Slide 29 / 113

SAMPLE PROBLEM #4 - Answers

a) Calculate the pH of a 0.45 M solution of NH3.

The Kb for NH3 is 1.8 x 10-5. NH3

+ H2O <---> NH4 + + OH-

The Common-Ion Effect

[NH4

+][OH- ]

[NH3] Kb = 1.8 x 10-5 = x = [OH-] = _____________

pH = _________________

x2 (0.45) 1.8 x 10-5 =

Slide 30 / 113

SAMPLE PROBLEM #4 - Answers (con't)

b) Calculate the pH of a 0.45 M solution of NH3 that also contains 0.15 M NH4Cl. The Kb for NH3 is 1.8 x 10-5.

NH3

+ H2O <---> NH4 + + OH-

The Common-Ion Effect

[NH4

+][OH- ]

[NH3] Kb = 1.8 x 10-5 = (0.15) (x) (0.45) 1.8 x 10-5 = So, x = [OH-] = _____________ and pH = _________________

Slide 31 / 113

SAMPLE PROBLEM #5 Calculate the pH of the following solutions:

a) 0.0750 M pyridine, C5H5N b) 0.0750 M C5H5N and 0.0850 M pyridinium chloride, C5H5NHCl Note that C5H5NHCl,( salt) dissociates into C5H5NH+ and Cl-.

The Kb for pyridine is 1.7 x 10-9.

The Common-Ion Effect

Answers: a) b)

Slide 32 / 113

Buffers

Buffers, or buffered solutions, are special mixtures that are resistant to large pH changes, even when small amounts of strong acid or strong base are added.

Slide 33 / 113

Buffers

· Buffers are able to resist large pH changes because they contain both an acidic component and a basic component. · Buffers are prepared by mixing either: 1) a weak acid and a salt containing its conjugate base OR 2) a weak base and a salt containing its conjugate acid

Slide 34 / 113

Buffers

Consider a buffer solution composed of HF and NaF. · The acidic component is HF. This component aids in the neutralization of any strong base that is added to the buffer. · The basic component is the fluoride ion, F-. This component aids in the neutralization of any strong acid that is added to the buffer.

Slide 35 / 113

Buffers

If a small amount of KOH is added to this buffer, for example, the HF reacts with the OH− to make __________. Consider a buffer solution composed of HF and NaF.

HF F

• HF

F

• F
• HF

F- + H2O <-- HF + OH- H+ + F- --> HF OH- H

+

Buffer after addition of OH- Buffer with equal

• conc. of weak acid

and its conj. base

F- HF

Slide 36 / 113

Buffers

Similarly, if a small amount of strong acid (H+) is added, the F− reacts with it to form ____________.

HF F- HF F- F- HF F

• + H2O <-- HF + OH
• H

+ + F

• --> HF

OH

• H

+

Buffer after addition of OH-

Buffer with equal

• conc. of weak acid

and its conj. base Buffer after addition of H+

Slide 37 / 113

10 If a buffer is made of HA (weak acid) and NaA, which species will counteract the addition of a strong base?

A

HA

B

Na+

C

A-

D

Both HA and Na+

E

Both HA and A-

Slide 38 / 113

11 If a buffer is made of HNO2 and KNO2 , which species will counteract the addition of a strong acid?

A

HNO2

B

K+

C

NO2

• D

Both HNO2 and K+

E

Both K+ and NO2

• Slide 39 / 113

Buffer capacity and pH

Two important characteristics of buffers: 1- Its resistance to change in pH 2- Its buffer capacity Buffer capacity: The amount of acid or base the buffer can neutralize before the pH begins to change. It depends on the amount of acid and base from which the buffer is made.

Slide 40 / 113

[ H3O+] = Ka The above two combination of solution will have the same [H+]. The pH will depend on ka and the relative concentration of acid and base only. The buffering capacity will be higher for the first buffer. It contains greater number of moles of CH3COOH and NaCH3COO-. It can neutralize more of the acid/base added. The greater the amounts, greater resistance to pH change.

Buffer capacity and pH

Buffer A Buffer B 1.0 M CH3COOH and 1.0 M CH3COONa Total volume = 1.0 L 0.1 M CH3COOH and 0.1 M CH3COONa Total volume = 1.0 L

Ka = [H3O+][C2H3O2

• ]

[HC2H3O2] [HC2H3O2] [C2H3O2

• ]

= 1 Since

Slide 41 / 113

12 Of the following solutions, which has the greatest buffering capacity? A 0.1M NaF + 0.1MHF B 0.5M NaF + 0.55M HF C 0.8M NaF + 0.8M HF D 0.2M NaF + 0.2M HF E 1M NaF + 1M HF

Slide 42 / 113

Buffer Calculations

Consider the equilibrium constant expression for the dissociation of a generic acid, HA: HA + H2O ↔ H3O+ + A- Ka = [H3O+][A-] [HA]

Slide 43 / 113

Buffer Calculations

Rearranging slightly, this becomes Ka = [H3O+] [A-] [HA] Taking the negative log of both sides, we get

• log Ka = -log [H3O+] +(-log

) [A-] [HA] pKa = pH - log [base] [acid]

Slide 44 / 113

Buffer Calculations

Since pKa = pH - log [base] [acid] Rearranging this: pH = pKa + log [base] [acid] This is the Henderson-Hasselbalch equation

Slide 45 / 113

Buffer calculations typically require you to calculate one or more of the following: i) the pH of the buffer alone (Sample Prob #6) ii) the pH of the buffer after a small amount of strong base has been added (and neutralized)

(Sample Prob #7)

iii) the pH of the buffer after a small amount of strong acid has been added (and neutralized)

(Sample Prob #8)

Because of the buffer system, the pH will not change drastically; it is usually less than a factor of 1.0 on the pH scale.

Buffer Calculations

Slide 46 / 113

SAMPLE PROBLEM #6

What is the pH of a buffer that is 0.12 M in lactic acid, CH3CH(OH)COOH, and 0.10 M in sodium lactate? Ka for lactic acid is 1.4 ´ 10−4.

Buffer Calculations

Method 1 - Traditional approach Write the Ka expression. Solve for H+ and pH using ICE chart

HC3H5O3 (aq) + H2O(l) ↔ H3O+(aq) + C3H5O3

• (aq)

0.12 0 0.10

• x +x +x

0.12-x x 0.10+x 1.4 ´ 10−4 = 0.10 x 0.12 x = 0.000168 PH =3.77

Slide 47 / 113

SAMPLE PROBLEM #6

What is the pH of a buffer that is 0.12 M in lactic acid, CH3CH(OH)COOH, and 0.10 M in sodium lactate? Ka for lactic acid is 1.4 ´ 10−4.

Buffer Calculations

Method 2 -Using the Henderson-Hasselbalch equation Henderson–Hasselbalch Equation pH = pKa + log [base] [acid] pH = -log (1.4 x 10-4) + log (0.10) (0.12) pH = 3.85 + (-0.08) pH = 3.77

Slide 48 / 113

13 The pH of a buffer solution that contains 0.818 M acetic acid (Ka = 1.76x10-5) and 0.172 M sodium acetate is __________.

A

4.077

B

5.434

C

8.571

D

8.370

E

9.922

Slide 49 / 113

14 The pH of a buffer solution containing 0.145 M HF and 0.183 M KF is _____. (Ka of HF is 3.5x10-4)

A

3.56

B

2.19

C

2.66

D

3.35

E

4.32

Slide 50 / 113

Recall that buffers resist drastic changes in pH, even when small amounts of either a strong acid or a strong base are added to it. When this happens, we assume that all of the strong acid or strong base is consumed in the reaction. In other words, all of the strong acid or base gets completely neutralized by ONE of the components of the buffer system.

Addition of Strong Acid or Strong Base to a Buffer

Slide 51 / 113

X- + H3O+ # HX + H2O HX + OH- # X- + H2O Recalculate HX and X- Use Ka, [HX] and X- to calculate [H+]

pH

Add strong acid Add strong base stoichiometric calculation equilibrium calculation

Remember that all of the strong acid or base is consumed in the reaction.

Addition of Strong Acid or Strong Base to a Buffer

Slide 52 / 113

15 If a buffer is made of NH3 and NH4Cl, which component of the buffer will neutralize a small amount of HCl that is added?

A

NH3

B

NH4

+

C

Cl-

D

Both A and B

E

Both B and C

Slide 53 / 113

16 If a buffer is made of HNO2 and KNO2 , which component of the buffer will neutralize a small amount of Ba(OH)2 that is added?

A

HNO2

B

K+

C

NO2

• D

Ba2+

E

Both K+ and NO2

• Slide 54 / 113

17 If a buffer is made of NH3 and NH4Cl, which component will neutralize any KOH that is added?

A

NH3

B

NH4

+

C

Cl-

D

Both HNO2 and K+

E

Both K+ and NO2

• Slide 55 / 113

Addition of Strong Acid or Strong Base to a Buffer

· Determine how the neutralization reaction affects the amounts of the weak acid and its conjugate base in solution. · Use the Henderson– Hasselbalch equation to determine the new pH of the solution.

0.3M HC2H3O2 0.3M NaC2H3O2 a d d . 2 M O H

• add 0.02M H+

pH =4.80 pH= 4.68

Buffer

pH= 4.74

Slide 56 / 113

Calculating pH Changes in Buffers

SAMPLE PROBLEM #7 A buffer is made by adding 0.300 mol HC2H3O2 and 0.300 mol NaC2H3O2 to enough water to make 1.00 L of solution. The pH of the buffer is 4.74. Calculate the pH of this solution after 0.020 mol of NaOH is added. Assume volume change is negligible.

Slide 57 / 113

Problem-solving strategy Phase 1 - stoichiometric neutralization · Identify the added substance. · Identify the component of the buffer that will neutralize the added substance. · Write down the equation for nutralization. · Solve for the new concentration of the buffer components. Phase 2 - equilibrium · Write the relevant dissociation equation. · Create the ICE chart with the new [M] values(phase1) of acid and base components of the buffer. · Use Henderson-Hasselbalch equation to solve for pH.

Calculating pH Changes in Buffers

Slide 58 / 113

Phase 1 - Neutralization · strong acid or a strong base added ? · Which component of the buffer will neutralize the added substance? SAMPLE PROBLEM #7 - Answer A buffer is made by adding 0.300 mol HC2H3O2 and 0.300 mol NaC2H3O2 to enough water to make 1.00 L of solution. The pH

• f the buffer is 4.74. Calculate the pH of this solution after

0.020 mol of NaOH is added.

Calculating pH Changes in Buffers

HA(aq) acid OH-(aq) added substance H2O(aq) A−(aq) base

Before 0.3 0.02 0.3 Neutralization -0.02

• 0.02

0.3+0.02 After 0.28 0.0 0.32

Slide 59 / 113

Phase 2 - equilibrium · Write the relevant dissociation equation. · Make a ICE chart using the amounts from Phase 1. SAMPLE PROBLEM #7 - Answer (con't) A buffer is made by adding 0.300 mol HC2H3O2 and 0.300 mol NaC2H3O2 to enough water to make 1.00 L of solution. The pH of the buffer is 4.74. Calculate the pH of this solution after 0.020 mol

• f NaOH is added.

Calculating pH Changes in Buffers

HA(aq) H2O(l) H3O+(aq) A−(aq)

Initial 0.28 M 0.32 M Change

• x

+x +x At Equilibrium 0.28-x x 0.32+x

Slide 60 / 113

Calculating pH Changes in Buffers

[H3O+][A−] [HA] Ka =

Use the quantities from the ICE chart to calculate pH. You will need to look up the Ka value.

(x) 0.32) (0.28) 1.8 x 10-5 = So, x = [H3O+] = _______________ and pH = ___________ Slide 61 / 113

Calculating pH Changes in Buffers

Alternatively, you can use the Henderson-Hasselbalch equation to calculate the new pH: pH = - log (1.8 x 10-5) + log (0.320) (0.280) pH = 4.74 + 0.06 pH = 4.80 pH = pKa + log [base] [acid]

Slide 62 / 113

Calculating pH Changes in Buffers

SAMPLE PROBLEM #8 A buffer is made by adding 0.140 mol cyanic acid, HCNO, and 0.110 mol potassium cyanate, KCNO to enough water to make 1.00 L

• f solution. Assume volume changes are negligible.

Ka for cyanic acid = 3.5 x 10-4 a) Calculate the pH of the buffer. b) Calculate the pH of the buffer after the addition of 0.015 mol KOH. c) Calculate the pH of the buffer after the addition of 0.018 mol HNO3.

a) 3.351 b) 3.46 c) 3.22

Answers

Slide 63 / 113

pH Range for Buffers

· The pH range is the range of pH values over which a buffer system works effectively. · It is best to choose an acid with a pKa close to the desired pH. · After studying titration graphs, you will see why buffers work best when pKa is close to the desired pH.

Slide 64 / 113

Calculating pH Changes in Buffers

SAMPLE PROBLEM #9

A buffer is made by adding 15.0 g ammonia, NH3, and 55.0 g ammonium chloride, NH4Cl. to enough water to make 1.00 L of solution. Kb for NH3 = 1.8 x 10-5. Assume volume changes are negligible. a) Calculate the pH of the buffer. b) Calculate the pH of the buffer after the addition of 0.013 mol HClO4. c) Calculate the pH of the buffer after the addition of 0.015 mol KOH.

a) 9.193 b) 9.181 c) 9.206

Answers

Slide 65 / 113

Calculating pH Changes in Buffers

SAMPLE PROBLEM #10 A buffer is made by adding 25.0 g ammonia, NH3, and 45.0 g ammonium chloride, NH4Cl. to enough water to make 1.75 L of

• solution. Kb for NH3 = 1.8 x 10-5. Assume volume changes are

negligible. a) Calculate the pH of the buffer. b) Calculate the pH of the buffer after the addition of 0.011 mol NaOH. c) Calculate the pH of the buffer after the addition of 0.016 mol HNO3.

a) 9.50 b) 9.51 c) 9.49 Answers

Slide 66 / 113

Titration

In this technique a known concentration of base (or acid) is slowly added to a solution of acid (or base). The concentration of the unknown will then be determined.

This is a quantitative analysis method.

Slide 67 / 113

Titration

Rinse the buret with distilled water Rinse with the titrant Fill the buret with the titrant Drain a small portion of the titrant so that air bubbles near the tip of the burete is expelled and filled to the tip.

Important things to remember in getting ready for titration:

Slide 68 / 113

Rinse the pipette with distilled water Rinse with the solution to be pipeted Pipette the solution , adjust the level and dispense the fixed volume to a beaker or flask.

Titration

Important things to remember in getting ready for titration:

Slide 69 / 113

Titration

A pH meter or indicators are used to determine when the solution has reached the equivalence point, at which the stoichiometric amount of acid equals that of base. At the equivalence point, # of moles of acid = # of moles of base MaVa = MbVb By using an indicator you could visually see the sudden change in color of the indicator at this point. This point is also known as the "end point" where you will stop adding the titrant. The end point is the appearance of the first permanent color change of the indicator. Note that this point will have a slight excess of the titrant in the solution

Slide 70 / 113

At the equivalence point, ( stoichiometric) # of moles of acid = # of moles of base MaVa = MbVb By using an indicator you could visually see the sudden change in color of the indicator at this point. This point is also known as the "end point" where you will stop adding the titrant. The end point is the appearance of the first permanent color change of the indicator. Note that this point will have a slight excess of the titrant in the solution This minute amount of the titrant is making the indicator color visible.

Titration

Equivalence point and End point

Slide 71 / 113 Slide 72 / 113

At the equivalence point, # of moles of acid = # of moles of base MaVa = MbVb This equation is only applicable for reactions in which the ratio of moles acid to moles base is 1:1.

Titration - Equivalence Point

Slide 73 / 113

HCl + NaOH --> NaCl + H2O HBr + KOH --> KBr + H2O HNO3 + LiOH --> LiNO3 + H2O CH3COOH + NaOH --> CH3COONa + H2O So for reactions such as these, use the equation above to calculate the molarity or volume of acid or base at the equivalence point. MaVa = MbVb Here are some examples of reactions in which the ratio of moles acid to moles base is 1:1.

Titration - Equivalence Point

Slide 74 / 113

Titration - Equivalence Point

2 HCl + Ca(OH)2 --> CaCl2 + 2 H2O 2 HBr + Sr(OH)2 --> SrBr2 + 2 H2O 2 HNO3 + Ba(OH)2 --> Ba(NO3)2 + 2 H2O Consider some examples of reactions in which the ratio of moles acid to moles base is 2:1. moles acid moles base 2 1 = MaVa MbVb = Cross-multiplying, we obtain MaVa = 2 MbVb

Slide 75 / 113

H2SO4 + 2 KOH --> K2SO4 + 2 H2O H2SO3 + 2 LiOH --> Li2SO3 + 2 H2O H2C2O4 + 2 NaOH --> Na2C2O4 + 2 H2O Consider some examples of reactions in which the ratio of moles acid to moles base is 1:2. moles acid moles base 1 2 = Cross-multiplying, we obtain 2 MaVa = MbVb MaVa MbVb =

Titration - Equivalence Point

Slide 76 / 113

Titration

Summary of Equations for Equivalence Point

Equation Acid Base MaVa = MbVb HCl, HNO3, HBr, CH3COOH, HClO4 NaOH, KOH, LiOH 2 MaVa = MbVb H2SO4, H2SO3, H2C2O4 NaOH, KOH, LiOH MaVa = 2 MbVb HCl, HNO3, HBr, CH3COOH, HClO4 Ca(OH)2, Sr(OH)2, Ba(OH)2

Slide 77 / 113

18 What is the concentration of hydrochloric acid if 20.0 mL of it is neutralized by 40mL of 0.10M sodium hydroxide?

A

0.025 M

B

0.050 M

C

0.10 M

D

0.20 M MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

Slide 78 / 113

19 What is the concentration of KOH if 60 mL of it is neutralized by 20 mL 0.10M HCl?

A

0.005 M

B

0.025 M

C

0.033 M

D

0.10 M

E

0.30 M MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

Slide 79 / 113

20 What is the concentration of sulfuric acid if 50mL

• f it is neutralized by 10mL of 0.1M sodium

hydroxide?

A

0.005M

B

0.01M

C

0.25M

D

0.5M MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

Slide 80 / 113

21 How much 0.5 M HNO3 is necessary to titrate 25 mL of 0.05M Ca(OH)2 solution to the endpoint? MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

A

2.5 mL

B

5.0 mL

C

10 mL

D

20 mL

E

25 mL

Slide 81 / 113

22 How much 3.0 M NaOH is needed to exactly neutralize 20.0 mL of 2.5 mL H2SO3?

A

8.3 mL

B

17 mL

C

24 mL

D

33 mL

E

48 mL MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

Slide 82 / 113

23 How much 1.5 M NaOH is necessary to exactly neutralize 20.0 mL of 2.5 M H3PO4? MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

A

11 mL

B

12 mL

C

33 mL

D

36 mL

E

100 mL

Slide 83 / 113

24 What is the molarity of a NaOH solution if 15 mL is exactly neutralized by 7.5 mL of a 0.02 M HC2H3O2 solution? MaVa = MbVb 2 MaVa = MbVb MaVa = 2 MbVb

A

0.005 M

B

0.010 M

C

0.020 M

D

0.040 M

Slide 84 / 113

Slide 85 / 113

Typically, there are 4 "zones" in which you may be asked to calculate pH: · Before any titrant is added from the buret · After a small amount of titrant has been added · At the equivalence point · After the equivalence point First, we will examine these zones on a titration graph. Then, we will review the pH calculation for each region. The strategy for calculating pH is different for each zone.

Titration of a Strong Acid with a Strong Base

Slide 86 / 113

Titration of a Strong Acid with a Strong Base

From the start of the titration to near the equivalence point, the pH goes up slowly. The low initial pH indicates that the substance being titrated is a strong acid.

(1) Before any titrant is added from the buret

Slide 87 / 113

Titration of a Strong Acid with a Strong Base

Just before (and after) the equivalence point, the pH increases rapidly.

(2) After a small amount

• f titrant has

been added*

Slide 88 / 113

Titration of a Strong Acid with a Strong Base

At the equivalence point, moles acid = moles base, and the solution contains

• nly water and the salt

from the cation of the base and the anion of the acid.

(3) At the equivalence point

Slide 89 / 113

Titration of a Strong Acid with a Strong Base

As more base is added, the increase in pH again levels off.

(4) After the equivalence point

Slide 90 / 113

In summary, the four regions of any titration graph are: · Before any titrant is added from the buret · After a small amount of titrant has been added · At the equivalence point · After the equivalence point

The pH calculation differs for each "zone," so we will consider each one separately.

Titration of a Strong Acid with a Strong Base

Slide 91 / 113

Solving Titration Problems: Strong Acid - Strong Base

1) Before any titrant is added from the buret The pH depends up on the concentration of the acid or base. Use the molarity of the acid or base to determine the pH. pH = - log [H3O+] OR pH = 14 - (-log [OH-] Remember to check the acid or base is polyprotic or polyhydroxy.

For example: · 20 ml 0.5M HCl is titrated with 0.25M NaOH The original acid is 0.5M; The concentration of H+ = 0.5M MaVa = MbVb · 20 ml 0.5M H2SO4 is titrated with 0.25M NaOH The original acid is 0.5M; The concentration of H+ = 0.5x2 M 2MaVa = MbVb 20 ml 0.5M HCl is titrated with 0.25M Ca(OH)2 The original acid is 0.5M; The concentration of H+ = 0.5 M MaVa = 2MbVb2

Slide 92 / 113

2) When some titrant is added from the buret, before the equivalence point is reached Example: 20 ml 0.5M HCl is titrated with 0.25M NaOH. What is the pH after 10 ml of base is added? · It is recommended that you calculate the volume of the titrant needed to neutralize the acid at the beginning to see which segment of the titration we are in. write down the neutralization reaction HCl + NaOH --> NaCl + H2O 0.01 mol 0.0025mol

• 0.0025mol -0.0025mol

0.0075mol 0 mol left [H+] after the 10 ml base had been neutralized by the acid is = 0.0075 mols /0.030L = 0.25M pH = 0.6

Solving Titration Problems: Strong Acid - Strong Base

Slide 93 / 113

Solving Titration Problems: Strong Acid - Strong Base

3) At the equivalence point: Example: 20 ml 0.5M HCl is titrated with 0.25M NaOH. What is the pH at the equivalence point ? · You will know you have reached the equivalence point when MOLES of acid = MOLES of base · Since there is no excess [H+] or [OH-], we must look to the salt that is formed to see if it will affect pH. · Since it is from a strong base and strong acid, will not undergo hydrolysis to change the pH. · In cases such as these, when a strong acid and strong base are titrated, the pure water will have a pH = 7.0

Slide 94 / 113

Solving Titration Problems: Strong Acid - Strong Base

4) Beyond the equivalence point, when excess titrant has been added from the buret Example: 20 ml 0.5M HCl is titrated with 0.25M NaOH. What is the pH after 45 ml of base had been added? 0.5 x 20ml = 0.25 x V2ml V2 = 40 ml NaOH need to neutralize the 20 ml acid. write down the neutralization reaction HCl + NaOH --> NaCl + H2O 0.01 mol 0.0125mol

• 0.01mol -0.01mol

0 mol 0.0025mol excess [OH-] after the 45 ml base added = = 0.0025 mols /0.065L = 0.0385M pOH = 1.415 pH = 12.585

Slide 95 / 113

Solving Titration Problems: Strong Acid - Strong Base

The pH at eqequivalence point will be =7

Acid in the flask and titrant is the base.

Slide 96 / 113

Solving Titration Problems: Strong Acid - Strong Base

Acid in the flask and base is the titrant Base in the flask and acid is the titrant

Slide 97 / 113

25 The moles of acid equals the moles of base at the equivalence point in a titration of _____ with _____.

A

strong acid, weak base

B

strong base, weak acid

C

strong acid, strong base

D

weak acid, weak base

E

All of the above

Slide 98 / 113

26 What is the pH of a titration between a weak acid and a strong base at the equivalence point?

A

Less than 7

B

Equal to 7

C

Greater than 7

Slide 99 / 113

27 What is the pH of a titration between a weak base and a strong acid at the equivalence point?

A

Less than 7

B

Equal to 7

C

Greater than 7

Slide 100 / 113 Solving Titration Problems: Weak - Strong

1) Before any titrant is added from the buret Consider the dissociation equation for the substance in the flask: For a weak acid in the flask For a weak base in the flask Ka = x2 / [acid] Kb = x2 / [base] pH = - log x pH = 14 - (-log x)

Slide 101 / 113

Solving Titration Problems: Weak - Strong

2) When some titrant is added from the buret, before the equivalence point is reached example# 11: Titration of 20 ml of 0.5M acetic acid with 0.25M NaOH; 10 ml NaOH is added: ka = 1.8 x 10-5 CH3COOH + NaOH --> Na+CH3COO- + H2O 0.01mol 0.0025mol

• 0.0025mol -0.0025mol + 0.0025mol

0.0075mol 0.0 0.0025mol 0.25M (acid) 0.083M ( c.base) Remember you have a buffer situation now because of the salt produced from the neutralizationof the weak acid. Use the Henderson-Hasselbalch equation to solve for the pH of the solution at this point.

pH = pKa + log ( [base] / [acid] )

Slide 102 / 113

Sample # 12 calculate the pH of the solution after adding 10 ml of 0.05M KOH to 40 ml of 0.025M Benzoic acid. Ka for benzoic acid = 6.3 x 10-5

Solving Titration Problems: Weak - Strong Slide 103 / 113 Solving Titration Problems: Weak - Strong

sample #13 Calculate the pH of the solution after adding 10 ml of 0.1M HCl to 20 ml of 0.1 M NH3 Kb of NH3 = 1.8 x 10-5

Slide 104 / 113

Solving Titration Problems: Weak - Strong

3) At the equivalence point example # 14: Titration of 20 ml of 0.5M acetic acid with 0.25M NaOH; 40 ml NaOH is added: ka = 1.8 x 10-5 CH3COOH + NaOH --> Na+ CH3COO- + H2O 0.01mol 0.01mol

• 0.01mol -0.01mol + 0.01mol

0.0mol 0.0 mol 0.01mol 0.166M (base) The salt Na+ CH3COO- has a strong conjugate base CH3COO- The anion, CH3COO- will undergo hyrolysis as follows: CH3COO- + H2O --> CH3COOH + OH- 0.166M 0 0

• X +x +x

0.166-X x x Kb = X2 / 0.166 ; Solve for x Remember Kb = Kw / Ka Calculate pH Will be slightly basic !

Slide 105 / 113

Solving Titration Problems: Weak - Strong

sample # 15 Calculate the pH at equivalence point when 40 ml of 0.025M benzoic acid is titrated with 0.05M KOH. Ka of benzoic acid is 6.3 10-5

Slide 106 / 113 Solving Titration Problems: Weak - Strong

Sample # 16 calculate the pH at the equivalence point when 40 ml of 0.1M NH3 is titrated with 0.2 M HCl. Kb of NH3 is 1.8 10-5

Slide 107 / 113

Titration of a Weak Acid with a Strong Base

The pH at the equivalence point is above 7 weak acid vs strong base strong acid vs strong base

Slide 108 / 113

Titration of a Weak Acid with a Strong Base

With weaker acids, the initial pH is higher and pH changes near the equivalence point are more subtle.

Slide 109 / 113

Titration of a Weak Base with a Strong Acid

· The pH at the equivalence point in these titrations is < 7. · Methyl red is the indicator of choice. strong base with strong acid , pH =7 weak base NH3 with strong acid , pH = 5.5

Slide 110 / 113 Solving Titration Problems: Weak - Strong

4) Beyond the equivalence point, when excess titrant has been added from the buret example: Titration of 20 ml of 0.5M acetic acid with 0.25M NaOH; 50 ml NaOH is added: This is exactly the same as for strong acid-strong base titrations. The strong base added after the end point will increase the OH- in the solution making it strongly basic. Calculate the [OH-] from the excess base in the new volume and determine the pH.

Slide 111 / 113

Titrations of Polyprotic Acids

When one titrates a polyprotic acid with a base there is an equivalence point for each dissociation.

Slide 112 / 113 Slide 113 / 113
