Bridge Trolley Width Trolleys can be no longer than ~16 to accommodate loading the south drift. South Drift APA plane TCO View of trolleys with CPA installed first and moved out of the TOC window F C B A South Drift APA TCO

SLIDE 1

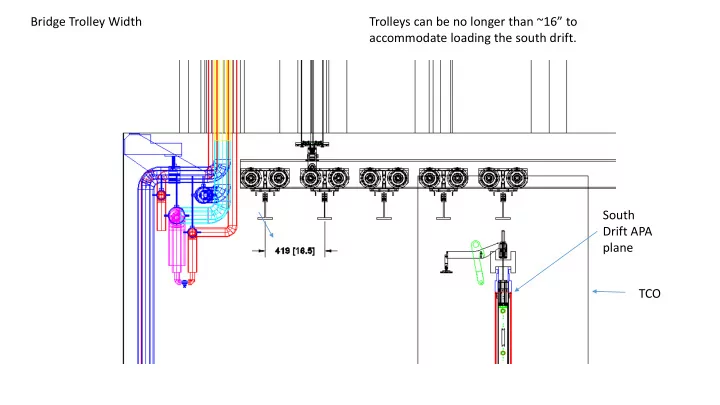

Bridge Trolley Width TCO South Drift APA plane Trolleys can be no longer than ~16” to accommodate loading the south drift.

SLIDE 2

View of trolleys with CPA installed first and moved out of the TOC window F C B A South Drift APA TCO

SLIDE 3

Dimension from corrugation to Beam A Beam A

SLIDE 4

Space for operating the bridge beam drive

Ideally the bridge beam drive could be

perated beyond

the edge of the bridge beams. Bridge beam Bridge beam chain drive?
