Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects Breaking mechanism from a vacuum point in the defocusing NLS equation Antonio Moro Northumbria University,

slide-1
SLIDE 1

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

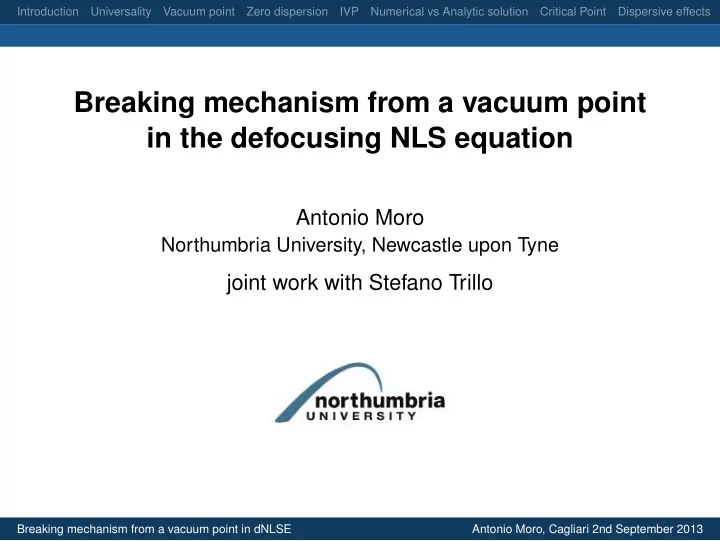

Breaking mechanism from a vacuum point in the defocusing NLS equation

Antonio Moro

Northumbria University, Newcastle upon Tyne

joint work with Stefano Trillo

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-2
SLIDE 2

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

The nonlinear Schrödinger (NLS) equation iǫψt + ǫ2 2 ψxx + σ|ψ|2ψ = 0 where ǫ > 0, σ = 1 → focusing, σ = −1 → defocusing

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-3
SLIDE 3

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

The nonlinear Schrödinger (NLS) equation iǫψt + ǫ2 2 ψxx + σ|ψ|2ψ = 0 where ǫ > 0, σ = 1 → focusing, σ = −1 → defocusing

  • Ubiquitous ↔ Universal

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-4
SLIDE 4

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

The nonlinear Schrödinger (NLS) equation iǫψt + ǫ2 2 ψxx + σ|ψ|2ψ = 0 where ǫ > 0, σ = 1 → focusing, σ = −1 → defocusing

  • Ubiquitous ↔ Universal
  • Integrable ↔ Exactly solvable (Zakharov-Shabat, ’72)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-5
SLIDE 5

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Weak dispersive regime Study asymptotics of fast oscillating solutions ψ(x, t; ǫ) Madelung transform ψ(x, t; ǫ) =

  • u(x, t) exp
  • − i

ǫ x v(x′, t) dx′

  • Breaking mechanism from a vacuum point in dNLSE

Antonio Moro, Cagliari 2nd September 2013

slide-6
SLIDE 6

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Weak dispersive regime Study asymptotics of fast oscillating solutions ψ(x, t; ǫ) Madelung transform ψ(x, t; ǫ) =

  • u(x, t) exp
  • − i

ǫ x v(x′, t) dx′

  • Hydrodynamic form

ut + (uv)x = 0 vt + vvx + ux−ǫ2 4 uxx u − u2

x

2u2

  • x

= 0 ǫ << 1

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-7
SLIDE 7

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Standard Approach Look for solutions of the form uǫ = u + ǫu1 + ǫ2u2 + . . . vǫ = v + ǫv1 + ǫ2v2 + . . . . Leading (dispersionless) order → shallow water equations (SWE) ut + (uv)x = 0 vt + vvx + ux = 0 Note uj and vj, with j = 1, 2, . . . ← → transport equations

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-8
SLIDE 8

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Riemann Invariants Introduce the variables ξ = v + 2 √ u, η = v − 2 √ u such that the SWE takes the diagonal form ξt + λξx = 0 ηt + µηx = 0, where λ(ξ, η) and µ(ξ, η) are the characteristic speeds λ = 3ξ + η 4 µ = ξ + 3η 4 . Note In general, Riemann invariants break in finite time. If they break at the same point (x, t) the corresponding initial datum is said to be non-generic.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-9
SLIDE 9

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Weak dispersive phenomenology Consider KdV equation ut + uux+ǫ2uxxx = 0

Zabusky and Kruskal, ’65

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-10
SLIDE 10

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Universality (Dubrovin, ’06)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-11
SLIDE 11

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Universality (Dubrovin, ’06) Defocusing NLS equation near the critical point of gradient catastrophe ( generic case ) (v − vc) + (u − uc) ≃ ǫ4/7 x+ α + σU′′ ν+x+ ǫ6/7 ; ν+x− ǫ4/7

  • (v − vc) − (u − uc) ≃ ǫ2/7βU

ν+x+ ǫ6/7 ; ν+x− ǫ4/7

  • where

x± = (x − xc) + (vc ± 2√uc)(t − tc) and U(X, T) satisfies P2

I equation

X = UT − 1 6U3 + 1 24(U′2 + 2UU′′) + 1 240U(IV)

  • Breaking mechanism from a vacuum point in dNLSE

Antonio Moro, Cagliari 2nd September 2013

slide-12
SLIDE 12

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

A previous study: phase jump dark initial datum Solution for a jump phase-dark initial datum ψ(x, 0) = tanh (x) expiθ0, u(x, t) = |ψ(x, t)|2

Conti, Fratalocchi, Peccianti, Ruocco, Trillo, PRL 2009

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-13
SLIDE 13

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Our study: constant phase dark initial datum We consider the dark constant phase initial condition ψ(x, 0) = |tanh(x)| eiθ0

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-14
SLIDE 14

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Our study: constant phase dark initial datum We consider the dark constant phase initial condition ψ(x, 0) = |tanh(x)| eiθ0 Remark1 This case turns out to be non-generic → Universality conjecture does not apply.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-15
SLIDE 15

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Our study: constant phase dark initial datum We consider the dark constant phase initial condition ψ(x, 0) = |tanh(x)| eiθ0 Remark1 This case turns out to be non-generic → Universality conjecture does not apply. Remark2 Vacuum points in NLS dynamics appeared in El et al, ’95, Hoefer et al, ’08

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-16
SLIDE 16

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Weak dispersive regime: comparison continuous phase jump phase A dispersive shock that opens up in a characteristic fan turns

  • ut to resolve the singularity that occurs in the range

t = 0.75 − 0.78 around the origin (x = 0)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-17
SLIDE 17

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Dispersionless regime

  • Wave-breaking at t = tc ≃ 0.78, x ≃ 0
  • Preserved vacuum u(0, t) = 0, for t < tc
  • Gradient catastrophe scenario for vx(0, tc) ∼ ∞
  • Jump in the derivative for u(x, tc)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-18
SLIDE 18

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects −2 −1 1 2 0.5 1 1.5 2

  • (a)

−2 −1 1 2 −2 −1.5 −1 −0.5 x

  • (b)

−0.05 0.1 0.05 −0.1

Snapshots of RIs obtained by means of numerical integration SWE at time t = 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.784

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-19
SLIDE 19

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Main observations Dispersionless regime:

  • Dispersionless level: no qualitative difference
  • Riemann Invariants (RIs) simultaneously break at the

same point ↔ The critical point is non-generic Weak dispersion regime:

  • Preserved vs non preserved vacuum
  • Critical behaviour occurs around RIs breaking time

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-20
SLIDE 20

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Analytic solution of SWE Introduce the hodograph transform (x, t) ↔ (u, v) defined by vt + fu = x ut + fv = 0, where the function f(u, v) is a solution to the Tricomi-type equation fvv − ufuu = 0 Solution to IVP map: (u(x, 0), v(x, 0)) ← → f(u, v)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-21
SLIDE 21

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Euler-Poisson-Darboux equation In Riemann invariants, the hodograph equations in reads as x − λt = wξ x − µt = wη and the Tricomi type equation is replaced by the EPD equation for the function w(ξ, η) wξη = 1 2(ξ − η) (wξ − wη)

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-22
SLIDE 22

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Differentiating the hodograph equations and solving w.r.t. ξx, ξt, ηx, ηt, we get ξx = 2(η − ξ) 2(η − ξ)wξξ + 3(wξ − wη) ηx = 2(η − ξ) 2(η − ξ)wηη + 3(wξ − wη). (4.1) The solution (ξ(x, t), η(x.t)) is said to break, i.e. it develops a gradient catastrophe singularity, if there exists a critical point (xc, tc) such that ξx and ηx are bounded for any t ∈ [0, tc) and |ξx(xc, tc)| = ∞ or |ηx(xc, tc)| = ∞.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-23
SLIDE 23

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

A class of initial value problems General IVP solved by Geogdzhaev, ’87 - Tian-Ye, ’99 We focus on the family of initial data of the form u(x, 0) = u0(x) v(x, 0) = 0 For the sake of simplicity, u0 is assumed to be a negative hump given by an even, continuous and differentiable function centred at x = 0. Solution to the Tricomi type (EPD) equation f(u, v) = u 1

−1

g(v + 2µ √ u)

  • 1 − µ2 dµ

where g is is fixed by the initial condition

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-24
SLIDE 24

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

For the initial datum ψ(x, 0) = |tanh(x)| eiθ0 in the hydrodynamic variables u(x, 0) = tanh2(x) v(x, 0) = 0 The function f(u, v) takes the form (in Riemann Invariants) f(u(ξ, η), v(ξ, η)) =1 4 ξ r

  • (ξ − r)(r − η)

√ 4 − r 2 dr +1 4 η r

  • (ξ − r)(r − η)

√ 4 − r 2 dr

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-25
SLIDE 25

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

1 4 ξ r

  • (ξ − r)(r − η)

√ 4 − r 2 dr = − 2

  • γ

2α2(k2 − α2)(2 − ξ)(ξ − η)

  • α2E(ω)+

(α2 − k2)ω + (α4 − 2α2 + k2)Π(ω, α2) − α4 snω cnω dnω 1 − α2sn2ω

  • + γ

α4 (2 − ξ)(2 + ξ)(ξ − η)

  • −k2ω + (3k2 − α2k2 − α2)Π(ω, α2)

+(2α2k2 + 2α2 − 3k2 − α4)V2 + (α2 − 1)(α2 − k2)V3

  • Breaking mechanism from a vacuum point in dNLSE

Antonio Moro, Cagliari 2nd September 2013

slide-26
SLIDE 26

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

where V0 = F(φ, k) V1 = Π(φ, α2, k) V2 = 1 2(α2 − 1)(k2 − α2)

  • α2E(ω) + (k2 − α2)ω

+(2α2k2 + 2α2 − α4 − 3k2)Π(φ, α2, k) −α4 snω cnω dnω 1 − α2sn2ω

  • V3 = . . .

α2 = ξ − η 2 − η k2 = 4(ξ − η) (2 − η)(2 + ξ) γ = 2

  • (2 − η)(2 + ξ)

φ = sin−1 ξ(2 − η) 2(ξ − η)

  • ω = sn−1(φ, k2),

where F(φ, k), E(ω) and Π(φ, α2, k) are the standard notations for the elliptic integral of first kind, the complete elliptic integral

  • f second kind and the incomplete elliptic integral of the third

kind respectively and sn, cn, dn stand for the Jacobian Elliptic functions.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-27
SLIDE 27

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Numerical vs analytic solution vt + fu = x ut + fv = 0,

1 2 0.4 0.8 u

(a)

t=0.78 t=0.7 1 2 −0.8 −0.4 x v

(b)

t=0.78 t=0.7

0.1 0.1 u x 0.1 −0.6 v x

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-28
SLIDE 28

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Near the vacuum... We compute f(u(ξ, η), v(ξ, η)) ≃ 1 32

  • ξ2 − 2

3ηξ + η2

  • (−ηξ)1/2 +

+ 1 64 (ξ − η)2 (ξ + η) sin−1 ξ + η ξ − η

  • and

x ≃ 2(−ηξ)3/2 (ξ − η)2 t ≃ − ξ + η (ξ − η)2 (−ηξ)1/2 + 1 2 sin−1

  • −ξ + η

ξ − η

  • Breaking mechanism from a vacuum point in dNLSE

Antonio Moro, Cagliari 2nd September 2013

slide-29
SLIDE 29

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects −2 −1 1 2 0.5 1 1.5 2

  • (a)

−2 −1 1 2 −2 −1.5 −1 −0.5 x

  • (b)

−0.05 0.1 0.05 −0.1

Snapshots of RIs obtained by means of numerical integration SWE at time t = 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.784

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-30
SLIDE 30

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

On the positive half-line x > 0, the critical values such that ηx(xc, tc) → ∞ and |ξx(xc, tc)| < ∞ are xc = lim

η→0 x(ξ, η)|ξ=0 = 0,

tc = lim

η→0 t(ξ, η)|ξ=0 = lim η→0

1 2 sin−1(1) = π 4 ≃ 0.785.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-31
SLIDE 31

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Dispersive effects: Initial vacuum point

0.2 0.4 0.6 0.8 0.01 0.02 0.03 0.04 t | (0,t)|2

Density u(0, t) = |ψ(0, t)|2 vs. time t obtained from numerical integration of NLS equation with decreasing values of dispersion ε = 5 × 10−3 (red), ε = 10−3 (green), ε = 5 × 10−4 (blue). The dashed vertical line stands for the critical time tc = π/4.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-32
SLIDE 32

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Dispersive effects: critical phase

−0.04 0.04 0.03 0.06 x

u

(a)

0.02 0.04 −2 2 x

ux

(b)

−0.04 0.04 −0.5 0.5 x

v

(c)

0.784 0.7 0.784 0.7 0.784 0.7

Hydrodynamic variables in the neighborhood of the origin,

  • btained from numerical integration of NLS equation with

ε = 5 × 10−4. The snapshots are taken from time t = 0.76 to t = 0.784 with constant increment δt = 0.004.

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013

slide-33
SLIDE 33

Introduction Universality Vacuum point Zero dispersion IVP Numerical vs Analytic solution Critical Point Dispersive effects

Summary

  • SWEs undergo the simultaneous breaking of RIs in the

point of null density (x = 0)

  • Breaking occurs in the opposite limits x = 0± for the two

RIs

  • Dispersion starts to play a role just approaching the

breaking

  • Slow adiabatic detachment of the min density points from

zero that abruptly grows turns into a max near the breaking point for SWE Outlook

  • More general initial data
  • Analytic asymptotic description of the weakly dispersive

critical behaviour

Breaking mechanism from a vacuum point in dNLSE Antonio Moro, Cagliari 2nd September 2013
