Lehrstuhl Netzarchitekturen und Netzdienste

Institut für Informatik Technische Universität München

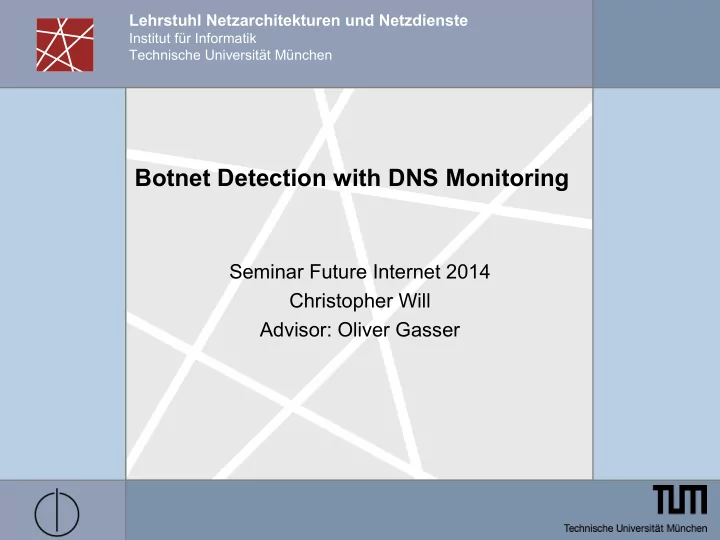

Botnet Detection with DNS Monitoring

Seminar Future Internet 2014 Christopher Will Advisor: Oliver Gasser

Botnet Detection with DNS Monitoring

2

Introduction - Botnets

 Great threat in the Internet today  Universally usable – DDoS, Content Hosting …  Very important to take them down

Botnet Detection with DNS Monitoring

3

Background – Botnet structure

C&C server Bot 1 Bot 2 Bot 3 Target Server User

Botnet Detection with DNS Monitoring

4

Botnets - Detection approach

 Many botnets use DNS for communication  Find botnet communication in DNS traffic  Difficulty: Filter out all benign traffic  Use specific features of botnet traffic to find bots as well as the C&C

servers

Botnet Detection with DNS Monitoring

5

Botnet - DNS usage

 C&C communication with Domain Generation Algorithms

Bot DNS Server zpdyaislnu.net? dlftozdnxn.net? google.com? not found 176.53.17.51 173.194.70.105

Botnet Detection with DNS Monitoring

6

Detecting DGA C&C communication

 General framework structure:

Collect DNS Data Filter traffic, detect bots Classify and group bots Detect C&Cs

Botnet Detection with DNS Monitoring

7

Detection Frameworks

• 1. Using Anchor Domains
• 2. PREDENTIFIER: Using domain features
• 3. Pleiades: Using NXDomains
• 4. Using NXDomains and Bloom Filters + Privacy

Botnet Detection with DNS Monitoring

8

Pleiades Framework by Antonakakis et al.

 Very sophisticated  Highest detection rate of all frameworks  Well-tested in real scenario (ran at local DNS server for over 2 years)

Botnet Detection with DNS Monitoring

9

Pleiades: 1. DNS Data Collection/Filtering

 Assumption NXDomains mostly generated by botnets  Later, successful responses used for C&C identification

Botnet Detection with DNS Monitoring

10

Pleiades: 2. Bot clustering

 Method 1: Statistical domain features:

71f9d3d1.net 84c7e2a3.com lymylorozig.eu fotyriwavix.eu gxnbtlvvwmyg.com zzopaahxctfh.com

Botnet Detection with DNS Monitoring

11

Pleiades: 2. Bot clustering

 Method 2: Host ↔ Domains association:

B1 D1 B2 B3 B4 B5 D3 D2

Botnet Detection with DNS Monitoring

12

Pleiades: 3. C&C detection

Single, successful DNS response C&C Detection Bot clusters Probability of belonging to the DGA

Botnet Detection with DNS Monitoring

13

Pleiades: Evaluation

 In the wild: Detection of 6 unknown DGAs  Privacy issues not specifically adressed

Detection rate False positive rate DGA Classifier 99.7% 0.1% C&C Detection > 91% (except 1 botnet) 3%

Botnet Detection with DNS Monitoring

14

Summary

 Botnets are dangerous  DGA-based Botnets can be detected with the DNS  Example: One Framework

Botnet Detection with DNS Monitoring

15

Thank you!

Botnet Detection with DNS Monitoring

16

Legitimate DNS usage

 Main goal: Load balancing  Round-Robin DNS: Loop through list of possible IPs, high TTL  Content Distribution Networks: More sophisticated approach to

calculate currently best IP, lower TTL

Botnet Detection with DNS Monitoring

17

Background: Domain Name System

DNS Recurser root nameserver

• rg.

nameserver wikipedia.org. nameserver 198.41.0.4 204.74.112.1 207.142.131.234 "Where's www.wikipedia.org?"

1 2 3

"Try 204.74.112.1" "Try 207.142.131.234" "It's at xxx.xx.xx.xxx"
