CS 598-PBG Presented by Ashish Vulimiri Not-A-Bot: Improving Service Availability in the Face of Botnet Attacks R. Gummadi, H. Balakrishnan, P . Maniatis, S. Ratnasamy Presented by: Ashish Vulimiri Images lifted from paper/authors NSDI09

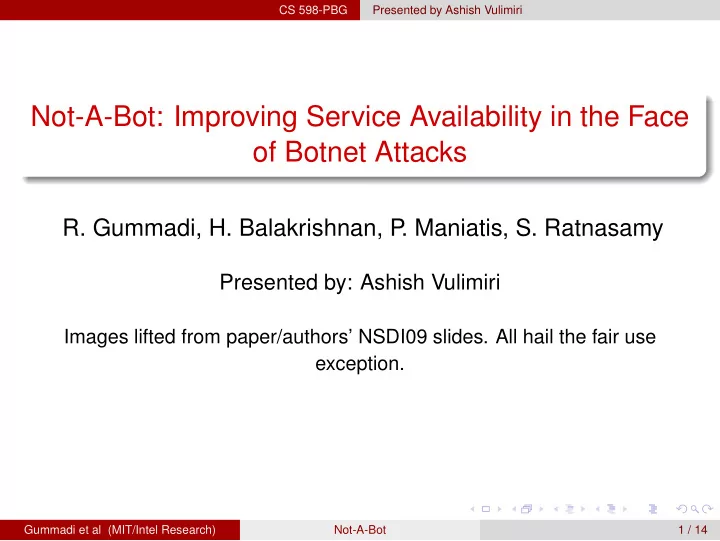

SLIDE 1

CS 598-PBG Presented by Ashish Vulimiri

Not-A-Bot: Improving Service Availability in the Face

f Botnet Attacks
R. Gummadi, H. Balakrishnan, P

. Maniatis, S. Ratnasamy

Presented by: Ashish Vulimiri

Images lifted from paper/authors’ NSDI09 slides. All hail the fair use exception.

Gummadi et al (MIT/Intel Research) Not-A-Bot 1 / 14

SLIDE 2

CS 598-PBG Presented by Ashish Vulimiri

Motivation

Gummadi et al (MIT/Intel Research) Not-A-Bot 2 / 14

SLIDE 3

CS 598-PBG Presented by Ashish Vulimiri

Motivation

Botnets: bad

Gummadi et al (MIT/Intel Research) Not-A-Bot 2 / 14

SLIDE 4

CS 598-PBG Presented by Ashish Vulimiri

Motivation

Botnets: bad

Spam DDoS Click-fraud

Gummadi et al (MIT/Intel Research) Not-A-Bot 2 / 14

SLIDE 5

CS 598-PBG Presented by Ashish Vulimiri

Motivation

Botnets: bad

Spam DDoS Click-fraud

Problem: cannot distinguish bot/human requests

Gummadi et al (MIT/Intel Research) Not-A-Bot 2 / 14

SLIDE 6

CS 598-PBG Presented by Ashish Vulimiri

Motivation

Botnets: bad

Spam DDoS Click-fraud

Problem: cannot distinguish bot/human requests Will solving this issue always help?

Gummadi et al (MIT/Intel Research) Not-A-Bot 2 / 14

SLIDE 7

CS 598-PBG Presented by Ashish Vulimiri

Related Work

Application-specific schemes

Bandwidth/computation based payment schemes for DoS Sender authentication schemes like SPF , DomainKeys for spam control

Human-activity detection

CAPTCHAs

Gummadi et al (MIT/Intel Research) Not-A-Bot 3 / 14

SLIDE 8

CS 598-PBG Presented by Ashish Vulimiri

Related Work

Application-specific schemes

Bandwidth/computation based payment schemes for DoS Sender authentication schemes like SPF , DomainKeys for spam control

Human-activity detection

CAPTCHAs

Secure execution environments

Pioneer XOM TPM, vTPM

Gummadi et al (MIT/Intel Research) Not-A-Bot 3 / 14

SLIDE 9

CS 598-PBG Presented by Ashish Vulimiri

TPM

Trusted base Cryptographic coprocessor Not-A-Bot uses:

Platform configuration registers Sealed storage

Can seal values, signed by TPM’s internal key, along with guard conditions on the value of PCRs

Direct anonymous attestation

Gummadi et al (MIT/Intel Research) Not-A-Bot 4 / 14

SLIDE 10

CS 598-PBG Presented by Ashish Vulimiri

Not-A-Bot

Chain of trust from attester to verifier When requested, attester checks and signs off on human

riginated actions

Guaranteed human requests can be given higher priority at server Granularity is request level, not host level – human requests from compromised hosts might benefit

Gummadi et al (MIT/Intel Research) Not-A-Bot 5 / 14

SLIDE 11

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

Gummadi et al (MIT/Intel Research) Not-A-Bot 6 / 14

SLIDE 12

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

PCRs are used to provide verifiable bootup

Gummadi et al (MIT/Intel Research) Not-A-Bot 6 / 14

SLIDE 13

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

PCRs are used to provide verifiable bootup When attester is installed, private information sealed using TPM, with BIOS and attester code hashes as guards. Private info includes:

Private key κpriv Information needed to create a signed certificate for DAA. This is NOT a shared secret

Gummadi et al (MIT/Intel Research) Not-A-Bot 6 / 14

SLIDE 14

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

PCRs are used to provide verifiable bootup When attester is installed, private information sealed using TPM, with BIOS and attester code hashes as guards. Private info includes:

Private key κpriv Information needed to create a signed certificate for DAA. This is NOT a shared secret

TPM allows unsealing only if BIOS and attester hashes match – so if attester code is changed, key can’t be accessed

Gummadi et al (MIT/Intel Research) Not-A-Bot 6 / 14

SLIDE 15

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

Gummadi et al (MIT/Intel Research) Not-A-Bot 7 / 14

SLIDE 16

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

Application (at client) must request attestation locally from the attester and send to verifier to authenticate that a request is human-generated

Gummadi et al (MIT/Intel Research) Not-A-Bot 7 / 14

SLIDE 17

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

Application (at client) must request attestation locally from the attester and send to verifier to authenticate that a request is human-generated An attestatation is of the form a, sign(κpriv, a), C, where a is the attestation information and C is a certificate that attester uses with the DAA protocol to prove integrity to the verifier

Gummadi et al (MIT/Intel Research) Not-A-Bot 7 / 14

SLIDE 18

CS 598-PBG Presented by Ashish Vulimiri

Chain of Trust

Application (at client) must request attestation locally from the attester and send to verifier to authenticate that a request is human-generated An attestatation is of the form a, sign(κpriv, a), C, where a is the attestation information and C is a certificate that attester uses with the DAA protocol to prove integrity to the verifier Necessary component of a: nonce n, which the verifier stores to ensure client is not replaying authentications

Gummadi et al (MIT/Intel Research) Not-A-Bot 7 / 14

SLIDE 19

CS 598-PBG Presented by Ashish Vulimiri

Attester Operation

Request is considered human-generated if it occurs within ∆m, ∆k distance of a mouse/keyboard click, where the ∆ parameters are application specific Attestation may either include time since last mouse click/keypress directly, or merely state an upper-bound on them (the first leaks some timing information which may be significant) Choice left to application Attestation information a is d, n, δm, δk, where d is a digest of the message (e.g. e-mail, HTTP GET/POST etc), n is the nonce used to ensure client cannot replay attestations, δ is timing information

Gummadi et al (MIT/Intel Research) Not-A-Bot 8 / 14

SLIDE 20

CS 598-PBG Presented by Ashish Vulimiri

Verifier Operation

Spam

In attestation, entire message is hashed: including sender, recipient, timestamp and content Server stores nonces for a month Together, these two factors severely restrict replayability: spammer can reuse authentication only after a month (only one replay per authenticated email) But because timestamp is also hashed, it can’t be changed. Server will reject even this lone replayed email as too old.

Gummadi et al (MIT/Intel Research) Not-A-Bot 9 / 14

SLIDE 21

CS 598-PBG Presented by Ashish Vulimiri

Verifier Operation

Spam

Additional notes: For mailing lists, auth sent to each email address in the “To:” field Offline mode: store an auth when user clicks “Send”, hold it until connected to the network Script mode: similar to offline mode. User manually authorizes a certain number of human-authentications when writing a script

Gummadi et al (MIT/Intel Research) Not-A-Bot 10 / 14

SLIDE 22

CS 598-PBG Presented by Ashish Vulimiri

Verifier Operation

DDoS/Click Fraud

Browser sends authentication for document root (e.g. “http://www.example.com/”) Server stores auth for 10 minutes In this time, the authentication also grants access to any embedded links/documents Note: unlike with e-mail, incentive structure is asymmetric. Much more useful to website owners/content providers than to users

Gummadi et al (MIT/Intel Research) Not-A-Bot 11 / 14

SLIDE 23

CS 598-PBG Presented by Ashish Vulimiri

Verifier Operation

DDoS/Click Fraud

Browser sends authentication for document root (e.g. “http://www.example.com/”) Server stores auth for 10 minutes In this time, the authentication also grants access to any embedded links/documents Note: unlike with e-mail, incentive structure is asymmetric. Much more useful to website owners/content providers than to users

Authors suggest that verifiers push attesters onto users through

ther means, for example browser toolbars

Gummadi et al (MIT/Intel Research) Not-A-Bot 11 / 14

SLIDE 24

CS 598-PBG Presented by Ashish Vulimiri

Experimental Evaluation

Spam

Client: reduced false negatives in inbox from 1.5% to 0.15%, false positives from 0.08% to 0% Server: of all spam traffic, 8% was attested as human-originated

DDoS

11% of all DDoS requests attested as human-originated

Click-fraud

13% of all click-fraud traffic attested as human-originated

Gummadi et al (MIT/Intel Research) Not-A-Bot 12 / 14

SLIDE 25

CS 598-PBG Presented by Ashish Vulimiri

Discussion

Gummadi et al (MIT/Intel Research) Not-A-Bot 13 / 14

SLIDE 26

CS 598-PBG Presented by Ashish Vulimiri

Discussion

What else (apart from non-human origin) characterizes botnet requests?

Gummadi et al (MIT/Intel Research) Not-A-Bot 13 / 14

SLIDE 27

CS 598-PBG Presented by Ashish Vulimiri

Discussion

What else (apart from non-human origin) characterizes botnet requests? Better human-identification algorithm?

Gummadi et al (MIT/Intel Research) Not-A-Bot 13 / 14

SLIDE 28

CS 598-PBG Presented by Ashish Vulimiri

Discussion

What else (apart from non-human origin) characterizes botnet requests? Better human-identification algorithm? How reasonable is it to assume hardware safety?

Gummadi et al (MIT/Intel Research) Not-A-Bot 13 / 14

SLIDE 29

CS 598-PBG Presented by Ashish Vulimiri

Discussion

What else (apart from non-human origin) characterizes botnet requests? Better human-identification algorithm? How reasonable is it to assume hardware safety? Trusted computing issues

Gummadi et al (MIT/Intel Research) Not-A-Bot 13 / 14

SLIDE 30

CS 598-PBG Presented by Ashish Vulimiri

Questions?

Gummadi et al (MIT/Intel Research) Not-A-Bot 14 / 14
