Altered Hydrology: Going Beyond Best Management Practices (BMPs) to Clean Water Jim Solstad, Retired Division of Ecological and Water Resources Cedar River Watershed District October 16, 2017 1 GSSHA Gridded Surface Subsurface

slide-1
SLIDE 1

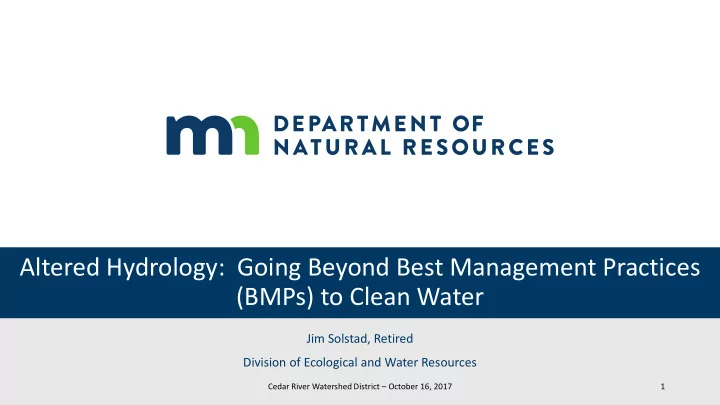

Altered Hydrology: Going Beyond Best Management Practices (BMPs) to Clean Water

Jim Solstad, Retired Division of Ecological and Water Resources

Cedar River Watershed District – October 16, 2017 1

slide-2
SLIDE 2

GSSHA – Gridded Surface Subsurface Hydrologic Analysis

2

slide-3
SLIDE 3

Collaborative for Sediment Source Reduction Greater Blue Earth River Basin

Summary of Findings (March 2017):

  • “Achieving water quality standards will require priority investment in more

temporary water storage to reduce high river flows and bluff erosion. This is a critical component of a strategy to reduce sediment in the Minnesota River.”

3

slide-4
SLIDE 4
  • Dr. Shawn Schottler Clean Water Council presentation

(March 20, 2017):

4

slide-5
SLIDE 5

Perennial Cover …. Cover Crops …. “Soil Health”

5

Miller, T. P. , J. R. Peterson, C. F. Lenhart, and Y. Nomura. 2012. The Agricultural BMP Handbook for Minnesota. Minnesota Department of Agriculture.

slide-6
SLIDE 6

BWSR Targeted Watershed Program: Dobbins Creek Cedar River Watershed District

6

slide-7
SLIDE 7

Prime Farmland …. if drained

7

slide-8
SLIDE 8

High Water Table Extensive subsurface drainage

Optional Tagline Goes Here | mn.gov/websiteurl 8

slide-9
SLIDE 9

Existing riparian corridor ….. few depressions

3/5/2019 9

570 ft 140 ft

Few depressions Well-defined floodplain

slide-10
SLIDE 10

BMPs of choice:

10

Water and Sediment Control Basins (WASCOBs) Grassed Waterways Buffers

Photo courtesy USDA NRCS Photo courtesy MN NRCS

slide-11
SLIDE 11

Model Scenarios

11

Riparian Corridor (No BMPs) with BMPs

Corn Soybeans Developed Forest Grassland

Example Land Use Maps

  • Riparian Corridor

(No BMPs)

  • Conservation Tillage
  • With BMPs
  • BMPs w/ 30%

Perennial Cover

  • 100% Perennial Cover
  • Prairie
slide-12
SLIDE 12

Computed Flows

(2.6” rainfall – June 2015)

12

slide-13
SLIDE 13

Computed Flows

(4.6” rainfall – September 2010)

13

slide-14
SLIDE 14

Average Peak Flow Reduction

8 summer rainfall events (2009-2015)

14

0% 10% 20% 30% 40% 50% 60% 70% 80%

No Perennial Cover Exist Riparian Corridor Conservation Tillage with BMPs BMPs with 30% "Soil Health" 100% "Soil Health" Prairie

slide-15
SLIDE 15

Sediment Entering Channels

15

50 100 150 200 250 300 350

No Perennial Cover Exist Riparian Corridor Conservation Tillage With BMPs BMPs & 30% "Soil Health" 100% "Soil Health" Prairie

Lbs / Acre / Year

slide-16
SLIDE 16

WEPP: Water Erosion Prediction Project

3/5/2019

Chapter 7: Soil Component X 2.4

slide-17
SLIDE 17

A very small percent of the landscape controlled by the proposed WASCOBs

Optional Tagline Goes Here | mn.gov/websiteurl 17

slide-18
SLIDE 18

Average Annual Flow

18

2 4 6 8 10 12 Prairie Existing w/o Tile Existing w-Tile Inches Total Water Yield Total Tile Flow

slide-19
SLIDE 19

Cover Crops/Soil Health ….. Subsurface Drainage

3/5/2019 19

Increased infiltration

  • Higher water table
  • Increased tile flow

Partially Offset by

  • Greater spring and fall

plant transpiration

  • Higher soil water holding

capacity

slide-20
SLIDE 20

Take Home Message re: Altered Hydrology

  • Traditional BMPs: “individually effective, collectively not enough”
  • Widespread adoption of perennial cover (cover crops, 2nd crop; “soil

health”) will move a long ways to achieving whatever “altered hydrology” goal is established.

  • Significant reduction in surface runoff and associated erosion
  • Potential increase in subsurface flow where tile are present

20

slide-21
SLIDE 21

Questions / Comments?

Jim Solstad, Retired Division of Ecological and Water Resources

Cedar River Watershed District – October 16, 2017 21
