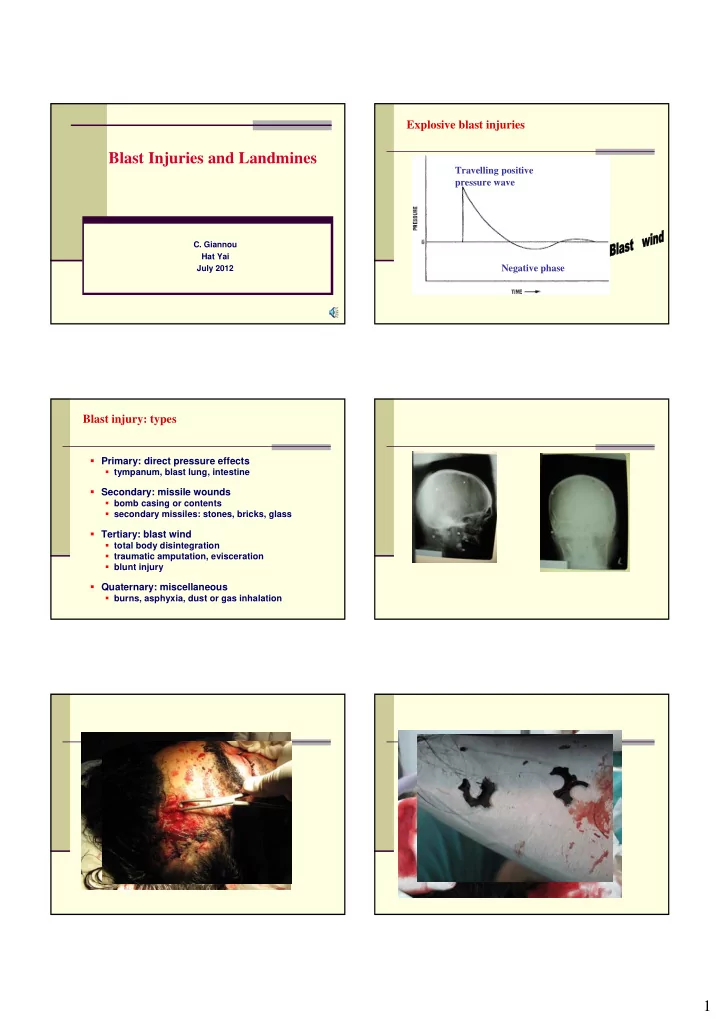

SLIDE 1

1 Blast Injuries and Landmines

C. Giannou

Hat Yai July 2012

Explosive blast injuries

Travelling positive pressure wave Negative phase

Blast injury: types

Primary: direct pressure effects

tympanum, blast lung, intestine

Secondary: missile wounds

bomb casing or contents secondary missiles: stones, bricks, glass

Tertiary: blast wind

total body disintegration traumatic amputation, evisceration blunt injury

Quaternary: miscellaneous

burns, asphyxia, dust or gas inhalation

SLIDE 2

2

Different types of mines

ATM

Different types of mines

Anti-tank mines

blast effect: blast injury fragments: penetrating injury fire: burns blunt injury

Antipersonnel mines

blast type fragmentation type

Lethal remnants of war

UXO cluster munitions

Patterns of APM Injury

Pattern 1

Blast mine amputation

Pattern 2

Fragmentation mine

Pattern 3

Manipulation of mine

Blast mine

SLIDE 3

3

Blast mine Blast mine on the ground Blast effect on foot:

Small amount of explosive; pattern 1 injury

Blast effect on foot:

Small amount of explosive

Blast effect on foot:

Small amount of explosive

Blast effect on foot:

Small amount of explosive

SLIDE 4

4

Blast effect on foot:

Small amount of explosive

Blast effect on leg:

blast wave thrombosis

Blast effect on leg:

blast wave thrombosis

Blast effect on leg:

blast wave thrombosis

Blast effect on leg:

blast wave thrombosis

Blast effect on leg:

Larger amount of explosive; pattern 1 injury

SLIDE 5

5

Blast effect on leg:

pattern 1 injury

Blast effect on leg:

pattern 1 injury

Blast effect on leg:

pattern 1 injury

Blast effect on leg:

pattern 1 injury

Blast effect on leg:

pattern 1 injury

Blast effect:

Pattern 1 injury; notice wounds of other limb and genitalia

SLIDE 6

6

Blast effect:

Pattern 1 injury …. and of contralateral arm

Blast effect:

Small body, big amount of explosive

Directional fragmentation mine Fragmentation mine Bounding fragmentation mine Fragmentation mine:

pattern 2 injury; at a short distance

SLIDE 7

7

Fragmentation mine:

pattern 2 injury; at a great distance

Complex injury:

Blast, fragments and burn

Complex injury:

Blast, fragments and burn

Complex injury:

Blast, fragments and burn

PFM mine PFM mine: pattern 3 injury

Manipulation of mine

SLIDE 8

8

PFM mine: pattern 3 injury

Manipulation of mine

Amputations: few basic rules

Function ….. function ….. function Upper limb: as long as possible Lower limb: support body weight

good muscle cover of stump: vastus medialis,

medial gastrocnemius

non-adherent non-painful scar: bevelled tibia proper length for stability: cut fibula 2 cm shorter

than tibia

neuroma: prevent

Anti-tank Mines

Blunt injury

SLIDE 9

9

Penetration of the armour The victims: if you are lucky … someone will give you a prosthesis. The victims: learning … … together … to play …

SLIDE 10
