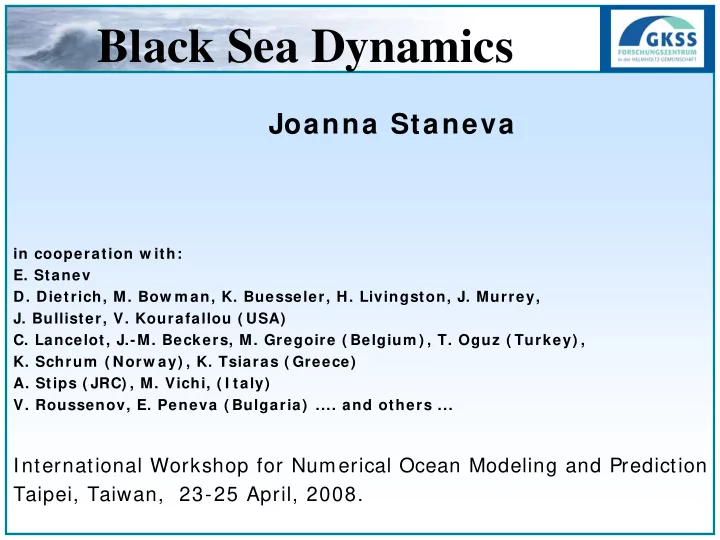

Joanna Staneva

in cooperation w ith:

  • E. Stanev
  • D. Dietrich, M. Bow m an, K. Buesseler, H. Livingston, J. Murrey,
  • J. Bullister, V. Kourafallou ( USA)
  • C. Lancelot, J.-M. Beckers, M. Gregoire ( Belgium ) , T. Oguz ( Turkey) ,
  • K. Schrum ( Norw ay) , K. Tsiaras ( Greece)
  • A. Stips ( JRC) , M. Vichi, ( I taly)
  • V. Roussenov, E. Peneva ( Bulgaria) .... and others ...

International Workshop for Numerical Ocean Modeling and Prediction Taipei, Taiwan, 23-25 April, 2008.

Black Sea Dynamics

slide-2
SLIDE 2
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

2

OUTLINE

  • Introduction

– The Black Sea – Models used

  • Results

– Simulation of processes – Circulation – Water mass formation

  • Coupled physical-biogeochemical modelling
  • Conclusions
slide-3
SLIDE 3
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

3

The Black Sea is an estuarine basin

The total freshwater supply of 3 x 102 km3/year is large compared to the basin volume (~ 5.4 x 105 km3) Unique water properties are due to small exchange in the straits.

slide-4
SLIDE 4
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

4

The Black Sea

Ocean models Atmospheric model

is where most kinds of numerical models based on primitive equations have been used to simulate circulation

slide-5
SLIDE 5
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

5

Ocean models

Ocean regimes and vertical coordinates

MOM DieCAST HOPS POP NCOM1 POM GHER GETM, ROMS, TOMS, NCOM2, OPA, z+ σ POLCOMS MICOM HYCOM (z+ σ+ ρ) NLOM HIM OPYC

H

∞

slide-6
SLIDE 6
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

6

Eastern Gyre Western Gyre

Bospho rus Sakaryia Synop Kizilirmak Batumi Caucasus Crimea Sevastopol

  • 10
  • 8
  • 6
  • 4
  • 2

4 6 8 10 12 2 (cm) Kaliakr a Danub e

Staneva et al. (2001, JMS)

Black Sea DieCAST (5 nm horizontal resolution), low friction model

Mechanisms of Black Sea circulation

Seasonal amplitudes: ~ 10 cm Amplitudes of interannual variations: ~ 5 cm.

slide-7
SLIDE 7
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

7 Deflection of Rim Current and entrainment of coastal water into the open sea The transition between summer and winter circulation is controlled by baroclinic eddies.

Specific questions answered by numerical models

The large seasonal stratification cycle above a relatively shallow and strong pycnocline shapes the seasonal cycle of potential vorticity. Staneva et al. (2001, JMS)

slide-8
SLIDE 8
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

8

DieCAST Results

Sea level Anomaly T/ P data: basin Rossby waves

Staneva et al. (2001, JMS)

slide-9
SLIDE 9
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

9

CIW formation in the Black Sea

  • General characteristics
  • Mixing basin
  • Fresh water

flux~300km3yr-1

  • Two-layer exchange in

straits

  • Limited vertical

exchange-the necessary condition of CIW mass formation

  • Open questions
  • Regions of formation
  • Rates of formation
  • Temporal and spatial

patterns

  • Transport of CIW
  • No winter data
slide-10
SLIDE 10
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

10 Below σt = 15.5 stratification is entirely dependent on salinity

Stanev et al. (2003, JMR)

Black Sea MOM (5 nm resolution)

The vertical circulation (~ 105m 3/ s) is much weaker than horizontal circulation (~ 5 x 106m 3/ s) and comparable with the amount of water entrained by the Mediterranean plume

slide-11
SLIDE 11
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

11

slide-12
SLIDE 12
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

12

44.5N, 31E 42.5N, 32E

slide-13
SLIDE 13
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

13

Decadal changes (Black Sea MOM, 5 nm resolution)

Model versus hydrographic survey data (no assimilation)

Stanev et al. (2003, JMR)

slide-14
SLIDE 14
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

14

Coastal-Open ocean exchange: Black Sea MOM (5 nm resolution)

Convective heat flux: QCF= ro Cp (Ta

  • Tb

)/ Δt w conv= QCF / (ro Cp T)

Lee et al. (2002)

Replenishment time of CIL ~ 5 years

Water mass formation controlled by dynamics (topography)

)

slide-15
SLIDE 15
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

15

EBS-MOM-3 km Sea Surface Temperature

1991 1993

slide-16
SLIDE 16
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

16

Temperature Vertical Sections (1991)

EBS-MOM-3 km

Zonal Section –February Meridional Section –February Zonal Section –August Meridional Section –August

slide-17
SLIDE 17
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

17

Temperature (EBS-MOM-3 km)

A Time vs depth in box B B Time vs depth in box A

slide-18
SLIDE 18
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

18

Temperature (EBS-MOM-3 km)

slide-19
SLIDE 19
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

19

The Black Sea provides optimal possibilities, using easily manageable models and

  • bservational data to address a wide spectrum
  • f processes observed in the ocean.

It is a useful test region for developing models, which can then be applied to larger scales.

To conclude this part

slide-20
SLIDE 20
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

20

  • Models: ERSEM, NPZD, BI OGEN
  • w ith different levels of com plexity

and different resolution

Biogeochem ical m odelling Biogeochem ical m odelling Determ ine Determ ine: : process

process and and m echanism s m echanism s

  • f
  • f m ass tranfer from

m ass tranfer from land to land to ocean

  • cean

Validation: Validation: m odel sim ulations

m odel sim ulations versus survey and satellite data survey and satellite data

... ... to

to address the functioning address the functioning of

  • f the

the ecosystem ecosystem and and its response its response to to clim ate clim ate variabiliy variabiliy and hum an and hum an forcing forcing

slide-21
SLIDE 21
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

21

WHY A MODEL CAN DO BETTER THAN CORRELATIONS BETWEEN EVENTS?

  • The synergy between the different human forcing cannot

be assessed from simple correlations between ecological

  • bservations and historical correlations.
  • Mechanistic models, which describe the kinetics between

biological and chemical compartments as a function of meteorological and human forcings provide a powerful tool which encompasses this complexity.

  • The ecological model ERSEM is established in order to

assess the response of the north-western Black Sea ecosystem to human-induced changes and predict its future evolution.

slide-22
SLIDE 22
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

22

ERSEM

slide-23
SLIDE 23
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

23

Pelagic model Benthos model

slide-24
SLIDE 24
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

24

  • Atmospheric forcing – high frequency

atmospheric analyses data from ECMWF

  • River discharge – daily data taken from A.

Cociasu

  • Open BC – Black Sea MOM
  • Initialization:

Physical sub-model – MOM output Biogeochemical sub-model – ERSEM,

  • bservational data

OFF-LINE COUPLING BETWEEN MOM AND ERSEM

slide-25
SLIDE 25
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

25

Seasonal evolution of the vertical profiles of T and S

slide-26
SLIDE 26
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

26

  • Reg. 4

Model-data comparissons in 2003

D 1 2 3 4

slide-27
SLIDE 27
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

27

Biogeochemical modelling (Satellite v/s Model Data)

slide-28
SLIDE 28
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

28

Vertical profiles - 2003

Spring

slide-29
SLIDE 29
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

29

Scenario simulations

top-Danube discharge; bottom-model results. Black line 1984 (pre-eutrophication period); red line- 1993 (high eutrophication)

slide-30
SLIDE 30
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

30

Time evolution of some of the ecosystem variables

Black line 1984; red line 1993.

slide-31
SLIDE 31
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

31

Scenaria: Evolution of the vertical profiles

copepods [mg.C m –3 ] 80s 90s diatoms [mg.Chla. m –3 ]

slide-32
SLIDE 32
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

32

SCENARIO - SIMULATIONS

Diatoms (mg Cla /m3)

  • 0.5

0.5 1.5 2.5 3.5 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Copepods (mg C /m

3)

5 10 15 20 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Flagellates (mg Cla /m

3)

0.5 1 1.5 2 2.5 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Microzooplankton (mg C /m

3)

5 10 15 20 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Bacteria (mg C /m

3)

5 10 15 20 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Oxygen saturation (%)

20 40 60 80 100 120 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

PO4 (mmol /m

3)

0.5 1 1.5 2 2.5 3 3.5 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

NO3 (mmol /m3)

5 10 15 20 25 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

SiO (mmol/m

3)

5 10 15 20 25 30 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Annual

Sc1 “Business usual scenario” Sc4 “Green scenario” Sc2 “High production scenario” Sc5 “Policy scenario” Sc3 “Best available technique scenario”

slide-33
SLIDE 33
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

33

SCENARIO - INDICATORS

10 20 30 40 50 60 70 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 N-P ratio 20 40 60 80 100 120 140 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 DO sat%

50 100 150 200 250 300 350 400 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Phy-Zoo ratio 200 400 600 800 1000 1200 Sc0 Sc1 Sc2 Sc3 Sc4 Sc5 Benthos (g/m2)

Indicators ranges

N/P P/Z O2 Benthic biomass

Bad state <10 and > 25 <100 50-75% 1.5-200 g.m-2 Moderate state 10-14and18-25 10-100 75-90% 200-850 g.m-2 Good state 15 – 17 >10 > 90% 850 - 6500g.m-2

slide-34
SLIDE 34
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

34

SUMMARY

  • The sequence of ecological events that took place

in the north-western Black Sea can be reproduced by the coupled model.

  • The model addresses the study of an ecosystem

submitted to changes both of its structure and functioning.

  • The

model predictions show that the euthrophication-related problem is a question of changing of the nutrient balance, not only qualitatively, but also quantitatively.

slide-35
SLIDE 35
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

35

SUMMARY

  • The model is calibrated for the Black Sea

conditions using hierarchy of observational data

  • It allows testing of different scenarios, regarding

the structure of the ecosystem as a function of meteorological and human forcing.

  • Thus, the model predictions will be of interest for

both scientists and policy makers and can be used for management purposes.

slide-36
SLIDE 36
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

36

Conclusions

  • 1. Motivating results
  • 2. Further increase of multidisciplinary studies as

well as synergy between observations and models is needed

  • 3. Rapid development in the field of ecosystem

modelling, climate variability, coastal

  • perational oceanography is expected in the

years to come (e.g. a number of international & national programmes, ECOOP, SESAME, EU- FP7 )

slide-37
SLIDE 37
  • Click to edit Master text styles

– Second level

  • Third level

– Fourth level » Fifth level

37
