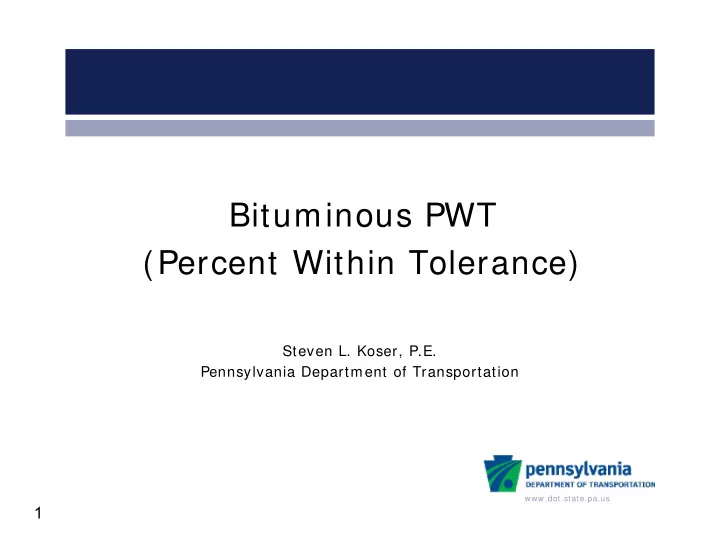

Steven L. Koser, P.E. Pennsylvania Department of Transportation
Bituminous PWT (Percent Within Tolerance)
1
www.dot.state.pa.us
Spec Limits and Goal Posts are Similar
2
Bituminous PWT (Percent Within Tolerance) Steven L. Koser, P.E. - - PowerPoint PPT Presentation
Bituminous PWT (Percent Within Tolerance) Steven L. Koser, P.E. - - PowerPoint PPT Presentation
Bituminous PWT (Percent Within Tolerance) Steven L. Koser, P.E. Pennsylvania Department of Transportation www.dot.state.pa.us 1 Spec Limits and Goal Posts are Similar www.dot.state.pa.us 2 Quality Measure: Percent Within Tolerance (PWT)
SLIDE 2
SLIDE 3
www.dot.state.pa.us
Quality Measure: Percent Within Tolerance (PWT)
- Estimates the percentage of material within
specification limits
– Assumes normal distribution – Area equals 1.0 or 100%
1.0
- r 100%
3
SLIDE 4
www.dot.state.pa.us
Standard Deviation
- A measure of the variability (i.e. spread) of data
Spread
4
SLIDE 5
www.dot.state.pa.us
PWT
- Efficiently captures mean and standard deviation
in one quality measure
X
3s 2s 1s
- 3s
- 2s
- 1s
X - mean s - standard deviation
5
SLIDE 6
www.dot.state.pa.us
Number of States using PWT for Hot Mix Asphalt
5 10 15 20 25 30
2010 2008
2014
Number of Agencies
Source FHWA QA Assessment
6
SLIDE 7
www.dot.state.pa.us
- Tighter adherence to
producing job mix formula
- Tighter adherence to
field density spec. requirements
What Does PWT Drive?
7
SLIDE 8
www.dot.state.pa.us
- Well suited for low bids to
achieve quality
- Contractors = bonuses for
tighter adherence to targets
- Contractors = reduced
paym ents for loose adherence to targets
- Moves focus to targets (NOT
minimums)
Advantages of PWT
8
SLIDE 9
www.dot.state.pa.us
- Adds bonus structure (maximum 4% )
- Adds m ix gradation (PCS) as part of
payment
- Modifies current “goal posts” approach for
100% payment (good or no good)
- Results in many fewer 100% payments and
spreads these out (bonus and penalty)
What’s different with PWT spec?
9
SLIDE 10
www.dot.state.pa.us
- Current specification (50% mix, 50%
density)
- 25% asphalt content
- 25% # 200 sieve
- 50% field density
- PW T specification (50% mix, 50% density)
- 30% asphalt content
- 10% # 200 sieve
- 1 0 % prim ary control sieve ( new )
- 50% field density
Payment Equation Changes
10
SLIDE 11
www.dot.state.pa.us
- Defective lots can be left in place at
70% pay by DE (previously 50% pay)
- Allow s contractor to term inate lot
- Allows contractor to limit risk when
early QC results indicate an issue
- Must stop paving
- 90% maximum pay
- Must R&R if defective by test results
Common to All PWT Specs
11
SLIDE 12
www.dot.state.pa.us
- Three ( 3 ) m ethods thru CT process:
- 1. PWT-LTS (Laboratory Testing Section)
- Fully approved (includes FHWA)
- Acceptance at LTS
- PWT-LTS Use Guidelines/ District Memo
- 2. PWT-HOLA (Hands On Local Acceptance)
- Fully approved (includes FHWA)
- Department Acceptance, Contractor Lab
- 3. PWT-LA (Local Acceptance)
- Contractor Results, Department Verification, F-test
and t-test (Not Practical)
Current Status
12
SLIDE 13
www.dot.state.pa.us
- Very sim ilar to current process
- Allows a contractor option to expedite
sam ple delivery to Harrisburg
- Inspection staff secures samples
- Secure samples given to contractor
- Contractor delivers to LTS at his cost
- LTS verifies security prior to testing
- Priority given to expedited samples
- 2 Standard Work Day Turnaround Goal at LTS
PWT-LTS
13
SLIDE 14
www.dot.state.pa.us
PWT-HOLA
- HMA/ WMA Material
sam ples collected as usual
- Acceptance testing
performed at:
- Proficient producers
lab
- or another mutually
acceptable lab
- No LTS acceptance
testing (except for dispute resolution situation)
14
SLIDE 15
www.dot.state.pa.us
Mixture Sample Collection
Contractor Pulls Sample Contractor Transports Sample Representative Tests Sample Locally Representative Splits Sample LTS Tests IA Sample Representative Secures Sample
15
SLIDE 16
www.dot.state.pa.us
Gmm Verification Testing
- Federal Aid Projects & Projects on the NHS
- Local Testing
16
SLIDE 17
www.dot.state.pa.us
Staffing LA Testing
- Districts will need to
allocate certified plant inspectors to perform testing
- Shortage in qualified staff
- Use Consultants?
- May need to coordinate
testing for out of District sources
17
SLIDE 18
www.dot.state.pa.us
Contractor’s Lab Assessment
- Local acceptance lab
will need AMRL on-site proficiency assessment
- Every two years
- Assessment on the
equipment to be used for acceptance
18
SLIDE 19
www.dot.state.pa.us
Independent Assurance
- Required by 23 CFR 637
- First lot and randomly once for
every ten thereafter
- Performed at the LTS on split
samples
- Ensures sampling and testing is
performed correctly
- Ensures testing equipment
used is properly calibrated and
- perating correctly
19
SLIDE 20
www.dot.state.pa.us
Local Acceptance QC Plan
- Separate LA QC Plan
required to detail specifics
- 3 weeks before paving
- Must identify lab and
equipment for testing
20
SLIDE 21
www.dot.state.pa.us
Local Acceptance Equipment Requirements
- Dedicated equipment for
Department use
- Representative reviews
equipment
- Can remove equip. not meeting
requirements from service
- Department Acceptance
- Accessibility to local lab
21
SLIDE 22
www.dot.state.pa.us
Sample Transportation and Security
- Tamper proof
coolers with clasps and unique, unopened padlock
- Must be capable of
relocking for storage
22
SLIDE 23
www.dot.state.pa.us
Sample Transportation and Security
- Alternative: Coolers
with uniquely numbered security tags
- Only one lot per
container
23
SLIDE 24
www.dot.state.pa.us
Sample Security
- Sealed containers first inspected for security. Upon
- pening, samples and paperwork to be examined.
- If evidence of compromised security, Dept. may
reject for testing, suspend paving operations and require additional samples to be taken
24
SLIDE 25
www.dot.state.pa.us
Sample Paperwork
- Paperwork (TR-447) is the same
- Worksheets keep records of test results
- Paperwork to be retained for 3 years
25
SLIDE 26
www.dot.state.pa.us
Lot Testing
- Testing to begin once lot
is complete
- LA testing takes priority
- ver other testing
- Contractor’s technician
may be present to witness, but not required
- Contractor may saw cut
density cores for testing
26
SLIDE 27
www.dot.state.pa.us
- Projects advertised after October 13,
2015 (considered)
- PWT-HOLA available as of January 15,
2016
- PWT-LTS Incentive/ Disincentive
Spreadsheet
2016 Construction Season
27
SLIDE 28
www.dot.state.pa.us
Challenges
- Budget
- Test Turnaround Time (PWT-LTS)
- Oven Correction Factor (PWT-LTS)
- Manpower/ Equipment (PWT-HOLA)
- AMRL (PWT-HOLA)
- Standard Deviation
SLIDE 29
www.dot.state.pa.us
Taking on the Challenge
- Expedited Sample Delivery (PWT-LTS)
- Dispute Resolution
- Training (PWT-HOLA)
- AMRL (PWT-HOLA)
- Standard Deviation
SLIDE 30
