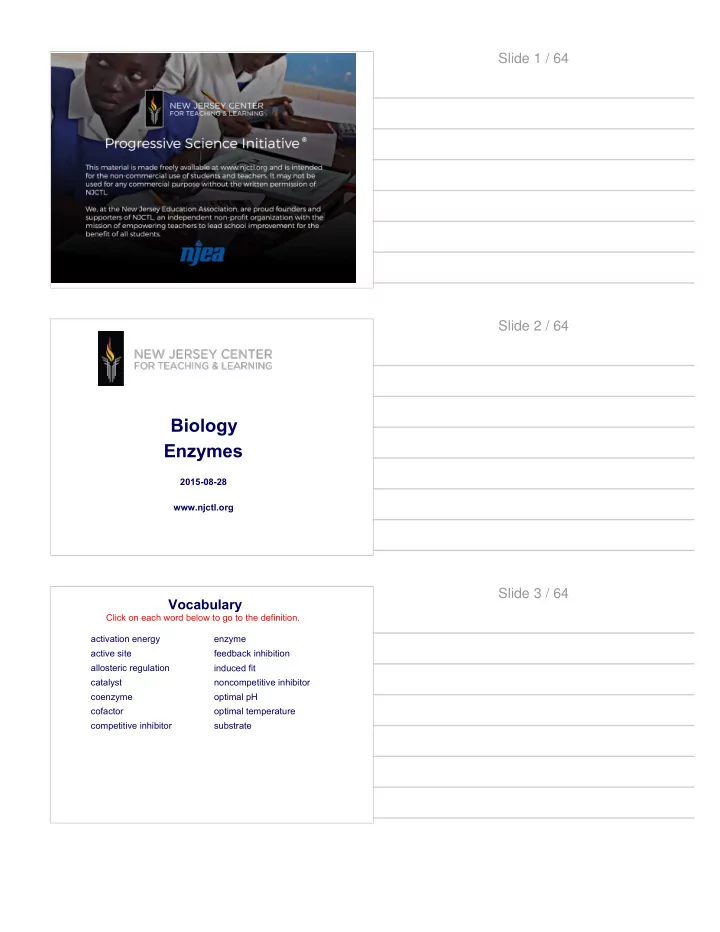

SLIDE 1 Slide 1 / 64
Biology Enzymes
2015-08-28 www.njctl.org
Slide 2 / 64 Vocabulary
Click on each word below to go to the definition. activation energy noncompetitive inhibitor active site allosteric regulation catalyst coenzyme cofactor competitive inhibitor enzyme feedback inhibition induced fit
- ptimal pH
- ptimal temperature
substrate
Slide 3 / 64
SLIDE 2 Enzymes Unit Topics
· Enzymes, Catalytic Cycle · Temperature, pH, Inhibition
Click on the topic to go to that section
· Allosteric Regulation, Feedback Inhibition
Slide 4 / 64
Enzymes, Catalytic Cycle
Return to Table of Contents
Slide 5 / 64
A catalyst is a substance which speeds up chemical reactions without being changed by the reaction. When a catalyst is present, less energy is needed to start a chemical reaction. When a catalyst is present, the speed of a chemical reaction is faster. The catalyst remains unchanged at the end of the reaction.
Catalysts Slide 6 / 64
SLIDE 3
Enzymes are catalysts in biological systems. In early cells, enzymes were made of ____________. In modern cells, enzymes are a type of ___________.
Enzymes Slide 7 / 64 Common Enzymes
Lactase is an enzyme that helps us to digest dairy products. People with lactose intolerance have trouble digesting dairy because they lack this enzyme, but they are able to take a lactaid pill that contains the enzyme lactase.
Slide 8 / 64 Common Enzymes
Amylase is an enzyme found in human saliva. It begins the chemical process of digestion. Typically, you can identify an enzyme by its -ase ending.
Slide 9 / 64
SLIDE 4 Enzyme Substrate Complex
Enzymes help chemical reactions occur by providing a space called an active site for the substrates (reactants), to bind.
Substrate entering active site of enzyme Enzyme/substrate complex Enzyme/products complex Products leaving active site of enzyme
Active site
substrate
Click here to see a video on Enzymes
Slide 10 / 64 Induced Fit
Just as a key can only open a specific lock, each enzyme has its
- wn unique shape, so each enzyme is specific to certain substrates.
As the substrates enter the active site, the enzyme's shape changes just a little in order to create a better fit, called an induced fit.
Slide 11 / 64 Catalytic Cycle of an Enzyme
An enzyme is capable of being used again and again to allow more of the same reactions to occur.
Slide 12 / 64
SLIDE 5
1 Which of the following acts as a catalyst in the body? A Carbohydrates B Nucleic Acids C Lipids D Enzymes E Water
Slide 13 / 64
2 Another name for protein reactants is _____. A products B substrates C active sites D enzymes
Slide 14 / 64
3 Enzymes bind only to certain substrates. True False
Slide 15 / 64
SLIDE 6
4 An enzyme can only be used for one reaction and then it will not work again. True False
Slide 16 / 64 Activation Energy
Enzymes work by decreasing the minimum amount of energy required for reaction. This is called the activation energy, Ea. Just as a ball cannot get over a hill if it does not roll up the hill with enough energy, a reaction cannot occur unless the molecules possess sufficient energy to get over the activation energy barrier.
Slide 17 / 64 Potential Energy Diagrams
This activation energy is usually needed to break bonds in the substrate. initial energy final energy
Slide 18 / 64
SLIDE 7
Catalysts
Enzymes increase the rate of a reaction by decreasing the activation energy of the reaction. This graph shows the decomposition of a sugar both with and without a catalyst. Notice that the initial energy of reactants and the final energy of the products are unchanged by the catalyst.
Slide 19 / 64
5 Activation energy is _____. A the heat released in a reaction B the energy given off when reactants collide C generally very high for a reaction that takes place rapidly D an energy barrier between reactants and products
Slide 20 / 64
6 What happens to a catalyst in a reaction? A It is unchanged. B It is incorporated into the products. C It is incorporated into the reactants. D It evaporates away.
Slide 21 / 64
SLIDE 8
7 Why does a catalyst cause a reaction to proceed faster? A Only because there are more collisions per second. B Only because collision occur with greater energy. C Only because the activation energy is lowered. D There are more frequent collisions and they are of greater energy.
Slide 22 / 64
8 If a catalyst is used in a reaction _____. A the energy of activation increases B different reaction products are obtained C the reaction rate increases D it evaporates away
Slide 23 / 64
Temperature, pH, Inhibition
Return to Table of Contents
Slide 24 / 64
SLIDE 9 Enzymes Have Optimal Environments
Since enzymes are proteins and proteins are sensitive to their environments, enzymes are also sensitive to their environments. Factors Affecting Enzyme Activity Temperature pH
Slide 25 / 64 Effect of Temperature on Enzymes
In general, increasing the temperature of a system increases the reaction rate because the substrates are able to move faster and have more collisions with the active sites of the enzymes. This is true only up to certain temperatures for each type of enzyme! We call this temperature the
The optimal temperature is different for each type of enzyme.
Slide 26 / 64
Past the optimal temperature, the enzyme begins to denature or lose its shape, which changes the shape of the active site.
Effect of Temperature on Enzymes Slide 27 / 64
SLIDE 10 Optimal Temperature and Fever
The optimal temperature for most bacterial enzymes is less than 98o F, so by raising body temperature above that, the immune system attempts to denature the bacteria's enzymes and stop the infection. Fever is the elevation of body temperature above normal (In humans 98.6o F). Typically, fevers develop in response to bacterial or viral infection.
Slide 28 / 64 Common Enzymes
Laundry detergents contain enzymes that help break up and remove stains from your clothing. Why might you want to use a different laundry detergent when you wash clothes in hot water instead of in cold water?
Slide 29 / 64 Effect of pH on Enzymes
pH level can also cause a denaturing of the enzyme. Most biological solutions have pH values between 6-8.
Increasingly Acidic [H+] > [OH–]
Slide 30 / 64
SLIDE 11
(optimal pH = 4.2) The optimal pH for most enzymes is between 6-8, but again the optimal pH is different for each type of enzyme.
Effect of pH on Enzymes Slide 31 / 64
9 What is the optimal temperature for this enzyme?
Slide 32 / 64
10 What is the optimal pH of this enzyme?
Slide 33 / 64
SLIDE 12
11 Which enzyme has a lower optimal temperature?
Slide 34 / 64
12 At which temperature do both enzymes have an equal rate of reaction?
Slide 35 / 64
13 Which description best explains the temperature effects shown in the graph? A Each enzyme will function at room temperature. B Both enzymes are inactive at the freezing point. C Each enzyme has its own optimal temperature range. D Both enzymes have the same optimal temperature range.
Slide 36 / 64
SLIDE 13 14 Based on this information which environment can you conclude as being more acidic? A Stomach B Liver
Liver Enzyme Stomach Enzyme
Slide 37 / 64
15 Which enzyme would you choose to use in a basic environment?
A B C
Slide 38 / 64
16 The active site of an enzyme
- I. is the part where a substrate can fit
- II. can be used again and again
- III. is not affected by environmental factors
A I only B II only C III only D I and II E I and III
Slide 39 / 64
SLIDE 14 Cofactors
Sometimes enzymes need a helper to bind at the active site to make the enzyme active. These helpers are called cofactors. If the cofactors are organic molecules, then they are called
- coenzymes. Vitamins are a type of coenzyme.
Enzyme coenzyme substrate
Slide 40 / 64 Enzyme Inhibitors
Certain chemicals work to stop or inhibit the enzymes. These chemicals are called enzyme inhibitors. Types of Inhibitors · Competitive Inhibitors · Noncompetitive Inhibitors
click here for an animation about inhibition
Slide 41 / 64
Competitive inhibitors are similar in shape to the substrates. They are able to block the substrates from binding to the active site by binding to the active site themselves.
Competitive inhibitor
Competitive Inhibitors Slide 42 / 64
SLIDE 15
Competitive Inhibitors: How They Are Stopped
To stop competitive inhibition, the concentration of the substrates needs to be increased so that they outnumber the inhibitors. This way, the substrates are more likely to bind to the active site before an inhibitor does.
Slide 43 / 64 Noncompetitive Inhibitors: How they work
Noncompetitive inhibitors bind to a separate part of the enzyme and cause the enzyme to change shape. When the enzyme changes shape, the substrate is no longer able to bind to the active site because the active site also changes shape. This type of inhibition is sometimes irreversible.
Slide 44 / 64
17 Organic molecules that aid in the action of the enzyme are called ____. A products B coenzymes C substrates D helpers
Slide 45 / 64
SLIDE 16
18 Which type of inhibitor binds at the active site? A Competitive Inhibitor B Noncompetitive Inhibitor
Slide 46 / 64
19 Noncompetitive inhibitors are similar in shape to the substrates that bind at the active site of an enzyme. True False
Slide 47 / 64
20 If an enzyme has been inhibited noncompetitively, _______. A the enzyme is able to increase its activity B increasing substrate concentration will increase inhibition C the active site will be occupied by the inhibitor molecule D the active site will change shape
Slide 48 / 64
SLIDE 17 21 Noncompetitive inhibition is sometimes irreversible. True False
Slide 49 / 64
Allosteric Regulation, Feedback Inhibition
Return to Table of Contents
Slide 50 / 64 Allosteric Regulation
In most natural processes it is necessary to regulate enzyme
- activity. This regulation can either be to inhibit or to stimulate
activity. Allosteric regulation is a type of noncompetitive inhibition that is reversible.
Slide 51 / 64
SLIDE 18
Allosteric Activation and Inhibition
Enzymes that undergo allosteric regulation are usually made of multiple subunits or polypeptide chains. All of the subunits together form a complex that can be in an active or inactive position. Where the subunits connect, there is an allosteric site, or a site that allows an activator or inhibitor molecule to bind.
Slide 52 / 64 Allosteric Inhibitors Slide 53 / 64
If an inhibitor binds to the enzyme, the subunits are stabilized in an inactive form. This means the enzymes changes shape and the active sites are not open for substrates to bind to. Allosteric Activators bind to the enzyme, stabilizing the subunits in an active form. This means the enzymes change shape and the active sites are available for substrates to bind to.
Allosteric Activators Slide 54 / 64
SLIDE 19 Slide 55 / 64 Feedback Inhibition
In certain processes the products from one enzyme act as the substrates for a second enzyme and and the second enzyme's products are a substrate for a third enzyme etc. When this happens, the products from the last enzyme in the path can allosterically inhibit the first enzyme in the path until it is necessary for more of the products to be made again and then the inhibitor leaves. This is called feedback inhibition. Click here to see a video of Feedback Inhibition
Slide 56 / 64
enzyme 2 enzyme 1 End Product Intermediate A Initial Substrate Intermediate B enzyme 3 End Product +
X
Feedback Inhibition Slide 57 / 64
SLIDE 20 22 An allosteric site on an enzyme is A not made of protein B involved in feedback inhibition C the same as the active site D where the products leave the enzyme
Slide 58 / 64
23 Which of the following is not part of allosteric regulation? A
- ther substrate molecules compete for the
active site B regulatory molecules bind to a site separate from the active site C inhibitors and activators may compete with one another D a naturally occuring molecule stabilizes an active conformation
Slide 59 / 64
24 Allosteric regulation is similar to noncompetitive inhibition except that it is _____. A always reversible B sometimes irreversible
Slide 60 / 64
SLIDE 21
25 In allosteric regulation the sites where the inhibitors and activators are able to bind are called _____. A Active Site B Substrates C Allosteric Site D Cofactors
Slide 61 / 64
26 In allosteric regulation both an inhibitor and an activator can bind to one substrate complex at the same time. True False
Slide 62 / 64
27 Feedback inhibition is a type of _____. A competitive inhibition B product C allosteric regulation D enzyme
Slide 63 / 64
SLIDE 22
Slide 64 / 64
