8/14/17 Miles Cranmer 1

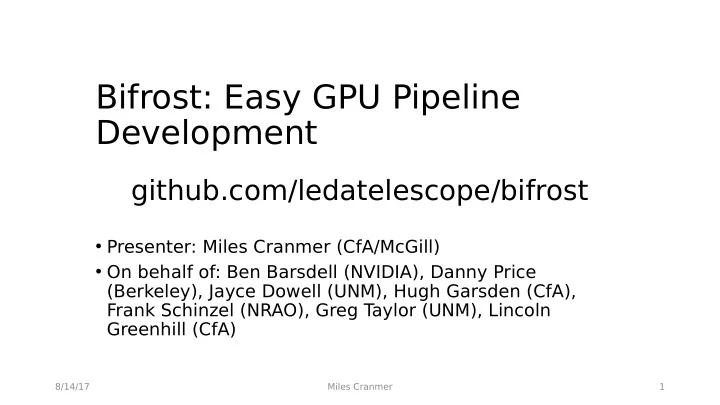

Bifrost: Easy GPU Pipeline Development

github.com/ledatelescope/bifrost

• Presenter: Miles Cranmer (CfA/McGill)
• On behalf of: Ben Barsdell (NVIDIA), Danny Price

(Berkeley), Jayce Dowell (UNM), Hugh Garsden (CfA), Frank Schinzel (NRAO), Greg T aylor (UNM), Lincoln Greenhill (CfA)

Stream-processing and real-time GPU computing

• Stream-processing: operating on data which is

potentially unlimited in extent

• E.g., time stream of digitized voltages
• Nontrivial for CPU/GPU systems:
• Creation of data structures for bufger memory management,

packet capture

• Additional complexities for asynchronous copies and kernel

execution

• Manual parallelization/core binding of algorithms and pipelines
• Potential issues include memory leaks and race conditions

8/14/17 Miles Cranmer 2

Bifrost is deployed in the wild:

• Backend for newest LWA

station in NM

• Bifrost-powered data

capture for live all-sky image

• Google: “LWA TV 2”
• Pulsar detection:
• Validation timing within

0.0001 ms of canonical for PSR B0834+06 (well within 1σ of measurement)

8/14/17 Miles Cranmer 3

Bifrost core concepts

• Blocks
• Independent thread
• “Black box” algorithm
• Ring bufgers (Rings)
• Emulates wrap-around

in memory

• Memory spaces
• Rings assigned to

specifjc “space”

• Pipelines
• Combination of the

above

8/14/17 Miles Cranmer 4

The Bifrost framework

• Python frontend wraps fast C/C++/CUDA backend
• Frontend:
• Blocks and Pipelines are Python object abstractions for the

backend

• ND-array object for memory management (span of ring bufger)
• ctypes wraps all C calls
• Backend:
• Common type defjnitions and “BFarray” generic data structure
• “Ring bufger” used for inter-block communication
• Several common modules implemented

8/14/17 Miles Cranmer 5

Ring Bufger implementation

• Multiple readers, single writer ⇒ branched pipelines OK
• Thread safe
• Allocated in system (CPU), cuda (GPU), or cuda_host (pinned CPU)

memory

• What’s unique?

8/14/17 Miles Cranmer 6

API example 1: block

8/14/17 Miles Cranmer 7

class QuantizeBlock(TransformBlock): def __init__(self, iring, dtype, scale=1., *args, **kwargs): TransformBlock.__init__(self, iring, *args, **kwargs) self.dtype = dtype self.scale = scale def on_sequence(self, isequence):

• hdr = deepcopy(isequence.header)
• hdr['_tensor']['dtype'] = self.dtype

return ohdr def on_data(self, ispan, ospan): bf.quantize.quantize(ispan.data, ospan.data, self.scale)

API example 2: pipeline

Read in fjle Copy to GPU FFT Square modulus Transpose Copy back to CPU Convert to 8-bit integer Save Run the pipeline

8/14/17 Miles Cranmer 8

bc = bf.BlockChainer() bc.blocks.read_wav(['audio_file.wav'], gulp_nframe=4096) bc.blocks.copy(space='cuda') bc.views.split_axis('time', 256, label='fine_time') bc.blocks.fft(axes='fine_time', axis_labels='freq') bc.blocks.detect(mode='scalar') bc.blocks.transpose(['time', 'pol', 'freq']) bc.blocks.copy(space='cuda_host') bc.blocks.quantize('i8') bc.blocks.write_sigproc() pipeline = bf.get_default_pipeline() pipeline.shutdown_on_signals() pipeline.run()

bf.map

• Easy CUDA kernel generation from Bifrost
• JIT compiler uses NVRTC

8/14/17 Miles Cranmer 9

# Create three arrays on the GPU, A and B, and an empty output C a = bf.ndarray([1,2,3,4,5], space='cuda') b = bf.ndarray([1,0,1,0,1], space='cuda') c = bf.empty(5, space='cuda') # Add A, B together bf.map("c = a + b", data={'c': c, 'a': a, 'b': b})

bf.map

Explicit indexing also supported. Outer product:

8/14/17 Miles Cranmer 10

bf.map("c(i,j) = a(i) * b(j)", {'c': c, 'a': a, 'b': b}, axis_names=('i','j'))

Why Bifrost?

8/14/17 Miles Cranmer 11

Astronomy-specifjc

• Bifrost developed in parallel with LWA-SV, driven by radio astronomy

applications

• ⇒ Core structural advantages for astronomy
• Ring features
• Metadata describes the units of ring bufger dimensions; used in algorithms

(e.g., dedispersion)

• Multi-sequence ring bufgers, useful for difgerent observations. The metadata

will propagate down the pipeline.

• Time-tagged sequences in ring bufgers ⇒ can dump section of data to disk

based on time range, observation name

• Useful for detections of transient phenomena
• Ndarray is a child of numpy.ndarray ⇒ compatibility with many numpy

functions, matplotlib, etc.

Why Bifrost?

8/14/17 Miles Cranmer 12

Block library

Many astronomy and general processing blocks already built

• State of the art and fmexible high-performance implementations
• Metadata rich
• Well-documented
• Flexible dimensions

These include:

Why Bifrost?

• accumulate
• audio
• binary_io
• detect
• fdmt
• fft
• fftshift
• guppi_raw
• quantize
• reduce
• reverse
• serialize
• sigproc
• transpose
• unpack
• wav

8/14/17 Miles Cranmer 13

Logging and performance benchmarking

Why Bifrost?

• getirq
• getsiblings
• like_bmon
• like_ps
• like_top
• pipeline2dot
• setirq

8/14/17 Miles Cranmer 14

Rapid development speed; high performance

Why Bifrost?

Bifrost code vs. C++ legacy:

8/14/17 Miles Cranmer 15

Rapid development speed; high performance

Why Bifrost?

8/14/17 Miles Cranmer 16

Rapid development speed; high performance

Why Bifrost?

8/14/17 Miles Cranmer 17

Conclusion

• Future work
• PSRDADA – Bifrost block
• T
• enable capture with PSRDADA to a Bifrost ring for post-processing
• Additional options for visualization, "ScopeBlock”
• Visualize ring contents in real-time
• Aiming for full support of correlation, pulsar/transient backend pipelines

github.com/ledatelescope/bifrost

(or, Google: “leda telescope bifrost”)

8/14/17 Miles Cranmer 18
