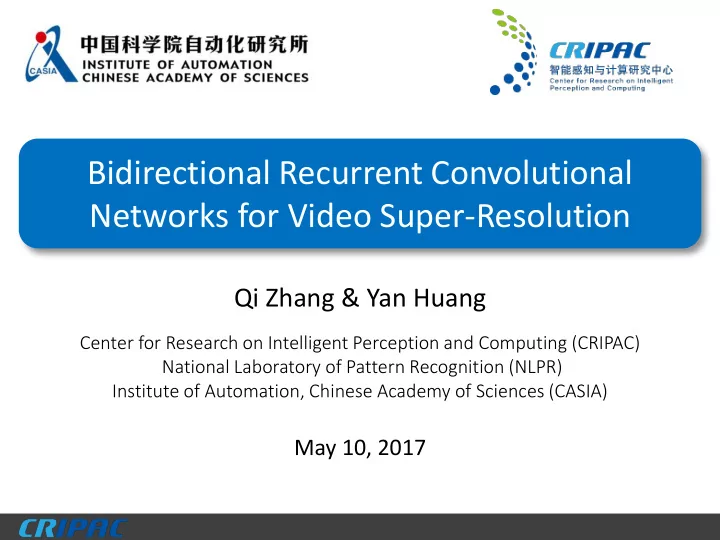

Bidirectional Recurrent Convolutional Networks for Video Super-Resolution Qi Zhang & Yan Huang Center for Research on Intelligent Perception and Computing (CRIPAC) National Laboratory of Pattern Recognition (NLPR) Institute of Automation, Chinese Academy of Sciences (CASIA) May 10, 2017
CRIPAC CRIPAC mainly focuses on the following research topics related to national public security. • Biometrics • Image and Video Analysis • Big Data and Multi-modal Computing • Content Security and Authentication • Sensing and Information Acquisition CRAPIC receives regular fundings from various Government departments or agencies. It is also supported by funds of R&D projects from many other national and international sources. CRIPAC members publish widely in leading national and international journals and conferences such as IEEE Transactions on PAMI, IEEE Transactions on Image Processing, International Journal of Computer Vision, Pattern Recognition, Pattern Recognition Letters, ICCV, ECCV, CVPR, ACCV, ICPR, ICIP, etc. http://cripac.ia.ac.cn/en/EN/volumn/home.shtml 2
NVAIL Artificial Intelligence Laboratory Researches on artificial intelligence and deep learning 3
Outline 1 Deep Learning 2 Recurrent Convolutional Networks 3 Application to Video Super-Resolution 4 Future Work 4
Outline 1 Deep Learning 2 Recurrent Convolutional Networks 3 Application to Video Super-Resolution 4 Future Work 5
Deep Neural Networks (DNN) • Originate from : - 1962 – simple/complex cell, Hubel and Wiesel - 1970 – efficient error backpropagation, Linnainmaa - 1979 – deep neocognitron, convolution, Fukushima - 1987 – autoencoder, Ballard - 1989 – backpropagation for CNN, Lecun - 1991 – fundamental deep learning problem, Hochreiter - 1991 – deep recurrent neural network, Schmidhuber - 1997 – supervised LSTM RNN, Schmidhuber • Two drawbacks: Large numbers of parameters → High computational cost Small training set → Over-fitting problem 6
Two Recent Developments Big Data 100000 87360 90000 80000 70000 54600 60000 50000 40000 27300 30000 18200 20000 13000 10000 10000 0 2009 2010 2011 2012 2013 2014 Video surveillance data size (PB) Cheap Computation DNN can thus be fitted efficiently 7
Deep Learning ： The Resurgence of DNN Breakthrough in 2006 ImageNet: 74% vs. 85% RNN for sequence analysis Activity recognition , CVPR2015 Video caption , CVPR2015 Deep Learning promotes the fast development of various visual computing areas 2006 2012 2014 Representation learning CNN for visual tasks DeepFace , CVPR2014 ∙∙∙∙∙∙ RCNN for detection , CVPR2014 8
Outline 1 Deep Learning 2 Recurrent Convolutional Networks 3 Application to Video Super-Resolution 4 Future Work 9
Deep Neural Networks (DNN) • 𝐲 ∈ ℝ 𝑒 , 𝐢 ∈ ℝ 𝑜 , 𝐗 ∈ ℝ 𝑒×𝑜 𝐳 1 • 𝐢 = 𝜏 𝐲𝐗 , 𝜏 𝑢 = 1+𝑓 −𝑢 𝐢 𝐗 𝐲 Sigmoid function 𝜏 𝑢 10
Recurrent Neural Networks (RNN) 𝐳 𝐳 Temporal dependency modeling 𝐕 𝐕 𝐢 𝟐 𝐢 𝐢 𝟑 𝐢 𝟒 𝐗 𝐗 𝐗 𝐗 𝐲 𝟐 𝐲 𝐲 𝟑 𝐲 𝟒 RNN DNN 𝐲 𝐮 ∈ ℝ 𝑒 , 𝐢 𝐮 ∈ ℝ 𝑜 , 𝐗 ∈ ℝ 𝑒×𝑜 , 𝐕 ∈ ℝ 𝑜×𝑜 • • 𝐢 𝒖 = 𝜏 𝐲 𝒖 𝐗 + 𝐢 𝒖−𝟐 𝐕 11
Recurrent Convolutional Networks (RCN) DNN: Deep Neural Networks RNN: Recurrent Neural Networks CNN: Convolutional Neural Networks DNN CNN Convolutional Sequential Sequential RCN RNN Convolutional 12
Applications of RCN Video SR, NIPS15 & TPAMI17 Scene Labeling, NIPS15 Weather Nowcasting, NIPS15 Action Recognition, ICLR15 Person ReID, CVPR16 Object Recognition, CVPR15 13
Outline 1 Deep Learning 2 Recurrent Convolutional Networks 3 Application to Video Super-Resolution 4 Future Work 14
Video Super-Resolution Display High-resolution devices High-resolution videos Display Super-resolution: denoising, deblurring, upscaling A great need for super resolving low-resolution videos Low-resolution videos 15
Two Main Approaches (1/2) 1. Single-Image super-resolution [1-6] One-to-One scheme, super resolve each video frame independently Ignore the intrinsic temporal dependency relation of video frames Low computational complexity, fast [1] Dong et al., Learning a deep convolutional network for image super resolution. ECCV, 2014. [2] Timofte et al., Anchored neighborhood regression for fast example-based super resolution. ICCV, 2013. [3] Zeyde et al., On single image scale-up using sparse-representations. Curves and Surfaces, 2012. [4] Yang et al., Image super-resolution via sparse representation. IEEE TIP, 2010. [5] Bevilacqua et al., Low-complexity single-image super resolution. BMVC, 2012. [6] Chang et al., Super-resolution through neighbor embedding. CVPR, 2004. 16
Two Main Approaches (2/2) 2. Multi-Frame super-resolution [7-11] Many-to-One scheme, use ⋯ multiple adjacent frames to super resolve a frame Model the temporal dependency relation by motion estimation High computational complexity, slow [7] Liu and Sun, On bayesian adaptive video super resolution. IEEE PAMI, 2014. [8] Takeda et al., Super-resolution without explicit subpixel motion estimation. IEEE TIP, 2009. [9] Mitzel et al., Video super resolution using duality based tv-l 1 optical flow. PR, 2009. [10] Protter et al. Generalizing the nonlocal-means to super-resolution reconstruction. IEEE TIP, 2009. [11] Fransens et al., Optical flow based super-resolution: A probabilistic approach. CVIU, 2007. 17
Motivation RNN: Recurrent Neural Networks SR: Super-Resolution • RNN can model long-term contextual information of temporal sequences well • Convolutional operation can scale to full videos of any spatial size and temporal step ➢ Propose bidirectional recurrent convolutional networks, different from vanilla RNN: 1. Commonly-used full connections are replaced with weight -sharing convolutions 2. Conditional convolutions are added for learning visual-temporal dependency relation 18
Bidirectional Recurrent Convolutional Networks learn spatial dependency between a low-resolution frame and its high- resolution result model long-term temporal dependency relation across video frames enhance visual-temporal dependency relation modeling 19
Learning • Define an end-to-end mapping 𝑃 ∙ from low-resolution frames 𝒴 to high-resolution frames 𝒵 • Learning proceeds by optimizing the Mean Square Error (MSE) between predicted frames 𝑃(𝒴) and 𝒵 2 𝑀 = 𝑃 𝒴 − 𝒵 – stochastic gradient descent – small learning rate in the output layer: 1e-4 20
Experiments • Train the model on 25 YUV format video sequences – volume-based training – number of volumes: roughly 41,000 – volume size: 32 × 32 × 10 Training videos • Test on a variety of real world videos – severe motion blur – motion aliasing – complex motions Testing videos 21
PSNR Comparison PSNR: peak signal-to-noise ratio Table1: The results of PSNR (dB) and test time (sec) on the test video sequences. [1] Video enhancer. http://www.infognition.com/videoenhancer/, version 1.9.10. 2014. Surpass state-of-the-art methods in PSNR, due to the effective [4] Bevilacqua et al., Low-complexity single-image super resolution. BMVC, 2012. [5] Chang et al., Super-resolution through neighbor embedding. CVPR, 2004. temporal dependency modelling [6] Dong et al., Learning a deep convolutional network for image super resolution. ECCV, 2014. [20] Takeda et al., Super-resolution without explicit subpixel motion estimation. IEEE TIP, 2009. [22] Timofte et al., Anchored neighborhood regression for fast example-based super resolution. ICCV, 2013. [24] Yang et al., Image super-resolution via sparse representation. IEEE TIP, 2010. [25] Zeyde et al., On single image scale-up using sparse-representations. Curves and Surfaces, 2012. 22
Model Architecture • Investigate the impact of our model architecture on the performance • Take a simplified network containing only feedfoward ( 𝑤 ) convolution as a benchmark • Study its variants by successively adding the bidirectional ( 𝑐 ), recurrent ( 𝑠 )and conditional ( 𝑢 ) schemes Table1: The results of PSNR (dB) by variants of BRCN on the testing video sequences. 23
Running Time Figure: Speed vs. PSNR for all the comparison methods. Outperform both single-image and multi-frame SR methods Achieve comparable speed with the fastest single-image SR methods 24
Closeup Comparison Figure: Comparison among original frames (2th, 3th and 4th frames, from the top row to Our method is able to recover more image details than others, the bottom) of the Dancing video and super resolved results by Bicubic, 3DSKR, ANR and under severe motion conditions BRCN, respectively. 25
Example Upscaling factor:4 87 × 157 → 348 × 628 Comparison: Bicubic (top) Ours (bottom) 26
