SENSY Presentation SENSY Presentation KNOW HOW & FLEXIBILITY THE WAY TO EXCELLENCE Bringing solution through special force transducers, load cells as well as customized systems is Sensy motto SENSY Presentation_EN 2 25/05/2009

slide-1
SLIDE 1

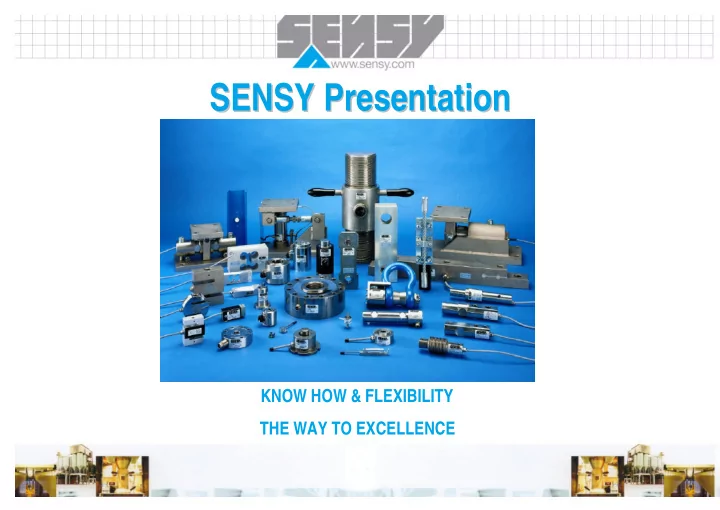

SENSY Presentation SENSY Presentation

KNOW HOW & FLEXIBILITY THE WAY TO EXCELLENCE

slide-2
SLIDE 2

25/05/2009 SENSY Presentation_EN

2

Bringing solution through special force transducers, load cells as well as customized systems is Sensy motto

slide-3
SLIDE 3

25/05/2009 SENSY Presentation_EN

3

Points :

SENSY company : Presentation Load cells and force transducer : definition and applications Principle and characteristics Communications protocols : SENSY solutions Projects …

slide-4
SLIDE 4

25/05/2009 SENSY Presentation_EN

4

Definition :

Element which deliver a electric signal proportional to its applied force.

Technical data :

Non-Linearity Resolution Hysteresis Sensitivity Non-Repeatability

slide-5
SLIDE 5

25/05/2009 SENSY Presentation_EN

5

Model 2162 (small hoppers and computing scales)

slide-6
SLIDE 6

25/05/2009 SENSY Presentation_EN

6

Model 5000 : redundant solution for safety on Overhead cranes

slide-7
SLIDE 7

25/05/2009 SENSY Presentation_EN

7

Model 5000 : Custom made load pins

slide-8
SLIDE 8

25/05/2009 SENSY Presentation_EN

8

Model 5000 : a wide range of OEM solutions with or without integrated amplifier : 4 – 20 mA and 1 – 5 V

High capacity load pins: 260 t

slide-9
SLIDE 9

25/05/2009 SENSY Presentation_EN

9

Special Custom made force transducer for Shaft bearing

  • n cranes

Capacity: 45 t

slide-10
SLIDE 10

25/05/2009 SENSY Presentation_EN

10

Custom made torque transducer for automotive gear transmission

slide-11
SLIDE 11

25/05/2009 SENSY Presentation_EN

11

Custom made load cell 3 independent Bridges :

Tension Compression Torque

slide-12
SLIDE 12

25/05/2009 SENSY Presentation_EN

12

Bidirectional scale : Fz & Fx : Testing of truck’s brake

slide-13
SLIDE 13

25/05/2009 SENSY Presentation_EN

13

Model 5950 (tanks and reactors weighing)

slide-14
SLIDE 14

25/05/2009 SENSY Presentation_EN

14

INSERT GAGE (Model 3300) Silos levelling

slide-15
SLIDE 15

25/05/2009 SENSY Presentation_EN

15

Model 2712 Tension/Compression Hoppers & tanks of medium size

slide-16
SLIDE 16

25/05/2009 SENSY Presentation_EN

16

Model 5600 (weighing of chemical reactors )

slide-17
SLIDE 17

25/05/2009 SENSY Presentation_EN

17

Torque measurement on an axle (customers own material made up)

slide-18
SLIDE 18

25/05/2009 SENSY Presentation_EN

18

Stress measurement on concrete pipe

slide-19
SLIDE 19

25/05/2009 SENSY Presentation_EN

19

Model 5105 20MN (2000t) – Testing machines

slide-20
SLIDE 20

25/05/2009 SENSY Presentation_EN

20

Special application : windscreen wiper

slide-21
SLIDE 21

25/05/2009 SENSY Presentation_EN

21

Model 9PED : bidirectional pedal for bike

slide-22
SLIDE 22

25/05/2009 SENSY Presentation_EN

22

Model 6500M : torque measurement

slide-23
SLIDE 23

25/05/2009 SENSY Presentation_EN

23

SENSY Load cells : used principle :

Strain gages of extensiometry : The strain gages

are bonded on the mechanical element to have the same deformation.

slide-24
SLIDE 24

25/05/2009 SENSY Presentation_EN

24

Which are the elements of influence of a Force sensor?

Mechanical element Bond Strain gages Corrections of the drifts (Integrated amplification card)

slide-25
SLIDE 25

25/05/2009 SENSY Presentation_EN

25

Bending load cells used as for:

Scales Pallets scale Small to medium range hoppers Etc…

slide-26
SLIDE 26

25/05/2009 SENSY Presentation_EN

26

Principle : Wheatstone bridge

Vout = 0 Volts if charge = 0 N

Each resistance is a gage which varies according to its deformation. Advantage: Output signal = 0 Volt in absence of force combined with differential measures (less disturbance).

slide-27
SLIDE 27

25/05/2009 SENSY Presentation_EN

27

Knowing the relation Defined by the strain gages principle We may write :

slide-28
SLIDE 28

25/05/2009 SENSY Presentation_EN

28

Sensitivity definition:

It determine the evolution of the

  • utput variable according to the

size of entry in a given point. It is the slope of the tangent to the curve resulting from the sensor’s characteristics.

Used formula: Unit: mV/V (from 1 to 2 mV/V)

slide-29
SLIDE 29

25/05/2009 SENSY Presentation_EN

29

Strain gauges

Passive sensor which translates into variation resistance their

  • wn deformation.

2 types of gages which are characterized by the variation from resistivity

  • Metallic strain gages
  • semiconductors
slide-30
SLIDE 30

25/05/2009 SENSY Presentation_EN

30

Metal gages: Using the relation of Bridgman who allows to bind

the variation of resistivity to the variation of volume.

Semiconductor gages: Use the piezo-resistivity effect. The

variation of resistivity is expressed according to the constraint s and of the piezo-resistive coefficient p by the relation:

After calculations, we obtain: With K = factor of gage

  • Rem. : K often oscillates around 2 for the strain gages, and between 100

and 200 for semiconductor gages.

slide-31
SLIDE 31

25/05/2009 SENSY Presentation_EN

31

SENSY is using metal gages of 120, 350... 5000 Ohms.

Advantages:

  • Better positioning
  • Better temperature behavior
  • Less fragile and less expensive.
  • Diversity of the gages according to their creep resistance.
  • Better linearity.

Characteristics of the semiconductor gages:

  • Adapted very well to the measurement of very weak deformations
  • Better adapted to dynamic measurements.
slide-32
SLIDE 32

25/05/2009 SENSY Presentation_EN

32

Concept of accuracy at SENSY:

In the case of a sensor of force, the accuracy represents the whole

  • f the errors on the linearity,

Hysteresis, the non-repeatability, creep, sensitivity drift of in temperature, etc... For example:

slide-33
SLIDE 33

25/05/2009 SENSY Presentation_EN

33

Mechanical characteristics

Zero and hysteresis

Elastic range Plastic range

slide-34
SLIDE 34

25/05/2009 SENSY Presentation_EN

34

slide-35
SLIDE 35

25/05/2009 SENSY Presentation_EN

35

Load cells and force sensor development

Data

  • Capacity
  • Dimensions

Load cell design depends on the type of stress but also

  • n its capacity, temperature range of use , etc…)For the

design, we do use a software which allows to calculate the strains gages localization by finite element. Examples…

slide-36
SLIDE 36

25/05/2009 SENSY Presentation_EN

36

Simulation by finite elements on the Model 5190

slide-37
SLIDE 37

25/05/2009 SENSY Presentation_EN

37

Model 2625 (10t)

slide-38
SLIDE 38

25/05/2009 SENSY Presentation_EN

38

Model 2625 «On board » application

slide-39
SLIDE 39

25/05/2009 SENSY Presentation_EN

39

Model 2712 (200kg): application

slide-40
SLIDE 40

25/05/2009 SENSY Presentation_EN

40

Model 5100L (customized) IP68, submerged environment (used under the sea – long term period)

slide-41
SLIDE 41

25/05/2009 SENSY Presentation_EN

41

Available output

slide-42
SLIDE 42

25/05/2009 SENSY Presentation_EN

42

Digital reference load cell

Various types of output

  • RS232
  • RS485

Advantages:

  • Digital correction of the temperature drifts.
  • Signals much less prone to the parasites.
  • Reading by an ordinary PC.
  • Very high resolution.
  • Faster calibration, etc…
slide-43
SLIDE 43

25/05/2009 SENSY Presentation_EN

43

Digital sensors project in progress:

Multiplication of achievements of programs "to measure" For example: evolution of the signal sensor according to time in a graph, tests or calibrations of machines in accordance with standards. Digital Standard Reference load cell.
