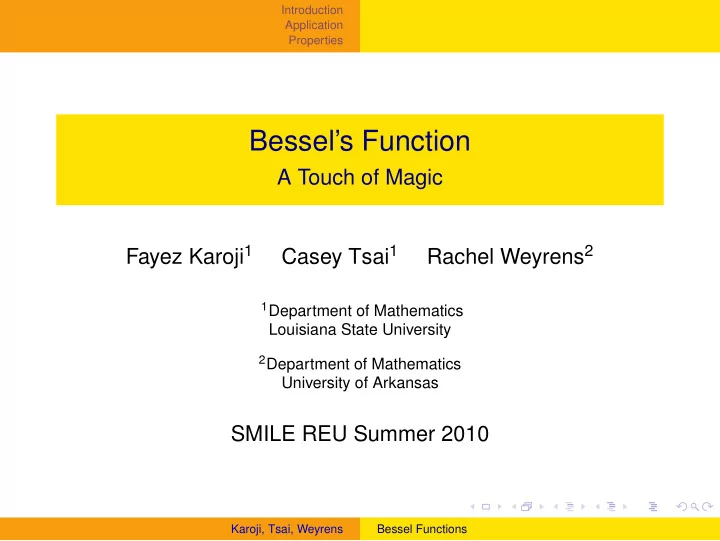

Bessel’s Function

A Touch of Magic Fayez Karoji1 Casey Tsai1 Rachel Weyrens2

1Department of Mathematics

Louisiana State University

2Department of Mathematics

University of Arkansas

SMILE REU Summer 2010

Karoji, Tsai, Weyrens Bessel Functions

slide-2
SLIDE 2

Introduction Application Properties

Outline

Introduction Bessel Functions Terminology Application Drum Example Properties Orthogonality

Karoji, Tsai, Weyrens Bessel Functions

slide-3
SLIDE 3

Introduction Application Properties Bessel Functions Terminology

General Form

Bessel’s differential equation is x2y′′ + xy′ + (x2 − n2)y = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-4
SLIDE 4

Introduction Application Properties Bessel Functions Terminology

General Form

Bessel’s differential equation is x2y′′ + xy′ + (x2 − n2)y = 0 The linearly independent solutions are Jn and Yn.

Karoji, Tsai, Weyrens Bessel Functions

slide-5
SLIDE 5

Introduction Application Properties Bessel Functions Terminology

General Form

Bessel’s differential equation is x2y′′ + xy′ + (x2 − n2)y = 0 The linearly independent solutions are Jn and Yn. The zeros are jn and yn.

Karoji, Tsai, Weyrens Bessel Functions

slide-6
SLIDE 6

Introduction Application Properties Bessel Functions Terminology

Bessel Functions of Order Zero

/Bessel/j0.pdf

Figure: Bessel Function of the First Kind, J0

Karoji, Tsai, Weyrens Bessel Functions

slide-7
SLIDE 7

Introduction Application Properties Bessel Functions Terminology

Bessel Functions of Order Zero

/Bessel/y0.pdf

Figure: Bessel Function of the Second Kind, Y0

Karoji, Tsai, Weyrens Bessel Functions

slide-8
SLIDE 8

Introduction Application Properties Bessel Functions Terminology

Key Terms

▶ Separation of variables

Karoji, Tsai, Weyrens Bessel Functions

slide-9
SLIDE 9

Introduction Application Properties Bessel Functions Terminology

Key Terms

▶ Separation of variables ▶ Regular singular

Karoji, Tsai, Weyrens Bessel Functions

slide-10
SLIDE 10

Introduction Application Properties Bessel Functions Terminology

Key Terms

▶ Separation of variables ▶ Regular singular ▶ Superposition

Karoji, Tsai, Weyrens Bessel Functions

slide-11
SLIDE 11

Introduction Application Properties Drum Example

Physical Description

▶ Radially symmetric

Karoji, Tsai, Weyrens Bessel Functions

slide-12
SLIDE 12

Introduction Application Properties Drum Example

Physical Description

▶ Radially symmetric ▶ Radius r = 1

Karoji, Tsai, Weyrens Bessel Functions

slide-13
SLIDE 13

Introduction Application Properties Drum Example

Physical Description

▶ Radially symmetric ▶ Radius r = 1 ▶ Beginning at rest

Karoji, Tsai, Weyrens Bessel Functions

slide-14
SLIDE 14

Introduction Application Properties Drum Example

Physical Description

▶ Radially symmetric ▶ Radius r = 1 ▶ Beginning at rest ▶ Edges fixed

Karoji, Tsai, Weyrens Bessel Functions

slide-15
SLIDE 15

Introduction Application Properties Drum Example

Boundary Valued Problem

This physical problem can be represented by the following boundary valued problem:

Karoji, Tsai, Weyrens Bessel Functions

slide-16
SLIDE 16

Introduction Application Properties Drum Example

Boundary Valued Problem

This physical problem can be represented by the following boundary valued problem:

▶ utt = urr + 1 r ur

Karoji, Tsai, Weyrens Bessel Functions

slide-17
SLIDE 17

Introduction Application Properties Drum Example

Boundary Valued Problem

This physical problem can be represented by the following boundary valued problem:

▶ utt = urr + 1 r ur ▶ u(r, 0) = f(r)

Karoji, Tsai, Weyrens Bessel Functions

slide-18
SLIDE 18

Introduction Application Properties Drum Example

Boundary Valued Problem

This physical problem can be represented by the following boundary valued problem:

▶ utt = urr + 1 r ur ▶ u(r, 0) = f(r) ▶ ut(r, 0) = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-19
SLIDE 19

Introduction Application Properties Drum Example

Boundary Valued Problem

This physical problem can be represented by the following boundary valued problem:

▶ utt = urr + 1 r ur ▶ u(r, 0) = f(r) ▶ ut(r, 0) = 0 ▶ u(1, t) = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-20
SLIDE 20

Introduction Application Properties Drum Example

Separation of Variables

We have u(r, t) = R(r)T(t)

▶ T ′′ + 휇T = 0 ▶ R′′ + 1 r R′ + 휇R = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-21
SLIDE 21

Introduction Application Properties Drum Example

Separation of Variables

We have u(r, t) = R(r)T(t)

▶ T ′′ + 휇T = 0 ▶ R′′ + 1 r R′ + 휇R = 0 ▶ 휇 = 훼2 > 0

Karoji, Tsai, Weyrens Bessel Functions

slide-22
SLIDE 22

Introduction Application Properties Drum Example

Solutions

The solutions of the given ODE’s are

Karoji, Tsai, Weyrens Bessel Functions

slide-23
SLIDE 23

Introduction Application Properties Drum Example

Solutions

The solutions of the given ODE’s are

▶ T(t) = c1 cos(훼t) + c2 sin(훼t)

Karoji, Tsai, Weyrens Bessel Functions

slide-24
SLIDE 24

Introduction Application Properties Drum Example

Solutions

The solutions of the given ODE’s are

▶ T(t) = c1 cos(훼t) + c2 sin(훼t) ▶ R(r) = c3J0(훼r) + c4Y0(훼r)

Karoji, Tsai, Weyrens Bessel Functions

slide-25
SLIDE 25

Introduction Application Properties Drum Example

Evaluation

Using initial and boundary conditions, we have un(r, t) = AnJ0(jnr) cos(jnt)

Karoji, Tsai, Weyrens Bessel Functions

slide-26
SLIDE 26

Introduction Application Properties Drum Example

Evaluation

Using initial and boundary conditions, we have un(r, t) = AnJ0(jnr) cos(jnt) General solution

Karoji, Tsai, Weyrens Bessel Functions

slide-27
SLIDE 27

Introduction Application Properties Drum Example

Evaluation

Using initial and boundary conditions, we have un(r, t) = AnJ0(jnr) cos(jnt) General solution u(r, t) =

∞

∑

n=1

AnJ0(jnr) cos(jnt)

Karoji, Tsai, Weyrens Bessel Functions

slide-28
SLIDE 28

Introduction Application Properties Drum Example

Amplitude

The amplitude of displacement, from u(r, 0) = f(r) is:

Karoji, Tsai, Weyrens Bessel Functions

slide-29
SLIDE 29

Introduction Application Properties Drum Example

Amplitude

The amplitude of displacement, from u(r, 0) = f(r) is: An = ∫ 1

0 rJ0(jnr)f(r)dr

∫ 1

0 rJ0(jnr)J0(jnr)dr

Karoji, Tsai, Weyrens Bessel Functions

slide-30
SLIDE 30

Introduction Application Properties Drum Example

Frequencies

Fundamental pitch

j1 2휋

First overtone

j2 2휋

Second overtone

j3 2휋

Karoji, Tsai, Weyrens Bessel Functions

slide-31
SLIDE 31

Introduction Application Properties Orthogonality

Orthogonality Property of Bessel Functions

/Bessel/jnspdf.pdf

Figure: Bessel Functions of the First Kind

Karoji, Tsai, Weyrens Bessel Functions

slide-32
SLIDE 32

Introduction Application Properties Orthogonality

Problems in Mathematical Physics

▶ PDE’s model physical phenomena. ▶ Example: Steady Temperatures in Circular Cylinder

(Laplacian in Cylindrical Coordinates).

▶ Example: The Vibrating Drumhead (Wave Equation in

Polar Coordinates).

Karoji, Tsai, Weyrens Bessel Functions

slide-33
SLIDE 33

Introduction Application Properties Orthogonality

Methods of Solution

▶ PDE’s are difficult to solve. ▶ Fourier’s Method: Linear and homogeneous PDE’s with

homogeneous boundary conditions.

▶ Also known as Separation of Variables.

Karoji, Tsai, Weyrens Bessel Functions

slide-34
SLIDE 34

Introduction Application Properties Orthogonality

Fourier’s Method: PDE − → ODE’s

▶ PDE: Wave Equation in Polar Coordinates ▶ Apply Fourier’s Method ▶ Two second order ODE’s

▶ Simple Harmonic Motion T ′′ + 휇T = 0 ▶ Bessel’s Equation R′′ + 1

r R′ + R = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-35
SLIDE 35

Introduction Application Properties Orthogonality

Orthogonal Functions

▶ Analysis of solutions to ODE’s ▶ Underlying Theme: Orthogonal Functions ▶ Examples:

▶ Sine and Cosine Functions ▶ Legendre Polynomials (Special Function) ▶ Bessel Functions (A "Very" Special Function) Karoji, Tsai, Weyrens Bessel Functions

slide-36
SLIDE 36

Introduction Application Properties Orthogonality

What is Orthogonality?

▶ Dot Product or Inner Product in ℝn

Karoji, Tsai, Weyrens Bessel Functions

slide-37
SLIDE 37

Introduction Application Properties Orthogonality

What is Orthogonality?

▶ Dot Product or Inner Product in ℝn ▶ Given x, y ∈ ℝn

Karoji, Tsai, Weyrens Bessel Functions

slide-38
SLIDE 38

Introduction Application Properties Orthogonality

What is Orthogonality?

▶ Dot Product or Inner Product in ℝn ▶ Given x, y ∈ ℝn ▶ Define x ⋅ y = ∑n i=1 xiyi

Karoji, Tsai, Weyrens Bessel Functions

slide-39
SLIDE 39

Introduction Application Properties Orthogonality

What is Orthogonality?

▶ Dot Product or Inner Product in ℝn ▶ Given x, y ∈ ℝn ▶ Define x ⋅ y = ∑n i=1 xiyi ▶ x and y are orthogonal when ∑n i=1 xiyi = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-40
SLIDE 40

Introduction Application Properties Orthogonality

Generalize Orthogonality

▶ Inner Product in ℛ[a, b]

Karoji, Tsai, Weyrens Bessel Functions

slide-41
SLIDE 41

Introduction Application Properties Orthogonality

Generalize Orthogonality

▶ Inner Product in ℛ[a, b] ▶ Given f, g ∈ ℛ[a, b]

Karoji, Tsai, Weyrens Bessel Functions

slide-42
SLIDE 42

Introduction Application Properties Orthogonality

Generalize Orthogonality

▶ Inner Product in ℛ[a, b] ▶ Given f, g ∈ ℛ[a, b] ▶ Define ⟨f, g⟩ =

∫ b

a f(x)g(x) dx

Karoji, Tsai, Weyrens Bessel Functions

slide-43
SLIDE 43

Introduction Application Properties Orthogonality

Generalize Orthogonality

▶ Inner Product in ℛ[a, b] ▶ Given f, g ∈ ℛ[a, b] ▶ Define ⟨f, g⟩ =

∫ b

a f(x)g(x) dx ▶ f and g are orthogonal when

∫ b

a f(x)g(x) dx = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-44
SLIDE 44

Introduction Application Properties Orthogonality

Example: Simple Harmonic Motion

▶ Consider T ′′ + n2T = 0, (휇 = n2)

Karoji, Tsai, Weyrens Bessel Functions

slide-45
SLIDE 45

Introduction Application Properties Orthogonality

Example: Simple Harmonic Motion

▶ Consider T ′′ + n2T = 0, (휇 = n2) ▶ Solutions are sin(nx) and cos(nx)

Karoji, Tsai, Weyrens Bessel Functions

slide-46
SLIDE 46

Introduction Application Properties Orthogonality

Example: Simple Harmonic Motion

▶ Consider T ′′ + n2T = 0, (휇 = n2) ▶ Solutions are sin(nx) and cos(nx) ▶ Easy to show that

∫ 휋

−휋 sin(mx) cos(nx) dx = 0

for any n, m ∈ ℤ

Karoji, Tsai, Weyrens Bessel Functions

slide-47
SLIDE 47

Introduction Application Properties Orthogonality

Example: Legendre Polynomials

▶ It was shown that the Legendre Polynomials satisfy

∫ 1

−1 Pn(x)Pm(x) dx = 0 for n, m ∈ ℤ, n ∕= m

Karoji, Tsai, Weyrens Bessel Functions

slide-48
SLIDE 48

Introduction Application Properties Orthogonality

Example: Bessel Functions

▶ Orthogonality property of Jn(휆x) and Jn(휇x)

Karoji, Tsai, Weyrens Bessel Functions

slide-49
SLIDE 49

Introduction Application Properties Orthogonality

Example: Bessel Functions

▶ Orthogonality property of Jn(휆x) and Jn(휇x) ▶ Bessel Functions of the First Kind of Order n

Karoji, Tsai, Weyrens Bessel Functions

slide-50
SLIDE 50

Introduction Application Properties Orthogonality

Example: Bessel Functions

▶ Orthogonality property of Jn(휆x) and Jn(휇x) ▶ Bessel Functions of the First Kind of Order n ▶ 휆 and 휇 are distinct positive roots of Jn(x) = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-51
SLIDE 51

Introduction Application Properties Orthogonality

Example: Bessel Functions

▶ Orthogonality property of Jn(휆x) and Jn(휇x) ▶ Bessel Functions of the First Kind of Order n ▶ 휆 and 휇 are distinct positive roots of Jn(x) = 0 ▶ Will show:

∫ 1

0 xJn(휆x)Jn(휇x) dx = 0

Karoji, Tsai, Weyrens Bessel Functions

slide-52
SLIDE 52

Introduction Application Properties Orthogonality

Theorem

Theorem

If 휆 and 휇 are distinct positive roots of Jn(x) = 0 then ∫ 1 xJn(휆x)Jn(휇x) dx = { 0, if 휆 ∕= 휇

1 2J2 n+1(휆),

if 휆 = 휇

Karoji, Tsai, Weyrens Bessel Functions

slide-53
SLIDE 53

Introduction Application Properties Orthogonality

Proof

Proof. Suppose 휆 ∕= 휇, then 휆 and 휇 are distinct positive roots of Jn(x) = 0. Since Jn(휆x) and Jn(휇x) are solutions of the Bessel equation in parametric form, we can write x2J′′

n(휆x) + xJ′ n(휆x) + (휆2x2 − n2)Jn(휆x) = 0

(1) and x2J′′

n(휇x) + xJ′ n(휇x) + (휇2x2 − n2)Jn(휇x) = 0

(2) Equations (1) and (2) may be written in the form

Karoji, Tsai, Weyrens Bessel Functions

slide-54
SLIDE 54

Introduction Application Properties Orthogonality

Proof

x d dx [ x d dx Jn(휆x) ] + (휆2x2 − n2)Jn(휆x) = 0 (3) and x d dx [ x d dx Jn(휇x) ] + (휇2x2 − n2)Jn(휇x) = 0 (4) Multiplying (3) by Jn(휇x)

x

and (4) by Jn(휆x)

x

we get

Karoji, Tsai, Weyrens Bessel Functions

slide-55
SLIDE 55

Introduction Application Properties Orthogonality

Proof

Jn(휇x) d dx [ x d dx Jn(휆x) ] + 1 x (휆2x2 − n2)Jn(휆x)Jn(휇x) = 0 (5) and Jn(휆x) d dx [ x d dx Jn(휇x) ] + 1 x (휇2x2 − n2)Jn(휇x)Jn(휆x) = 0 (6) Then subtracting, (5) - (6) we get

Karoji, Tsai, Weyrens Bessel Functions

slide-56
SLIDE 56

Introduction Application Properties Orthogonality

Proof

Jn(휇x) d dx [ x d dx Jn(휆x) ] − Jn(휆x) d dx [ x d dx Jn(휇x) ] + (휆2 − 휇2)xJn(휆x)Jn(휇x) = 0 (7) With some more manipulation, equation (7) may be written as

Karoji, Tsai, Weyrens Bessel Functions

slide-57
SLIDE 57

Introduction Application Properties Orthogonality

Proof

d dx [ Jn(휇x)x d dx Jn(휆x) ] − d dx [ Jn(휆x)x d dx Jn(휇x) ] + (휆2 − 휇2)xJn(휆x)Jn(휇x) = 0 (8) Finally integrating (8) from 0 to 1 noting that Jn(휆) = Jn(휇) = 0, we get

Karoji, Tsai, Weyrens Bessel Functions

slide-58
SLIDE 58

Introduction Application Properties Orthogonality

Proof

(휆2 − 휇2) ∫ 1 xJn(휆x)Jn(휇x) dx = 0 And since 휆 ∕= 휇, then we may divide to get the desired result ∫ 1 xJn(휆x)Jn(휇x) dx = 0 (9)

Karoji, Tsai, Weyrens Bessel Functions

slide-59
SLIDE 59

Introduction Application Properties Orthogonality

Coefficients

Theorem

If 휆 and 휇 are distinct positive roots of Jn(x) = 0 then ∫ 1 xJn(휆x)Jn(휇x) dx = { 0, if 휆 ∕= 휇

1 2J2 n+1(휆),

if 휆 = 휇

▶ ∫ 1 0 xJn(휆x)Jn(휆x) dx = 1 2J2 n+1(휆) ∕= 0

Karoji, Tsai, Weyrens Bessel Functions

slide-60
SLIDE 60

Introduction Application Properties Orthogonality

Coefficients

Theorem

If 휆 and 휇 are distinct positive roots of Jn(x) = 0 then ∫ 1 xJn(휆x)Jn(휇x) dx = { 0, if 휆 ∕= 휇

1 2J2 n+1(휆),

if 휆 = 휇

▶ ∫ 1 0 xJn(휆x)Jn(휆x) dx = 1 2J2 n+1(휆) ∕= 0 ▶ ∫ 1 0 rJ0(jnr)J0(jnr) dr = 1 2J2 1(jn) ∕= 0

Karoji, Tsai, Weyrens Bessel Functions

slide-61
SLIDE 61

Introduction Application Properties Orthogonality

Coefficients

Theorem

If 휆 and 휇 are distinct positive roots of Jn(x) = 0 then ∫ 1 xJn(휆x)Jn(휇x) dx = { 0, if 휆 ∕= 휇

1 2J2 n+1(휆),

if 휆 = 휇

▶ ∫ 1 0 xJn(휆x)Jn(휆x) dx = 1 2J2 n+1(휆) ∕= 0 ▶ ∫ 1 0 rJ0(jnr)J0(jnr) dr = 1 2J2 1(jn) ∕= 0 ▶ An = ∫ 1

0 rJ0(jnr)f(r) dr

∫ 1

0 rJ0(jnr)J0(jnr) dr Karoji, Tsai, Weyrens Bessel Functions

slide-62
SLIDE 62

Introduction Application Properties Orthogonality

Thank You!

Karoji, Tsai, Weyrens Bessel Functions
