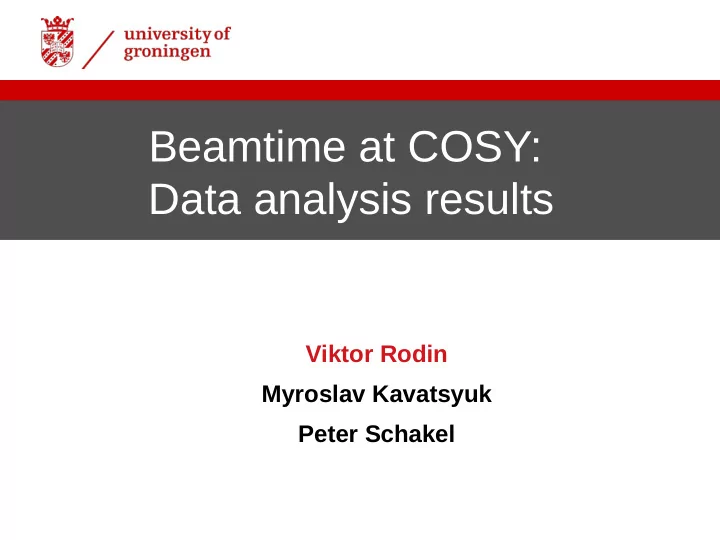

Beamtime at COSY: Data analysis results

Viktor Rodin Myroslav Kavatsyuk Peter Schakel

slide-2
SLIDE 2

2 |

SODANET protocol

Data is read out as a one SuperBurst event (16 bursts) equal 38.6 μs.

slide-3
SLIDE 3

3 |

Burst Building Network

1562500 SuperBursts per minute ≈ 26040 SuperBursts per second

slide-4
SLIDE 4

4 |

SODANET protocol

Data is read out as a one SuperBurst event (16 bursts) equal 38.6 μs.

How can we check a stability of synchronization?

slide-5
SLIDE 5

5 |

Final Setup at COSY (22.02.19)

~ 2 . 5 G e V p r

  • t
  • n

s

slide-6
SLIDE 6

6 |

Final Setup at COSY (22.02.19)

~ 2 . 5 G e V p r

  • t
  • n

s

slide-7
SLIDE 7

7 |

Final Setup at COSY (22.02.19)

~ 2 . 5 G e V p r

  • t
  • n

s

slide-8
SLIDE 8

8 |

Measurement Strategy

To check the synchronization quality of SODANET and the readout stability of DAQ system in general, a strategy of growing complexity was proposed:

  • Only EMC Readout with 1 DC
  • Only EMC Readout with 2 DC
  • EMC+TOF Readout
  • EMC+TOF+FT Readout

EMC TOF S O D A N E T a n d D A Q FT

slide-9
SLIDE 9

9 |

Only EMC with 1 DC

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC SODA CN I CN III CN II

PC

  • EMC prototype – 9 crystals
  • Light Pulser as a reference
  • 1 DC
  • SODA source on the same TRB
  • 8/16 bursts for BBN
  • CN filtering
slide-10
SLIDE 10

10 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA source

CN I CN III CN II

PC

DC

Only EMC with 2 DC

  • EMC prototype – 9 crystals
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the same TRB
  • 8/16 bursts for BBN
  • CN filtering
slide-11
SLIDE 11

11 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA HUB

CN I CN III CN II

PC

DC

EMC+TOF

  • EMC prototype + TOF bars
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the different TRB
  • 16 bursts for BBN, IIR, MWD filters

TRB

SODA source

TOF TRB

slide-12
SLIDE 12

12 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA HUB

CN I CN III CN II

PC

DC

EMC+TOF+FT

  • EMC+TOF+FT
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the different TRB
  • 16 bursts for BBN, IIR, MWD filters

TRB

SODA source

TOF TRB FT TRB

slide-13
SLIDE 13

13 |

Some facts

Proton beam ~2.5 GeV Estimated deposited energy ~ 200 MeV. Nuclear counter events are expected!

slide-14
SLIDE 14

14 |

Only EMC (1 DC) Results

ADC 1 ADC 2

EMC_ADC_channel_11

Each ADC board is represented as 64 channels corresponding High gain/ Low gain component of the photodetectors. Energy spectra obtained from a single crystal (1 LAAPD). Light Pulser peak is from the right side.

Single crystal Single LAAPD

slide-15
SLIDE 15

15 |

Only EMC (1 DC) Results

Deposited Energy Deposited energy distribution for a single crystal (both LAAPDs).

Single crystal Both LAAPD

slide-16
SLIDE 16

16 |

Only EMC (1 DC) Results

EMC_crystal_5 Energy-dT correlation

Time difference between 2 LAAPDs of 1 crystal in case if only they are present in event. dT-Energy dependence for that crystal.

slide-17
SLIDE 17

17 |

Only EMC (1 DC) Results

Time difference between LAAPDs does not change

  • ver minutes.

Synchronization is stable. What about precision?

slide-18
SLIDE 18

18 |

Only EMC (1 DC) Results

Red lines show Energy cut around proton beam peak.

Area of interest

slide-19
SLIDE 19

19 |

Only EMC (1 DC) Results

Time difference distribution after Energy

  • cut. Values in red square show Gaus fit

parameters. Evolution of time difference between 2 ADC channels belonging to 1 crystal.

slide-20
SLIDE 20

20 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA source

CN I CN III CN II

PC

DC

Only EMC with 2 DC

  • EMC prototype – 9 crystals
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the same TRB
  • 8/16 bursts for BBN
  • CN filtering
slide-21
SLIDE 21

21 |

Only EMC (2 DC) Results

Energy deposition distribution for a single crystal caused by proton beam

Single crystal Both LAAPD

slide-22
SLIDE 22

22 |

Only EMC (2 DC) Results

Time difference of 2 ADC channels belonging to 1 crystal. Energy cut is applied. Evolution of time difference between 2 ADC channels belonging to 1 crystal.

slide-23
SLIDE 23

23 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA HUB

CN I CN III CN II

PC

DC

EMC+TOF

  • EMC prototype + TOF bars
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the different TRB
  • 16 bursts for BBN, IIR, MWD filters

TRB

SODA source

TOF TRB

slide-24
SLIDE 24

24 |

EMC+TOF Results

Time difference between TOF and ADC channels (log scale).

slide-25
SLIDE 25

25 |

EMC+TOF Results

Time difference between TOF and ADC channels. Cluster energy distribution (time gated).

slide-26
SLIDE 26

26 |

EMC+TOF Results

EMC-TOF time difference in case of energy gate for cluster. Values in red square show Gaus fit parameters. Evolution with time.

slide-27
SLIDE 27

27 |

Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs Digitizer 32 photo-sensors

  • Partial pile-up

recovery SFP 2Gbs

TRB

DC

SODA HUB

CN I CN III CN II

PC

DC

EMC+TOF+FT

  • EMC+TOF+FT
  • Light Pulser as a reference
  • 2 DC (1 per ADC board)
  • SODA source on the different TRB
  • 16 bursts for BBN, IIR, MWD filters

TRB

SODA source

TOF TRB FT TRB

slide-28
SLIDE 28

28 |

EMC+TOF+FT Results

Time difference between TOF and FT channels (log scale).

slide-29
SLIDE 29

29 |

EMC+TOF+FT Results

Time difference between TOF and FT channels.

slide-30
SLIDE 30

30 |

EMC+TOF+FT Results

Time difference between FT and EMC channels (log scale).

slide-31
SLIDE 31

31 |

EMC+TOF+FT Results

Time difference between FT and EMC channels Cluster energy distribution (time gated).

slide-32
SLIDE 32

32 |

EMC+TOF+FT Results

EMC-FT time difference in case of energy gate for cluster. Values in red square show Gaus fit parameters. Evolution with time.

slide-33
SLIDE 33

33 |

Summary

  • Current prototype of the DAQ for PANDA showed

possibility to handle data from the multi- component detector system

  • Synchronization of the readout was stable at all

chain configurations

  • Data taking during beamtime helped to reveal

shortcomings and bottlenecks of this system

slide-34
SLIDE 34

34 |

Additional Slides

slide-35
SLIDE 35

35 |

Cluster Energy

Cluster Energy is defined by sum of the energy deposited during a short time in each crystal . Time window is taken from the left picture.

slide-36
SLIDE 36

36 |

slide-37
SLIDE 37

37 |

EMC+TOF+FT Results

Time scale in seconds

Time gap

slide-38
SLIDE 38

38 |

EMC+TOF+FT Results

Time scale in seconds

Light Pulser

Time-Energy distribution for Channel #10
