LHC Beam Operation workshop - Evian 2012 Beam losses through the cycle G. Papotti, A. Gorzawski, M. Hostettler, R. Schmidt outline motivation 2011 vs 2012, PM browser module beam losses per beam mode capture, ramp, flat top,

slide-1
SLIDE 1

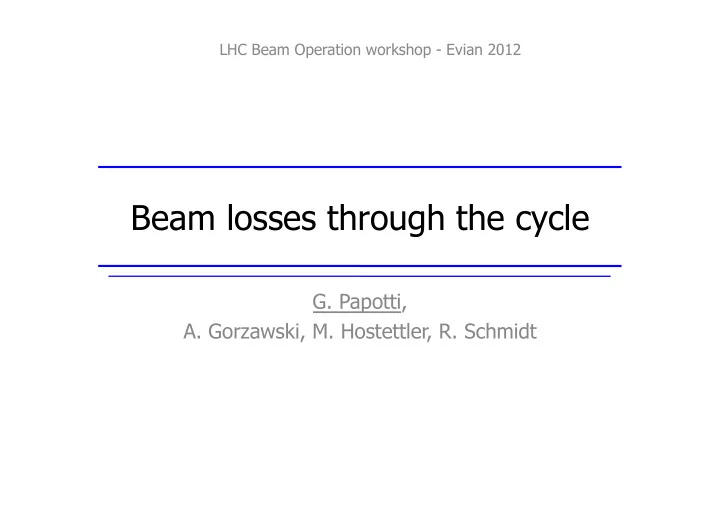

Beam losses through the cycle

  • G. Papotti,
  • A. Gorzawski, M. Hostettler, R. Schmidt

LHC Beam Operation workshop - Evian 2012

slide-2
SLIDE 2
  • utline
  • motivation

– 2011 vs 2012, PM browser module

  • beam losses per beam mode

– capture, ramp, flat top, squeeze, …

  • all 2012 fills until end of November

– thanks to A. Gorzawski for a lot of data, analysis and plots

  • some information on bunch-by-bunch differences

– appetizers on instabilities – bunch-by-bunch losses in stable beams and burn off

  • disclaimer:

– give only overview of the year, no details on fill to fill differences – injection not treated

19 Dec 2012 giulia.papotti@cern.ch 2
