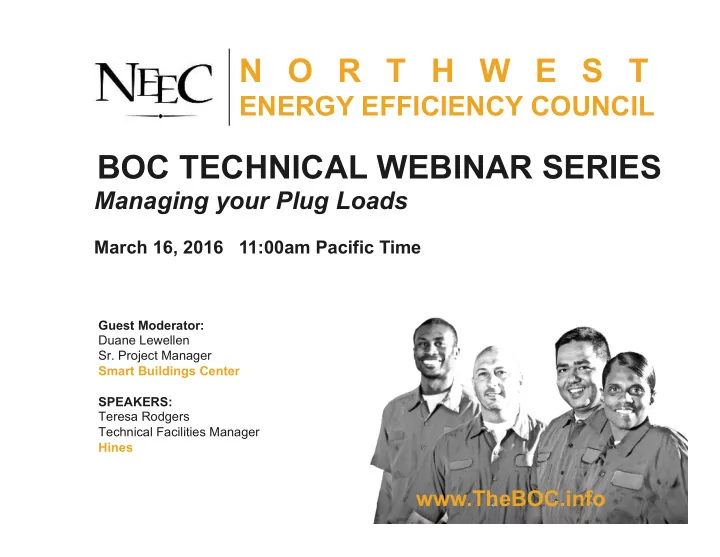

N O R T H W E S T THE ESSENTIAL CREDENTIAL ENERGY EFFICIENCY COUNCIL BOC TECHNICAL WEBINAR SERIES Managing your Plug Loads March 16, 2016 11:00am Pacific Time Guest Moderator: Duane Lewellen Sr. Project Manager

slide-1
SLIDE 1

BOC TECHNICAL WEBINAR SERIES

¡ ¡ ¡ THE ¡ ¡ESSENTIAL ¡CREDENTIAL ¡

N O R T H W E S T

ENERGY EFFICIENCY COUNCIL

Guest Moderator: Duane Lewellen

  • Sr. Project Manager

Smart Buildings Center SPEAKERS: Teresa Rodgers Technical Facilities Manager Hines

www.TheBOC.info

Managing your Plug Loads

March 16, 2016 11:00am Pacific Time

slide-2
SLIDE 2
  • LEARN. LEAD. SUSTAIN

Thank You to our Sponsors

slide-3
SLIDE 3
  • LEARN. LEAD. SUSTAIN
  • Explain the energy use impacts of plug loads in

commercial buildings

  • Identify options for measuring plug load energy use
  • Understand energy saving strategies for plug loads
  • Describe resources available to help you measure and

manage plug loads

Learning Objectives

slide-4
SLIDE 4
  • LEARN. LEAD. SUSTAIN

Today’s Guest Moderator & Speakers

Duane Lewellen Teresa Rodgers

slide-5
SLIDE 5

Plug Load Energy Use

Duane Lewellen

slide-6
SLIDE 6

Plug Loads Defined

  • Typical office

equipment but also includes appliances, chargers, task lighting, portable heaters, vending machines, holiday displays, etc.

Everything that plugs into a receptacle

slide-7
SLIDE 7

Plug Load Energy Use

Source: ¡Energy ¡Informa1on ¡Administra1on ¡

slide-8
SLIDE 8

Plug Load Energy Use

Plug load energy use for computers and office equipment is increasing. In

  • ffice buildings that have

improved the efficiency of lights, heating and cooling, it can represent as much as 50% of the total electricity use.

Sources: US – Energy Information Agency CA – CEUS 2012 offices – NBI Measured Data

slide-9
SLIDE 9

Plug Load Policy ?

  • What equipment is

allowed?

  • Enforcement –

Who is responsible?

  • New equipment

energy use

  • Laptops? (Bring

your own device)

  • Surge protection?

¡

slide-10
SLIDE 10

Benchmarking Plug Loads

“You can’t manage what you don’t measure”

  • The foundation of sound and sustainable energy management

Monitor Btu (more control) vs. Monitor $ (less control)

slide-11
SLIDE 11

Plug Load Inventory

¡ ¡ • Use power plans to organize the walkthrough

  • Use a data collection form
  • Have employees complete form for their
  • ffice
  • Interns?

¡

slide-12
SLIDE 12

Case Study – Stanford University

  • 86% of campus inventoried
  • Ten buildings consume 30% of total campus

plug load consumption

  • Largest “energy hogs” were servers, lab

freezers, and space heaters

  • Plug loads are 22% of total campus

electricity use

  • Inventory informed new building electrical

infrastructure and cooling system sizing

slide-13
SLIDE 13

Measuring Plug Loads

  • Develop a metering plan
  • Electric panel vs. receptacle
  • vs. equipment load
  • What equipment cannot be

turned off for metering

  • Prioritize equipment types

for metering

  • Health and safety issues
  • Shutdown procedures
  • Reconfiguration

requirements on start-up

slide-14
SLIDE 14

Simple Measurement

  • Watts, Amps, Volts, Kilowatt

Hours, Power Factor

  • Relatively low cost ($25 to

$125)

  • Built-in surge protection
  • Cumulative energy use
  • No time stamp (no logging

capability)

slide-15
SLIDE 15

Data Loggers

  • Time stamp with

kwh use data

  • Able to store and

download data to computer for analysis

  • Easy to deploy for
  • ne week intervals
  • Use 30 second

intervals to measure parasitic losses (idling)

¡

slide-16
SLIDE 16

Submetering

  • Receptacle circuits or

panels

  • Able to store and

download data to computer for analysis

  • Ability to interface with

Building Automation System

  • Licensed electrician

required for install

¡

slide-17
SLIDE 17

Energy Saving Strategies

Teresa Rodgers

slide-18
SLIDE 18

5 Steps For Managing Plug Loads

  • 1. REVIEW. Inventory your equipment and focus
  • n the devices that use the most energy
  • 2. REMOVE. Eliminate or unplug unnecessary

devices

  • 3. REPLACE. Purchase the most energy efficient

devices for the job

  • 4. REDUCE. Turn it off or power it down when not

in use

  • 5. RETRAIN. Engage staff. Make sure they

understand why, when, and how to power down

¡

slide-19
SLIDE 19

Plug Load Energy Savings Opportunities

¡

Source: NBI Plug Load Best Practices Guide

slide-20
SLIDE 20

Power Management

¡

Source: ¡NBI ¡Plug ¡Load ¡Best ¡Prac1ces ¡Guide ¡

  • Enable aggressive

power management settings

  • Stay on top of your

settings

  • Activate sleep settings

across a network of computers

  • Consolidate/centralize

printing, fax, copying services

¡

slide-21
SLIDE 21

Advanced Plug Strips/Timers

¡• Occupancy sensing

  • Plug strips with integral timer
  • Smart strip with programmable

scheduling and metering

  • Timers for food service equipment
  • Switched receptacles
  • Vending miser for vending machines

¡

slide-22
SLIDE 22

Web Based Metering & Control

¡

slide-23
SLIDE 23

Occupant Behavior

¡Remember: Buildings don’t use energy, people do

  • Keep office staff well informed
  • Offer training on new devices
  • Communicate why managing plug loads is important
  • Consider friendly competitions that reward reductions in

energy use

  • Encourage staff to get into the habit of thinking about

energy

  • Implement an “energy minute” at staff

meetings to discuss energy use

  • Check with staff frequently to find out if

everything is working-if not, determine why and work to find a better strategy

slide-24
SLIDE 24

Case Study: 4th & Madison

¡

slide-25
SLIDE 25

¡#1 ¡ #2 ¡ #3 ¡ #4 ¡ 1 ¡computer ¡ 1 ¡computer ¡ 1 ¡computer ¡ 1 ¡computer ¡ 2 ¡monitors ¡ 1 ¡monitor ¡ 1 ¡monitor ¡ 1 ¡monitor ¡ 2 ¡printers ¡ 1 ¡printer ¡ 1 ¡printer ¡ 1 ¡printer ¡ 1 ¡radio ¡charger ¡ 1 ¡radio ¡charger ¡ 1 ¡radio ¡charger ¡ 1 ¡radio ¡charger ¡ 1 ¡cell ¡phone ¡ charger ¡ 1 ¡cell ¡phone ¡ charger ¡ 1 ¡cell ¡phone ¡ charger ¡ 1 ¡cell ¡phone ¡ charger ¡ 1 ¡clock ¡radio ¡ 1 ¡AM/FM/CD ¡radio ¡

4 co-workers volunteer to be test subjects Inventory of equipment taken:

slide-26
SLIDE 26

"Business as Usual" "with smart strip" ¡Annual Energy Savings Test Subject Annual kWh Annual kWh % Reduction (kWh) #1 1014.60 648.72 36.06% 365.88 #2 928.20 430.44 53.63% 497.76 #3 762.12 445.32 41.57% 316.80 #4 680.40 390.48 42.61% 289.92 total 3385.32 1914.96 43.43% 1470.36 The data ¡

slide-27
SLIDE 27

Initial Cost: 4 x $75.18 each = $300.72 Operations & Maintenance Cost = 0 Annual Energy Savings = 1470.36 kWh/yr Simple Payback Period = 2.79 years *Assumes a 10-year useful life, however, a typical lifecycle could be much longer

Financial Assessment - Seattle

slide-28
SLIDE 28

State ¡ $ ¡/ ¡kWh ¡ AES ¡($) ¡ SPP ¡(yrs) ¡ Alabama ¡ $0.1041 ¡ 153 ¡ 1.97 ¡ Hawaii ¡ $0.2631 ¡ 387 ¡ 0.78 ¡ Illinois ¡ $0.0846 ¡ 124 ¡ 2.43 ¡ New ¡York ¡ $0.1683 ¡ 247 ¡ 1.22 ¡ Texas ¡ $0.0933 ¡ 137 ¡ 2.20 ¡

¡ Environmental Impact in Other Parts of the Country ¡ ¡

slide-29
SLIDE 29

time for … Q&A

slide-30
SLIDE 30
  • LEARN. LEAD. SUSTAIN

Washington State

  • Smart Buildings Center - http://www.smartbuildingscenter.org/tool-library/

Idaho

  • University of Idaho – Integrated Design Lab - http://www.idlboise.com/tool-loan-library

California

  • Pacific Gas & Electric - http://www.pge.com/pec/tll/
  • Sonoma County -

http://sonomacountyenergy.org/resources/contractor-resource-center/tool-lending-library/

  • Southern California Edison -

https://www.sce.com/wps/portal/home/business/consulting-services/energy-educationcenters/tulare/!ut/ p/b1/ hdBNb4MwDAbgX8OVmCRldDdDGSRizRjVSnOZ6MQoEyUVZeXvL6u6w759s_W8lmyiSUl0X53aphpb 01fde6_9RykW6CWcikDiDMRSFWmMdzSaexZsLIBfCuG__JroM_GCBFNRgFB8wUGEqyy8CW4Z9- EbCIVvQYSRUhIg97-C5P6KgpAPcaZCjwKnFzBPIE6lsmCVMxAsh2WByAA- NvxxhSS66cz2_JEN9lsWNEQP9XM91IP7OtjxbhwPx2sHHJimyW2MabrafTJ7B36K7MxxJOVnSQ77Elr xMutOGb4BKlagaA!!/dl4/d5/L2dBISEvZ0FBIS9nQSEh/?from=agtac

  • San Diego Gas & Electric - https://c95021.eos-intl.net/C95021/OPAC/Index.aspx

New York

  • CUNY Building Performance Lab - http://www.cunybpl.org

Tool Lending Library Locations

slide-31
SLIDE 31

| THE ESSENTIAL CREDENTIAL

IMPROVE YOUR FACILITY & CAREER

  • DEMAND REDUCTION
  • LIGHTING
  • ENERGY MANAGEMENT
  • BUILDING SCOPING
  • O&M STRATEGIES
  • INDOOR AIR QUALITY
slide-32
SLIDE 32

www.theboc.info

877-850-4793 (toll free) bocinfo@theboc.info

BOC National Partner Network

slide-33
SLIDE 33

Take the Webinar Quiz: http://www.theboc.info/boc1603
