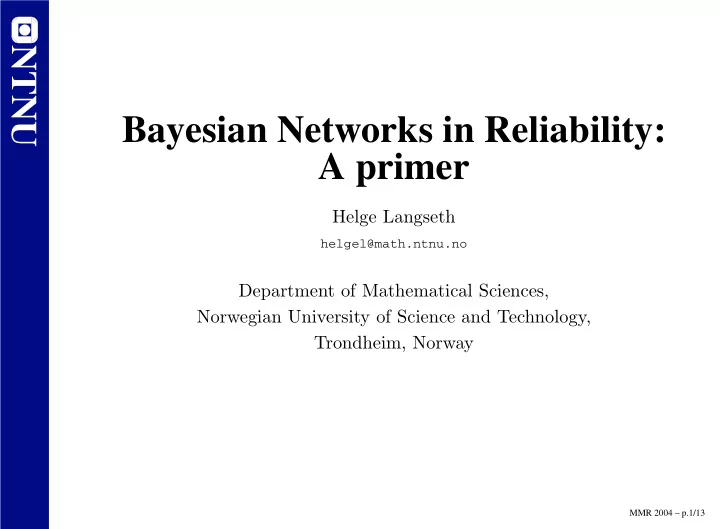

Bayesian Networks in Reliability: A primer

Helge Langseth

helgel@math.ntnu.no

Department of Mathematical Sciences, Norwegian University of Science and Technology, Trondheim, Norway

MMR 2004 – p.1/13

NTNU

Outline

Basics of Bayesian networks-framework Definition Representation Calculation scheme Apparent shortcomings: Sparser representations Knowledge acquisition Continuous variables Some cute features Causal models Model estimation Reliability applications

MMR 2004 – p.2/13

NTNU

A simple example: “Car start”

P(B, F, H, G, E, C) H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery

MMR 2004 – p.3/13

NTNU

A simple example: “Car start”

P(B, F, H, G, E, C) H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery B: Battery pa(E) = {B} E: Engine turns

MMR 2004 – p.3/13

NTNU

A simple example: “Car start”

P(B, F, H, G, E, C) H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery B: Battery pa(E) = {B} E: Engine turns H: Head-lights G: Fuel gauge F: Fuel level B: Battery nd(E) = {H, G, F, B}

MMR 2004 – p.3/13

NTNU

A simple example: “Car start”

P(B, F, H, G, E, C) H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery B: Battery pa(E) = {B} E: Engine turns H: Head-lights G: Fuel gauge F: Fuel level B: Battery nd(E) = {H, G, F, B} B: Battery X⊥ ⊥nd(X) \ pa(X) | pa(X) E⊥ ⊥{H, G, F} | B Other d-sep. rules: Pearl(88)

MMR 2004 – p.3/13

NTNU

A simple example: “Car start”

P(B, F, H, G, E, C) H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery B: Battery pa(E) = {B} E: Engine turns H: Head-lights G: Fuel gauge F: Fuel level B: Battery nd(E) = {H, G, F, B} B: Battery X⊥ ⊥nd(X) \ pa(X) | pa(X) E⊥ ⊥{H, G, F} | B Other d-sep. rules: Pearl(88) E: Engine turns H: Head-lights G: Fuel gauge C: Car starts F: Fuel level E: Engine turns B: Battery E B =empty B =empty yes .01 .97 no .99 .03 E: Engine turns P(E | pa (E)) = P(B)P(F)P(H | B)P(G | F) · P(E | B)P(C | E, F)

Markov properties ⇔ Factorization property

MMR 2004 – p.3/13

NTNU

They crop up everywhere

Y M Mixture models M latent, multinomial p(y | M = m)

MMR 2004 – p.4/13

NTNU

They crop up everywhere

X latent, N(0, I) X1 X2 Linear regression Y1 Y2 Y3 Factor analyzers Y | x ∼ N(µ + Lx, Ψ), Ψ diagonal

MMR 2004 – p.4/13

NTNU

They crop up everywhere

X latent, N(0, I) X1 X2 Linear regression Y1 Y2 Y3 Factor analyzers M M latent, multinomial given M = m Mixture of Y | {x, M = m} ∼ N(µm + Lmx, Ψm), Ψm diagonal

MMR 2004 – p.4/13

NTNU

Calculation scheme

X1 X2 X3 X4 X5

MMR 2004 – p.5/13

NTNU

Calculation scheme

X1 X2 X3 X4 X5 X1 X2 X3 X4 X5

MMR 2004 – p.5/13

NTNU

Calculation scheme

X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X1 X2 X3 X4 X5

MMR 2004 – p.5/13

NTNU

Calculation scheme

X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X1 X2 X3 X4 X5

MMR 2004 – p.5/13

NTNU

Calculation scheme

X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X1 X2 X3 X4 X5 X3,X4,X5 X1,X3,X4 X1,X2,X4 X3, X4 X1,X4

φ1(x3, x4, x5) ψ1(x3, x4) φ2(x1, x3, x4) ψ2(x1, x4) φ3(x1, x2, x4)

‘Divide-and-Conquer’ strategy: We can look at 3 variables at a time instead of 5. Important, as the cost is exponential in # variables.

MMR 2004 – p.5/13

NTNU

Cheaper representations

Consider a binary node with m binary parents. The CPT requires 2m parameters. This must be bad, right?

Y Z1 . . . Zm

MMR 2004 – p.6/13

NTNU

Cheaper representations

Consider a binary node with m binary parents. The CPT requires 2m parameters. This must be bad, right? Wrong!

Y Z1 . . . Zm

All parameters are required if we do not make additional assumptions! But: Functional relations (if-then-else, AND-gates, ...). Sparser representations than CPTs, e.g., probability trees.

p(y | z1, . . . , zm) zi = 0 p1 zi = 1 zj = 1 zj = 0 p2 . . .

MMR 2004 – p.6/13

NTNU

Continuous variables

Not all families of distributions can be handled by the calculation scheme. Works for: Multinomial variables Multivariate Gaussian distributions Conditional Gaussian distributions What can we do when these models are unrealistic?

MMR 2004 – p.7/13

NTNU

Continuous variables

Not all families of distributions can be handled by the calculation scheme. Works for: Multinomial variables Multivariate Gaussian distributions Conditional Gaussian distributions What can we do when these models are unrealistic? Discretization: Difficult tradeoff between precision and model complexity Mixtures of Truncated exponentials: A new family of distributions that can cope with the calculation scheme. Can approximate any distribution arbitrarily well

MMR 2004 – p.7/13

NTNU

KA: When p(xi | pa (xi)) is not available

All elements of the set {p(xi | pa (xi))}n

i=1 are

required to fully specify a BN. Experts sometimes prefer to give {p(xi)}n

i=1 and correlations (e.g., in

the form of cross-product ratios) instead. Alternative frameworks: Vines, Chain graphs, ... Iterative proportional fitting procedure:

• 1. p0(xi, xj) initialized to obtain correct

correlation.

• 2. for k = 1, 2, . . .:

(i) p′

k(xi, xj) ← pk−1(xi, xj) ·

• j pk−1(xi,xj)

p(xi)

(ii) pk(xi, xj) ← p′

k(xi, xj) ·

• i p′

k(xi,xj)

p(xj)

MMR 2004 – p.8/13

NTNU

KA: When p(xi | pa (xi)) is not available

All elements of the set {p(xi | pa (xi))}n

i=1 are

required to fully specify a BN. Experts sometimes prefer to give {p(xi)}n

i=1 and correlations (e.g., in

the form of cross-product ratios) instead. Alternative frameworks: Vines, Chain graphs, ... Iterative proportional fitting procedure: In BNs: Work with the cliques! Iterate over cliques l: pk(x) ← pk−1(x)pk−1(xl) p(xl) Gives minimum info model It also works for inconsistent input

MMR 2004 – p.8/13

NTNU

Calculating causal (!) effects

Can we estimate causal strength? Effect Cause

The key is that p(x | observe(Y = y)) = p(x | do(Y ← y)) not holds in general!

MMR 2004 – p.9/13

NTNU

Calculating causal (!) effects

Can we estimate causal strength? Management TTF Planned PM NO! Destroyed by confounder

The key is that p(x | observe(Y = y)) = p(x | do(Y ← y)) not holds in general!

MMR 2004 – p.9/13

NTNU

Calculating causal (!) effects

Can we estimate causal strength? Management TTF Planned PM Actual PM Yes! Intermediate (observable) effect saves the day!

The key is that p(x | observe(Y = y)) = p(x | do(Y ← y)) not holds in general!

MMR 2004 – p.9/13

NTNU

Estimating models from data

Estimating parameters: No missing values: Counting Missing values: EM-algorithm Estimating structure: Only discrete (or discretized) variables: Constrain-based (hypothesis testing) Fully Bayesian approach Continuous/Mixed variables: Purely Gaussian and conditional Gaussian models: “Simple” General distributions: Difficult

MMR 2004 – p.10/13

NTNU

Troubleshooting

Find a “useful” repair strategy; i.e., a sequence of steps with a low expected cost of repair Example: The BATS system (developed by HP). Can be employed in many domains, initially intended for troubleshooting printers Bobbio et al.’s FTA ⇒ BN algorithm gives troubleshooter systems new expressive power: Refined system models Common cause failures NOT - events Modeling user interaction Non-perfect repair actions Questions

MMR 2004 – p.11/13

NTNU

Safety-critical software

Safety-critical software is special: No-fault-criterion: Bugs immediately removed Test in a traditional way is not sufficient (PIE algorithm; 50% of tested locations hide their faults). Safety-assessment requires: Disparate sources of information; several types

• f evidence, many which are not quantitative in

nature. The relation between evidence and safety assessment is not always direct or quantifiable We need a framework to combine these disparate sources of information in a transparent way

Qsystem Complexity Testing Experience Fault tol. Reliability Consequences System safety

MMR 2004 – p.12/13

NTNU

Safety-critical software

Safety-critical software is special: No-fault-criterion: Bugs immediately removed Test in a traditional way is not sufficient (PIE algorithm; 50% of tested locations hide their faults). Safety-assessment requires: Disparate sources of information; several types

• f evidence, many which are not quantitative in

nature. The relation between evidence and safety assessment is not always direct or quantifiable We need a framework to combine these disparate sources of information in a transparent way Each node in the top-level model is refined using a “sub-net” The safety standard for safety critical software in aviation (RTCA/DO-17B) was implemented in this way See Gran (2002) for details

MMR 2004 – p.12/13

NTNU

References

Bobbio, A., L. Portinale, M. Minichino, and E. Ciancamerla (2001). Improving the analysis

• f dependable systems by mapping fault trees into Bayesian networks. Reliability

Engineering and System Safety 71(3), 249–260. Gran, B. A. (2002). The use of Bayesian Belief Networks for combining disparate sources of information in the safety assessment of software based systems. Ph. D. thesis, Department of Mathematical Sciences, Norwegian University of Science and

• Technology. Doktor Ingeniør avhandling 2002:35.

Jensen, F. V. (2001). Bayesian Networks and Decision Graphs. New York: Springer-Verlag. Langseth, H. and F. V. Jensen (2003). Decision theoretic troubleshooting in coherent systems. Reliability Engineering and System Safety 80(1), 49–61. Lauritzen, S. L. (1995). The EM-algorithm for graphical association models with missing

• data. Computational Statistics and Data Analysis 19, 191–201.

Moral, S., R. Rumí, and A. Salmerón (2001). Mixtures of truncated exponentials in hybrid Bayesian networks. In Sixth European Conference on Symbolic and Quantitative Approaches to Reasoning with Uncertainty, Volume 2143 of Lecture Notes in Artificial Intelligence, pp. 145–167. Springer-Verlag. Pearl, J. (1988). Probabilistic Reasoning in Intelligent Systems: Networks of Plausible

• Inference. San Mateo, CA.: Morgan Kaufmann Publishers.

Pearl, J. (2000). Causality – Models, Reasoning, and Inference. Cambridge, UK: Cambridge University Press.

MMR 2004 – p.13/13
