BASIC SAFETY FOR POT STILL AND CONTINUOUS STILL SYSTEMS AMERICAN DISTILLING INSTITUTE 2016 CONFERENCE JOHN MCKEE CO-OWNER/DISTILLER, HEADFRAME SPIRITS CTO, HEADFRAME SPIRITS MANUFACTURING john@headframespirits.com *copy of this

slide-1
SLIDE 1

Headframe Spirits Manufacturing. www.headframes6lls.com

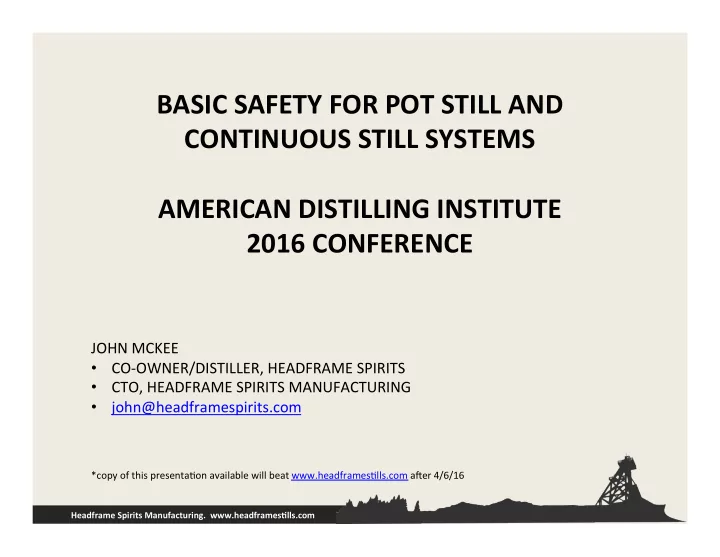

BASIC SAFETY FOR POT STILL AND CONTINUOUS STILL SYSTEMS AMERICAN DISTILLING INSTITUTE 2016 CONFERENCE

JOHN MCKEE

  • CO-OWNER/DISTILLER, HEADFRAME SPIRITS
  • CTO, HEADFRAME SPIRITS MANUFACTURING
  • john@headframespirits.com

*copy of this presentaLon available will beat www.headframesLlls.com aQer 4/6/16

slide-2
SLIDE 2

Headframe Spirits Manufacturing. www.headframes6lls.com

Me – a while ago

  • DisLllaLon Experience

Trayed and Structured Packing Systems

  • Atmospheric and

Vacuum DisLllaLon

  • Wiped Film

Evaporators

  • ConLnuous and Batch
  • Average operaLonal
  • utput of 2000-6000g/hr
  • f finished goods (*prior to

beverage alcohol producLon)

slide-3
SLIDE 3

Headframe Spirits Manufacturing. www.headframes6lls.com

20 MGY Caaish Oil Biodiesel Refinery 60 MGY High FFA Biodiesel Refinery

slide-4
SLIDE 4

Headframe Spirits Manufacturing. www.headframes6lls.com

Me – now

  • Co-Owner Co-Founder

Headframe Spirits

  • CTO Headframe Spirits
  • 2 DSPs
  • SLll Manufacturing Group

(*recently featured in Popular Mechanics)

  • Nerd
slide-5
SLIDE 5

Headframe Spirits Manufacturing. www.headframes6lls.com

My Wifey

  • Co-Owner Co-Founder

Headframe Spirits

slide-6
SLIDE 6

Headframe Spirits Manufacturing. www.headframes6lls.com

Regardless of size, “craQ”, “arLsan”…..

....you’re running an ethanol refinery

slide-7
SLIDE 7

Headframe Spirits Manufacturing. www.headframes6lls.com

The flow

  • Types of disLllaLon
  • How disLllaLon works
  • Incident map
  • Devices, Lps and tricks
  • Smiley face on disLllaLon column
slide-8
SLIDE 8

Headframe Spirits Manufacturing. www.headframes6lls.com

Types of Batch & Con6nuous Systems

Type Opera6onal Style Descrip6on Alembic & Pot SLll Batch Pot sLll with no trays, usually used to strip or produce low proof spirits Pot SLll w/ columns Batch Pot sLll with addiLonal trays and/or side columns, capable of producing low & high proof spirits Stripping SLll ConLnuous ConLnuous stripping sLll. Not capable

  • f producing beverage grade alcohol.

Output usually sent to a Pot SLll ConLnuous SLll ConLnuous ConLnuous disLllaLon system capable of producing finished beverage alcohol in a single pass.

slide-9
SLIDE 9

Headframe Spirits Manufacturing. www.headframes6lls.com

Other Dis6lla6on Systems & Styles

Type Opera6onal Style Descrip6on Wiped Film Evaporators ConLnuous Used in difficult to separate products, usually under vacuum to maximize deltaT Rotary Evaporators Batch & ConLnuous Vacuum based rotaLng disLllaLon. Usually lab scale. Vacuum vs Atmospheric DisLllaLon Batch & ConLnuous Lowering the vapor pressure via vacuum lowers the required heat, but increases the required cooling. Vacuum rated systems usually need to be stamped by a Professional Engineer.

slide-10
SLIDE 10

Headframe Spirits Manufacturing. www.headframes6lls.com

Alembic & Pot Dis6lla6on - Batch

  • Single Pot with a condenser.
  • OQen installed with a Lyne Arm of

various styles.

  • Capable of producing low proof

spirits in batch form

  • Direct fired or jacketed pots are
  • Qen the source of heat.

600g Alembic system, direct fired: Sonoma County Dis;llery

slide-11
SLIDE 11

Headframe Spirits Manufacturing. www.headframes6lls.com

Pot S6ll w/ Columns - Batch

  • Pot, with or without trays
  • Side columns with trays
  • Capable of producing a range of

spirits (depending upon the number of Lmes batches are re- run):

  • Stripped Low Wines
  • Low Proof Spirits (such as

whiskey, rum, etc)

  • High Proof Spirits (such as

grain whiskey, near neutral rum)

  • Neutral Spirits (NGS)

300g system, steam jacketed: Bozeman Spirits Dis;llery

slide-12
SLIDE 12

Headframe Spirits Manufacturing. www.headframes6lls.com

Stripping S6ll - Con6nuous

  • Usually single column
  • Capable of removing alcohol from

sLllage down to 0.5% ABV

  • Capable of producing Low Wines

for subsequent disLllaLon in a separate system 12” diameter, 24’ tall, steam injected stripping column, input 3-4 gpm. FEW Spirits

slide-13
SLIDE 13

Headframe Spirits Manufacturing. www.headframes6lls.com

Full Con6nuous S6ll - Con6nuous

  • Usually mulL-column
  • Capable of removing alcohol from

sLllage down to 0.5%

  • Capable of removing heads

compounds from finished spirit

  • Capable of producing a range of

spirits:

  • Stripped Low Wines
  • Low Proof Spirits (such as

whiskey, rum, etc)

  • High Proof Spirits (such as

grain whiskey, near neutral rum)

  • Neutral Spirits (NGS)

4 column, single-pass-to-finished goods con;nuous system. Headframe Spirits

slide-14
SLIDE 14

Headframe Spirits Manufacturing. www.headframes6lls.com

Differences between Batch & Con6nuous

Batch Con6nuous Volume Limited to Pot Volume Limited to Fermenter Volume

Major Variable to Product Type and Quality Time Temperature

Efficiency Greater man-hours and equipment hours as compared to conLnuous Fewer man-hours and equipment hours as compared to batch Output “average” of the hearts Specific locaLon in the “hearts”

slide-15
SLIDE 15

Headframe Spirits Manufacturing. www.headframes6lls.com

Boiling Points of Individual Compounds most

  • Zen found in dis6llery fermenta6ons

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS HEARTS TAILS

slide-16
SLIDE 16

Headframe Spirits Manufacturing. www.headframes6lls.com

Proof goes down as temperature increases

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F)

Proof

HEADS HEARTS TAILS

slide-17
SLIDE 17

Headframe Spirits Manufacturing. www.headframes6lls.com

Opera6on of Batch S6lls

Batch Volume Limited to Pot Volume

Major Variable to Product Type and Quality Time

Efficiency Greater man-hours and equipment hours as compared to conLnuous Output “average” of the hearts

slide-18
SLIDE 18

Headframe Spirits Manufacturing. www.headframes6lls.com

Temperature

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS

Time

Batch Dis6lla6on

Proof

slide-19
SLIDE 19

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com 68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS HEARTS

Time

Batch Dis6lla6on

Temperature

slide-20
SLIDE 20

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com 68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS HEARTS TAILS

Time

Batch Dis6lla6on

Temperature

slide-21
SLIDE 21

Headframe Spirits Manufacturing. www.headframes6lls.com

Opera6on of Con6nuous S6lls

Con6nuous Volume Limited to Fermenter Volume

Major Variable to Product Type and Quality Temperature

Efficiency Fewer man-hours and equipment hours as compared to batch Output Specific locaLon in the “hearts”

slide-22
SLIDE 22

Headframe Spirits Manufacturing. www.headframes6lls.com

Con6nuous Dis6lla6on – Stripping: Higher ABV

Temperature

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS HEARTS

Proof

slide-23
SLIDE 23

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com

Con6nuous Dis6lla6on – Stripping: Lower ABV

Temperature

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEADS HEARTS

slide-24
SLIDE 24

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com

Con6nuous Dis6lla6on – Full Con6nuous: Neutral

Temperature

HEARTS

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F)

slide-25
SLIDE 25

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com

Temperature

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEARTS

Con6nuous Dis6lla6on – Full Con6nuous: High Proof

slide-26
SLIDE 26

Proof

Headframe Spirits Manufacturing. www.headframes6lls.com

Temperature

68 127 133 134 148 171 173 181 208 226 244 268 311

Boiling Point (F) HEARTS

Con6nuous Dis6lla6on – Full Con6nuous: Low Proof

slide-27
SLIDE 27

Headframe Spirits Manufacturing. www.headframes6lls.com

Micro Dis6llery Incident Map 2008-2015

slide-28
SLIDE 28

Headframe Spirits Manufacturing. www.headframes6lls.com

San Luis Spirits DisLllery Dripping Springs, TX 11/07/08

  • Facility Damage
  • Injury
  • Fire/Explosion

Micro Dis6llery Incident Map 2008-2015

slide-29
SLIDE 29

Headframe Spirits Manufacturing. www.headframes6lls.com

Palmero Moonshine Anderson, SC 05/10/12

  • Fire

Micro Dis6llery Incident Map 2008-2015

slide-30
SLIDE 30

Headframe Spirits Manufacturing. www.headframes6lls.com

Alchemical SoluLons Ashland, OR 07/14/12

  • Facility Damage
  • Fire/Explosion

Micro Dis6llery Incident Map 2008-2015

slide-31
SLIDE 31

Headframe Spirits Manufacturing. www.headframes6lls.com

Tuthilltown Spirits Gardiner, NY 09/25/12

  • Facility Damage
  • Fire

Micro Dis6llery Incident Map 2008-2015

slide-32
SLIDE 32

Headframe Spirits Manufacturing. www.headframes6lls.com

Twister DisLllery Moore, OK 06/13/14

  • Facility Damage
  • Injury
  • Fire/Explosion

Micro Dis6llery Incident Map 2008-2015

slide-33
SLIDE 33

Headframe Spirits Manufacturing. www.headframes6lls.com

Cinco Vodka New Sulfur Springs, TX 10/24/14

  • Facility Damage
  • Injury
  • Fire/Explosion

Micro Dis6llery Incident Map 2008-2015

slide-34
SLIDE 34

Headframe Spirits Manufacturing. www.headframes6lls.com

Silver Trail DisLllery Hardin, KY 04/24/15

  • Facility Damage
  • Injury & Death
  • Fire/Explosion

Micro Dis6llery Incident Map 2008-2015

slide-35
SLIDE 35

Headframe Spirits Manufacturing. www.headframes6lls.com

San Luis Spirits DisLllery, Dripping Springs, TX hrp://www.nbcdfw.com/news/local/Worker-Burned-in-Blast-at-Texas-Vodka-DisLllery.html Palmero Moonshine, Anderson, SC hrp://www.foxcarolina.com/story/18254056/sLll-explodes-at-anderson-moonshine-store Alchemical SoluLons, Ashland, OR hrp://www.mailtribune.com/arLcle/20120714/NEWS/207140309 Tuthilltown Spirits, Gardiner, NY hrp://www.dailyfreeman.com/arLcle/DF/20120925/NEWS/309259986 Twister DisLllery, Moore, OK hrp://newsok.com/arLcle/4907972 Cinco Vodka New Sulphur Springs, TX hrp://www.ksat.com/news/explosion-blasts-man-through-wall-at-vodka-disLllery Silver Trail DisLllery hrp://www.reuters.com/arLcle/us-usa-explosion-kentucky-idUSKBN0NG0XK20150425

Micro Dis6llery Incident Map 2008-2015 - References

slide-36
SLIDE 36

Headframe Spirits Manufacturing. www.headframes6lls.com

  • Big assed disclaimer here….use Professional Engineers to answer your

specific quesLons. The discussion following is to be considered suggesLons only, with proper final recommendaLons made by pros in the field.

  • Who are those Pros?
  • Engineering firms like Dalkita www.dalkita.com or Professional

Engineers like Steven Stretch EE, PE at www.coreyeng.com

  • Local Fire Marshal
  • Reference to get you close:
  • DISCUS, Recommended Fire ProtecLon PracLces for DisLlled Spirits

Beverage FaciliLes (referencing):

  • NFPA
  • NEC

Safety – Big Assed Disclaimer

slide-37
SLIDE 37

Headframe Spirits Manufacturing. www.headframes6lls.com

  • Why: Even though most disLllaLon systems are considered atmospheric,

pressure and vacuum relief are required.

  • General rules of thumb
  • Crack pressure less than 15 psi.
  • Relief outlet should be piped outside the producLon area, away from

the sources of energy.

  • Vacuum relief is just as crucial as pressure relief
  • Most of the rules included can also be applied to rupture or burst disk

soluLons.

Proper Pressure & Vacuum Relief (part 1)

Loca6on Pressure Relief Vacuum Relief Pot X X Pot Jacket X *dimpled vs open jacket Column X X RecirculaLon Pumps X

slide-38
SLIDE 38

Headframe Spirits Manufacturing. www.headframes6lls.com

  • Design & selecLon by someone, with a PE, who can do the calculaLons for:
  • Size
  • Throughput required
  • Temperature required
  • PRVs from the hardware store are not appropriate for these
  • applicaLons. *excepLon for PRVs used in steam jackets.

Safety – Pressure & Vacuum Relief (part 2)

Pressure Relief Suitable for Water only Rupture disk and collar

slide-39
SLIDE 39

Headframe Spirits Manufacturing. www.headframes6lls.com

Safety – Pressure & Vacuum Relief (part 3)

slide-40
SLIDE 40

Headframe Spirits Manufacturing. www.headframes6lls.com

  • Why:
  • Standard OperaLon: A disLllaLon system will vent dissolved CO2 from

the fermentaLon and other non condensable volaLles.

  • Emergency CondiLon: Loss of water to condensers all for vapor

release from the sLll equipment.

  • LocaLon:
  • The final system vent can usually be found on the final condenser. It

should be vented:

  • Outside the enclosed producLon area
  • Use only hard piping, rated for temperature and flow
  • Piping should have no dips or low areas to collect liquid
  • Flame arrestors should be installed on the outlet

Safety – Ven6ng

slide-41
SLIDE 41

Headframe Spirits Manufacturing. www.headframes6lls.com

  • Why: Basic safety for systems includes integraLng safety interlocks

(automaLc shutdowns) for certain systems when certain condiLons occur.

Safety – Devices & Interlocks

Interlock Condi6on Ac6on Result

  • Loss of cooling water

to sLll system

  • VolaLle Sensor detects

alarm condiLon

  • DisLllaLon system

pressure exceeds 15 psi Shutdown signal sent to boiler or natural gas supply shutoff valve (same circuit as E-Stop) Energy shutdown to disLllaLon system Loss of power Area air exchange system conLnues to run for 1 hr

  • n backup power

Ensure volaLles cannot build up in disLllaLon area

slide-42
SLIDE 42

Headframe Spirits Manufacturing. www.headframes6lls.com

Safety – Preventa6ve Maintenance

Preventa6ve Maintenance Ac6on Schedule Batch Con6nuous PRV cleanout: Remove and inspect PRV for solids blocking the inlet to the PRV or blocking the valve seat in the open posiLon Semi annually

  • r aQer any

“burp” condiLon. X X Vacuum relief: Remove and ensure clear of debris or

  • bstrucLons

Semi annually X X CIP checkvalve inspecLon: (Tuthilltown) Inspect checkvalve spring or “flapper” for proper acLon

  • r erosion.

Semi annually X X

slide-43
SLIDE 43

Headframe Spirits Manufacturing. www.headframes6lls.com

Preventa6ve Maintenance Ac6on Schedule Batch Con6nuous Sight Glass seal inspecLon:

*get rid of them

Remove and inspect seals for erosion, cracks, or incomplete seals. Replace chipped or cracked Sight Glasses Semi annually X X Flame arrestors and final vents Inspect for

  • bstrucLons (bird’s

nests for instance) Quarterly X X Double mechanical seals

  • n agitators

Inspect per OEM instrucLons Quarterly X

Safety – Preventa6ve Maintenance (cont.)

slide-44
SLIDE 44

Headframe Spirits Manufacturing. www.headframes6lls.com

Safety – S6llhouse

  • Electrics area rated Class 1, Group D, Zone 1
  • VenLlaLon and 5X air exchange/hr and conLnues during a power
  • utage
  • Sprinkler system with at least 0.20 gpm/Q2
slide-45
SLIDE 45

Headframe Spirits Manufacturing. www.headframes6lls.com

Item Ac6on Condensing Water Interlock boiler operaLon against cooling water flow. Unarended (remote offsite)

  • peraLon

Never, ever appropriate. Even with automaLon and remote monitoring capabiliLes a disLllaLon system should never be run without trained personnel onsite. HAZOP Perform a Hazard and OperaLon Summary, even a basic run through can provide a lot of insights. (repeat annually) hrps://en.wikipedia.org/wiki/ Hazard_and_operability_study SLllage Temp Proper PPE should be used around spent sLllage which has not been cooled. Heads collecLon Sealed container, Cornelius kegs Storage Tanks Grounded

Safety – Opera6onal

slide-46
SLIDE 46

Headframe Spirits Manufacturing. www.headframes6lls.com

Safety - Common Equipment Failures

  • PRV:
  • Oversized
  • Not operaLonal due to blockage
  • Leaking seals, gaskets, broken check (flapper) valves which allow

volaLles into the disLllaLon room

  • VenLng not directed away from the disLllaLon room, for either final

vent or Pressure Relief devices

  • Double Mechanical seal faillure on agitator failing allowing for volaLle

release from pot

slide-47
SLIDE 47

Headframe Spirits Manufacturing. www.headframes6lls.com

Thanks…Ques6ons?
