SLIDE 1

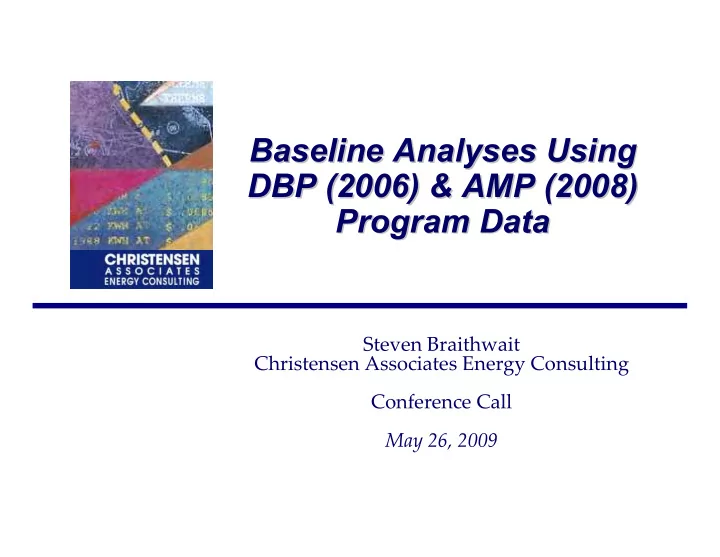

Baseline Analyses Using Baseline Analyses Using DBP (2006) & AMP (2008) DBP (2006) & AMP (2008) Program Data Program Data

Steven Braithwait Christensen Associates Energy Consulting Conference Call May 26, 2009

SLIDE 2

May 2009 2

Project Objectives (2006) Project Objectives (2006)

 Assess the accuracy and bias of different

versions of the 3-in-10 day baseline methods

 Assess whether different types of baseline

adjustments can reduce the anticipated downward bias of unadjusted baselines

Event-day usage
Notification-day usage

SLIDE 3

May 2009 3

Project Objectives (2008) Project Objectives (2008)

 Compare performance of:

Aggregator-level and “Sum-of-Customer” baselines
Baselines constructed from different numbers of non-

event days (e.g., 3-, 5-, or 10-in-10 day baselines)

 Assess the effect of baseline adjustments on the

tendency of unadjusted baselines to understate the “true” baseline (i.e., downward bias)

 Test whether “gaming” was avoided for

customers/aggregators who selected the adjusted baseline option in 2008

SLIDE 4

May 2009 4

Baseline Performance Measures Baseline Performance Measures

 Accuracy:

Measured as relative inaccuracy using Relative Root

Mean Square Error – a fraction between 0 and 1 (e.g., 10 percent relative error)

When assessing individual customer results (e.g.,

DBP), use median of distribution of relative errors

 Bias:

Median of distribution of % errors across events (&

customers, where relevant)

By convention, Error = True BL – Estimated BL; so

positive errors indicate downward bias

Distributions of % errors around the median also

examined

SLIDE 5

May 2009 5

Baseline Analysis Results Baseline Analysis Results

 Performance of 3-in-10 Baselines for

Individual Customer (2006 DBP)

Accuracy and bias, by customer type

 Performance of Alternative Baselines for

Aggregations of Customers (2008 AMP)

Accuracy and bias of aggregate vs. sum-of-

customer, by aggregator

SLIDE 6

May 2009 6

DBP 2006: Unadjusted and Adjusted 3 DBP 2006: Unadjusted and Adjusted 3-

in

in-

10

10 – – Accuracy Accuracy, by , by Weather Sensitivity & Load Variability

Weather Sensitivity & Load Variability

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Low LV Low LV Low LV High LV Large Low LV High LV Large Low LV High LV Low WS Med WS High WS WS WS Not WS Not WS Not WS W&P W&P Customer Type Median U-Stat Unadjusted Event-day Notice-day 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Low LV Low LV Low LV High LV Large Low LV High LV Large Low LV High LV Low WS Med WS High WS WS WS Not WS Not WS Not WS W&P W&P Customer Type Median U-Stat. Unadjusted Event-day Adj. Notice-day Adj.

PG&E SCE Similar patterns at PG&E and SCE:

Most accurate – Low load-variability
Accuracy somewhat lower as weather sensitivity increases
Event-day adj. usually improves accuracy more than notice-day

SLIDE 7

May 2009 7

DBP 2006: Unadjusted and Adjusted 3 DBP 2006: Unadjusted and Adjusted 3-

in

in-

10

10 – – Bias Bias, by , by Weather Sensitivity & Load Variability

Weather Sensitivity & Load Variability

PG&E DBP SCE DBP

Some major differences between PG&E and SCE:

Unadj. BL biased downward for WS (PG&E); Biased upward (SCE)
Upward bias (non-WS) worst for High load variability (Both)
Adjusted BL shifts errors toward upward bias (Both)
Greatest improvement from adj. BL for Non-weather sensitive (Both)
12%
10%
8%
6%
4%
2%

0% 2% 4% Low LV Low LV Low LV High LV Large Low LV High LV Large Low LV High LV Low WS Med WS High WS WS WS Not WS Not WS Not WS W&P W&P Customer Type Median % errror Unadjusted Event-day Adj. Notice-day Adj.

35%
30%
25%
20%
15%
10%
5%

0% Low LV Low LV Low LV High LV Large Low LV High LV Large Low LV High LV Low WS Med WS High WS WS WS Not WS Not WS Not WS W&P W&P Customer Type Median % errror Unadjusted Event-day Adj. Notice-day Adj.

SLIDE 8

May 2009 8

25%
20%
15%
10%
5%

0% 5% 10% 15% 20% 25% 1 51 101 151 201 251 301 351 Median % error of Unadj. Baseline Median % error of Adjusted baseline Unadj. Adj.

Distribution of % Errors Distribution of % Errors – –

PG&E and SCE, WS Low PG&E and SCE, WS Low-

Variability Customers

Variability Customers

25%
20%
15%
10%
5%

0% 5% 10% 15% 20% 25% 1 51 101 151 201 Customers Median % error Adj. Unadj.

PG&E SCE

Unadj. BL biased downward

(More positive values)

Adj. BL shifts errors to mostly

negative (-7% to 3%)

Unadj. BL biased upward

(More negative values)

Adj. BL reduces some negative values,

but moves most in negative direction

SLIDE 9

May 2009 9

Explanation of Differences in Bias Explanation of Differences in Bias Results for PG&E and SCE Results for PG&E and SCE

 Composition of WS group

PG&E – Dominated by office buildings

– Regular loads, strong WS

SCE – Dominated by retail stores, shopping

centers and supermarkets

– Less regular loads (sometimes higher on pre-event days than on event days)

SLIDE 10

May 2009 10

Conclusions Conclusions --

- DBP

DBP



Baseline performance depends greatly on the nature of customers and their loads – in particular weather sensitivity (WS) and load variability (LV)

Greater accuracy for WS
Much greater accuracy for low LV than high LV (suggests testing to exclude high

LV customers from bidding programs)



Unadjusted 3-in-10 BL showed expected downward bias for WS customers for PG&E, but not for SCE

Main reason appeared to be major difference in composition of WS DBP

customers (offices at PG&E; and retail stores and supermarkets at SCE)



Morning adjustments generally improved the accuracy of the unadjusted 3- in-10 BL, and shifted the distribution of % errors toward upward bias

Adjusted baseline actually improved accuracy more for NWS than for WS

customers



BL performance varied by event type – better performance for isolated events than for second or more in series of sequential events



Examining distributions of % errors provides insights beyond median values

SLIDE 11

May 2009 11

2008 AMP: 2008 AMP: Unadjusted & Adjusted Unadjusted & Adjusted Baselines Baselines – – Accuracy Accuracy

Agg. Level 3-in-10 5-in-10 10-in-10 3-in-10 5-in-10 10-in-10 Total 0.057 0.069 0.092 0.054 0.057 0.091 Total 0.065 0.074 0.102 0.055 0.065 0.102 Total 0.049 0.056 0.080 0.068 0.052 0.080 Total 0.061 0.053 0.049 0.120 0.093 0.049 TOTAL 0.056 0.062 0.083 0.075 0.062 0.083

Aggregator Sum of Customers

Unadjusted Unadjusted All 1 2 3 4

Agg. Level 3-in-10 5-in-10 10-in-10 5-in-10 10-in-10 3-in-10 5-in-10 10-in-10 5-in-10 10-in-10 Total 0.022 0.023 0.022 0.022 0.022 0.034 0.025 0.027 0.044 0.024 Total 0.025 0.028 0.027 0.034 0.030 0.033 0.030 0.026 0.039 0.029 Total 0.022 0.021 0.020 0.025 0.020 0.043 0.037 0.034 0.071 0.033 Total 0.044 0.039 0.037 0.053 0.037 0.087 0.071 0.041 0.118 0.063 TOTAL 0.029 0.028 0.027 0.034 0.028 0.051 0.043 0.036 0.074 0.039

Sum of Customers

Symmetric Adjustment Upward-only Symmetric Adjustment Upward-only

Aggregator

All 1 2 3 4

Aggregator BL more accurate than Sum-of-customers
Adjusted BLs more accurate than Unadjusted
Unadjusted BL less accurate the more days included
Adjusted BL accuracy similar across # of days
Upward-only adjustment less accurate than symmetric

SLIDE 12

May 2009 12

2008 AMP: 2008 AMP: Unadjusted & Adjusted Unadjusted & Adjusted Baselines Baselines – – Bias Bias

Aggregator – Unadjusted BL shows downward bias (median 2.5% for 3-in-10)
Downward bias increases w/ number of days included (across columns)
Adjusted BL shifts distribution to small upward bias for 3 and 5-in-10
Adjusted 10-in-10 appears to have smallest bias for both Agg. & Sum of Cust.

Agg. Level 3-in-10 5-in-10 10-in-10 3-in-10 5-in-10 10-in-10 Total 4.42% 5.59% 8.45%

0.37%

2.57% 8.28% Total 1.39% 3.23% 7.76%

2.75%

0.75% 7.68% Total 3.51% 4.82% 8.60% 0.89% 3.09% 8.55% Total 0.01% 1.07% 4.14%

4.70%
2.71%

4.14% TOTAL 2.47% 3.75% 7.24%

0.90%

1.55% 7.15% Unadjusted Unadjusted

Sum of Customers Aggregator

1 2 3 4 All

Agg. Level 3-in-10 5-in-10 10-in-10 5-in-10 10-in-10 3-in-10 5-in-10 10-in-10 5-in-10 10-in-10 Total

0.03%

0.72% 0.97% 0.72% 0.97%

2.12%
0.76%

1.51%

2.81%

0.64% Total

1.59%
1.13%
0.12%
2.41%
1.17%
3.63%
2.33%

0.56%

4.49%
0.51%

Total

0.98%
0.52%

0.22%

0.92%
0.05%
1.72%
1.29%

1.37%

2.75%

0.33% Total

0.70%
0.59%
0.05%
2.29%
0.80%
3.03%
2.79%
0.48%
5.31%
2.14%

TOTAL

0.71%
0.36%

0.26%

1.29%
0.38%
2.25%
1.52%

0.70%

3.76%
0.40%

Aggregator Sum of Customers

Symmetric Adjustment Upward-only Adjustment Symmetric Adjustment Upward-only Adjustment 1 2 3 4 All

SLIDE 13

May 2009 13

Tests for Gaming Under Adjusted Tests for Gaming Under Adjusted Baseline Option Baseline Option

Customer type No

Adj. BL

No

Adj. BL

No

Adj. BL

No

Adj. BL
1. Ind

193 56 0.98 0.98 0.39 0.38 0.39 0.39

2. Comm'l

94 109 0.99 0.99 0.05 0.18 0.05 0.18

3. Schools

9 6 1.01 1.00 0.18 0.11 0.18 0.11 Grand Total 296 171 0.99 0.98 0.31 0.26 0.32 0.26 Standard Deviation

Coeff. of Variation

Count

Ave. AM kWh -

Event/ Non-event

Ratios of Morning Usage on Event & Non-event Days, by Industry Type and Choice of Adjusted BL

No difference in ave. ratio between adj. & non-adj. BL choice
More variability in ratio for Industrial vs. Commercial

SLIDE 14

May 2009 14

Illustrative Aggregator Loads (Commercial) Illustrative Aggregator Loads (Commercial)

– – Event Days and Event

Event Days and Event-

type Days

type Days

2,000 4,000 6,000 8,000 10,000 12,000 1 7 13 19 kW 9-Jul-08 14-Aug-08 5-Sep-08 26-Sep-08 20-Jun-08 7-Jul-08 8-Jul-08 10-Jul-08 13-Aug-08 15-Aug-08 27-Aug-08 28-Aug-08 29-Aug-08 4-Sep-08 10,000 20,000 30,000 40,000 50,000 60,000 1 7 13 19 kW 14-Aug-08 5-Sep-08 26-Sep-08 13-Aug-08 15-Aug-08 27-Aug-08 28-Aug-08 29-Aug-08 4-Sep-08

SLIDE 15

May 2009 15

Illustrative Aggregator Loads (Industrial) Illustrative Aggregator Loads (Industrial) – – Event Days and Event

Event Days and Event-

type Days

type Days

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 50,000 1 7 13 19 kW 9-Jul-08 14-Aug-08 5-Sep-08 26-Sep-08 20-Jun-08 7-Jul-08 8-Jul-08 10-Jul-08 13-Aug-08 15-Aug-08 27-Aug-08 28-Aug-08 29-Aug-08 4-Sep-08 2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 18,000 20,000 1 7 13 19 kW 9-Jul-08 14-Aug-08 5-Sep-08 26-Sep-08 20-Jun-08 7-Jul-08 8-Jul-08 10-Jul-08 13-Aug-08 15-Aug-08 27-Aug-08 28-Aug-08 29-Aug-08 4-Sep-08

SLIDE 16

May 2009 16

Conclusions Conclusions --

- Aggregator

Aggregator

 Aggregator method was more accurate than sum-of-

customers method, though not by wide margin

 Morning adjustments improved the typical downward

bias of unadjusted 3-in-10 BL

 Adjusted 10-in-10 BL often produced greatest accuracy

and least bias, by small margins

 Event-day results were comparable to event-like day

findings

 No evidence found of systematic attempts to “game” the
