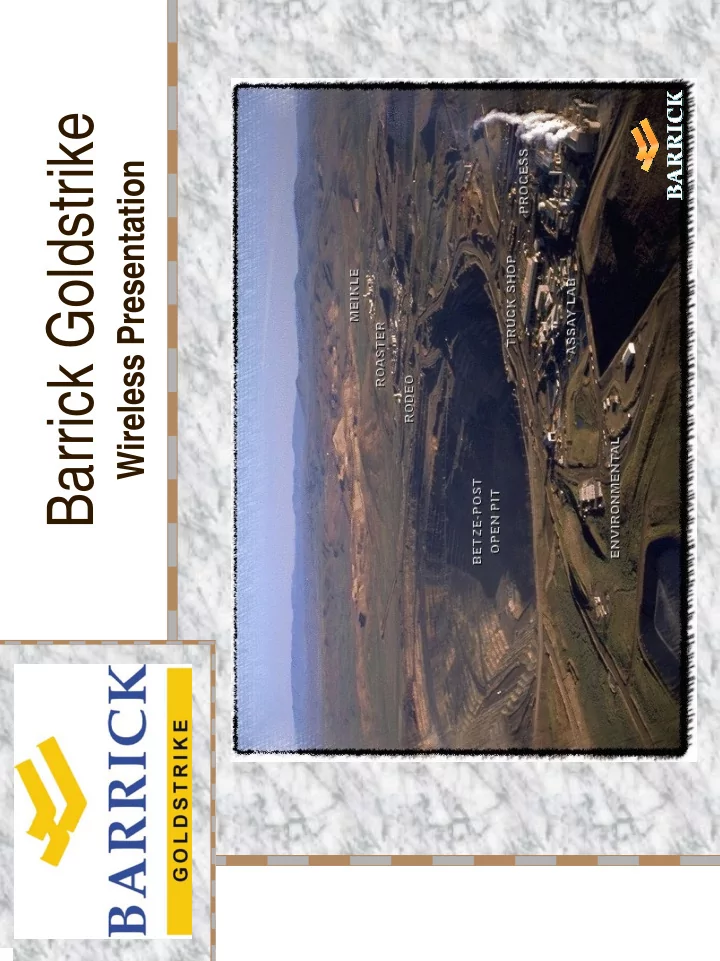

SLIDE 1
Barrick Goldstrike Wireless Presentation Fiber I nfrastructure - - PDF document
Barrick Goldstrike Wireless Presentation Fiber I nfrastructure - - PDF document
Barrick Goldstrike Wireless Presentation Fiber I nfrastructure Wireless Goals Provide access to MP5 to make work orders, order parts, research equipment history, hours, and PM documentation. Intranet, E-mail, and Internet Access.
SLIDE 2
SLIDE 3
Wireless Goals
Provide access to MP5 to make work orders, order parts,
research equipment history, hours, and PM documentation.
Intranet, E-mail, and Internet Access. Access to Maintenance parts information- CENSE,
LeTourneau, CAT…etc.
Drill sample tracking. Dispatcher mobility. Slope monitor downloads. Remote IP phone access. SCADA interface. Flow meter and monitor well monitoring.
SLIDE 4
Current Projects
Downtown Office Connection Shovel DCS Troubleshooting Interface Pit Coverage Service Truck Setup SCADA Electrical Monitoring Environmental Flow Meter Monitoring
SLIDE 5
Meikle Meikle Betze-Post Betze-Post Rodeo Rodeo Autoclave Autoclave Roaster Roaster
Chevas Peak
- Provides link to Downtown Office and
Boulder Valley Substation.
Admin PBX
SLIDE 6
Admin PBX Phone Shack
This provides a link to Chevas peak
which also connects to both Downtown and Boulder Valley.
Cisco 350 bridge 24 dbi directional antenna 10 dbi omni antenna
SLIDE 7
SLIDE 8
Dispatch Admin PBX Chevas Peak Tailings Dam Pit Monitor Pit Monitor Southwest Energy
Meikle Roaster Autoclave Truck Shop
SLIDE 9
Dispatch Root Bridge
Cisco Aironet 350
connects to network at dispatch.
Dispatch connects to
the network via fiber to the Truck Shop.
Cisco 350 bridge 15dbi omni antenna
SLIDE 10
Pit Monitor Station
Cisco 350 bridge 11dbi directional antenna
Pit monitor station provides extended wireless coverage in the pit.
SLIDE 11
SLIDE 12
Shovel MA142 &MA143
The workgroup bridge is
mounted above the cab providing a network connection via ethernet inside the cab.
Cisco workgroup bridge 8dbi omni antenna
SLIDE 13
Tailings Dam Voice over IP
Network and Phone service is extended to the Tailings Dam area.
Cisco workgroup bridge 11dbi directional antenna Nortel i2004 IP phone
SLIDE 14
Southwest Energy
Southwest energy has
an IP phone, Fax and internet capability.
Cisco 350 bridge 11dbi directional antenna 10 dbi omni antenna Nortel i2004 IP Phone
SLIDE 15
Service Truck
Ted Leigh can look for parts in the warehouse at the equipment via the pit wireless network.
Cisco workgroup bridge 5 dbi omni antenna
SLIDE 16
SLIDE 17
Dispatch Admin PBX Chevas Peak Tailings Dam Boulder Valley Water Treatment Boulder Valley 1 & 2 Bazza
Meikle Roaster Roaster Truck Shop
Trolley Betze Air Liquide
SLIDE 18
SLIDE 19
Serial Port Flow meter Monitor Serial Port Flow meter Monitor Workgroup Bridge Ethernet switch
SLIDE 20
Future Projects
Shovel Monitoring Truck Monitoring Storm Project Meikle Refrigeration Coverage Boulder Valley Water Treatment Network and
phone service
Sample tracking PM Tracking and interface to MP5
