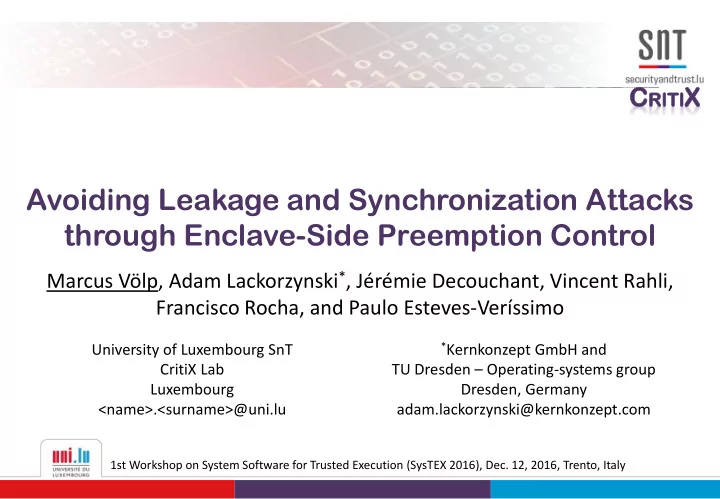

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control

Marcus Völp, Adam Lackorzynski*, Jérémie Decouchant, Vincent Rahli, Francisco Rocha, and Paulo Esteves-Veríssimo

1st Workshop on System Software for Trusted Execution (SysTEX 2016), Dec. 12, 2016, Trento, Italy

University of Luxembourg SnT CritiX Lab Luxembourg <name>.<surname>@uni.lu

*Kernkonzept GmbH and

TU Dresden – Operating-systems group Dresden, Germany adam.lackorzynski@kernkonzept.com

slide-2
SLIDE 2

2

The functionality/code size dilemma

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • application scenarios require the system to

implement a certain set of functionalities

  • implementing these functionalities comes at the cost of a

certain minimal amount of code

– even if development time and costs don’t matter; and – even if you only use high-class developers

  • correlation of code size and complexity to vulnerabilities

– Chou et al., “An Empirical Study of Operating Systems Errors”, SOSP 2001 – Asadollah et al., “A Study of Concurrency Bugs in an Open Source Software”, OSS 2016

slide-3
SLIDE 3

3

The functionality/code size dilemma

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • application scenarios require the system to

implement a certain set of functionalities

  • implementing these functionalities comes at the cost of a

certain minimal amount of code

– even if development time and costs don’t matter; and – even if you only use high-class developers

  • correlation of code size and complexity to vulnerabilities

– Chou et al., “An Empirical Study of Operating Systems Errors”, SOSP 2001 – Asadollah et al., “A Study of Concurrency Bugs in an Open Source Software”, OSS 2016

  • RTOS
  • ca. 5 KLOC
  • Microkernel

10 – 15 KLOC

  • Legacy OS

15 – 50 MLOC

5-13 PY formal verification

slide-4
SLIDE 4

4

Legacy OS

Intransitive trust

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

Driver FS Stub legacy App App Player secure App secure App

slide-5
SLIDE 5

5

Legacy OS

Intransitive trust

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

Driver FS Stub legacy App App En-/Decryption VPFS secure App secure App Player Codec Framebuffer Mgr. Resource Mgmt

  • Weinhold et al., “jVPFS: Adding Robustness to a Secure Stacked File

System with Untrusted Local Storage Components”, USENIX ATC, 2011

  • Singaravelu et al., “Reducing TCB Complexity for Security-Sensitive

Applications: Three Case Studies”, Eurosys, 2006

  • …

Asmussen, Völp, … ASPLOS ‘16

tudos.org

slide-6
SLIDE 6

6

Legacy OS

Intransitive trust

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

Driver FS Stub legacy App App En-/Decryption VPFS secure App secure App Player Codec Framebuffer Mgr. Resource Mgmt Intel SGX ARM Trustzone / … microhypervisor Inktag Hoffmann et al. ‘13 Manycore + DTUs M3 Asmussen, Völp, … ASPLOS ‘16

slide-7
SLIDE 7

7

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

Fine grain preemption control to widen the window of vulnerability

  • f synchronization bugs

Source: AsyncShock

slide-8
SLIDE 8

8

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

Fine grain preemption control to widen the window of vulnerability

  • f synchronization bugs

Fine grain preemption control to widen the window of vulnerability for side-channel attacks

slide-9
SLIDE 9

9

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • Running Example:

Osvik et al., “Cache Attacks and Countermeasures: the Case of AES”, CT-RSA 2006

source: wikimedia

in-memory tables Ti

slide-10
SLIDE 10

10

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • Running Example:

Osvik et al., “Cache Attacks and Countermeasures: the Case of AES”, CT-RSA 2006

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] Ti Ti

slide-11
SLIDE 11

11

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • Running Example:

Osvik et al., “Cache Attacks and Countermeasures: the Case of AES”, CT-RSA 2006

R6 = read Ti[0] cmp 0, xj R5 = cmov R6 R0 = xor R0, R5 … Ti Ti low indistinguishable data access pattern embedded into low indistinguishable control flow

slide-12
SLIDE 12

12

SGX Vulnerabilities

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • Running Example:

Osvik et al., “Cache Attacks and Countermeasures: the Case of AES”, CT-RSA 2006

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] Ti Ti disable preemptions enable preemptions

slide-13
SLIDE 13

13

This talk

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

  • How can we allow user-level

applications (in enclaves) to disable preemptions without being able to monopolizing the system?

  • How can we prevent solicited

exits through which the management OS could regain control?

  • How can we translate delayed-

preemption to Intel SGX? Re-investigate delayed-preemption:

slide-14
SLIDE 14

14

This talk

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] disable preemptions enable preemptions

How can we make sure the enclave enables preemptions again? How can we prevent solicited exits in sensitive code?

slide-15
SLIDE 15

15

This talk

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] disable preemptions enable preemptions prepare if preempted goto retry

How can we make sure the enclave enables preemptions again? How can we prevent solicited exits in sensitive code?

slide-16
SLIDE 16

16

Delayed Preemption

  • … in a Trusted-Trustworthy Hypervisor

time user / enclave mode kernel mode disable all interrupts except timer program timer to max_tolerable_delay inform app about pending preemption: p = 1 execute delayed preemptions

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

slide-17
SLIDE 17

17

Delayed Preemption

  • … in a Trusted-Trustworthy Hypervisor

time user / enclave mode kernel mode disable all interrupts except timer program timer to max_tolerable_delay inform app about pending preemption: p = 1 execute delayed preemptions … max_tolerable_delay

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

slide-18
SLIDE 18

18

Delayed Preemption

  • … in a Trusted-Trustworthy Hypervisor

time user / enclave mode kernel mode

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

sensitive code max_tolerable_delay

slide-19
SLIDE 19

19

Delayed Preemption

  • … in SGX

time user / enclave mode kernel mode

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

sensitive code max_tolerable_delay xAPIC register

slide-20
SLIDE 20

20

max_tolerable_delay max_tolerable_delay

Delayed Preemption

  • … in SGX

time user / enclave mode kernel mode

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

sensitive code xAPIC register xAPIC: set timer on first preemption; don’t interrupt application local xAPIC register; write only in kernel mode (i.e., not in enclave mode) not virtualizable

slide-21
SLIDE 21

21

Solicited Exits

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] disable preemptions enable preemptions prepare if preempted goto retry

slide-22
SLIDE 22

22

xApic.d = 0 // if (xApic.p = 1) -> AEX retry: xApic.d = 1; prepare if (p = 1) goto retry

Solicited Exits

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n]

How to prevent solicited exits in sensitive code?

  max_tolerable_delay

  • data / instruction page-faults
  • lazy FPU context switch
  • power management
  • device virtualization

Trigger all such exits during non-sensitive prepare phase; Set p flag to make code aware of these exits; Context switch p flag as part of enclave state

slide-23
SLIDE 23

23

Solicited Exits

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

T0 T1 T2 T3 f g retry: d = 1; //prepare call pg(f) call pg(g)

  • r $0, [pg(T0)]
  • r $0, [pg(T1)]
  • r $0, [pg(T2)]
  • r $0, [pg(T3)]

if (p = 1) goto retry

  • data / instruction TLB

set p-flag on instruction / data pagefault

Recall: cross-CPU page-table changes require IPIs to shootdown TLBs

slide-24
SLIDE 24

24

prepare if (p = 1) goto retry xApic.d = 0 // if (xApic.p = 1) -> AEX

Solicited Exits

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n]

How to prevent solicited exits in sensitive code?

retry: xApic.d = 1;

  • data / instruction page-faults
  • lazy FPU context switch
  • power management
  • device virtualization

access pages / FPU; check p-flag report power state access device MMIO / ports; check p-flag check max_tolerable_delay > WCET(prepare + sensitive)

  • f current power state

max_tolerable_delay

slide-25
SLIDE 25

25

Concurrency Bugs

  • Cannot fix concurrency bugs by delaying preemptions
  • Avoid widening the window of vulnerability

Avoiding Leakage and Synchronization Attacks through Enclave-Side Preemption Control - SysTEX 2016 - Marcus Völp (marcus.voelp@uni.lu)

disable preemptions free object invalidate pointer enable preemptions disable preemptions if (pointer) use object enable preemptions ||

slide-26
SLIDE 26

26

This talk in one slide…

Legacy OS

Driver FS Stub legacy App App En-/Decryption VPFS secure App secure App Player Codec Framebuffer Mgr. Resource Mgmt Intel SGX ARM Trustzone / … microhypervisor Inktag Hoffmann et al. ‘13

…

Manycore + DTUs M3 Asmussen, Völp, … ASPLOS ‘16

intransitive trust: enabler for TCB reduction CritiX Lab (Critical and Extreme Security and Dependability) Interdisciplinary Centre for Security, Reliability and Trust - University of Luxembourg

PEARL Grant FNR/P14/8149128 – Paulo Esteves-Veríssimo

We are hiring bright post-docs and research associates!

slide-27
SLIDE 27

27

This talk in one slide…

Legacy OS

Driver FS Stub legacy App App En-/Decryption VPFS secure App secure App Player Codec Framebuffer Mgr. Resource Mgmt Intel SGX ARM Trustzone / … microhypervisor Inktag Hoffmann et al. ‘13

…

Manycore + DTUs M3 Asmussen, Völp, … ASPLOS ‘16

intransitive trust: enabler for TCB reduction CritiX Lab (Critical and Extreme Security and Dependability) Interdisciplinary Centre for Security, Reliability and Trust - University of Luxembourg

PEARL Grant FNR/P14/8149128 – Paulo Esteves-Veríssimo

We are hiring bright post-docs and research associates!

delayed-preemption mechanism prevents widening attack windows

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] disable preemptions enable preemptions prepare if preempted goto retry

slide-28
SLIDE 28

28

This talk in one slide…

Legacy OS

Driver FS Stub legacy App App En-/Decryption VPFS secure App secure App Player Codec Framebuffer Mgr. Resource Mgmt Intel SGX ARM Trustzone / … microhypervisor Inktag Hoffmann et al. ‘13

…

Manycore + DTUs M3 Asmussen, Völp, … ASPLOS ‘16

intransitive trust: enabler for TCB reduction CritiX Lab (Critical and Extreme Security and Dependability) Interdisciplinary Centre for Security, Reliability and Trust - University of Luxembourg

PEARL Grant FNR/P14/8149128 – Paulo Esteves-Veríssimo

We are hiring bright post-docs and research associates!

delayed-preemption mechanism prevents widening attack windows

R5 = read Ti[xj] R0 = xor R0, R5 … read Ti[0] … read Ti[n] disable preemptions enable preemptions prepare if preempted goto retry

max_tolerable_delay max_tolerable_delay time user / enclave mode kernel mode sensitive code xAPIC register xAPIC: set timer on first preemption; don’t interrupt application local xAPIC register; write only in kernel mode (i.e., not in enclave mode) not virtualizable

… and it can be integrated in SGX
