MIN Faculty Department of Informatics Autonomous Surgical Robotics Nicols Prez de Olaguer Santamara University of Hamburg Faculty of Mathematics, Informatics and Natural Sciences Department of Informatics Technical Aspects of Multimodal

slide-1

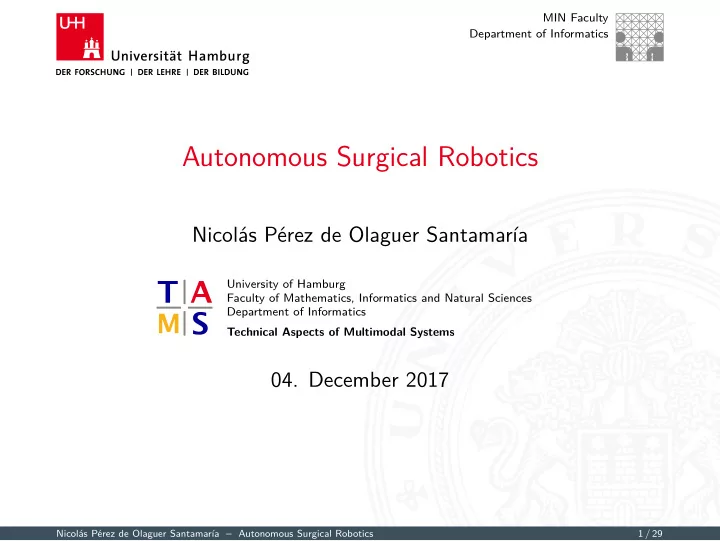

SLIDE 1

MIN Faculty Department of Informatics

Autonomous Surgical Robotics

Nicolás Pérez de Olaguer Santamaría

University of Hamburg Faculty of Mathematics, Informatics and Natural Sciences Department of Informatics Technical Aspects of Multimodal Systems

  • 04. December 2017

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 1 / 29

slide-2
SLIDE 2

Outline

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

  • 1. Motivation
  • 2. Non-Autonomous Surgical Robots
  • 3. Supervised Autonomous Robots
  • 4. STAR surgical Robot
  • 5. Discussion
  • 6. Conclusions

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 2 / 29

slide-3
SLIDE 3

Motivation

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Would you trust on a robot to perform you a surgical intervention?

https://youtu.be/hulnz902gWo

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 3 / 29

slide-4
SLIDE 4

Why use surgical Robots?

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

They provide:

◮ Enhanced effectiveness ◮ Safety ◮ Optimal techniques

◮ Minimally invasive surgery

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 4 / 29

slide-5
SLIDE 5

Why use surgical Robots?

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

They provide:

◮ Enhanced effectiveness ◮ Safety ◮ Optimal techniques

◮ Minimally invasive surgery

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 4 / 29

slide-6
SLIDE 6

Why use surgical Robots?

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

They provide:

◮ Enhanced effectiveness ◮ Safety ◮ Optimal techniques

◮ Minimally invasive surgery

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 4 / 29

slide-7
SLIDE 7

Brief history

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ First surgical robot: Arthrobot, Vancouver 1983. ◮ PUMA 560

◮ 1985 1st neurosurgical biopsy.

◮ ROBODOC, 1992, used to crave a cavity in the femur to

perfectly fit a hip prosthesis in the patient.

Arthrobot [1] Puma 560 [2] ROBODOC [3]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 5 / 29

slide-8
SLIDE 8

Brief history (cont.)

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Da Vinci Surgical System, 2000

◮ Minimally invasive surgery. ◮ Teleoperated system. ◮ Four interactive robot arms. ◮ To replace laparoscopic tools. ◮ US 2 million.

Da Vinci surgical system[5] Laparoscopic Tools [4]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 6 / 29

slide-9
SLIDE 9

Brief history (cont.)

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

  • No. of operations worldwide by the Da Vinci Surgical System [5].

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 7 / 29

slide-10
SLIDE 10

Brief history (cont.)

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Concentric Tube Robots (2005)

youtu.be/IUg4Jco-Apc [6]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 8 / 29

slide-11
SLIDE 11

Autonomy of surgical robots

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Level of Autonomy

Da Vinci surgical system[5] STAR Robot[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 9 / 29

slide-12
SLIDE 12

Non-Autonomous Surgical Robots

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ The action is completely performed by the surgeon. Hand-eye

coordination.

◮ We do not have an ’intelligent’ system. ◮ Benefits:

◮ Reduce human fatigue. ◮ Allow high precision. ◮ Minimal Invasive Surgery

◮ Drawbacks:

◮ Relies on the dexterity of the surgeon. ◮ Slow learning curve.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 10 / 29

slide-13
SLIDE 13

Autonomy

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

“an ability to perform intended tasks based on current state and sensing without human intervention”

(ISO 8373:2012)

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 11 / 29

slide-14
SLIDE 14

State of the art

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ The robot perform a certain task with the supervision of the

doctor.

◮ Surgeon asses the automated planning of the robot before

implementation.

◮ Discrete control of the system. ◮ Used in rigid tissues surgeries i.e. bone interventions. ◮ Never tested in human soft tissue.

◮ Increased complexity by tissue deformation.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 12 / 29

slide-15
SLIDE 15

Features

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Reduce human errors. ◮ Deal with different sensory data. ◮ Execute predefined motions. ◮ Improve safety, consistency and quality of intervention.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 13 / 29

slide-16
SLIDE 16

Paper

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Supervised autonomous robotic soft tissue surgery

  • A. Shademan, R. S. Decker, J. D. Opfermann, S. Leonard, A.

Krieger, and P. C. Kim

Published 4 May 2016, Sci Transl Med 8 (337), 337ra64337ra64 DOI : 10.1126/scitranslmed.aad9398

Sheikh Zayed Institute for Pediatric Surgical Innovation, Children’s National Health System, 111 Michigan Avenue Northwest, Washington, DC 20010, USA. Department of Computer Science, Johns Hopkins University, 3400 North Charles Street, Baltimore, MD 21218, USA.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 14 / 29

slide-17
SLIDE 17

Hypothesis

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Smart Tissue Autonomous Robot (STAR). Defined in [7] ◮ Designed to perform anastomosis of soft tissue (suture). ◮ Hypothesis posed: Can this complex intervention be done

autonomously and perform better than other surgical techniques?

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 15 / 29

slide-18
SLIDE 18

Tests

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Tested in:

◮ In-vivo and ex-vivo pig intestine. ◮ Against: manual surgery (OPEN), laparoscopy (LAP) and

robot-assisted surgery (RAS).

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 16 / 29

slide-19
SLIDE 19

Technologies

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Actuated suturing tools. ◮ Fluorescent and 3D imaging. ◮ Force sensing. ◮ Submilimiter positioning.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 17 / 29

slide-20
SLIDE 20

Technologies

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Actuated suturing tools. ◮ Fluorescent and 3D imaging. ◮ Force sensing. ◮ Submilimiter positioning.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 17 / 29

slide-21
SLIDE 21

Technologies

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Actuated suturing tools. ◮ Fluorescent and 3D imaging. ◮ Force sensing. ◮ Submilimiter positioning.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 17 / 29

slide-22
SLIDE 22

Technologies

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Actuated suturing tools. ◮ Fluorescent and 3D imaging. ◮ Force sensing. ◮ Submilimiter positioning.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 17 / 29

slide-23
SLIDE 23

Robot Arm, Suturing Tool and Force Sensor

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Seven-DOF KUKA LBR4 robotic arm + one-DOF suturing

tool.

◮ Suturing tool designed for manual actuation. ◮ Repeatable 0.05 mm positioning. ◮ Force sensor placed in between the last link of the robot arm

and the suturing tool → ideally should be on the end of the suturing tool.

◮ Threshold of 1N.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 18 / 29

slide-24
SLIDE 24

Imaging and 3D tracking

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Near-Infrared fluorescent (NIRF) Imaging. ◮ Chemical solution. ◮ NIRF markers manually placed by the surgeons. ◮ Real-time positioning information.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 19 / 29

slide-25
SLIDE 25

Imaging and 3D tracking (cont.)

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Plenoptic 3D surface reconstruction (1.14mm). ◮ 3D visual tracking to the markers. ◮ Combination of both avoid problem of occlusion and

recognition of the tissue targets.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 20 / 29

slide-26
SLIDE 26

Suture Planning

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Model the deformation of the tissue showed unpredictable

behaviour from 0 to 6.5mm.

◮ Lead to real-time detection and plan adjusting using the

imaging technologies.

◮ Algorithm of suture plan computed regarding cut length and

thickness (manual or sensor input).

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 21 / 29

slide-27
SLIDE 27

Suture Planning (Algorithm)

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Polyline fitted through the NIRF markers. ◮ Tissue thickness T, bite depth H, spacing between consecutive

sutures S, lumen diameter D and circumference C = πD.

◮ Leak-free suture achieved with S < H/1.25 ◮ Optimal number of sutures is:

N = C/S = ceil(1.25C/H) = ceil(1.25πD/3T)

◮ With T = 1.3mm and D = 1.5mm, N = 16 with suture

spacing S = C/N = 2.95mm.

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 22 / 29

slide-28
SLIDE 28

[7]

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 23 / 29

slide-29
SLIDE 29

Benefits

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Optimized techniques. ◮ Better performance

◮ Proof of their hypothesis.

◮ Liberation of the surgeon to only supervise the work. ◮ Reduced recovery time.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 24 / 29

slide-30
SLIDE 30

Problems

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ Higher expenses. ◮ Longer anaesthesia exposure. ◮ Only valid for this specific problem. Moreover, this problem can

be solved easily by staples.

◮ Lots of ethical issues. ◮ Hard to implement soon.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 25 / 29

slide-31
SLIDE 31

Conclusions

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

◮ It is a first step on the field of robotic autonomy in the OR. ◮ Highly risky environment leads to slow down the introduction

  • f the technology.

◮ Change the role of the doctors to decision-making rather than

actuating.

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 26 / 29

slide-32
SLIDE 32

Conclusions

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

Are we going to accept the increase of risk in health care as we did in other fields i.e. self driving cars?

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 27 / 29

slide-33
SLIDE 33

References

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

1 The Medical Post, Volume 21, No. 23, 12/11/1985 2 30 Years of Robotic Surgery – Past, Present and Future, Trevor Hackman, MD, FACS Department of Otolaryngology / Head and Neck Surgery University of North Carolina at Chapel Hill, 2015 IEEE RoboResearch Seminar, 3 ROBODOC - surgical robot success story, Joanne Pransky, Industrial Robot: An International Journal 1997 4 Wikimedia foundation Inc., 2017-11-29, Laparoscopic Surgery, https://en.wikipedia.org/wiki/Laparoscopic_surgery/, Wikipedia, Accessed 2017-12-01

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 28 / 29

slide-34
SLIDE 34

References

Motivation Non-Autonomous Surgical Robots Supervised Autonomous Robots STAR surgical Robot Discussion Conclusions

5 Surgical Robotics: The Next 25 Years, UK-RAS White papers, 2016 6 Burgner, J., Gilbert, H. B., & Webster, R. J. (2013, May). On the computational design of concentric tube robots: Incorporating volume-based objectives. In Robotics and Automation (ICRA), 2013 IEEE International Conference on (pp. 1193-1198). IEEE. 7 A. Shademan, R. S. Decker, J. D. Opfermann, S. Leonard,

  • A. Krieger, and P. C. Kim, Supervised autonomous robotic

soft tissue surgery, Science translational medicine. 8 (337), 337ra64337ra64, (2016)

Nicolás Pérez de Olaguer Santamaría – Autonomous Surgical Robotics 29 / 29
