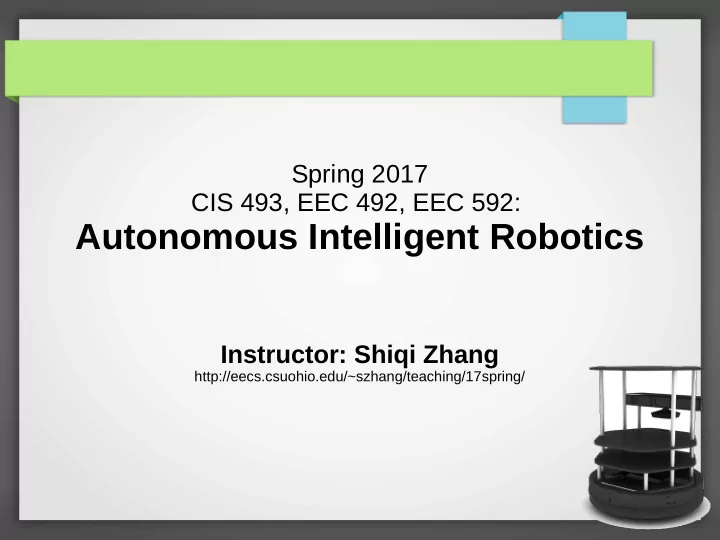

Spring 2017 CIS 493, EEC 492, EEC 592:

Autonomous Intelligent Robotics

Instructor: Shiqi Zhang

http://eecs.csuohio.edu/~szhang/teaching/17spring/

2

Ubuntu 14.04 + ROS Indigo

3

Assignment 1 is available now Due date is Jan 31, 5 PM

4

ROS: Robot Operatins System

5

Intelligent robot

External world Sensors Actuators Perception Cognition Action Sensing Modeling the world Action selection Planning Learning Multirobot coordination Motion Navigation Obstacle avoidance

6

Example: TurtleBot

TurtleBot 'create' base Microsoft Kinect

7

Software architecture

• Software architecture is

important for robotics because:

– Large code-bases – Integration of many different

(dynamic) set of devices

– Many different options for a single

component

8

Controlling robots using code

9

Straightforward approach

• Write a program to perform robot's 'cognitive' functions
• The program includes:

– Code to interface with the camera – Code to interface with the robot base – Code to understand the images and control the robot base

• Once implemented, the system works well and efficiently

10

Straightforward approach

SOFTWARE HARDWARE

USB-USB USB-Serial

Specific camera driver Serial programming specific to 'Create'

This approach suffers from a problem. Any ideas? This approach suffers from a problem. Any ideas?

11

An example problem...

• We later realized 'create' base is too slow (0.5 m/s).
• How easy it is to use a Segway base instead (up to 1.7 m/s)?

Could I have implemented my code differently to make this transition easier? Could I have implemented my code differently to make this transition easier?

12

An example problem...

• We later realized 'create' base is too slow (0.5 m/s).
• How easy it is to use a Segway base instead (up to 1.7 m/s)?

Could I have implemented my code differently to make this transition easier? Could I have implemented my code differently to make this transition easier?

13

Using robot middleware

Provide an abstraction layer and drivers between Provide an abstraction layer and drivers between computation and embodiment computation and embodiment

14

Using robot middleware

SOFTWARE HARDWARE

USB-USB USB-Serial

middleware middleware

15

The advantages

• Reuseability

– Reuse existing code and drivers written for other robots,

platforms and/or research projects

• Portability

– Easier to switch to another robotic platform

• Easier to expand functionality

16

ROS (Robot Operating System)

• A very popular robot middleware

package

www.ros.com

17

ROS (Robot Operating System)

18

ROS (Robot Operating System)

• A very the most popular robot middleware package
• Peer-to-peer architecture among nodes over a

network

– A node is a process that performs some computation – Topics are named buses over which nodes exchange

messages

– Nodes communicate with each other by publishing

and subscribing to topics

– Services enable request-response communications

between nodes

19

ROS nodes, messages, and topics

Node Node Node Node Node Node Service Topic Node Node Node publish subscribe response request

20

How it works...

USB-USB USB-Serial

Ball following

21

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

22

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

I will receive images

• n topic "image" and

publish blobs on topic "blobs" I will receive blobs

• n topic "blobs"

and publish velocities on topic "cmd_vel" I will receive velocities on topic "cmd_vel" I will publish images on topic "image"

23

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

images

• n

'image' blobs on 'blobs' Velocities

• n

'cmd_vel' SET UP COMMUNICATIONS

24

To summarize...

• Robot middleware improves software's reusability

and portability

• ROS is a very popular robot middleware

– Thousands of packages – More than 100 robot platforms

• Important ROS concepts

– Node – Topic – Message – Service

25

Reading materials

• ROS tutorials

–

http://www.ros.org/wiki/ROS/Tutorials

• ROS paper:

–

'ROS: an open-source Robot Operating System', 2009

26

Demo

27

THE END
