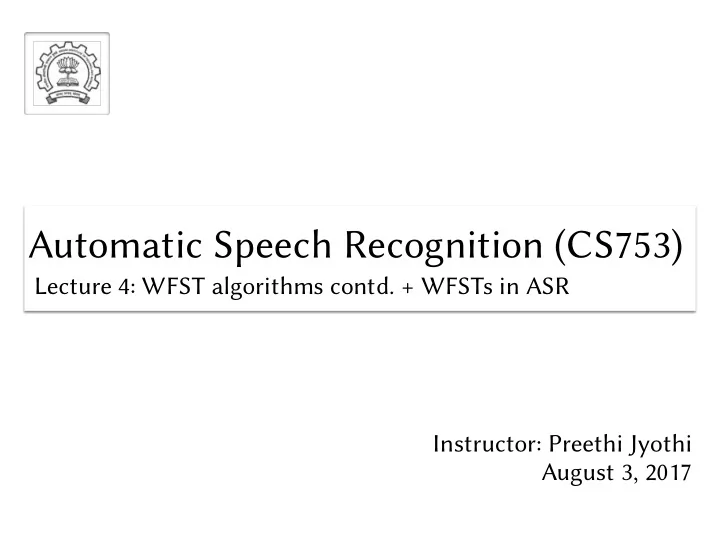

Automatic Speech Recognition (CS753)

Lecture 4: WFST algorithms contd. + WFSTs in ASR

Automatic Speech Recognition (CS753)

Qviz-1 Postmortem

• Common Mistakes:
• Missing insertion/deletion


in E.fst

• Forgot to mark final


states/self-loops

• Output vocabulary for


T.fst has to be complete
 words, “bad”, “bead”, etc.
 rather than letuers

a) E.fst b) T.fst 10 20 30 40 50

Correct Incorrect

Project Proposal

• Start brainstorming!
• In case of doubt, discuss potential ideas with me during my
• ffice hours (Thur, 5:00 pm to 6:30 pm)
• Once decided, you will have to fill out a form specifying:
• Title of the project
• Names/roll numbers of all project members
• A 300-400 word abstract of the proposed project
• Due by 11:59 pm on Aug 14th

Composition: Recap

• If T1 transduces x to z,


and T2 transduces z to y,
 then T1 ○ T2 transduces x to y

• Note: output alphabet of T1 ⊆ input alphabet of T2
• E.g. If T1 removes punctuation symbols from a string, and T2 changes


uppercase letuers to lowercase letuers, then T1 ⚬ T2 brings about
 both changes

Determinization: Recap

• A (W)FST is deterministic if:
• Unique start state
• No two transitions from a state share the same input label
• No epsilon input labels
• Not all WFSAs can be determinized

Determinization: Weighted FSA

Some Weighted-FSAs are not determinizable! [M97] Weight of string n = n and weight of n = 2n

• 3

2 1

• Afuer seeing n an FSA can’t remember n

[M97] M. Mohri. Finite-State Transducers in Language and Speech Processing. Computational Linguistics, 23(2), 1997

Determinization: Recap

• A (W)FST is deterministic if:
• Unique start state
• No two transitions from a state share the same input label
• No epsilon input labels
• Not all WFSAs can be determinized
• Guaranteed to yield a deterministic WFSA under some technical

conditions characterising the automata (e.g. twins property)

Minimization

Minimization: find an equivalent deterministic FSA with the least number of states (and transitions) Unweighted FSAs have a unique minimal FSA [Aho74]

• 3

2

• 1
• 3

12

• Obtained by identifying and merging equivalent states

Alfred

• V. Aho, John E. Hopcroft, and Jeffrey D. Ullman. The design and analysis of computer algorithms. Addison Wesley, 1974.

Minimization: Weighted FSA

Two states are equivalent only if for every input string, the

• utcome — weight assigned to the string, if accepted — starting

from the two states are the same

3 2 1 3 12

Redistribute weights before identifying equivalent states

Minimization: Weighted FSA

Reweighting OK as long as resulting WFSA is equivalent Can reweight using a “potential function” on states

• 3

2

• 1
• “Weight pushing”: Reweighting using a potential function that
• ptimally moves weights towards the start state
• 3

2

• 1
• 2

1

• 2

+2 +1 +1

• 1
• 1
• 2

Minimization: Weighted FSA

Afuer weight-pushing, can simply apply unweighted FSA minimization (treating label/weight as label) Guaranteed to yield a minimal WFSA (under some technical conditions required for weight-pushing)

• 3

12

• 3

2

• 1

Toolkits to work with finite-state machines

• AT&T FSM Library (no longer supported)


htup://www3.cs.stonybrook.edu/~algorith/implement/fsm/ implement.shtml

• RWTH FSA Toolkit


htups://www-i6.informatik.rwth-aachen.de/~kanthak/fsa.html

• Carmel


htups://www.isi.edu/licensed-sw/carmel/

• MIT FST Toolkit


htup://people.csail.mit.edu/ilh/fst/

• OpenFST Toolkit (actively supported)


htup://www.openfst.org/twiki/bin/view/FST/WebHome

Brief Introduction to OpenFst

• a

1 2 an

1 an a <eps> an 1 a 2 <eps> a 1 n 2 1 2 <eps> n 2 a a 1 2

Input
 alphabet
 (in.txt) Output
 alphabet
 (out.txt)

“ ”

• l

a b e l

• i

s

• r

e s e r v e d

• f
• r
• e

p s i l

• n

A.txt

Qvick Intro to OpenFst (www.openfst.org)

• a

1 2/0.1 an

1 an a 0.5 1 2 <eps> n 1.0 2 a a 0.5 1 2 0.1

Qvick Intro to OpenFst (www.openfst.org)

Compiling & Printing FSTs

The text FSTs need to be “compiled” into binary objects before further use with OpenFst utilities

• Command used to compile:

fstcompile --isymbols=in.txt --osymbols=out.txt A.txt A.fst

• Get back the text FST using a print command with the binary file:

fstprint --isymbols=in.txt --osymbols=out.txt A.fst A.txt

Drawing FSTs

Small FSTs can be visualized easily using the draw tool:

fstdraw --isymbols=in.txt --osymbols=out.txt A.fst | dot -Tpdf > A.pdf

1 an:a 2 a:a <eps>:n

FSTs can get very large!

WFSTs applied to ASR

Acoustic
 Indices

WFST-based ASR System

Language
 Model

Word
 Sequence

Acoustic
 Models Triphones Context
 Transducer Monophones Pronunciation
 Model Words

WFST-based ASR System

Acoustic
 Indices

Language
 Model

Word
 Sequence

Acoustic
 Models Triphones Context
 Transducer Monophones Pronunciation
 Model Words

H

a/a_b b/a_b

. . .

x/y_z

One 3-state
 HMM for
 each
 triphone

f1:ε

}

FST Union + Closure Resulting FST

H

f2:ε f3:ε f4:ε f5:ε f4:ε f6:ε f0:a:a_b

WFST-based ASR System

ε,* x,ε x:x/ ε_ε x,x x:x/ ε_x x,y x:x/ ε_y y,ε y:y/ ε_ε y,x y:y/ ε_x y,y y:y/ ε_y x:x/x_ε x:x/x_x x:x/x_y y:y/x_ ε y:y/x_x y:y/x_y x:x/y_ε x:x/y_x x:x/y_y y:y/y_ε y:y/y_x y:y/y_y

Figure reproduced from “Weighted Finite State Transducers in Speech Recognition”, Mohri et al., 2002

Arc labels: “monophone : phone / lefu-context_right-context” C-1:

C

Acoustic
 Indices

Language
 Model

Word
 Sequence

Acoustic
 Models Triphones Context
 Transducer Monophones Pronunciation
 Model Words

Acoustic
 Indices

Language
 Model

Word
 Sequence

Acoustic
 Models Triphones Context
 Transducer Monophones Pronunciation
 Model Words

WFST-based ASR System

L

Figure reproduced from “Weighted Finite State Transducers in Speech Recognition”, Mohri et al., 2002

(a)

(b) 1 d:data/1 5 d:dew/1 2 ey:ε/0.5 ae:ε/0.5 6 uw:ε/1 3 t:ε/0.3 dx:ε/0.7 4 ax: ε/1

Acoustic
 Indices

Language
 Model

Word
 Sequence

Acoustic
 Models Triphones Context
 Transducer Monophones Pronunciation
 Model Words

WFST-based ASR System

the birds/0.404 animals/1.789 are/0.693 were/0.693 boy/1.789 is walking

G
