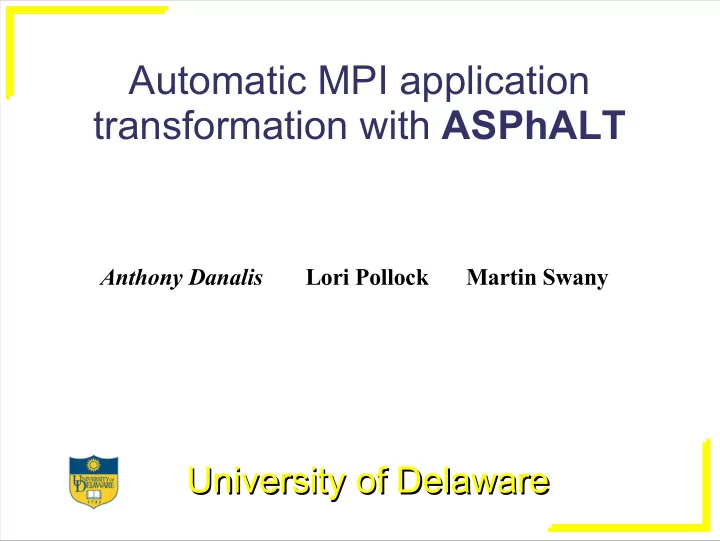

Automatic MPI application transformation with ASPhALT

University of Delaware University of Delaware

Lori Pollock Martin Swany Anthony Danalis

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Problem

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Overall Research Goal Overall Research Goal

Requirements:

✔ Achieve high-performance communication ✔ Simplify the MPI code developers write

Have your cake + Eat your cake

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Overall Research Goal Overall Research Goal

Requirements:

✔ Achieve high-performance communication ✔ Simplify the MPI code developers write

Have your cake + Eat your cake Automatic cake making machine

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Overall Research Goal Overall Research Goal

Proposed Solution:

An automatic automatic system that transforms transforms simple communication code into efficient code.

Requirements:

✔ Achieve high-performance communication ✔ Simplify the MPI code developers write

Have your cake + Eat your cake Automatic cake making machine

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Overall Research Goal Overall Research Goal

Proposed Solution:

An automatic automatic system that transforms transforms simple communication code into efficient code.

Requirements:

✔ Achieve high-performance communication ✔ Simplify the MPI code developers write

Side-effect:

Enables legacy parallel MPI applications legacy parallel MPI applications to scale, even if written without any knowledge without any knowledge of this system

Have your cake + Eat your cake Automatic cake making machine

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Overall Research Goal Overall Research Goal

ASPhALT: Information from multiple layers contributes to source optimization

Application Runtime Libraries Operating System/ Network

Cluster Layers

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Our Framework : ASPhALT*

Optimized Source Code Executable

System Parameters Low Level

• Comm. API

Existing Compiler

System Benchmarks

Source to Source Optimizer Original Code

Application Analyzer

Application Runtime Libraries Operating System/ Network

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

“Prepushing” Transformation

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

• Comm. Aggregation vs. Performance

Traditional Approach:

High Aggregation Low Overhead + High Bandwidth High Communication Performance

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

• Comm. Aggregation vs. Performance

Traditional Approach:

High Aggregation Low Overhead + High Bandwidth High Communication Performance

Why our communication segmentation works?

Fine Grain Communication

High Overhead on the network not the CPU Low Bandwidth but transfer Overlapped i.e. CPU not idle

High Application Performance

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Transformer Prototype

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

sArray[ NX, NY ], rArray[ NX, NY ] DO T = 1, N, K DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchRecvInit( rArray[ S:E, T:T+K-1], req[ T/K ] ) END DO DO I = T, T+K-1 kernel( sArray[ : , I ], ... ) END DO DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchSendInit( sArray[ S:E, T:T+K-1] ) END DO IF( T/K > D ) THEN wait( request[ T/K - D ] ) END IF END DO

After ASPhALT

sArray[ NX, NY ] DO I = 1,N kernel( sArray[ : , I ], ... ) END DO synchrnsTransfer( sArray[:,:], rArray[:,:])

Before ASPhALT

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

sArray[ NX, NY ], rArray[ NX, NY ] DO T = 1, N, K DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchRecvInit( rArray[ S:E, T:T+K-1], req[ T/K ] ) END DO DO I = T, T+K-1 kernel( sArray[ : , I ], ... ) END DO DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchSendInit( sArray[ S:E, T:T+K-1] ) END DO IF( T/K > D ) THEN wait( request[ T/K - D ] ) END IF END DO

After ASPhALT

sArray[ NX, NY ] DO I = 1,N kernel( sArray[ : , I ], ... ) END DO synchrnsTransfer( sArray[:,:], rArray[:,:])

Before ASPhALT

P1 P2 P1 P2

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

sArray[ NX, NY ], rArray[ NX, NY ] DO T = 1, N, K DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchRecvInit( rArray[ S:E, T:T+K-1], req[ T/K ] ) END DO DO I = T, T+K-1 kernel( sArray[ : , I ], ... ) END DO DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchSendInit( sArray[ S:E, T:T+K-1] ) END DO IF( T/K > D ) THEN wait( request[ T/K - D ] ) END IF END DO

After ASPhALT

sArray[ NX, NY ] DO I = 1,N kernel( sArray[ : , I ], ... ) END DO synchrnsTransfer( sArray[:,:], rArray[:,:])

Before ASPhALT

P1 P2 P1 P2

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

sArray[ NX, NY ], rArray[ NX, NY ] DO T = 1, N, K DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchRecvInit( rArray[ S:E, T:T+K-1], req[ T/K ] ) END DO DO I = T, T+K-1 kernel( sArray[ : , I ], ... ) END DO DO P = 1, NPROC S = F( NX, P, NPROC ) E = G( NX, P, NPROC ) asynchSendInit( sArray[ S:E, T:T+K-1] ) END DO IF( T/K > D ) THEN wait( request[ T/K - D ] ) END IF END DO

After ASPhALT

TEMP2[ : ] = sArray[ S:E, T:T+K-1] asynchSend( TEMP2[ : ] ) sArray[ S:E, T:T+K-1] = TEMP2[ : ] TEMP1[ : ] = rArray[ S:E, T:T+K-1] asynchRecvInit( TEMP1[ : ] ) rArray[ S:E, T:T+K-1] = TEMP1[ : ]

After FORTRAN compiler

Array slice means implicit copy for data to be contiguous

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

TEMP2[ : ] = sArray[ S:E, T:T+K-1] asynchSend( TEMP2[ : ] ) sArray[ S:E, T:T+K-1] = TEMP2[ : ] TEMP1[ : ] = rArray[ S:E, T:T+K-1] asynchRecvInit( TEMP1[ : ] ) rArray[ S:E, T:T+K-1] = TEMP1[ : ]

After FORTRAN compiler

Potential Problems:

TEMP1 is copied back but Data not here yet Data Flow Analysis allows F90 compiler to re-define TEMP2 after this copy, but Data not departed yet

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

wait( send ) Stmp[ : ] = sArray[ S:E, T:T+K-1] asynchSend( Stmp[ : ] ) sArray[ S:E, T:T+K-1] = Stmp[ : ] Rtmp[ : ] = rArray[ S:E, T:T+K-1] asynchRecvInit( Rtmp[ : ] ) ... wait( receive ) rArray[ S:E, T:T+K-1] = Rtmp[ : ]

After ASPhALT

Solution: Make the copy explicit

Rtmp is copied back after Data has arrived Stmp is a variable introduced by ASPhALT, not F90 compiler, so ASPhALT knows when to re-define it

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

Stmp[ : ] = sArray[ S:E, T:T+K-1] asynchSend( Stmp[ : ] ) sArray[ S:E, T:T+K-1] = Stmp[ : ] Rtmp[ : ] = rArray[ S:E, T:T+K-1] asynchRecvInit( Rtmp[ : ] ) ... wait( receive ) rArray[ S:E, T:T+K-1] = Rtmp[ : ]

Redundant

After ASPhALT

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Fortran Semantics vs. MPI Semantics

... asynchRecvInit( Rtmp[ : ] ) ... wait( receive ) rArray[ S:E, T:T+K-1] = Rtmp[ : ] ... Stmp[ : ] = sArray[ S:E, T:T+K-1] asynchSend( Stmp[ : ] ) ...

After ASPhALT

Issue:

sArray[ NX, NY ] DO I = 1,N kernel( sArray[ : , I ], ... ) END DO synchrnsTransfer( sArray[:,:], rArray[:,:])

Before ASPhALT

Introducing memory copying limits performance

Solution:

Will talk about it after comm. aggregation graphs

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Evaluation of Automatic Transformation

interconnect:Ammasso, NP:16, size:1440x1440x48x16 Bytes

Synthetic Kernel

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Evaluation of Automatic Transformation

interconnect:Myrinet-MX, NP:48, size:1440x1440x48x16 Bytes

Synthetic Kernel

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Evaluation of Automatic Transformation

interconnect:Myrinet-MX, NP:48, size:9216x2305x48x16 Bytes

Real Application (visco)

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Evaluation of Automatic Transformation

interconnect:Myrinet-GM, NP:24, size:9216x2305x48x16 Bytes

Real Application (visco)

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis ... asynchRecvInit( Rtmp[ : ] ) ... wait( receive ) rArray[ S:E, T ] = Rtmp[ : ] ... Stmp[ : ] = sArray[ S:E, T ] asynchSend( Stmp[ : ] ) ... ... asynchRecvInit( Rtmp[ : ] ) ... wait( receive ) rArray[ S:E, T:T+K-1] = Rtmp[ : ] ... Stmp[ : ] = sArray[ S:E, T:T+K-1] asynchSend( Stmp[ : ] ) ...

Extra Memory Copying

Issue:

Introducing memory copying limits performance

Solution:

If network is fast for K==1 then buffer can be sent directly w/o copying

... asynchRecvInit( rArray[ S:E,T ] ) ... wait( receive ) ... asynchSend( sArray[ S:E, T ] ) ... If K=1, slice is not needed If memory is contiguous, copying is not needed

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Automatic Tunning through Benchmarks

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Automatic Tunning through Benchmarks

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Additional Framework Components

Low Level Communication API: libGravel

Thin libraries & macros Provide access to common low level features (RDMA put) Abstract hardware details Abstract protocol details (memory registration/pointer exchange) Abstract Language details (make API usable from F95) Utilize existing state of the art APIs

UDAPL (current work) GASNet, GM, MX

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Additional Framework Components (2)

Application Analyzer

Infer Program Parameters

Kernel Execution Time Data Size per Kernel Maximum Buffer Size

Run Empirical Tests on a Slice of the Program

Try various Parameter Values Try various Semantically Equivalent Algorithms

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis

Current & Future Directions

➢ Extend Generality of asphalt_transformer ➢ Enable the use of Low Level and One-Sided I/O ➢ Refine and Combine all the Parts of ASPhALT ➢ Study effect of ASPhALT on Time-To-Solution

with real developers

University of Delaware

Motivation Overview Transformation Automation Evaluation Future Work

Anthony Danalis
