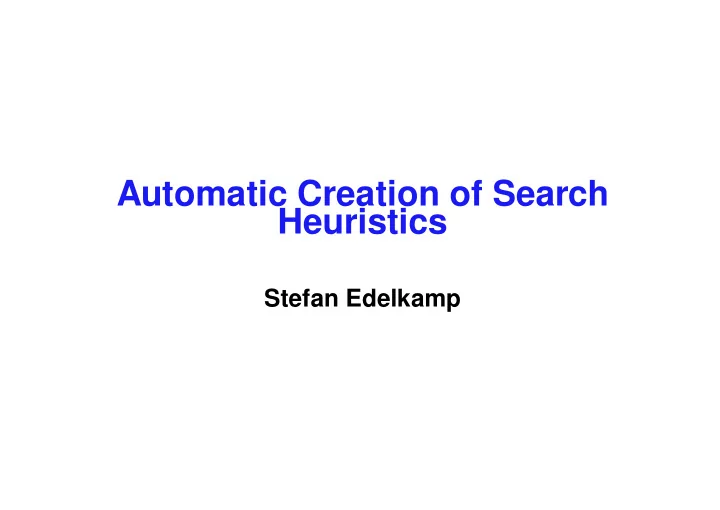

Automatic Creation of Search Heuristics

Stefan Edelkamp

1 Overview

• Automatic Creation of Heuristics
• Macro Problem Solving
• Hierarchical A* and Voltorta’s Theorem
• Pattern Databases
• Disjoint Pattern Databases
• Multiple, Bounded, Symmetrical, Dual, and Secondary Databases

Overview 1

2 History

History on automated creation of admissible heuristics: Gaschnik (1979), Pearl (1984), Prititis (1993), Guida and Somalvico (1979)

• Korf: Macro Problem Solver, Learning Real-Time A*
• Valtorta: A result on complexity of heuristic estimates for A*
• Holte et al.’s Hierarchical A*: Searching Abstraction Hierarchies Efficiently
• Recent work: Pattern/Abstraction Databases

On-line computation in Hierarchical A* and its precursors probably main difference from off-line calculations that are applied in construction of pattern databases

History 2

3 Macro Problem Solving

Macro Problem Solver constructs a table that contains macros solving subproblems Search: Solver looks at table entries to sequentially improve current state to goal Eight-Puzzle example: operators labeled by direction blank is moving Table Structure: entry in row r and column c denotes operator sequence to move tile in position r into c Invariance: after executing macro, tiles in position 1 to r − 1 remain correctly placed

Macro Problem Solving 3

Macro Table for the Eight-Puzzle

1 2 3 4 5 6 1 DR 2 D LURD 3 DL URDL URDL LURD 4 L RULD RULD LURRD LURD LULDR 5 UL DRUL RDLU RULD RDLU DLUR RULD RDLU ULDR URDL 6 U DLUR DRU DLUU DRUL LURRD ULDR ULD RDRU DLURU LLDR LLDR 7 UR LDRU ULDDR LDRUL DLUR DRULDL DLUR ULDR ULURD URDRU DRUL URRDLU LLDR 8 R ULDR LDRR LURDR LDRRUL DRUL LDRU UULD ULLDR LDRU RDLU

Macro Problem Solving 4

Running the Table

For tile 1 ≤ i ≤ 6, determine current position c and goal r and apply macro (c, r)

1 4 6 3 8 7 5 2

c=0, r=5 c=1, r=2 c=2, r=7 c=3, r=3 c=4, r=4 c=5, r=7 c=6, r=7

1 6 3 8 7 2 5 2 3 3 3 3 3 1 2 8 7 4 8 1 2 4 5 6 7 1 2 7 5 8 6 4 1 2 4 7 5 8 6 5 4 1 8 3 4 7 6 1 2 5 7 4 8 6 6 5

DLUR DRUL DLUR RDLU ULDDR ULURD LURD UL

worst case solution (sum column maxima): 2 + 12 + 10 + 14 + 8 + 14 + 4 = 64 average: 12/9 + 52/8 + 40/7 + 58/6 + 22/5 + 38/4 + 8/3 = 39.78

Macro Problem Solving 5

Construction

. . . with Backward-DFS or Backward-BFS starting from the set of goals

• backward operators m−1 do not necessarily need to be valid
• given vector representation of current position p = (p0, . . . , pk), then m−1 can be

reached from goal position p′ = (p′

0, . . . , p′ k)

• Column c(m) of m, which transforms p into p′: length of longest common prefix of

p and p′, i.e., c(m) = min{i ∈ {0, . . . , k − 1} | pi = p′

i}

• Row r(m) of macro m: position on which pc(m) is located, which has to be moved

to c(m) in next macro application

Macro Problem Solving 6

Example

• m−1 =LDRU alters goal position p′ = (0, 1, 2, 3, 4, 5, 6, 7, 8) into

p = (0, 1, 2, 3, 4, 5, 8, 6, 7)

• its inverse m is DLUR

⇒ c(m) = 6 and r(m) = 7, matching last macro application in table

• larger problems: BFS exhaust memory resources before table entry fixed
• larger tables require pattern database heuristic search

Macro Problem Solving 7

4 Patterns and Domain Abstraction

• pattern: refers to vector representation v(u), each position i contains an

assignment to variable vi, i ∈ {1, . . . , k}

• specialized pattern: state with one or more constants replaced by don’t cares
• generalized pattern: each variable vi with domain Di is mapped to abstract

domain Ai, i ∈ {1, . . . , k}

• start and goal pattern: making same substitutions in start and goal states
• domain abstraction: mapping stating which assignment to replace by which other

Patterns and Domain Abstraction 8

Two Examples in Eight-Puzzle

• 1. Tiles 1, 2, 7 replaced by don’t care x

⇒ φ1(v) = v′ with v′

i = vi if vi ∈ {0, 3, 4, 5, 6, 8}, and vi = x, otherwise

• 2. φ2: also map tiles 3 and 4 to y, and tiles 6 and 8 to z

Granularity: vector indicating how many constants in the original domain are mapped to each constant in the abstract domain ⇒ gran (φ2) = (3, 2, 2, 1, 1)

• 3 constants are mapped to x
• 2 are mapped to each of y and z
• constants 5 and 0 (the blank) remain unique

Patterns and Domain Abstraction 9

5 Embeddings and Homomorphisms

• embedding: earliest and most commonly studied type of abstraction

transformation

• informally, φ embedding transformation if it adds edges to S
• E.g., macro-operators, dropped preconditions
• homomorphism: other main type of abstraction transformation
• informally, homomorphism φ groups together several states in S to create

single abstract state

• E.g., drop predicate entirely from state space description (Knoblock 1994)

Embeddings and Homomorphisms 10

Hierarchical A*

Abstraction works by replacing one state space by another that is easier to search Hierarchical A* is an versions that computes distances of an abstract to the abstract goal on-the-fly, by means for each node that is expanded

• different to earlier approaches (exploring abstract space from scratch),

Hierarchical A* uses caching to avoid repeated expansion of states in abstract space

• restricts to state space embedding that are homomorphisms

Embeddings and Homomorphisms 11

Voltorta Theorem

Theorem If state space S is embedded in S′ and h is computed by blind BFS in v then A* using h will expand every state that is expanded by BFS ⇒ by re-computing heuristic estimates for each state this option cannot possibly speed-up search

• Absolver II: 1st system to break this barrier
• Hierarchical A*: subsequent one

Embeddings and Homomorphisms 12

Example

N × N grid, abstracted by ignoring 2nd coordinate

• goal state is (N, 1)
• initial state (1, 1)

Theorem of Voltorta ⇒ A* expands Ω(N2) nodes Main Observation: Search for h(s) also generates value of h(u), ∀u ∈ S′

• abstraction yields a perfect heuristic on solution path
• Hierarchical A* will expand optimum of O(N) nodes

Embeddings and Homomorphisms 13

Proof of Voltorta’s Theorem

When A* terminates, u closed, open, or unvisited u closed ⇒ it will have been expanded u open ⇒ hφ(u) must have been computed

• hφ(u) computed by search starting at φ(u)
• φ(u) /

∈ φ(T) ⇒ 1st step is to expand φ(u)

• φ(u) ∈ φ(T) ⇒ hφ(u) = 0, and u itself is necessarily expanded

u unvisited ⇒ ∀ paths from s to u, ∃ never expanded state added to Open Let w be any such state on shortest path from s to u

• w opened ⇒ hφ(w) must have been computed

Embeddings and Homomorphisms 14

Proof (ctd)

To show: in computing hφ(w), φ(u) expanded

• u necessarily expanded by BFS ⇒ δ(s, u) < δ(s, T)
• w on shortest path ⇒ δ(s, w) + δ(w, u) < δ(s, T)
• M never expanded by A* ⇒ δ(s, w) + hφ(w) ≥ δ(s, T)
• combining the two inequalities: δ(w, u) < hφ(w) = δφ(w, T)
• homomorphism: δφ(w, u) ≤ δ(w, u) ⇒ δφ(w, u) < δ(w, T)

⇒ φ(u) necessarily expanded

Embeddings and Homomorphisms 15

Consistency

Theorem hφ is consistent hφ consistent ⇒ ∀u, v ∈ S: hφ(u) ≤ δ(u, , v) + hφ(v)

• δφ(u, T) shortest path ⇒ δφ(u, T) ≤ δφ(u, v) + δφ(v, T) for all u and v
• substituting hφ: hφ(u) ≤ δφ(u, v) + hφ(v) for all u and v
• homomorphism: δφ(u, v) ≤ δ(u, v) ⇒ hφ(u) ≤ δ(u, v) + hφ(v) for all u and v

Embeddings and Homomorphisms 16

6 Pattern Databases

Name inspired by (n2 − 1)-Puzzle, where pattern is selection of tiles Pattern database: stores all pattern together with their shortest path distance on simplified board to the pattern for goal Construction PDB: prior to overall search in a Backward BFS starting with goal pattern and using inverse abstract state transitions Search in original space: pattern selected in active state with stored distance value as estimator function

Pattern Databases 17

Example (n2 − 1)-Puzzle

fringe and the corner pattern (databases):

11 3 7 15 14 13 12 15 14 13 12 8 9 10

Multiple pattern databases:

Pattern Databases 18

Maximizing Pattern Databases

Shortest path distance in pattern space ≤ shortest path distance in the original one ⇒ pattern databases heuristics are admissible Combined pattern databases:

• take maximum of heuristic values provided by different databases
• use result as admissible heuristic

⇒ optimal solutions for random instances to Rubik’s Cube

Pattern Databases 19

Disjoint Pattern Databases

For sliding-tile puzzles only one tile can move at a time ⇒ disjoint pattern databases count moves of pattern tiles only General Problem: different pattern databases may count operators twice, since an

• perator can have a non-trivial image under more than one relaxation

Assumption: Two pattern databases Dφ1 and Dφ2 are disjoint, if for all non-trivial O′ ∈ Oφ1, O′′ ∈ Oφ2 we have φ−1

1 (O′) ∩ φ−1 2 (O′′) = ∅

Finding partitions for pairwise disjoint pattern databases automatically not trivial ⇒ assign 1 to each operator only in 1 relaxation ⇒ sum of retrieved pattern database values preserves admissibility, while being more accurate

Pattern Databases 20

Automated Pattern Selection

Simplify the problem of finding a suitable partition to bin-packing Task: distribute pattern position (tile) to bins in such a way that a minimal number of bins is used. Size of the bins: determined by maximum size of abstract state space, which is to be approximated Adding a position to the pattern: multiplication of domain size to the expected abstract state size ⇒ bin-packing based on multiplying the individual object sizes (for addition use logarithms) Bin-packing is NP complete but has several efficient approximations

Pattern Databases 21

Korf’s Conjecture

• n: # states in entire problem space
• b: brute-force branching factor
• d: average optimal solution length for a random problem instance
• e: expected value of heuristic
• m: amount of memory used, in terms of abstract states stored
• t: in # generated nodes in A* (without duplicate detection)

Estimated average optimal solution length d of random instance (depth to which A* must search): d ≈ logb n Furthermore: e ≈ logb m (abstract space) and t ≈ bd−e Substituting values for d and e into this formula gives: t ≈ bd−e ≈ blogb n−logb m = n/m

Pattern Databases 22

Multiple Pattern Databases

Observation: Maximized smaller databases reduces # nodes generated better Example Eight-puzzle: 20 pattern databases of size 252 perform less state expansions (318) then 1 pattern database of size 5,040 (2,160 state expansions)

• 1. Smaller pattern databases reduces # patterns with high h-values, but

maximization of smaller pattern databases can make the number of patterns with low h-values significantly larger than in the larger pattern database

• 2. Eliminating low h values more important for improving search performance

than retaining high h-values

Pattern Databases 23

On-Demand Pattern Databases

Secondary A* PDB construction ———— Need for on-demand extension

abstract space A*

−1

t s s’ s’ (A*) t’ A* (A*)

−1

t’

• riginal space

abstract space

Pattern Databases 24

Symmetrical and Dual Lookups in Pattern Databases

Symmetry PDB: exploit physical symmetries (n2 − 1)-Puzzle: symmetry about the main diagonal in the (n2 − 1)-Puzzle ⇒ PDB for 2, 3, 6, and 7 reused for pattern 8, 9, 12, and 13 Dual PDB: symmetry between objects and locations

inverse 10 3 7 2 3 6 7 1 2 3 4 5 6 7 12 8 9 10 11 13 14 15 15 2 9 14 13 7 12 8 6 2 9 2 1 7 6 14 13 12 9 14 13 12 3 3 5 6 11 4 2 7 3 6

• riginal

abstract dual abstract

Pattern Databases 25

7 Bounded Computation of Pattern Database

Theorem U upper bound on δ(s, T), φ : abstraction function f: cost function in backward traversal of abstract space ⇒ pattern database heuristic only needs to be computed if f(φ(u)) < U Proof: f(φ(u)) ≤ δφ(s, T) ≤ δ(s, T) ≤ U ⇒ all φ(u) with f(φ(u)) > U cannot lead to any better solution with cost ≤ U ⇒ ignore u

Bounded Computation of Pattern Database 26

8 Planning Pattern Databases

An abstract planning problem P|R = < S|R, O|R, I|R, G|R > of a propositional planning problem < S, O, I, G > wrt. set of atoms R is defined by

• 1. S|R = {S|R= S ∩ R | S ∈ S},
• 2. T|R = {G|R | G ∈ G},
• 3. O|R = {O|R | O ∈ O}, with O|R = (P|R, A|R, D|R)

πR: solutions for abstract planning problem P|R δR: optimal abstract plan length

Planning Pattern Databases 27

Pattern Databases in AI Planning

Planning pattern database DR (wrt. a set of propositions R and a propositional planning problem < S, O, I, G >): collection of pairs (h, u) with u ∈ S|R such that h = δR(u), set DR = {(δR(u), u) | u ∈ S|R}

• ptimal abstract plan πopt

R

for P|R always shorter than an optimal concrete plan πopt for P, i.e., δR(u|R) ≤ δ(u), for all u ∈ S Remark: Strict inequality δR(u|R) < δ(u): some abstract operators are void, or we have alternative even shorter paths in abstract space

Planning Pattern Databases 28
