Automated Software Transplantation Earl T. Mark Yue Alexandru Justyna Barr Harman Jia Marginean Petke CREST, University College London Alexandru Marginean Automated Software Transplantation Why Autotransplantation? ~100 players

slide-1
SLIDE 1

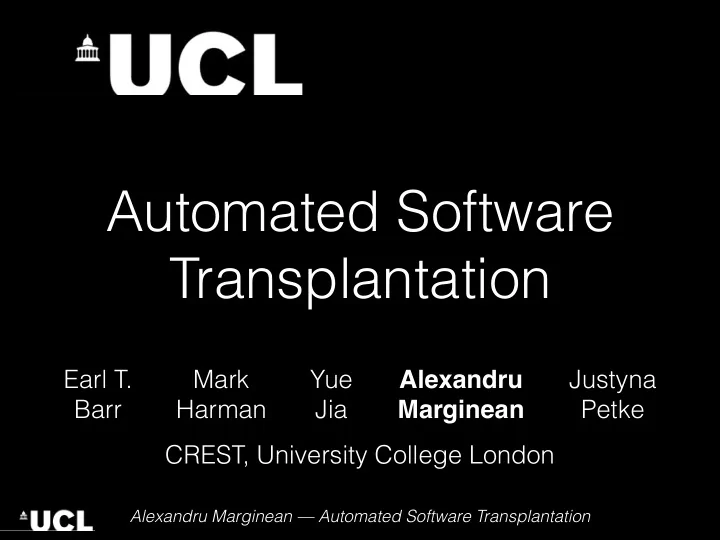

Automated Software Transplantation

Alexandru Marginean — Automated Software Transplantation

Earl T. Barr Mark Harman Yue Jia Justyna Petke Alexandru Marginean CREST, University College London

slide-2
SLIDE 2

Video Player Start from scratch

Why Autotransplantation?

Check open source repositories

Alexandru Marginean — Automated Software Transplantation

Why not handle H.264? ~100 players

slide-3
SLIDE 3

Autotransplantation Automatic Error Fixing In-Situ Code Reusal Manual Code Transplants

Alexandru Marginean — Automated Software Transplantation

Related Work

Clone Detection Code Migration Dependence Analysis Feature Location Code Salvaging Feature Extraction In-Situ Code Reuse Synchronising Manual Transplants Automatic Replay Copy- Paste

slide-4
SLIDE 4

Autotransplantation Automatic Error Fixing

Related Work

Manual Code Transplants

In-Situ Code Reusal

Alexandru Marginean — Automated Software Transplantation

Running Program Debugger

Binary Organ

Miles et al.: In situ reuse of logically extracted functional components

slide-5
SLIDE 5

Autotransplantation Manual Code Transplants In-Situ Code Reusal

Automatic Error Fixing

Related Work

Host Donors

Alexandru Marginean — Automated Software Transplantation

Sidiroglou-Douskos et al.: Automatic Error Elimination by Multi-Application Code Transfer

slide-6
SLIDE 6

Related Work

Manual Code Transplants In-Situ Code Reusal Automatic Error Fixing

Alexandru Marginean — Automated Software Transplantation

Autotransplantation

slide-7
SLIDE 7

Human Organ Transplantation

Alexandru Marginean — Automated Software Transplantation

slide-8
SLIDE 8

Automated Software Transplantation

Host Donor O Organ ENTRY

V

Organ’s Test Suite

Manual Work:

Organ Entry Organ’s Test Suite Implantation Point

Alexandru Marginean — Automated Software Transplantation

slide-9
SLIDE 9

μTrans

Alexandru Marginean — Automated Software Transplantation

Host Donor Stage 1: Static Analysis Host Beneficiary Stage 2: Genetic Programming Stage 3: Organ Implantation Organ’s Test Suite

slide-10
SLIDE 10

Stage 1 — Static Analysis

Donor OE ENTRY

Vein Organ

Matching Table Dependency Graph

Alexandru Marginean — Automated Software Transplantation

H Implantation Point Stm: x = 10; -> Decl: int x; Donor: int X -> Host: int A, B, C

slide-11
SLIDE 11

Strong Proxies: Does it produce the correct output?

Stage 2 — GP

S1 S2 S3 S4 S5 … Sn

Matching Table V3H V4H

Donor Variable ID Host Variable ID (set)

V1D V2D … V1H V2H V5H Individual

Var Matching Stateme nts

V1D V1H V2D V4H S1 S7 S73 M1: M2: … Genetic Programming

fitness(i) = (

1 3(1 + |T Xi| |T |

+ |T Pi|

|T | )

i ∈ IC i / ∈ IC

Does it compile? Weak Proxies: Does it execute test cases without crashing?

Alexandru Marginean — Automated Software Transplantation

slide-12
SLIDE 12

Host Organ Donor RQ1: Do we break the initial functionality? RQ2: Have we really added new functionality? RQ3: How about the computational effort? RQ4: Is autotransplantation useful?

Research Questions

Regression Tests Acceptance Tests

Alexandru Marginean — Automated Software Transplantation

slide-13
SLIDE 13

Research Questions

RQ1: Do we break the initial functionality? RQ3: How about the computational effort? RQ4: Is autotransplantation useful? RQ2: Have we really added new functionality? Empirical Study 15 Transplantations 300 Runs 5 Donors 3 Hosts Case Study: H.264 Encoding Transplantation

Alexandru Marginean — Automated Software Transplantation

slide-14
SLIDE 14

Validation

Alexandru Marginean — Automated Software Transplantation

Regression Tests Augmented Regression Tests Host Beneficiary Donor Acceptance Tests Acceptance Tests Manual Validation RQ1.1 RQ1.2 RQ2

slide-15
SLIDE 15

Subjects Type Size KLOC Reg. Tests Organ Test Suite Idct Donor 2.3

  • 3-5

Mytar Donor 0.4

  • 4

Cflow Donor 25

  • 6-20

Webserver Donor 1.7

  • 3

TuxCrypt Donor 2.7

  • 4-5

Pidgin Host 363 88

  • Cflow

Host 25 21

  • SoX

Host 43 157

  • Case Study

x264 Donor 63

  • 5

VLC Host 422 27

  • Subjects
  • Minimal size:

0.4k;

  • Max size: 422k;
  • Average Donor:

16k;

  • Average Host:

213k;

C
  • n
s i s t e n t * C
  • m
p l e t e * W e l l D
  • c
u m e n t e d * E a s y t
  • R
e u s e *

*

E v a l u a t e d

* I S S T A *

A r t i f a c t

* A E C

Alexandru Marginean — Automated Software Transplantation

slide-16
SLIDE 16

Experimental Methodology and Setup

μSCALPEL Host Implantation Point Donor OE Organ’s Test Suite

Host Beneficiary

Implantation Point Organ

Count LOC — CLOC Count LOC CLOC

x 20 GNU Time

Validation Test Suites Coverage Information: Gcov

Alexandru Marginean — Automated Software Transplantation

Ubuntu 14.10, 16 GB Ram 8 threads

slide-17
SLIDE 17

All Test Suites Donor Host Passed Regression Regression++ Acceptance Idct Pidgin 16 20 17 16 Mytar Pidgin 16 20 18 20 Web Pidgin 20 18 Cflow Pidgin 15 20 15 16 Tux Pidgin 15 20 17 16 Idct Cflow 16 17 16 16 Mytar Cflow 17 17 17 20 Web Cflow 17 Cflow Cflow 20 20 20 20 Tux Cflow 14 15 14 16 Idct SoX 15 18 17 16 Mytar SoX 17 17 17 20 Web SoX 17 Cflow SoX 14 16 15 14 Tux SoX 13 13 13 14 TOTAL 188/300 233/300 196/300 256/300 RQ1.1 RQ1.2 RQ2

Empirical Study RQ1,2

C
  • n
s i s t e n t * C
  • m
p l e t e * W e l l D
  • c
u m e n t e d * E a s y t
  • R
e u s e *

*

E v a l u a t e d

* I S S T A *

A r t i f a c t

* A E C

Alexandru Marginean — Automated Software Transplantation

Passed All 188/300 Regression 233/300 RQ1.1 Regression++ 196/300 RQ1.2 Acceptance 256/300 RQ2

slide-18
SLIDE 18

Timing Information

Execution Time (minutes) Donor Host Idct Pidgin 5 7 97 Mytar Pidgin 3 1 65 Web Pidgin 8 5 160 Cflow Pidgin 58 16 1151 Tux Pidgin 29 10 574 Idct Cflow 3 5 59 Mytar Cflow 3 1 53 Web Cflow 5 2 102 Cflow Cflow 44 9 872 Tux Cflow 31 11 623 Idct SoX 12 17 233 Mytar SoX 3 1 60 Web SoX 7 3 132 Cflow SoX 89 53 74 Tux SoX 34 13 94 Total RQ3

Empirical Study RQ3

C
  • n
s i s t e n t * C
  • m
p l e t e * W e l l D
  • c
u m e n t e d * E a s y t
  • R
e u s e *

*

E v a l u a t e d

* I S S T A *

A r t i f a c t

* A E C

Alexandru Marginean — Automated Software Transplantation

Average 334 (min)

  • Std. Dev.

10 (Average) Total 72 (hours)

slide-19
SLIDE 19

Case Study RQ4

Transplant Time & Test Suites Time (hours) Regression Regression++ Acceptance H.264 26 100% 100% 100%

C
  • n
s i s t e n t * C
  • m
p l e t e * W e l l D
  • c
u m e n t e d * E a s y t
  • R
e u s e *

*

E v a l u a t e d

* I S S T A *

A r t i f a c t

* A E C

Alexandru Marginean — Automated Software Transplantation

MSU Sixth MPEG-4 AVC/H.264 Video Codecs Comparison, with ~24% better encoding than second place. Second Annual MSU MPEG-4 AVC/ H.264 Codecs Comparison Doom9's 2005 Codec Shoot-Out

slide-20
SLIDE 20

Automated Software Transplantation

H D O ENTRY

V

Organ’s Test Suite

Manual Work:

Organ Entry Organ’s Test Suite Implantation Point

Alexandru Marginean — Automated Software Transplantation

μTrans

Alexandru Marginean — Automated Software Transplantation

Host Donor Stage 1: Static Analysis Host Beneficiary Stage 2: Genetic Programming Stage 3: Organ Implantation Organ’s Test Suite

Validation

Alexandru Marginean — Automated Software Transplantation

Regression Tests Augmented Regression Tests Host Beneficiary Donor Acceptance Tests Acceptance Tests Manual Validation RQ1.a RQ1.b RQ2 Subjects Type Size KLOC Reg. Tests Organ Test Suite Idct Donor 2.3

  • 3-5

Mytar Donor 0.4

  • 4

Cflow Donor 25

  • 6-20

Webserver Donor 1.7

  • 3

TuxCrypt Donor 2.7

  • 4-5

Pidgin Host 363 88

  • Cflow

Host 25 21

  • SoX

Host 43 157

  • Case Study

x264 Donor 63

  • 5

VLC Host 422 27

  • Subjects
  • Minimal size:

0.4k;

  • Max size: 422k;
  • Average Donor:

16k;

  • Average Host:

213k;

C
  • n
s i s t e n t * C
  • m
p l e t e * W e l l D
  • c
u m e n t e d * E a s y t
  • R
e u s e * *

E v a l u a t e d

* I S S T A *

A r t i f a c t

* A E C

Alexandru Marginean — Automated Software Transplantation
