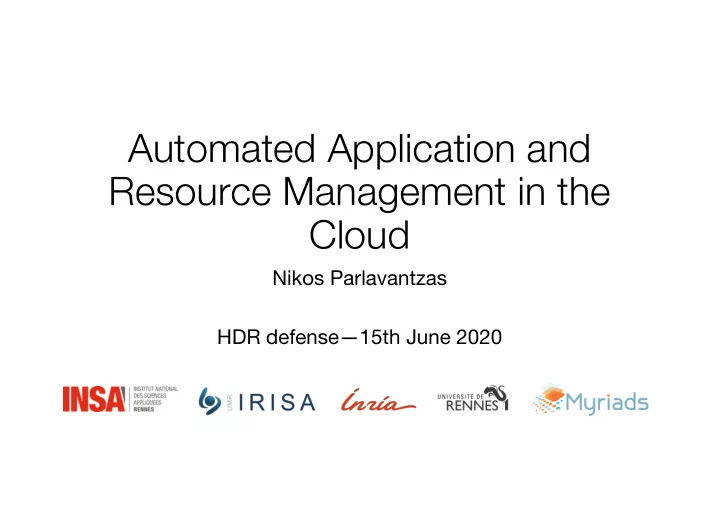

SLIDE 1

Automated Application and Resource Management in the Cloud

Nikos Parlavantzas HDR defense—15th June 2020

SLIDE 2

The demand for collaboration and entertainment services is skyrocketing

2,900% Growth of daily participants between December and April 2.5 million New connected users in 1 week, up 25% 12 million New daily active users in 1 week, up 37.5% 15.8 million New subscribers between January and March

2

SLIDE 3

Made possible by the cloud

Estimated Cloud Growth in US

https://internetassociation.org/publications/ex amining-economic-contributions-cloud-united- states-economy/

http://ec.europa.eu/newsroom/document.cfm?doc_id=41184

Worldwide Enterprise Spending on Cloud and Data Centers

3

SLIDE 4

Cloud brings benefits to both providers and customers

PROVIDER CUSTOMERS

APP

4

SLIDE 5

Cloud brings benefits to both providers and customers

Pools and shares resources among customers Obtain and release resources on demand while paying only for actual use

PROVIDER CUSTOMERS

APP

5

SLIDE 6

To optimise these benefits, these actors require automated management

PROVIDER CUSTOMERS

6

SLIDE 7

Building automated management systems is difficult

PROVIDER CUSTOMERS

Satisfying provider objectives (e.g., increasing profit) despite variations in

customer workload
QoS and prices of underlying infrastructure and

cloud services

7

SLIDE 8

Building automated management systems is difficult

PROVIDER CUSTOMERS

Satisfying customer objectives (e.g., maintaining performance, reducing costs) despite variations in:

application workload and requirements
cloud service capabilities, QoS, and prices

8

SLIDE 9

Outline

PROVIDER CUSTOMER CUSTOMERS PROVIDER

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

9

SLIDE 10

Outline

PROVIDER CUSTOMER CUSTOMERS PROVIDER

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

10

SLIDE 11

We discuss two management systems for public cloud providers

Both provide SLA support and profit optimisation

►Resource and execution management for SaaS providers ►SLA-based resource management for PaaS providers

11

SLIDE 12

How to manage service delivery in order to increase the SaaS provider profit?

SaaS system that

►delivers a (master-worker) application as a

service

►supports SLAs that specify response time

and reliability QoS

►uses a single IaaS cloud

12

SaaS

requests requests

IaaS

SLIDE 13

Our approach provides mechanisms for creating SLAs and managing service delivery

Decides how to use the mechanisms based on cost-benefit calculations

[A. Lage PhD][CPE'17a][CLOUD’12] [ECOWS'11][MONA'10][CIT'10] With A. Lage, J.-L. Pazat

13

QoS translation Execution management Resource management SLAs Requests Worker replacement Under-provisioning Contract cancellation Request cancellation

SLIDE 14

Applying the mechanisms increases provider profit

Experiments with an audio encoding service on Grid’5000

§ Contract cancellation à 4x profit increase § Under-provisioning à 20-50% profit increase § Worker replacement à 60% profit increase

PaaS SaaS IaaS

Customer 1 Customer n

...

Service

Qu4DS

SLA Management

Templates Qos Translation Templates Qos Translation Negotiation

Execution Management Resource Management

Booking Allocation

Under-provisioning Contract Rescission Configurable mechanisms booking, (re)allocation negotiation, provisioning, cancelation request management resource availability

14

SLIDE 15

How to share resources under SLA constraints in

rder to increase the PaaS provider profit?

PaaS system that

►hosts applications of various

types

►supports SLAs ►uses private resources and

resources rented from IaaS clouds

15

PaaS

Public cloud

SLIDE 16

Our approach decomposes resources into application type-specific groups

►Groups decide independently how

to allocate their resources to applications, exchanging, if necessary, resources with other groups and renting resources from public clouds

►Decisions are based on a profit

ptimisation policy

[D. Dib PhD] [CPE'17b][CCGrid'14] [ORMaCloud'13] With D. Dib, C. Morin

16

Public cloud

SLIDE 17

Optimisation policy at a glance

►Three options for obtaining

missing resources:

§ waiting for private resources to become available § obtaining them from running applications § renting them from a public cloud

17

Public cloud new app

SLIDE 18

Optimisation policy at a glance

►Three options for obtaining

missing resources:

§ waiting for private resources to become available § obtaining them from running applications § renting them from a public cloud

►Bids correspond to estimated

penalties for each option

18

Public cloud price bid new app bid

SLIDE 19

The approach increases provider profit

► Experiments in Grid’5000 (90 nodes)

§ MapReduce and batch applications

► The optimisation policy generates 9.02%

more provider profit than a baseline policy and has minimal QoS impact

Private resources Public resources VM manager Resource Manager Cluster Manager Cluster Manager Client Manager

VC. a
VC. b

Private VM Public VM

Users

Add/Remove private VMs Add/Remove public VMs SLA negotiation Submission Results VMs exchange Request transmitting

App. 1
App. 2
App. 1

Controller

App. 2

Controller

App. 3
App. 4
App. 3

Controller

App. 4

Controller

19

SLIDE 20

To sum up

►A complete, SLA-driven management solution for SaaS

providers

►An SLA-based PaaS solution hosting various application types

n a hybrid cloud

►No support for dynamically adding resources to running

applications

►Only homogeneous, coarse-grained resources

20

SLIDE 21

Outline

PROVIDER CUSTOMER CUSTOMERS PROVIDER

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

21

SLIDE 22

We discuss two application management systems for IaaS customers

22

►Managing modular multi-cloud applications ►Managing epidemic simulation applications with monolithic

structure

SLIDE 23

Deploying and managing applications in multi-cloud environments is challenging

►Producing an initial deployment that

satisfies requirements

►Dynamically adapting the deployment

to react to environment changes (e.g., changes in workload, resource prices)

23

SLIDE 24

Platforms that address this challenge adopt a similar architecture

Application

24

Modelling Deciding Executing Monitoring

SLIDE 25

Platforms that address this challenge adopt a similar architecture

Application

25

Modelling Deciding Executing Monitoring

[PaaSage] [C. Ruiz PhD] [PDP’18] [ARMS’17] [UCC’16] [IOT360'16] With L. Pham, A. Sinha, C. Morin, C. Ruiz, H. Duran-Limon

SLIDE 26

Platforms that address this challenge adopt a similar architecture

Application

26

Modelling Deciding Execu3ng Monitoring

[PaaSage] [C. Ruiz PhD] [PDP’18] [ARMS’17] [UCC’16] [IOT360'16] With L. Pham, A. Sinha, C. Morin, C. Ruiz, H. Duran-Limon

SLIDE 27

How to continuously optimise both the performance and cost of a multi-cloud application?

►Existing solutions fail to consider adaptation costs together

with adaptation benefits

27

SLIDE 28

We assume that the application generates revenue for the customer depending on performance

CUSTOMER APP Depends on app performance

Objective: Optimise profit (i.e., revenue – cloud charges)

28

SLIDE 29

We propose a continuous deployment optimisation process

Reasoning Comparison Validation

Proposed Deployment Model Reconfiguration Plan Reconfiguration Actions Workload, Performance, Prices Current Deployment Model

29

SLIDE 30

Validation at a glance

time Profit Current profit now

30

SLIDE 31

Validation at a glance

time Profit Reconfiguration duration Stability Interval Current profit Profit during reconfiguration Profit a@er reconfiguraAon now Total profit of doing reconfiguration

31

SLIDE 32

Validation at a glance

time Profit Reconfiguration duration Current profit now Total profit of doing nothing Total profit of doing reconfiguration > Adapt Stability Interval

32

SLIDE 33

The approach is effective in optimizing performance and cost

► Evaluated the approach using

experiments with a web application on multiple clouds

► Showed effectiveness of reconfiguration

validation

► Demonstrated PaaSage using

applications developed by partners

33

SLIDE 34

How to enable legacy epidemic simulation applications to run in the cloud?

Challenges

►decomposing applications into services ►facilitating their deployment and operation on multiple

clouds

►supporting elasticity and handling failures

34

SLIDE 35

DiFFuSE supports structuring simulators as distributed, interacting services

35

[CPE’20][CloudCom’17] With L. Pham, C. Morin,

S. Arnoux, G. Beaunée, L. Qi,
P. Gontier, P. Ezanno

►Provides reusable code for

commonly required functionality

►Provides data exchange mechanisms

supporting replication and failure handling

►Builds on PaaSage to support multi-

cloud deployment and elasticity

SLIDE 36

DiFFuSE enables simulation applications to fully exploit cloud platforms

►Used to restructure two

legacy epidemic simulators developed by INRAE

§ Spread of bovine viral diarrhea virus (BVDV) § Spread of Mycobacterium avium subspecies paratuberculosis (MAP)

36

SLIDE 37

Applying DiFFuSE required a small number of code changes

►BVDV application

§ 6.3% of original code was modified

►MAP application

§ 1.78% of original code was modified

37

SLIDE 38

Applying DiFFuSE brought many benefits

► Experiments using the two applications

showed that DiFFuSE

§ can exploit variable numbers and types of cloud resources § handles failures automatically § allows elastically modifying resource allocations

38

SLIDE 39

To sum up

►Tools for adapting multi-cloud applications

and migrating legacy simulation applications to the cloud

►Exploited by academic and industrial

partners

§ PaaSage open source platform § DiFFuSE open source framework

►Using DiFFuSE remains difficult for

scientists

39

SLIDE 40

Outline

PROVIDER CUSTOMER CUSTOMERS PROVIDER

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

40

SLIDE 41

How to share a private infrastructure among customers?

Allocate my resources efficiently Need results as soon as possible

41

Need results before 9 am Need throughput >50K tps

SLIDE 42

Existing solutions rely on priorities or quotas assigned by administrators

►Assume that administrators know the value of resources for all

customers at all times or that customers truthfully declare such values

42

SLIDE 43

We applied a market-based approach together with application adaptation

►Provider distributes fine-grained virtual resources through an

auction

►Customer employs controllers that dynamically adapt the

resource demand

[S. Costache PhD] [JPDC'17][EuroPar'13][CloudCom’13] [HPCC'12][VHPC’11] With S. Costache, C. Morin, S. Kortas

43

SLIDE 44

Resource Market

Controller Controller Controller

VM VM VM VM

Application Application Application Physical Infrastructure

VM VM VM VM VM VM VM VM VM VM

44

SLIDE 45

Receiving bids

45

VM Scheduler

period Node Node

𝑐!"#$, 𝑐%&%$ 𝑐!"#', 𝑐%&%' 𝑐!"#(, 𝑐%&%(

SLIDE 46

Calculating allocations

46

VM Scheduler

period

𝐵) = 𝑐) ∑ 𝑐* 𝐷 ideal allocations

Node Node

SLIDE 47

Placing VMs

47

VM Scheduler

period Node Node

SLIDE 48

Charging

48

VM Scheduler

period Node Node

SLIDE 49

The approach provides policies for vertical and horizontal scaling

Controller

Policy Prices, Performance Modify bids or number of VMs, suspend application, … SLO, Budget

49

SLIDE 50

The approach supports various types of applications and SLOs

MPI applications with deadline-based or best-effort SLOs Condor with SLO of increasing throughput Torque with SLO of reducing wait time

►Demonstrated adaptation to changes in resource availability

and SLO

50

SLIDE 51

The approach enables customers to satisfy their SLOs

(a) Total satisfaction (b) Finished applications

2500
2000
1500
1000
500

500 1000 1500 2000 2500

1 0,9 0,8 0,7 0,6 0,5 0,4 0,3 0,2 0,1 Total Customer Satisfaction (103 credits) Inter-arrival factor FCFS EDF

20 40 60 80 100 120

1 0,9 0,8 0,7 0,6 0,5 0,4 0,3 0,2 0,1 Percentage of sucesfully finished applications Inter-arrival factor FCFS EDF Merkat Merkat

Simulations with large traces (120 nodes)

51

SLIDE 52

The approach enables customers to satisfy their SLOs

Pla/orm

% Met Deadlines Satisfaction

Merkat 82.5% 764330 Maui 58.1%

178581

Testbed experiments (10 nodes)

52

SLIDE 53

To sum up

►Generic and extensible application and resource

management approach

►Efficient resource allocations ►Developing policies remains a complex and ad hoc

process

►More suitable for completely decentralised systems

53

SLIDE 54

Outline

PROVIDER CUSTOMER CUSTOMERS PROVIDER

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

54

SLIDE 55

Some findings

1 2 3

Application Management for Customers Resource Management for Providers Application and Resource Management in Private Clouds

55

► SLAs simplify decision making

► Application management requires

considering reconfiguration costs as well as benefits

► The market-based approach is an

effective way to coordinate interactions among applications and the platform

SLIDE 56

Outlook

Management solutions for additional domains

►Function-as-a-service (FaaS)

§ Lack of QoS support

►Fog computing

§ Higher level of dynamism and heterogeneity § More economic actors [Y. Bouizem PhD]

56

SLIDE 57

Outlook

Next generation management methods

►Decision-making

§ Machine learning techniques

►Decentralised management

§ Economic and pricing mechanisms

57

SLIDE 58

Thank you

André Lage-Freitas, Stefania Costache, Djawida Dib, Carlos Ruiz Diaz, Linh Manh Pham, Arnab Sinha, Yasmina Bouizem, Baptiste Goupille-Lescar, Christine Morin, Hector Duran-Limon, Jean-Louis Pazat, Samuel Kortas, Eric Lenormand, Yvon Jégou, Sandie Arnoux, Gaël Beaunée, Luyuan Qi, Philippe Gontier, Pauline Ezanno, MYRIADS team, …

58

SLIDE 59

References

► [CPE'20] N. Parlavantzas, L. M. Pham, C. Morin, S. Arnoux, G. Beaunée, L. Qi, P. Gontier, and P. Ezanno. “A

Service-Based Framework for Building and Executing Epidemic Simulation Applications in the Cloud”. Concurrency and Computation: Practice and Experience 32:5, 2020

► [PDP'18] N. Parlavantzas, L. M. Pham, A. Sinha, and C. Morin. “Cost-Effective Reconfiguration for Multi-Cloud

Applications”. 2018 26th Euromicro International Conference on Parallel, Distributed and Network-Based Processing (PDP). Cambridge, 2018

► [JPDC'17] S. Costache, S. Kortas, C. Morin, and N. Parlavantzas. “Market-Based Autonomous Resource and

Application Management in Private Clouds”. Journal of Parallel and Distributed Computing 100, 2017

► [CPE'17a] A. Lage Freitas, N. Parlavantzas, and J. Pazat. “Cloud Resource Management Driven by Profit

Augmentation”. Concurrency and Computation: Practice and Experience 29:4, 2017

► [CPE'17b] D. Dib, N. Parlavantzas, and C. Morin. “SLA-Based PaaS Profit Optimization”. Concurrency and

Computation: Practice and Experience 29:21, 2017

► [CloudCom'17] L. M. Pham, N. Parlavantzas, C. Morin, S. Arnoux, L. Qi, P. Gontier, and P. Ezanno. “DiFFuSE, a

Distributed Framework for Cloud-Based Epidemic Simulations: A Case Study in Modelling the Spread of Bovine Viral Diarrhea Virus”. 2017 IEEE International Conference on Cloud Computing Technology and Science (CloudCom). Hong Kong, 2017

► [ARMS'17] C. Ruiz, H. A. Duran-Limon, and N. Parlavantzas. “An RLS Memory-Based Mechanism for the

Automatic Adaptation of VMs on Cloud Environments”. 2017 Workshop on Adaptive Resource Management and Scheduling for Cloud Computing-ARMS-CC’17. Washington, DC, USA, 2017

59

SLIDE 60

References

► [UCC'16] C. Ruiz, H. A. Duran-Limon, and N. Parlavantzas. “Towards a Software Product Line-Based

Approach to Adapt IaaS Cloud Configurations”. 9th International Conference on Utility and Cloud Computing - UCC ’16. Shanghai, China, 2016

► [IOT360'16] T. Kirkham, A. Sinha, N. Parlavantzas, B. Kryza, P

. Fremantle, K. Kritikos, and B. Aziz. “Privacy Aware On-Demand Resource Provisioning for IoT Data Processing”. In: Internet of Things. IoT Infrastructures. 2016

► [CCGrid'14] D. Dib, N. Parlavantzas, and C. Morin. “SLA-Based Profit Optimization in Cloud Bursting PaaS”.

2014 14th IEEE/ACM International Symposium on Cluster, Cloud and Grid Computing. IEEE, 2014

► [EuroPar'13] S. Costache, N. Parlavantzas, C. Morin, and S. Kortas. “On the Use of a Proportional-Share

Market for Application SLO Support in Clouds”. In: Euro-Par 2013 Parallel Processing. Berlin, Heidelberg, 2013

► [CloudCom'13] S. Costache, N. Parlavantzas, C. Morin, and S. Kortas. “Merkat: A Market-Based SLO-Driven

Cloud Platform”. In: 2013 IEEE 5th International Conference on Cloud Computing Technology and Science. IEEE, 2013

► [ORMaCloud'13] D. Dib, N. Parlavantzas, and C. Morin. “Meryn: Open, SLA-Driven, Cloud Bursting PaaS”.

First ACM Workshop on Optimization Techniques for Resources Management in Clouds. ORMaCloud ’13. ACM, New York, New York, USA

60

SLIDE 61

► [HPCC'12] S. Costache, N. Parlavantzas, C. Morin, and S. Kortas. “Themis: Economy-Based Automatic

Resource Scaling for Cloud Systems”. In: 2012 IEEE 14th International Conference on High Performance Computing and Communication. 2012

► [CLOUD'12] A. L. Freitas, N. Parlavantzas, and J.-L. Pazat. “An Integrated Approach for Specifying and

Enforcing SLAs for Cloud Services”. In: Proceedings of the 5th International Conference on Cloud Computing (CLOUD). IEEE, 2012

► [ECOWS'11] A. Lage Freitas, N. Parlavantzas, and J.-L. Pazat. “Cost Reduction through SLA-Driven Self-

Management”. In: 2011 IEEE Ninth European Conference on Web Services. Ieee, 2011

► [VHPC'11] S. Costache, N. Parlavantzas, C. Morin, and S. Kortas. “An Economic Approach for Application

QoS Management in Clouds”. Euro-Par 2011: Parallel Processing Workshops. Springer Berlin Heidelberg, Berlin, Heidelberg, 2012

► [MONA'10] A. Lage Freitas, N. Parlavantzas, and J.-L. Pazat. “A QoS Assurance Framework for Distributed

Infrastructures”. 3rd International Workshop on Monitoring, Adaptation and Beyond - MONA ’10. ACM Press, New York, New York, USA, 2010

► [CIT'10] A. Lage-Freitas, N. Parlavantzas, and J.-L. Pazat. “A Self-Adaptable Approach for Easing the

Development of Grid-Oriented Services”. IEEE International Conference on Computer and Information Technology (CIT). Bradford, UK, 2010

References

61
