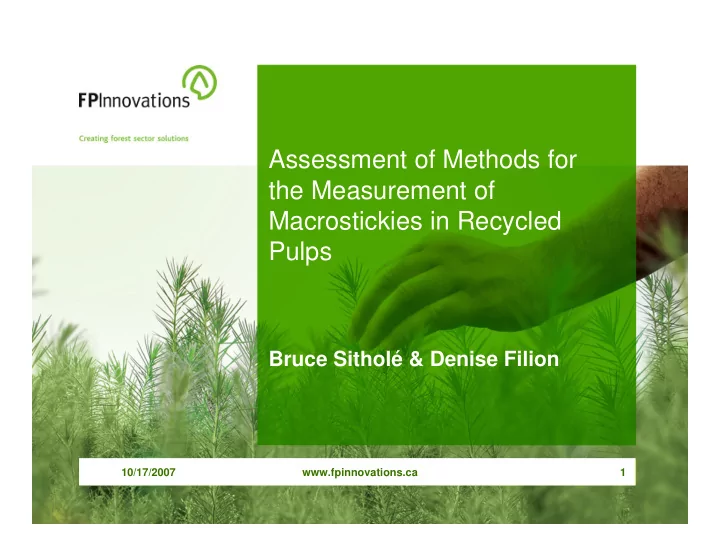

Assessment of Methods for the Measurement of Macrostickies in Recycled Pulps

Bruce Sitholé & Denise Filion

2

Outline

• Classification of stickies
• Assessing quality of DIP
• How are stickies measured
• Evaluation of different methodologies

– Their merits and demerits

3

Classification of stickies

• Doshi and Dyer classified stickies by

physical and chemical properties

– Chemistry (PSA, hot melts, or both) – Screening (macro and micro) – Behaviour (viscoelastic and rigid) – External factors (primary and secondary) – Association (bound to fibres and free) – Compatibility (recycle-compatible & recycle- incompatible) – Visibility (visible and sub-visible)

4

Classification of stickies

• More commonly classified into 2 broad

classes:

– Macrostickies – Microstickies

• Later, also classified into:

– Macro – Micro – Colloidal

5

Classification of stickies

• Macrostickies

– Solid particles resulting from incomplete disintegration during repulping – Particle size exceeds 100 µm – Can be removed by coarse screening – Major sources

• Hot melts, PSAs

6

Classification of stickies

• Microstickies

– Particles 100-1 µm range – Sources

• Small adhesives particles
• Coating binders
• Ink resins

7

Classification of stickies

• Colloidal

– Particles below 1 µm – Particles of insoluble wood resin, SBR, PVA, latexes, emulsified oils

8

Assessing the quality of DIP

• Variable and mill specific
• Commonly assessed by amount and

size of particles

• Acceptable pulps

– 10 or less particles per 100 g OD pulp – Maxim size of 0.4 mm2 per particle

9

Assessing the quality of DIP

• Quality objectives of recycled

printing grade paper

<150 mm2/m2 <100 mm2/m2 >62% ISO <10% Impurities Stickies, hot melts Brightness Filler Specifications Parameter

10

Assessing the quality of DIP

• It is evident that macrostickies

define the quality of DIP recycled printing papers

11

How are they measured?

• Literature review and discussions with

mill personnel show large variety in methods used

• The methods are based on three

principles –Collection –Transfer –Measurement

12

Measurement of stickies

Pulp sample Disintegration Screening (150 or 100 µm) Collect on filter paper

• r screen

Coating, pressure, temperature Blotter, couch, brushing Copy paper, laminator Manual counting, Image analysis

Step 1: collection Step 3: measurement Step 2: transfer

13

Measurement of stickies

• Significant differences in the details of

the three steps

• Therefore, we evaluated the pros and

cons of the methods

14

Objective

• Evaluate the different methodologies
• Recommend which one(s) to use for

evaluating the quality of recycled pulps

15

Previous work

• Doshi et al (2003) compared four

methods for measuring macrostickies

• Model and real samples were analysed

by 4 labs –Black ink method –INGEDE method –Enzyme digestion method –Blue dye method

• All methods used image analysis

–Average # and size of contaminants

16

Previous work

• Conclusion

–considerable variations in actual values

• f stickies area reported by the

participating groups

• Not surprising due to significant differences in the

methods used to measure the concentration of macrostickies

–excellent linear correlation among all methods for both laboratory as well as mill samples

17

Previous work

• Conclusion

–Any one of the methods was suitable for monitoring stickies content –But one could not compare actual values from the different labs as they may vary significantly

18

Our approach

• Samples analysed by the same

personnel in one laboratory

• Helps in assessing the merits and

demerits of the different methodologies

19

Samples

25 g OD 50 g OD 50 g OD 25g OD ONP/magazine (70:30) ONP (100%) MOW OCC DIP news tissue paper recycled board Mill1 Mill2 Mill3 Mill4 Amount

• f sample

Fibre source Type of mill Site

20

Methods used

• TAPPI T277
• Total count
• Stickies count
• Wet specimen
• Blue dye
• Lamination
• Transparency film
• Reference method

– Manual observation and counting

21

Sample preparation

• Collection step

–Pulmac Masterscreen

22

Analysis

Physical properties Quantification Scanner

Characterization of macrostickies

(tacky, gooey, powdery, etc) (number/area of particles)

23

Methods used: TAPPI T277

• Collect rejects on a black filter paper
• Place coated paper on top of the rejects
• Sandwich filter paper and coated paper

between two blotters

• Heat and press for 10 min
• Wash to remove other material
• Cover with silicon release paper: heat

and dry

• this transfers the silicone onto the stickies to

make them more visible for image analysis.

• Eliminate fibres prior to scanning and

image analysis.

24

Methods used: Total count

• Collect rejects on white filter paper, dry
• vernight at room temperature
• Laminate filter paper
• Scan and analyse by image analysis.

25

Methods used: Stickies count

• Collect rejects on white filter paper
• Place blotter on top, press with couch roll

and remove

• Place second blotter on the rejects and

press with couch roll

• Dry both blotters (with rejects) at 110oC for

exactly five minutes

• Use paint brush to remove other materials
• Place transparency film on top of each

blotter

• Scane and analyse by image analysis

26

Methods used: Wet specimen

• A black palette with uniform flat surface
• Wet specimen is rolled with a soft roller to

remove the air formed between it and the palette

• A shallow box with a transparent bottom

that is placed on the image analysis glass

27

Methods used: Blue dye

• Disintegrate, 1.2 g handsheets
• Couch, discard second wet blotter, replace

by a third one to protect the handsheet

• Dry
• Apply the blue dye to the backside of the

blotter

• Evaporate heptane solvent in the dye
• Peel dyed handsheet, scan, image

analysis

28

Methods used: Lamination

• Collect rejects on white filter paper
• Dry
• Place facedown on white copy paper
• Place another copy paper on the filter

paper to make a protective pocket

• Pass twice through a laminator at 125oC
• Staple a transparency film onto the copy

paper with the contaminants

• Scan, image analysis

29

Methods used: Transparency film

• Collect rejects onto a white filter paper
• Place wet filter paper, stickies side down,
• n image side transparency
• Place blotter paper on top
• Sandwich filter paper, transparency, and

blotter into paper folder

• Pass sandwiched sheets, twice through

laminator set at 125oC

• Remove blotter and filter paper, allow

transparency to air-dry

• Protect transparency with another

transparency, scan, image analysis

30

Methods used: Reference method

• Collect rejects on a white filter paper
• Place another filter paper on top of the

rejects

• Dry by heating and pressing
• Examine each filter paper under a low-

power stereo microscope with aid of a needle

• Manually count contaminants, classify into

– the different classes (stickies, hot melts, plastics, others.)

31

Evaluation of the different methods

• To facilitate processing, a DIP sample was

first evaluated using all the methods

• Three most promising ones were then

selected for further testing on the rest of the pulp samples

32

Image analysis

• Software: Image-Pro Plus
• Calibrated using image of ruler
• Accuracy checked using calibration plate

(Micro-Scanner, Paprican)

33

Image analysis: Micro-Scanner

34

Results

• Different scanners

815 ±0.28% 187.32 ±0.07% 834 ±0.52% 283.10 ±2.03% 841 ±0.86% 288.35 ±3.30%

Cleaner rejects

40 ±2.5% 8.98 ±0.28% 47 ±3.20% 13.09 ±1.74% 46 ±5.21% 13.03 ±2.23%

DIP

Number

• f

particles Total surface area, mm2 Number

• f

particles Total surface area, mm2 Number

• f

particles Total surface area, mm2

AGFA scanner HP scanner B HP scanner A

Sample

35

Results

0.66 836 831 825 Cleaner rejects 4.5 49 46 45 DIP % error 10 scans 5 scans 1 scan Number of particles 2.6 284.23 277.67 269.62 Cleaner rejects 1.7 13.45 13.012 13.01 DIP 10 scans 5 scans 1 scan % error Total surface area, mm2 Sample

• Reproducibility of scanning measurements

36

Results

• Effect of location on the scanner

0.34 842 842 837 Cleaner rejects 4.5 49 46 47 DIP % error bottom middle top Number of particles 2.6 283.37 282.55 284.62 Cleaner rejects 0.39 13.25 13.15 13.18 DIP bottom middle top % error Total surface area, mm2 Sample

37

Results

• Reproducibility of the scanning

measurements

– Placement of sample on scanner does not affect the data generated – Scanner generates very reproducible data irrespective of the number of scans

38

Results: DIP sample

578 1279 332 108 1684 92 641 579 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 7000 8000 9000

Method 1 Method 2 Method 3 Method 4A Method 4B2 Method 5 Method 6 Method 7 Method 8

Area, mm²/kg

7716 578 1279 332 108 1684 92 641 579 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 7000 8000 9000

Method 1 Method 2 Method 3 Method 4A Method 4B2 Method 5 Method 6 Method 7 Method 8

Area, mm²/kg

7716

3960 11248 1856 111480 976 38472 528 2690 4696 5000 10000 15000 20000 25000 30000 35000 40000 45000 50000 55000 60000

Method 1 Voith Method 2 Total Method 3 BTB Method 4A Method 4B2 Method 5 Dye Method 6 Stone Method 7 Aquan-Yuen Method 8 S + HM

# particles per kg

3960 11248 1856 111480 976 38472 528 2690 4696 5000 10000 15000 20000 25000 30000 35000 40000 45000 50000 55000 60000

Method 1 Voith Method 2 Total Method 3 BTB Method 4A Method 4B2 Method 5 Dye Method 6 Stone Method 7 Aquan-Yuen Method 8 S + HM

# particles per kg

Number Area

39

Results: DIP sample

• Total count

– Measures total # of contaminants – Particles that are not macrostickies also counted

• Wet specimen (4A)

– Gave unrealistic results (25X larger than reference method) – Particles that are not macrostickies also counted

• TAPPI & Transparency methods

– Results very close to reference method

40

Results: further testing

0.5 2950 28 567 Reference 18 3528 20 798 Transparency 10 2028 17 401 Stickies count 16 3124 13 992 TAPPI

% error Number % error area Number of particles/kg pulp Total surface area of contaminants, mm2/kg Methods

• DIP sample

41

Results: DIP sample

• Significant differences in surface areas of

contaminants

– Reflection of different drying procedures – Methods that require pressure induce deformation

• TAPPI method agrees well with the

reference method in number of particles

42

Results: further testing

5 5910 3 273 Reference 14 1136 11 261 Transparency 22 1908 25 246 Stickies count 21 4724 29 1957 TAPPI

% error Number % error area Number of particles/kg pulp Total surface area of contaminants, mm2/kg Methods

• Tissue sample

43

Results: tissue sample

• Stickies count and transparency methods

– Best results in agreement with reference method

44

Results: further testing

n/a 26,120 n/a n/a

Reference

58 169,097 64 42,954

Transparency

3 843,611 5 271,779

Stickies

15 25,160 12 6,671

TAPPI

% error Number % error area Number of particles/kg pulp Total surface area

• f contaminants,

mm2/kg Methods

• 100% OCC mill

45

Results: 100% OCC mill

• TAPPI method gives results similar to

those of the reference method

46

Conclusions

• TAPPI method results are comparable to

manual reference method

– Therefore, image analysis using this method is acceptable for rapid measurement of macrostickies

• There is no correct method to measure

areas of contaminants

– Therefore, evaluation of stickies should not be based on area but on number of particles

• Contrast between background and

contaminants is a big problem in image analysis

47

Conclusions

• Image analysis does not work well on

highly contaminated samples collected on 100 µ m screens

– Particles hidden under fibres and shives – Best to use 150 µm screen

• If interested in evaluating contaminants,

beside macrostickies, use Table X as a guide to method of choice.

48
