Aspects of object orientation Jan Niklas Rsch Institute for Software Engineering and Programming Languages 01. February 2016 J.N. Rsch 01. February 2016 1/27 Table of contents Introduction Variance Instantiation, Subtyping and

slide-1
SLIDE 1

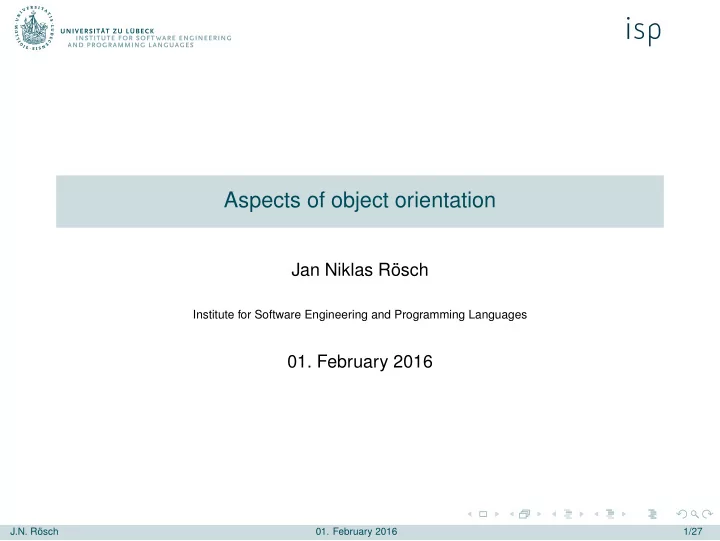

Aspects of object orientation

Jan Niklas Rösch

Institute for Software Engineering and Programming Languages

  • 01. February 2016

J.N. Rösch

  • 01. February 2016

1/27

slide-2
SLIDE 2

Table of contents

Introduction Variance Instantiation, Subtyping and Subclassing Type systems Conclusion

J.N. Rösch

  • 01. February 2016

2/27

slide-3
SLIDE 3

Introduction

◮ Many different aspects that make up a language ◮ Defining relationship between objects

◮ Fundamental facet of OOP

◮ These aspects contribute to an overall behaviour of the language

J.N. Rösch

  • 01. February 2016

3/27

slide-4
SLIDE 4

Variance - Overview

◮ Describes behaviour of complex structures

◮ Lists ◮ Arrays ◮ Functions ◮ ...

◮ Covariance and Contravariance ◮ Invariance and Bivariance

J.N. Rösch

  • 01. February 2016

4/27

slide-5
SLIDE 5

Variance - Definitions Complex Structure

IA

Subtyping

A ≤ B , IA ≤ IB

J.N. Rösch

  • 01. February 2016

5/27

slide-6
SLIDE 6

Variance - Covariance Covariance

A ≤ B → IA ≤ IB

◮ Ordering of types is preserved ◮ Most common approach

Covariant Array

String [ ] s t r = new String [ 1 ] ; Object [ ]

  • bj = s t r ;

J.N. Rösch

  • 01. February 2016

6/27

slide-7
SLIDE 7

Variance - Broken Array Covariance Runtime Error

String [ ] s t r = new String [ 1 ] ; Object [ ]

  • bj = s t r ;
  • bj [ 0 ] = 2;

◮ safe to read but not safe to write ◮ not caught at compile time

J.N. Rösch

  • 01. February 2016

7/27

slide-8
SLIDE 8

Variance - Contravariance Contravariance

A ≤ B → IB ≤ IA

◮ Ordering of types is reversed ◮ Unintuitive but comes with some benefits

J.N. Rösch

  • 01. February 2016

8/27

slide-9
SLIDE 9

Variance - Contravariance Contravariant comparator

void CompareCats ( IComparer<Cat> comparer ) { var cat1 = new Cat ( " Mittens " ) ; var cat2 = new Cat ( " Oliver " ) ; i f ( comparer . Compare( cat1 , cat2 ) > 0) Console . WriteLine ( " Mittens wins ! " ) ; } IComparator <Animal> compAnimals = new AnimalComparator ( ) ; CompareCats ( compAnimals ) ;

◮ Using a base class instead of a more derived one

J.N. Rösch

  • 01. February 2016

9/27

slide-10
SLIDE 10

Variance - Invariance Invariance

A ≤ B → IA ≤ IB ∧ IB ≤ IA

◮ Prohibits variant behaviour of complex structures ◮ Regardless of underlying type hierarchy ◮ Used to prevent type errors

J.N. Rösch

  • 01. February 2016

10/27

slide-11
SLIDE 11

Variance - Invariance Invariant list

void MammalReadWrite ( I L i s t <Mammal> mammals ) { Mammal mammal = mammals [ 0 ] ; mammals [ 0 ] = new Tiger ( ) ; }

◮ Covariance: List of giraffes

◮ Put a tiger in it

◮ Contravariance: List of animals

◮ Animals do not need to be mammals J.N. Rösch

  • 01. February 2016

11/27

slide-12
SLIDE 12

Variance - Bivariance Bivariance

IA ≤ IB , IB ≤ IA

◮ Either impossible or not allowed ◮ Only listed for the sake of completeness

J.N. Rösch

  • 01. February 2016

12/27

slide-13
SLIDE 13

Instantiation, Subtyping and Subclassing

◮ Instantiation

◮ Creation of a new object

◮ Subtyping

◮ Describes relationship of objects ◮ Objects share a common interface ◮ ’Is-a’ relationship → Liskov substitution principle

◮ Subclassing

◮ Does not alter type hierarchy ◮ Reuse of code

◮ Class-based vs Prototype-based

J.N. Rösch

  • 01. February 2016

13/27

slide-14
SLIDE 14

Class-based Programming - Instantiation

◮ Classes as blueprints

◮ Can not change at runtime ◮ Easier to optimize compiler tasks

◮ Implicit/Explicit constructors

◮ Creates new instance of a class ◮ Allocates memory ◮ Initialize all fields J.N. Rösch

  • 01. February 2016

14/27

slide-15
SLIDE 15

Class-based Programming - Instantiation Class-based instantiation

class NumBox{ private int number ; public numBox( int num) { this . number = num; } public int getNum ( ) { return this . number ; } } NumBox num3 = new NumBox( 3 ) ; p r i n t (num3. getNum ( ) ) ;

J.N. Rösch

  • 01. February 2016

15/27

slide-16
SLIDE 16

Class-based Programming - Subtyping

◮ Type hierarchy has to be explicitly declared

Class-based subtyping

class NumBox { . . . } class PNatBox extends NumBox { . . . }

◮ No subclassing without subtyping ◮ Example: Square vs Rectangle

J.N. Rösch

  • 01. February 2016

16/27

slide-17
SLIDE 17

Prototype-based Programming - Instantiation

◮ No classes ◮ Constructor functions

◮ Explicitly declared

Constructor

function ExampleObject ( ) { . . . }

◮ Ex-nihilo

◮ Using object literals

Ex-nihilo

var cat = { name : " Tardar_Sauce " , f o l l o w e r : 8403156 }

J.N. Rösch

  • 01. February 2016

17/27

slide-18
SLIDE 18

Prototype-based Programming - Subtyping

◮ Cloning

◮ Objects inherit from objects ◮ Copy fields into clone ◮ Add more specialized fields

◮ Ex-nihilo

◮ Root object

Cloning

function ParentClass ( ) { . . . } function ChildClass ( ) { . . . } ChildClass . prototype = new ParentClass ( ) ;

J.N. Rösch

  • 01. February 2016

18/27

slide-19
SLIDE 19

Prototype-based Programming - Pure Prototyping

◮ Prototypes and objects can be changed at runtime ◮ Links between prototype and clones

◮ Change in prototype will update clones

◮ Pure prototyping

◮ No delegation but much more memory is used ◮ Different versions of same type J.N. Rösch

  • 01. February 2016

19/27

slide-20
SLIDE 20

Type systems - Overview

◮ Ensure type safety ◮ Define equality and compatibility of types ◮ Can vary widely depending on the language ◮ Not exclusive to OOP ◮ Structural typing ◮ Nominal / nominative typing

J.N. Rösch

  • 01. February 2016

20/27

slide-21
SLIDE 21

Type systems - Structural Typing

◮ Elements with the same structure are compatible

◮ Attributes with their names ◮ Functions with their names and parameter/return types

◮ The name of the type does not matter ◮ Nor does the place of declaration

J.N. Rösch

  • 01. February 2016

21/27

slide-22
SLIDE 22

Type systems - Structural Typing

◮ Automatism of type compatibility ◮ Very flexible and convenient

◮ Type hierarchy does not need to be declared beforehand ◮ Programmer does not need to maintain the common interfaces himself

Implicit common interface

type A = { type B = { foo ( ) ; foo ( ) ; bar ( ) ; baz ( ) ; } }

J.N. Rösch

  • 01. February 2016

22/27

slide-23
SLIDE 23

Type systems - Structural Typing Problem with compatible types

record DistanceInInches { double d i s t ; } ; record DistanceInCentimeters { double d i s t ; } ;

◮ Equivalent in structure ◮ Different in meaning

J.N. Rösch

  • 01. February 2016

23/27

slide-24
SLIDE 24

Type systems - Nominal Typing

◮ Subset of structural typing ◮ Much more type-safe ◮ No accidental inheritance ◮ Subtyping has to be explicitly declared

J.N. Rösch

  • 01. February 2016

24/27

slide-25
SLIDE 25

Type systems - Nominal Typing Nominal subtyping

class Animal { void feed ( ) { . . . } } class Cat extends Animal { i n t age = 5; }

◮ Without ’extends’ these classes would be completely distinct from each

  • ther

J.N. Rösch

  • 01. February 2016

25/27

slide-26
SLIDE 26

Conclusion

◮ Defining relationship between objects

◮ Based on many pieces ◮ All come together to make up the specific language

◮ Flexibility vs Safety

◮ Finding the right mix can be difficult ◮ Trade-offs are hard to make

◮ In the end it comes down to personal preference

J.N. Rösch

  • 01. February 2016

26/27

slide-27
SLIDE 27

Thank you for your attention! QUESTIONS ?

J.N. Rösch

  • 01. February 2016

27/27
