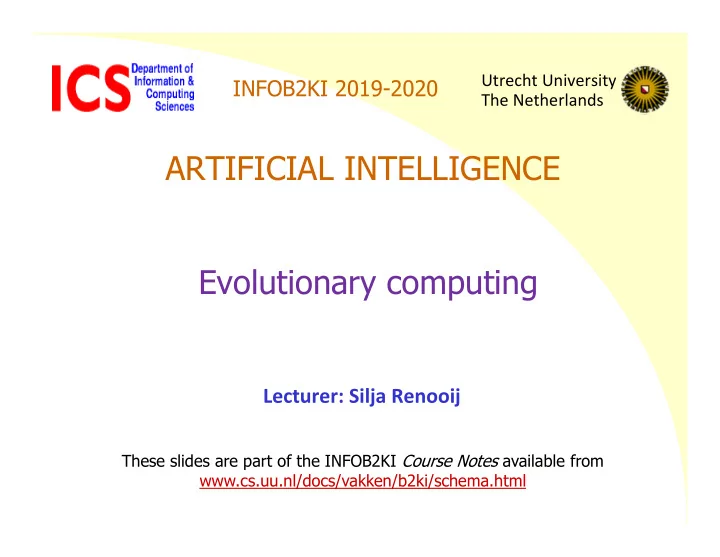

ARTIFICIAL INTELLIGENCE

Lecturer: Silja Renooij

Evolutionary computing

Utrecht University The Netherlands

These slides are part of the INFOB2KI Course Notes available from www.cs.uu.nl/docs/vakken/b2ki/schema.html

INFOB2KI 2019-2020

What is it?

Evolutionary computing (EC) = the use of evolutionary algorithms (EAs):

• Population‐based, stochastic search algorithms

based on mechanisms of natural evolution.

– Evolution viewed as search algorithm or problem solver – Natural evolution only used as metaphor for computational system design

Why the metaphor?

• Ability to efficiently guide a search through

a large solution space

• Ability to adapt solutions to changing

environments

• Goal: design high quality solutions through

“emergent” behavior

Darwinian process characteristics

5 key requirements of a Darwinian system:

• 1. Structures carry information

(e.g. DNA)

• 2. Structures are copied

(next generation)

• 3. Copies partially vary from the original (inheritance)
• 4. Structures compete for limited resources

(Struggle for life  selection)

• 5. Relative reproductive success depends on

environment (Survival of the fittest)

There is no evolution without competition.

Darwinian characteristics in EC

1. Structures  e.g. binary strings, real‐valued vectors, programs,… 2. Structures are copied  Selection algorithm: e.g. tournament selection, … 3. Copies partially vary from the original  Mutation & crossover operators 4. Structures compete for limited resources  New offspring (partly) replaces parents in fixed size population 5. Relative reproductive success depends on environment  User‐defined fitness function

EC streams

EC unites four traditionally distinct streams, based on historical differences in representation:

• Genetic algorithms (GA)

– Solutions encoded as discrete structures, e.g. bit‐strings

• Evolution strategies (ES)

– Encoding using real‐valued vectors

• Evolutionary programming (EP)

– Encoding with finite state machines

• Genetic programming (GP)

– Encoding using trees

Nowadays we just use what seems most appropriate.

EAs: Main idea

• Take a population of candidate solutions to

a given problem

• Use operators inspired by the mechanisms
• f natural genetic variation
• Apply selective pressure toward certain

properties (what does “fit” mean?)

• Evolve a more fit solution

General Scheme of EAs

Based upon replacement strategy

generation

Evolutionary terminology

Inspired by biology:

• Individuals: candidate solutions
• Phenotypes: solutions in the real world
• Genotypes: individuals within the EA
• Population:

– (representations of) possible solutions – usually fixed size multiset of genotypes – Diversity of a population refers to the number of different fitness’s / phenotypes / genotypes present (note not the same thing)

• Also: genes, chromosomes, …

Design of an Evolutionary Algorithm

The Steps - I

In order to build an evolutionary algorithm we have to perform various steps. External to the evolving system:

• Design a representation for individuals:

– A data‐structure – A mapping between phenotype and genotype (encoding and decoding)

• Decide how to initialize a population
• Decide when to stop the algorithm

The Steps - II

In order to build an evolutionary algorithm we have to perform various steps. Internal to the evolving system:

• Design a way of evaluating an individual
• Decide how to select parent individuals
• Design suitable recombination operator(s)
• Design suitable mutation operator(s)
• Decide how to select surviving individuals

Variation

• perators

The external design steps

Initialisation

Usually done at random

• Uniformly on search space if possible

– Binary strings: 0 or 1 with probability 0.5 – Real‐valued representations: uniformly on a given interval

Or: seed the population with previous results or those from heuristics.

• With care:

– Possible loss of genetic diversity – Possible unrecoverable bias

Stopping criterion

Termination condition checked every generation

• Reaching some (known/hoped for) fitness
• ptimum
• Limit on CPU resources:
• Reaching some maximum allowed number of

generations

• Reaching some minimum level of diversity
• Limit on user’s patience:
• Reaching some specified number of generations

without fitness improvement

Designing a Representation

• Method/ data structure for representing an

individual as a genotype (encoding)

– often takes the form of a bit string in GAs – usually different parts of structure represent different aspects of solution

• Choice depends on

– the problem to solve – how genotypes will be evaluated – what genetic operators might be used/suitable

Discrete Representation

CHROMOSOME GENE

• an individual can be represented using discrete values

– binary; integer; any other system with discrete set of values

Example: binary representation

Discrete Representation

• for each genotype there must be a phenotype

Example:

8 bits Genotype Phenotype:

• Integer
• Schedule
• ...
• Anything?
• Real Number

Example: genotype to phenotype

• Phenotype could be integer numbers
• Phenotype could be real numbers

Genotype: 1*27 + 0*26 + 1*25 + 0*24 + 0*23 + 0*22 + 1*21 + 1*20 = 128 + 32 + 2 + 1 = 163 = 163 Phenotype:

 

00 . 14 5 . 2 5 . 20 255 163 5 . 2     x

= 14.00 Genotype: Phenotype: (between 2.5 and 20.5)

Example: genotype to phenotype

• Phenotype could be a schedule
• Phenotype could be …

Genotype:

=

1 2 3 4 5 6 7 8 2 1 2 1 1 1 2 2 Job Time Step

Phenotype

The internal design steps

Evaluating an Individual

• Often based upon fitness

– A measure of the goodness of the organism – The more values the fitness function distinguishes the better for selection – Can also be based on results of some external process: e.g. competing models for a game

• This is by far the most costly step for real

applications

• You could use approximate fitness ‐ but not

for too long

Parent Selection Mechanism

• Selection pressure: ensure that selection of better

individuals is more probable than of less good individuals  drives population forward

• ! less good individuals may still include some

useful genetic material

• Methods (a.o):

– Proportionate selection  typical textbook method;

not often used in practice

– Rank‐based selection

• Truncation selection
• Tournament selection

Fitness proportionate selection I

Selection based on absolute fitness values

• Given a population of N individuals, individual i is

selected with probability

• Selecting again N parents  expected number of

times individual i is selected for mating is:

• where is average fitness

f

Fitness proportionate selection II

Best Worst

Better (fitter) individuals have:

 more space in population pool  more chances to be selected

Disadvantages:

• Danger of premature convergence: (seemingly)
• utstanding individuals take over entire population

very quickly

• Low selection pressure when fitness values are near

each other  local optima

Truncation selection

• Rank based selection: use relative rather than

absolute fitness

• Individuals are sorted on their fitness value from

best to worse.

• Select the top τ %
• Copy each selected solution 100/τ times

(for fixed population size)

Tournament selection

For a tournament of size k:

• Select k random individuals for tournament

(with or without replacement)

• Select only the best individual as parent

Hold N tournaments to get a population of N

Variation operators

with examples for discrete structures (GAs)

Recombination/Crossover

We can have one or more recombination operator for a representation.

• Mimics biological recombination

– Some portion of genetic material is swapped between chromosomes – Typically the swapping produces offspring

• Offspring inherits parts from each of m ≥ 2 parents
• Recombination should produce m valid chromosomes
• Stochastic:

– n cross‐over point(s) selected randomly – Operator applied with a certain probability

1-point cross-over

Whole Population:

. . .

Each chromosome is cut into 2 pieces (at same

cutpoint) which are recombined:

1 1 1 1 1 1 1 0 0 0 0 0 0 0 parents cut cut 1 1 1 0 0 0 0 0 0 0 1 1 1 1

• ffspring

n-point & uniform cross-over

• n‐point cross‐over: each chromosome is cut into n+1

pieces which are recombined

• Uniform cross‐over: for each position, swap with a

certain probability

Mutation

We can have one or more mutation operators for a representation.

• Mechanism for preserving variety in the population
• At least one mutation operator should allow every

part of the search space to be reached

• Mutation should produce valid chromosome
• Stochastic:

– Alters the structure in a position with some probability – Operator applied with a certain probability

Mutation

1 1 1 1 1 1 1

before

1 1 1 0 1 1 1

after Mutation usually happens with small probability pm for each ` gene’ mutated gene

parent

• ffspring

Recombination vs Mutation

• Recombination

– Emphasized by Genetic Algorihms – modifications depend on the whole population – decreasing effects with convergence – exploitation operator

• Mutation

– Emphasized by Evolution Strategies and Evolutionary Programming – mandatory to escape local optima – exploration operator

Replacement strategy

a.k.a. Survivor selection: Most EAs use fixed population size so need a way of going from parents + offspring to next generation.

• Can use the stochastic selection methods in reverse
• But often deterministic:

– Fitness based: e.g., rank parents + offspring and take best – Age based: select only from offspring (if #offspring = #parents: generational replacement)

• Elitism: regardless of strategy, never replace the best

EA design and application

toy example

Toy example: design

Consider maximizing

,

• A representation for individuals:

– use binary integer representation:

• Initialization of population

– random

• Stopping criterion

– not relevant for example

• Evaluating an individual:

– use f(x) itself as fitness function

Toy example: design cntd

Consider maximizing

,

• parent selection:

– size k=2 tournament selection

• recombination operator:

– 1‐point cross‐over

• mutation operator:

– standard for bitstrings

• Survivor selection:

– generational replacement

Toy example: EA applied

Consider maximizing

,

Example: initial random population:

1) 10010 :

• 2)

01100 :

• 3)

01001 :

• 4)

10100 :

• 5)

01000 :

• 6)

00111 :

• Generation 0 population mean fitness

177  f

Example – generation 1

Recall: Tournament selection (k =2) Compete:

• string 1 vs string 2, 3 vs 4, 5 vs 6
• string 3 vs string 1, 2 vs 6, 5 vs 4



Parents Fitness 10010 324 10100 400 01000 64 10010 324 01100 144 10100 400

Example – generation 1

Recall: 1‐point cross‐over, standard mutation

! : cross‐over point 1/0 : mutated bit

Recall: offspring replaces parents  generation 1 population mean fitness

383  f

Parents Fitness Offspring Fitness 100!10 324 10100 400 101!00 400 10111 529 01!000 64 00010 4 10!010 324 10010 324 0110!0 144 11100 784 1010!0 400 10000 256

Example – generation 3

! : cross‐over point 1/0 : mutated bit

Generation 3 population mean fitness

762  f

Parents Fitness Offspring Fitness 1!1111 961 11110 900 1!1100 784 11011 729 110!00 576 11110 900 111!10 900 11101 841 1101!1 729 11111 961 1100!1 625 01001 81

Solving 8-queens with a GA

8-queens representation

• Assume each queen has her own column.
• Represent a board‐configuration by listing the row

number (digits 1 to 8) per queen. Example: the configuration below is represented as 16257483

44

8 7 6 5 4 3 2 1

Q1 Q8

8-queens fitness

• Fitness: number of non‐attacking pairs of queens
• There are 7*8/2 = 28 pairs of queens

 solutions have fitness of 28 Example: Fitness of the configuration below is 27

45

8 7 6 5 4 3 2 1

Q1 Q8

8-queens selection & operators

• Parent Selection: fitness‐based proportionate selection
• Cross‐over: 1‐point, randomly chosen per pair (P1, P2)
• Mutation: random, small independent p for each location

46

• Total fitness in initial population: 24+23+20+11 = 78
• Proportionate Selection: 24/78 = 31%; 23/78 = 29%; etc

P1 P2 C1

Diversity due to cross-over

P1 P2 C1

47

Designing for permutation problems: order based representations

Permutation problems

Permutation problems have different characteristics

• Adjacency, e.g. important aspect for TSP
• Relative order
• Absolute order
• Suitable variation operators are such that
• ffspring of a permutation is a permutation
• 8‐queens is a permutation problem; above

property violated by both cross‐over and mutation in previous example…

Recombination for order based representation

e.g. “cut and crossfill”

A D B F C E G H g b h a c d f e d A e B C f g h e A f C d B G H

Parent 1 Parent 2 Child 1 Child 2

Minus EFD Minus abc

• Select random cross‐over point
• Copy left part per parent to offspring
• Fill right side by scanning other parent left to right,

skipping what’s already there

Mutation for order based representation

7 8 3 4 1 2 6 5

e.g. “Swap”: Randomly select two different genes and swap them.

7 8 3 4 6 2 1 5

Key issues in EC

Summary key issues

Exploration vs Exploitation

– Exploration =sample unknown regions – Too much exploration = random search, no convergence – Exploitation = try to improve the best‐so‐far individuals – Too much exploitation = local search only … convergence to a local optimum

Summary key issues (2)

Genetic diversity

– differences of genetic characteristics in the population – loss of genetic diversity = all individuals in the population look alike – snowball effect – convergence to the nearest local optimum – in practice, it is irreversible

”An EA is the second best algorithm to any problem”

Mating robots

https://www.youtube.com/watch?v=BfcVSb-Q8ns

Additional material

(NOT MANDATORY)

EA with real-valued representations

Real-valued representation

• A very natural encoding if the solution

we are looking for is a list of real-valued numbers, then encode it as a list of real-valued numbers! (i.e., not as a string of 1’s and 0’s)

• Lots of applications, e.g. parameter
• ptimisation

Example: Real valued representation, Representation of individuals

• Individuals are represented as a tuple
• f n real-valued numbers:
• The fitness function maps tuples of real

numbers to a single real number:

R x x x x X

i n

              ,

2 1

M

R R f

n 

:

Example: Mutation for real valued representation

Perturb values by adding some random noise Often, a Gaussian/normal distribution N(0,) is used, where

• 0 is the mean value
•  is the standard deviation

and x’i = xi + N(0,i) for each parameter

Example: Recombination for real valued representation

Discrete recombination (uniform crossover): given two parents one child is created as follows a d b f c e g h F D G E H C B A a b C E d H g f

Example: Recombination for real valued representation

Intermediate recombination (arithmetic crossover): given two parents one child is created as follows a d b f c e F D E C B A (a+A)/2 (b+B)/2 (c+C)/2 (e+E)/2 (d+D)/2 (f+F)/2 

EA with tree-based representations

Example: Tree-based representation

 Individuals in the population are trees.  Any S-expression can be drawn as a tree of functions

and terminals.

 These functions and terminals can be anything:

 Functions: sine, cosine, add, sub, and, If-Then-Else,

Turn...

 Terminals: X, Y, 0.456, true, false, , Sensor0…

 Example: calculating the area of a circle:

2 * r



*  * r r

Example: Tree-based representation

 Pick a function f at random from the function set F.

This becomes the root node of the tree.

 Every function has a fixed number of arguments

(unary, binary, ternary, …. , n-ary), z(f). For each of these arguments, create a node from either the function set F or the terminal set T.

 If a terminal is selected then this becomes a leaf  If a function is selected, then expand this function

recursively.

 A maximum depth is used to make sure the process

stops.

Three Methods

 The Full grow method ensures that every non-back-

tracking path in the tree is equal to a certain length by allowing only function nodes to be selected for all depths up to the maximum depth - 1, and selecting

• nly terminal nodes at the lowest level.

 With the Grow method, we create variable length

paths by allowing a function or terminal to be placed at any level up to the maximum depth - 1. At the lowest level, we can set all nodes to be terminals.

 Ramp-half-and-half create trees using a variable

depth from 2 till the maximum depth. For each depth

• f tree, half are created using the Full method, and

the the other half are created using the Grow method.

Example: Mutation

* 2 * r r *  * r r Single point mutation selects one node and replaces it with a similar one.

Example: Recombination *

2 * r r

*

+ r / 1 r Two sub-trees are selected for swapping.  * (r + (l / r))  2 * (r * r )

Example: Recombination * + r / 1 r  * 2 * r r *  * r r * 2 + r / 1 r

Resulting in 2 new expressions
