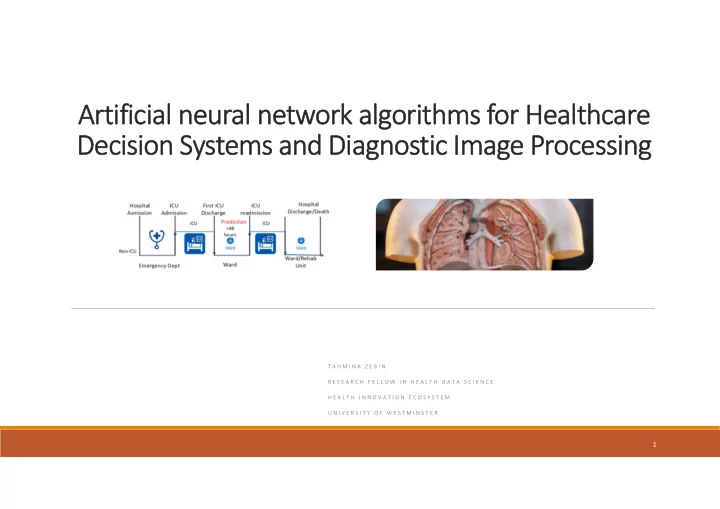

Artificial Artificial neur neural al ne netw twork ork alg algorithm rithms fo for Heal Healthcar care Decision Decisi on Syste Systems and and Di Diagnos agnostic ic Im Image Processing ocessing T A H M I N A Z E B I N R E S E A R C H F E L L O W I N H E A L T H D A T A S C I E N C E H E A L T H I N N O V A T I O N E C O S Y S T E M U N I V E R S I T Y O F W E S T M I N S T E R 1

What are Artificial Neural Networks?  A family of Machine Learning techniques inspired by the construction of the human brain.  Artificial Neural Network approaches are useful for extracting patterns from images, video, speech and time series data.  Some day to day application of Neural Networks you probably have encountered: Recurrent Neural Networks(Automatic Text suggestion) Convolutional Neural networks (Image labeler/Handwritten digit recognizer)  These models can deal with large amounts of data.  Artificial intelligence (AI) makes it possible for machines to learn from experience, adjust to new inputs and perform human ‐ like tasks. 2

Biological Neuron vs the Artificial neuron Soma/Cell Body(CPU): Combines Signals Dendrite(Input Bus): Combines Input from other neurons Synapse(Interface): Interface and Stores Parameters between Neurons Axon(Output/ Activator/Cable): Sends Activation Signal to other neurons Perceptron From Wikipedia Cost Function: Gradient Descent activation = sum(weight_i * x_i) + bias prediction = 1.0 if activation >= 0.0 else 0.0

Use Cases Source: Boston Consulting Group 4

Hidden layer : needed /not needed ? https://www.youtube.com/watch?v=ru9dXF04iSE 5

Outline for todays Talk: 2. Healthcare Decision Making Length of Stay Prediction 2. Diagnostic Image Analysis Lung Segmentation 6

Coding will contain several steps 1. Installing/loading your toolboxes. (Python , tensorflow, keras, pytorch, matplotlib ) 2 . Loading the dataset. (Luna 16 Dataset/ MIMIC III dataset ) 3. Summarizing the dataset/Visualizing the dataset. 4. Training and evaluating(validating) an algorithm. (We will use a U ‐ net and an Auto ‐ encoder) 5. Making some predictions. 7

Use Case 1 Healthcare Decision Systems 8

Healthcare Decision Systems 9

MMIMIC III Dataset 10

Length of Stay Model 11

Bits from the model 12

What to take away from the model? The results presented in this paper could be used with other existing tools to provide complementary information to clinicians in the management of data ‐ driven decision ‐ making. This proposed Autoencoder+DNN model showed that the two classes are separable with 77.7% accuracy based upon ICD ‐ 9 and demographics features and vital chart events data such as body temperature, blood pressure, heart rate information available after 24 hour of admission. Adding an unsupervised autoencoder at the first stage of the model substantially improved the performance compared to using a simplistic dense neural network for the classification task. In the future, we would like to improve our model to adapt to the realistic context of high data imbalance. We will also work on heterogeneous ensemble model that can combine multiple predictions to make more accurate predictions in clinical settings. 13

Use Case 2 Diagnostic Image Processing 14

Lung Nodule Analysis(Luna ‐ 16 Dataset) The raw data provided by LIDC ‐ IDRI, LUNA. CT scans provided in the .dicom format. A single dicom file contains N slices (images) which cover the entirety of the upper torso. The number of slices N can vary from 100 to 600 depending on the patient. The spacing between the slices may vary as well depending upon the machine used to perform the scan. Our pre ‐ processing code converts all scans to a uniform spacing. This is done to make the models learn a spacing independent representation of the data. About 800 participants scan. 15

Image segmentation using U ‐ net U ‐ Net ‐ Convolutional Networks for Biomedical Image Segmentation ‐ Encoder ‐ decoder architecture. ‐ When desired output should include localization, i.e., a class label is supposed to be assigned to each pixel ‐ Training in patches helps with lack of data

Data Augmentation 17

Object detection/segmentation is a first step

19

Dice Coefficient and 95% Hausdorff distance)

Modern Convolutional Detection/Segmentation Segmentation ● Mask R ‐ CNN ● SegNet ● U ‐ Net, DeepLab Detection ● R ‐ FCN ● Faster R ‐ CNN ● YOLO (pose detection as a regression problem ) ● SSD http://deeplearning.csail.mit.edu/instance_ross.pdf

Unified toolboxes Example code and tutorials for Image classification Image segmentation Generative adversarial networks Graph convolution networks Representation learning with autoencoders

Check the performance of your model (Tensorboard) @command prompt or shell: Launch Tensorboard: tensorboard ‐‐ logdir=path/to/log ‐ directory On Web ‐ browser Inspect: https://localhost:6006 from keras.callbacks import TensorBoard tensorboard =TensorBoard(log_dir='./logs', histogram_freq=1, batch_size=1, write_graph=True, write_grads=True, write_images=False, embeddings_freq=0, embeddings_layer_names=None, embeddings_metadata=None) model.fit(X, Y, epochs=150, batch_size=10, validation_split=0.2, verbose=1, callbacks=[tensorboard]) https://www.tensorflow.org/guide/summaries_and_tensorboard 23

Graphs, Distributions, Histograms 24

Conclusion.. AI offers exciting possibilities, but unfortunately, most vendors are focused on the goal of simply building and marketing an AI ‐ based product rather than first identifying needs, potential uses and value to its users. We need to understand the right set of algorithms and machine intelligence and where and when to use them. ‐ Interpretability Example: Criteria for loan decisions at a bank ‐ Usability Privacy concerns, record identification concerns. Change is tough Digital exclusion, biased decision based on the data available. Autonomous service, Have they reached usable state yet? Codes and data available at: https://github.com/TZebin

References https://stackoverflow.com/questions/48282371/getting ‐ tensorboard ‐ to ‐ work ‐ with ‐ keras https://jhui.github.io/2017/03/12/TensorBoard ‐ visualize ‐ your ‐ learning/ https://www.youtube.com/watch?time_continue=75&v=3JQ3hYko51Y https://biomedia.doc.ic.ac.uk/dltk ‐ released/ https://github.com/NifTK/NiftyNet/tree/dev/niftynet/network https://www.tensorflow.org/community/roadmap Numpy ‐ Numerical toolkits Pandas – Data Analysis toolkits Sklearn – Machine learning toolkit in python Keras ‐ A neural network API with tensorfow/theano backend Opencv (cv2) ‐ Image and video processing library 26

Thank you for listening! Questions?
