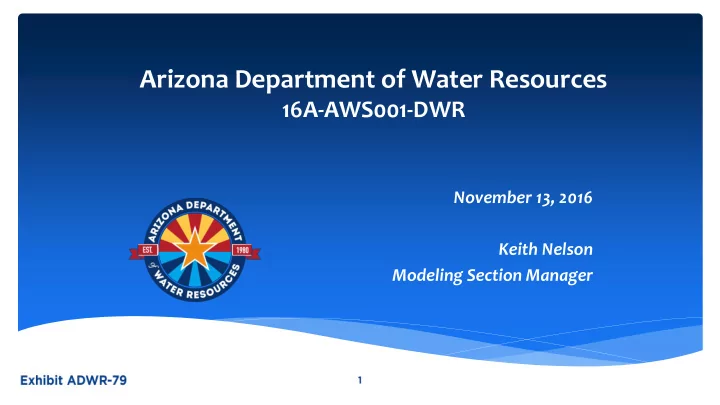

Arizona Department of Water Resources 16A-AWS001-DWR November 13, - - PowerPoint PPT Presentation

Arizona Department of Water Resources

16A-AWS001-DWR

November 13, 2016 Keith Nelson Modeling Section Manager

GW System Inflow: Natural Recharge; Incidental AG Recharge; Treated Effluent Recharge GW System Outflow: Groundwater discharge (baseflow); EVT and Underflow

Outflow: Well Pumpage

GW System Inflows: Natural Recharge; Incidental AG Recharge; Treated Effluent Recharge GW System Outflows: Groundwater discharge (baseflow, ≈); EVT and Underflow

Outflow: Well Pumpage

▼ ▼ ▼

Model is Calibrated by matching water levels, ▼, and baseflow targets ≈. The calibration process is described in detail and is transparent in ADWR model report.

Observed Streamflow Data at Humboldt Gage

minimum flow (cfs) Notes 2000 0.53 dry year 2001 0.20 dry year 2002 0.00 dry year 2003 0.00 dry year 2004 0.00 dry year 2005 1.80 following major Flood Recharge 2006 0.62 possible antecedent conditions from 2005? 2007 0.25 dry year "over-riding" effluent signature? 2008 0.90 modest stream recharge; "over-riding" effluent signature? 2009 0.71 very dry year "over-riding" effluent signature? 2010 1.40 following major Flood Recharge 2011 0.73 dry year "over-riding" effluent signature? 2012 0.09 dry year 2013 0.00 dry year 2014 0.00 Active monsoon, after zero flow events… 2015 0.55 following active monsoon (2014) 2016 0.00

Photo Taken in May 2010, looking south from 169

1 2 3 4 5 6 7 11/1/39 10/31/49 11/1/59 11/1/69 11/2/79 11/2/89 11/2/99 11/2/09

Groundwater Discharge (cfs) Simulated and Observed Groundwater Discharge, Agua Fria River

Simulated Groundwater Discharge, Agua Fria River Baseflow, 1939-2011 mean = 2.22 cfs; 1980-2011 mean-2.23 cfs ADWR_OBS_Selected Seasonal Manual Measurements, Flow Targets, Inverse Model USGS_Observed Seasonal Flow (USGS Gauge, 09512450), Flow Targets, Inverse Model Observed baseflow (1980-2012 - field measured, Wilson (1988), ADWR; USGS), mean=1.97 cfs (1,430 AF/yr) {Note effluent releases in upper reach of Agua Fria River started in 1994} Observed_Summer_Season_minimun

1 2 3 4 5 6 7 11/1/1939 10/31/1949 11/1/1959 11/1/1969 11/2/1979 11/2/1989 11/2/1999 11/2/2009

Groundwater Discharge (cfs)

Simulated and Observed Groundwater Discharge, Agua Fria River

Simulated SWG Groundwater Discharge, Agua Fria River Baseflow (mean=3.94 cfs) ADWR Simulated Groundwater Discharge, Agua Fria River Baseflow, 1939-2011 mean = 2.22 cfs; 1980-2011 mean 2.23 cfs Observed Flow (1980-2012 - field measured, Wilson (1988), ADWR; USGS), mean=1.97 cfs (1,430 AF/yr) {Note effluent releases in upper reach of Agua Fria River started in 1994} Observed_Summer_Season_minimum

9

4460 4465 4470 4475 4480 4485 4490 4495 11/01/39 10/31/49 11/01/59 10/31/69 11/01/79 10/31/89 11/01/99 10/31/09

UAF Sub-Basin near Humboldt

Observed Water Levels at Well, (A-13-01)14bdc2 ADWR_Sim SWG_Sim

10

4485 4495 4505 4515 4525 4535 4545 4555 4565 11/01/39 10/31/49 11/01/59 10/31/69 11/01/79 10/31/89 11/01/99 10/31/09

UAF Sub-Basin near Dewey

Observed Water Levels at Well, (A-13-01) 02cad SWG_Sim ADWR_Sim

4615 4625 4635 4645 4655 4665 4675 4685 4695 4705 11/01/39 10/31/49 11/01/59 10/31/69 11/01/79 10/31/89 11/01/99 10/31/09

UAF Sub-Basin, Adjacent to Lynx Creek

Area of High Recharge (Hydrograph shown twice in Model Report)

Observed Water Levels at Well, (A-14-01)28BBB ADWR_Sim_Base SWG_Sim

4820 4830 4840 4850 4860 4870 4880 4890 4900 4910 4920 11/1/1939 10/31/1949 11/1/1959 10/31/1969 11/1/1979 10/31/1989 11/1/1999 10/31/2009

UAF Sub-Basin, Upper Lynx Creek Area

Reference Location Used in 2014 AHS Presentation Observed Water Levels at Well, (B-14-01)26aaa ADWR_Sim SWG_Sim
