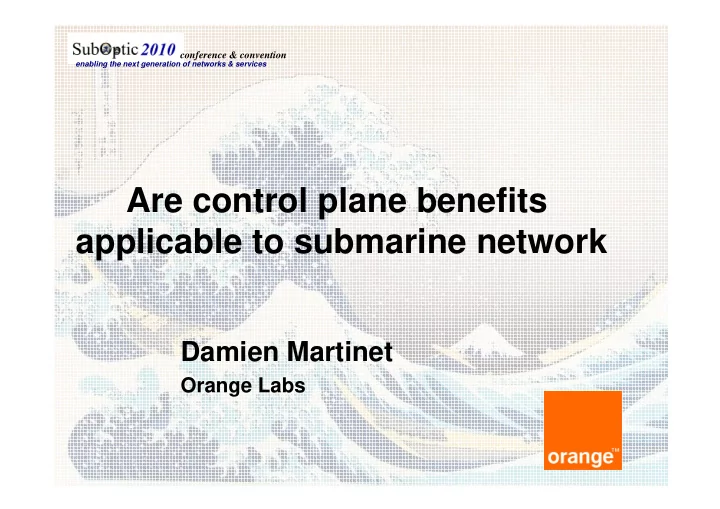

Are control plane benefits applicable to submarine network applicable to submarine network

Damien Martinet

Orange Labs

slide-2
SLIDE 2 enabling the next generation of networks & services

conference & convention

Presenter Profile

Damien gratuated at university of Savoie in 2002, he joined the France Telecom Group as network supervisory team manager in Toulouse. Damien moved to Orange Labs in Lannion Damien moved to Orange Labs in Lannion 6 years ago, and he was in charge of many equipement evaluation in transmission domain, including recently LTE and SIE expertise for submarine network. Damien Martinet DWDM network expertise Email: damien.martinet@orange- ftgroup.com Tel: (+33) 296 053 372

slide-3
SLIDE 3 enabling the next generation of networks & services

conference & convention

Are control plane benefits applicable to submarine networks?

Outline

Introduction Control Plane function and principle Control Plane function and principle

GMPLS Interworking Submarine Network Application Cable system backhaul Cable system network Restoration issues

Conclusion

slide-4
SLIDE 4 enabling the next generation of networks & services

conference & convention

Introduction

Legacy Management System

LCT LCT

slide-5
SLIDE 5 enabling the next generation of networks & services

conference & convention

Introduction

Legacy Management System

LCT LCT EMS

slide-6
SLIDE 6 enabling the next generation of networks & services

conference & convention

Introduction

Legacy Management System

LCT LCT EMS NMS

slide-7
SLIDE 7 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP principle

Additional Tool

  • Additional Tool

Autonomous mechanisms Into NEs

slide-8
SLIDE 8 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery

slide-9
SLIDE 9 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery

slide-10
SLIDE 10 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery

slide-11
SLIDE 11 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery

slide-12
SLIDE 12 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery E2E service provisioning

slide-13
SLIDE 13 enabling the next generation of networks & services

conference & convention

  • Control plane function and principle

CP function

Topology auto

  • Topology auto

discovery E2E service provisioning Restoration

slide-14
SLIDE 14 enabling the next generation of networks & services

conference & convention

Control plane function and principle

Interworking Generalized MultiProtocol Layer Switching

Standardized IETF RFCs

FUNCTION PROTOCOL

Topology OSPF or IS-IS Link Management LMP Signaling RSVP-TE

slide-15
SLIDE 15 enabling the next generation of networks & services

conference & convention

Control plane function and principle

Interworking

Suppliers Suppliers (same domain)

slide-16
SLIDE 16 enabling the next generation of networks & services

conference & convention

Control plane function and principle

Interworking

Suppliers Suppliers (same domain) Layers (different domain)

slide-17
SLIDE 17 enabling the next generation of networks & services

conference & convention

Submarine network application

Submarine cable backhaul

Operator level Operator level Already used Cable as trunk

slide-18
SLIDE 18 enabling the next generation of networks & services

conference & convention

Submarine network application

Submarine cable network

Topology Topology

NE Link

slide-19
SLIDE 19 enabling the next generation of networks & services

conference & convention

  • Submarine network application

Submarine cable network

Topology

  • !

"# $" %#$" &! '(% '()

  • '(*

+! #$"&! $"," &-

Topology Provisioning

slide-20
SLIDE 20 enabling the next generation of networks & services

conference & convention

Submarine network application

Submarine cable network

Topology Topology Provisioning Restoration

slide-21
SLIDE 21 enabling the next generation of networks & services

conference & convention

Submarine network application

Submarine cable network

Topology

MSP1:N RESTORATION

Routing Operator NE or Operator

Topology Provisioning Restoration

Routing Operator NE or Operator Bandwidth Not Optimized Optimized Granularity STM-64 VC-4 Sharing Dedicated Static Shared Dynamic Multiple failure No Yes Service recovery 50 ms seconds

slide-22
SLIDE 22 enabling the next generation of networks & services

conference & convention

Are control plane benefits applicable to submarine networks?

Conclusion

Yes

Fully relevant to manage complex networks (topology and provisioning) Fully relevant to manage complex networks (topology and provisioning) Save efficiently protection ressource (granularity, sharing)

Even if

Not many additional features for simple topologies It may make sense to activate preferably CP at operator backhaul layer (expensive) "Earth is a single point of failure"
