Applications in Nuclear Medicine and Radiology Professor Bob Ott Institute of Cancer Research and Royal Marsden Hospital Topics Digital x-ray imaging Fast CT scanning SPECT scanners for small animals SPECT/CT scanning PET


slide-1
SLIDE 1

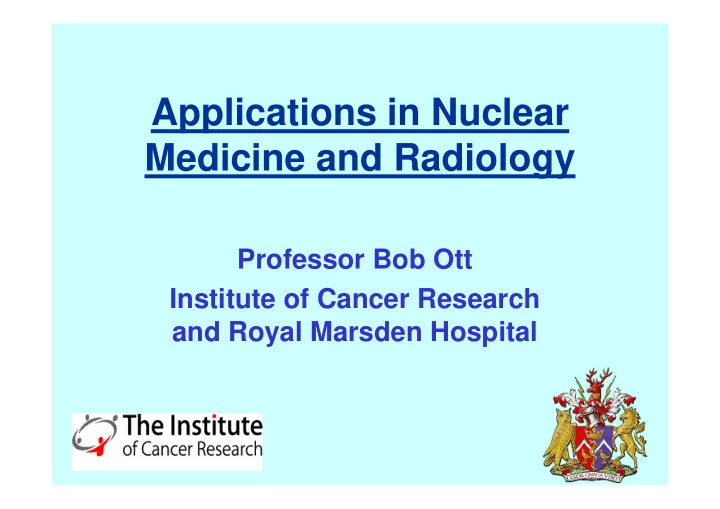

Applications in Nuclear Medicine and Radiology

Professor Bob Ott Institute of Cancer Research and Royal Marsden Hospital

slide-2
SLIDE 2

Topics

  • Digital x-ray imaging
  • Fast CT scanning
  • SPECT scanners for small animals
  • SPECT/CT scanning
  • PET scanners for small animals
  • New crystals for PET and SPECT
  • Active pixel sensors in medical imaging
slide-3
SLIDE 3

Imaging requirements

  • X-ray imaging of anatomy

energies between ~20keV and 140keV performed in integrate mode contrast between tissues often small

  • Single photon emission computed

tomography (SPECT) imaging tissue function gamma ray energies between 80-364 keV

  • Positron emission tomography (PET) imaging
  • f tissue function

gamma ray energy 511 keV

  • PET and SPECT in pulse counting mode
slide-4
SLIDE 4

Digital planar X-ray imaging

  • Systems have been based on the use of:

storage phosphor plates flat panel detectors such as amorphous silicon or selenium scanning slot devices with CCDs phosphors imaged with a CCD or CMOS devices

  • Typically 70 microns spatial resolution is possible for

breast imaging with ~100% photon detection at ~20keV

  • 10 lp/mm possible compared to 15 lp/mm with film
slide-5
SLIDE 5

Indirect flat panel sensor for x-ray imaging

slide-6
SLIDE 6

Diagnostic X-ray CT scanning

  • Historically detectors based on the use of CsI coupled

to silicon diodes or Xe gas detectors

  • More recent developments involve the use of CdWO4
  • r ceramic scintillators such as Yttrium Gadolinium

Oxide which have ~2x the light output of CdWO4

  • New fast ceramic detectors use gadolinium oxide

(GDOS) have a short decay time and reduced afterglow (by 400 times).

  • Can make fast images with 30% less radiation dose
slide-7
SLIDE 7

Comparison of afterglow from scintillators used in CT

slide-8
SLIDE 8

Diagnostic X-ray CT scanning

  • Main developments are in multi-slice imaging to

speed up scanning allowing heart scanning in 5 beats

0.4 32 64 x 0.5 Toshiba Aquilion 64 0.37 28.8 64 x 0.6 Siemens Sensation 64 0.4 40 64 x 0.625 Philips Brilliance 64 0.35 40 64 x 0.625 GE Lightspeed VCT Rotation speed (s) Axial length (mm) Channels Scanner

slide-9
SLIDE 9

Curved View (1) and X-Section (2) views showing the calcified plaque on the LAD

slide-10
SLIDE 10

X-ray CT future developments

  • Toshiba have developed a new 256 x

0.5mm row detector array which is soon to be commercial

  • GE and Siemens are developing flat panel

detector CT systems which can be used for RT planning but are presently too slow for diagnostics

slide-11
SLIDE 11

High resolution animal SPECT

  • The HiSPECT system is an add-on to

existing NaI(Tl)-based gamma cameras to give multi-pinhole aperture sensitivity and enhanced resolution.

  • The Nano-SPECT system is a purpose

built (Mediso) small animal imaging gamma camera system with a resolution

  • f <0.8mm and with multi-pinhole

sensitivity.

slide-12
SLIDE 12

HiSPECT with multipinhole collimator

slide-13
SLIDE 13

HiSPECT images of mouse using Tc-99m tracers

slide-14
SLIDE 14

Nano-SPECT system

slide-15
SLIDE 15

Nano-SPECT images of mouse taken in helical mode

slide-16
SLIDE 16

SPECT/CT scanning

  • Following the development of PET/CT scanners

several SPECT/CT scanners have now been developed

  • Provide improved attenuation/scatter correction

plus anatomy as well as function

  • Siemens and Philips have just connected double

headed gamma cameras to conventional CT scanners

  • GE have produced a gamma camera gantry

incorporating a low cost CT scanner

slide-17
SLIDE 17

SPECT/CT images

slide-18
SLIDE 18

The new LabPET system

Made with APDs coupled to individual scintillating crystals (LSO)

slide-19
SLIDE 19

Properties of the LabPET system

2-12 2-12

Coinc time window (ns)

2.4 2.4

Volume resolution (µl)

1.1 1.1

Linear spatial Resolution (mm)

2 x 2 2 x 2

Scint size (mm)

3072 1536

# of APDs

7.2 3.6

Axial FoV (cm)

11 11

Aperture (cm)

15.6 15.6

Ring diam (cm)

LabPET 7.2 LabPET 3.6 Specification

slide-20
SLIDE 20

Images from the LabPET system

F-18-FDG F-18 fluoride

slide-21
SLIDE 21

HIDAC MWPC PET system

slide-22
SLIDE 22

HIDAC MWPC PET system

F-18 fluoride F-18 FDG

slide-23
SLIDE 23

The new PETMOT system

  • The system will combine phoswitch- PET

and micro-lens array optical tomograph

  • Optical lens system is 1cm2 block

containing 100 x 1mm lenses

  • Optical collimator used to reject non-
  • rthogonal rays
  • Coupled to photodiodes
slide-24
SLIDE 24

Multi lens array assembly for a single block

Without (l) and with (r) optical collimator

slide-25
SLIDE 25

PET-MOT system

Transaxial

With and without optical collimator

slide-26
SLIDE 26

PET-MOT system

  • Allows both optical and positron emission

tomography simultaneously

  • The optical system inside the PET array

has little effect on the 511keV photons and is insensitive to them

  • J Peter and W Semmler, German Cancer

Centre, Heidelberg

slide-27
SLIDE 27

An MR compatible PET system for small animals

  • LSO multi ring PET system mounted

inside the MR magnet with a purpose-built RF coil within PET ring

  • 104 2mm x 3mm x 5mm crystals coupled

to 2mm diameter optical fibres

  • Fibres connected to MC-PMTs mounted in

an RF screened box

  • Ring diameter 75.5 mm
  • P Marsden et al at St Thomas’ Hospital
slide-28
SLIDE 28

PET- MR system layout

PET scanner within MR bore Off-set concentric PET rings

slide-29
SLIDE 29

PET – MR resolutions

spatial pulse height timing 1.4-1.9mm ~45% in 1m 10.9ns

15cm 3.4m 3.4m 3.4m

slide-30
SLIDE 30

New crystals for PET/SPECT

3.79 ~1.9 350 28 0.7-0.9 LaCl3(Ce) 6.71 1.85 430 60 0.2 GSO 4.88 1.5 195/310 0.6/630 0.05/0.16 BaF2 5.29 ~1.9 380 26 1.3 LaBr3(Ce) 7.4 1.82 420 40 0.75 LSO 7.13 2.15 480 300 0.2 BGO 3.67 1.85 415 250 1.0 NaI (Tl) Density (g.ml) Refractive index Peak λ (nm) 1/e decay time (ns)

  • Rel. light
  • utput

Crystal

slide-31
SLIDE 31

LaBr3:Ce scintillation camera

  • Pani et al have developed a small

scintillation camera using this new scintillator coupled to a flat panel PSPMT

  • Achieve an energy resolution of 6.5% and

a spatial resolution of 1.1mm FWHM

  • Efficiency at 140 keV is twice that of

NaI(Tl) with a 6mm crystal

slide-32
SLIDE 32

LaBr3:Ce TOF PET scanner

  • Karp et al have developed a ring PET scanner

using LaBr3:Ce crystals 4mm x 4mm by 30mm coupled via continuous light guide to PMTs

  • Energy resolution (8.5%) is better than the

equivalent LSO scanner (>20%) leading to a reduced scatter fraction (22% vs 42%)

  • Peak NEC rates are better than the LSO scanners
  • Timing resolution is ~315ps!!
slide-33
SLIDE 33

Active Pixels Sensors in Medical Imaging

  • Active pixel sensors are being developed

under the MI-3 basic technology grant

  • Will allow on-chip intelligence and ‘individual

pixel/ROI’ read-out

  • Applications include:

High resolution (sub-mm) gamma camera imaging Digital X-ray imaging High resolution (<5µ) digital autoradiography

slide-34
SLIDE 34

Summary

  • Still plenty of mileage in new

detectors for both NM and Radiology to: improve image contrast improve spatial resolution combine modalities reduce radiation dose pixel intelligence
