Aplicaes P2P Roteiro: Evoluo Napster Gnutella FastTrack Edonkey - - PowerPoint PPT Presentation

Rosa Leão – 2008

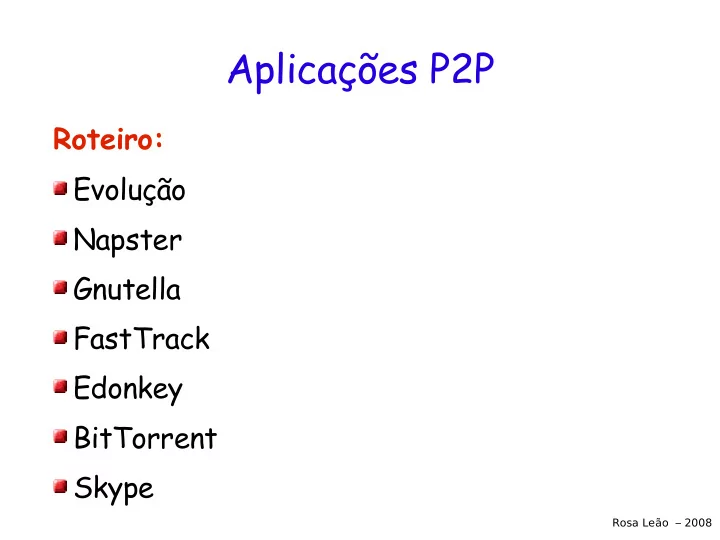

Aplicações P2P

Roteiro: Evolução Napster Gnutella FastTrack Edonkey BitTorrent Skype

Rosa Leão – 2008

Aplicações P2P

Evolução do tráfego:

Rosa Leão – 2008

Aplicações P2P

Vantagens: Escalabilidade: cada cliente contribui com os seus próprios recursos Custo distribuído entre os peers Robustez: redundância devido a arquitetura do sistema pois dados podem ser recuperados de diversas fontes

Rosa Leão – 2008

Aplicações P2P

Primeira Geração: Sistemas centralizados Servidor central usado para indexar os arquivos Portas pré-definidas para transferência de dados Sistemas fáceis de serem identificados Exemplo: Napster

Rosa Leão – 2008

Aplicações P2P

Segunda Geração: Sistemas totalmente distribuídos Requisições são enviadas para os vizinhos Portas são atribuídas dinamicamente Sistemas mais difíceis de serem identificados Exemplo: Gnutella

Rosa Leão – 2008

Aplicações P2P

Terceira Geração: Combinam idéias de sistemas centralizados e distribuídos Idéia de “super” nós que possuem mais recursos que os outros e são responsáveis pelos arquivos de índices de um subconjunto de pares Portas são atribuídas dinamicamente Podem ser usadas portas de aplicações conhecidas

Rosa Leão – 2008

Aplicações P2P

Terceira Geração: Partes do arquivo podem ser recuperadas de diversos peers simultaneamente Técnicas de criptografia usadas nos dados. Ex: FastTrack Sistemas muito mais difíceis de serem identificados Exemplo: FastTrack, KazaA, Gnutella2, BitTorrent

Rosa Leão – 2008

Napster

História: Maio 1999 – criado um programa chamado Napster por um estudante de 18 anos da Boston Northeastern University Objetivo – troca de arquivos mp3 de música Fevereiro 2001 – Napster atingiu a taxa de pico de 1.5 milhões de usuários simultâneos Julho 2001 – Napster desativado por uma

• rdem judicial

Rosa Leão – 2008

Napster Architecture

Rosa Leão – 2008

Naspter

Application-level, client-server protocol over point-to-point TCP Centralized directory server which holds an index of offered MP3/WMA files Clients connect to this server, identify themselves and send a list of files they are sharing

Rosa Leão – 2008

Naspter

Other clients can search the index and learn from which clients they can retrieve the file Client pings hosts that apparently have data. Looks for best transfer rate Problems: Centralized server: single logical point of failure No security: passwords in plain text, no authentication, no anonymity

Rosa Leão – 2008

Gnutella

History: 14th March 2000: Nullsoft published under GPL Withdrawn after a couple of hours by AOL However protocol was reverse-engineered and many clones released

Rosa Leão – 2008

Gnutella

Focus: decentralized method of searching for files Each application instance serves to: store selected files route queries (file searches) from and to its neighboring peers respond to queries (serve file) if file stored locally

Rosa Leão – 2008

Gnutella

Searching by flooding: if you don’t have file, query some partners if they don’t have it, they contact other partners, for a maximum hop count reverse path forwarding

Rosa Leão – 2008

Gnutella

Problems:

freeloading: WWW sites offering search/retrieval from Gnutella network without providing file sharing

• r query routing

prematurely terminated downloads:

long download times over modems modem users run gnutella peer only briefly or users becomes overloaded late 2000: only 10% of downloads succeed

Searh requests grow exponentially to the number of connected users, then they overwhelm the Internet

Rosa Leão – 2008

Gnutella

Solution: Create peer hierarchy based on capabilities Previously: all peers identical, most modem blackholes Connection preferencing:

favors routing to well-connected peers favors reply to clients that themselves serve large number

• f files: prevent freeloading

Rosa Leão – 2008

FastTrack

Architecture:

Organized in super nodes (SN) and ordinary nodes (ON) – TCP connections Overlay network

Rosa Leão – 2008

FastTrack

Overlay maintenance:

list of potential SN included within software download new peer goes through list until it finds operational SN

connects, obtains more up-to-date list node then pings 5 SN on list and connects with the one with smallest RTT

if SN goes down, node obtains updated list and chooses new SN

Rosa Leão – 2008

FastTrack

Searching and sharing files: ON chooses a parent SN and upload the metadata for files it is sharing Metada contains: file name, file size, ContentHash, file descriptors (eg., artist name, album name, etc.) ON sends a query to SN to locate files For each match SN sends IP address, port number, metadata

Rosa Leão – 2008

FastTrack

Signaling traffic is encrypted:

handshaking (connections between peers) metada, uploaded from ONs to SN supernode lists queries and replies

File transfer traffic (eg., MP3s, videos, etc) is not encrypted and is sent within HTTP messages One of the most popular clients is KaZaA-Lite

Rosa Leão – 2008

eDonkey

Searching and sharing files:

Consists of servers (index for file location) and clients Each server keeps a list of all files shared by the clients connected to it Client gathers a list of all potential file providers when he connects to a server Most popular clients: eDonkey2000, eMule

Rosa Leão – 2008

eDonkey

File download:

Can download from multiple peers Each file is divided into pieces of approximately 10 MBytes Clients can restrict the upload bandwidth to a given limit A mechanism decides which client is served next The mechanism gives priority to peers from which blocks have been previously downloaded

Rosa Leão – 2008

BitTorrent

Main principles:

Challenge: maximize the speed of replication File is divided into pieces of 256KB Can download from multiple peers Hybrid architecture: tracker and peers Tit-for-tat strategy encourages cooperation and avoid free-riding Rarest first algorithm to select pieces Created in 2002 by Brian Cohen

Rosa Leão – 2008

BitTorrent

Elements:

Two kinds of peers:

Seeds: have a complete copy of the file Leechers: still downloading the file

Trackers:

Keeps meta-information about the peers that are currently active Act as a rendez-vous point for the clients of the torrent

Rosa Leão – 2008

BitTorrent

How to obtain the list of peers ?

IP address of the tracker

Rosa Leão – 2008

BitTorrent

How to obtain the list of peers ?

Report its state

Rosa Leão – 2008

BitTorrent

Random peer list 50 peers typically

How to obtain the list of peers ?

Rosa Leão – 2008

BitTorrent

How to obtain the list of pieces ?

Maintain connections to 20-40 peers List of pieces

Rosa Leão – 2008

BitTorrent

Which peers to upload from – choke/unchoke algorithm

Every 10 seconds a peer re- evaluates the upload rates for all peers Chokes the peer with the smallest upload rate Every 30 seconds unchokes a peers regardless the upload rate offered (optimistic unchoking) Seeds apply the same strategy based on download rates

Rosa Leão – 2008

BitTorrent

Which peers to upload from – choke/unchoke algorithm

Every 10 seconds a peer re- evaluates the upload rates for all peers Chokes the peers with upload rate equal to zero Unchokes the choked peers with upload rate greater than zero Seed unchokes the peer that is longer chocked

Rosa Leão – 2008

BitTorrent

Piece selection - rarest first algorithm

Peer has no pieces: random police to obtain the first

• ne

For others pieces peers selects the rarest first piece Peers have a local view Each time the download of a new piece is completed, peer informs all the peers it is connected with

Rosa Leão – 2008

BitTorrent

Piece selection – strict priority

Peer breaks pieces of 256KBytes into sub-pieces

• f 16KBytes

Requests the remaining sub- pieces for a particular piece before sub-pieces of another piece The goal is to have “complete” pieces as soon as possible

Rosa Leão – 2008

BitTorrent

Piece selection – end game mode

Peer sends requests for all of its missing pieces to all of its peers when there are few pieces to finish the download To keep this from becoming horribly inefficient, the client also sends a cancel to everyone else every time a piece arrives

Rosa Leão – 2008

BitTorrent

Updating the list of peers

If the number of connections is less than 20 Peer recontact the tracker to obtain additional peers

Rosa Leão – 2008

P2P file sharing applications traffic distribution

Rosa Leão – 2008

Skype

Released in 2003 by Niklas Zennstrom and Janus Friis (who founded FastTrack and Kazaa) Proprietary protocol P2P network for user directory and NAT/firewall traversal Hierarchical infra-structure: supernodes and clients

Every peer starts as client node, the Skype software checks if client has CPU, memory, network bandwidth, and is not behind NAT or firewalls Skype promotes client node to supernode

Rosa Leão – 2008

Skype

Supernode functions: user directory service, relay traffic for computers behind NAT and firewall Skype client find a supernode to be its default gateway Try to establish a UDP connection to the supernode Try to establish a TCP connection on an arbitrary port Try to establish a TCP connection on port 80 or 443 Skype first tries to establish a direct connection with a certain NAT traversal mechanism If the connection fails, Skype relays the traffic through the gateway supernode of the Skype clients
