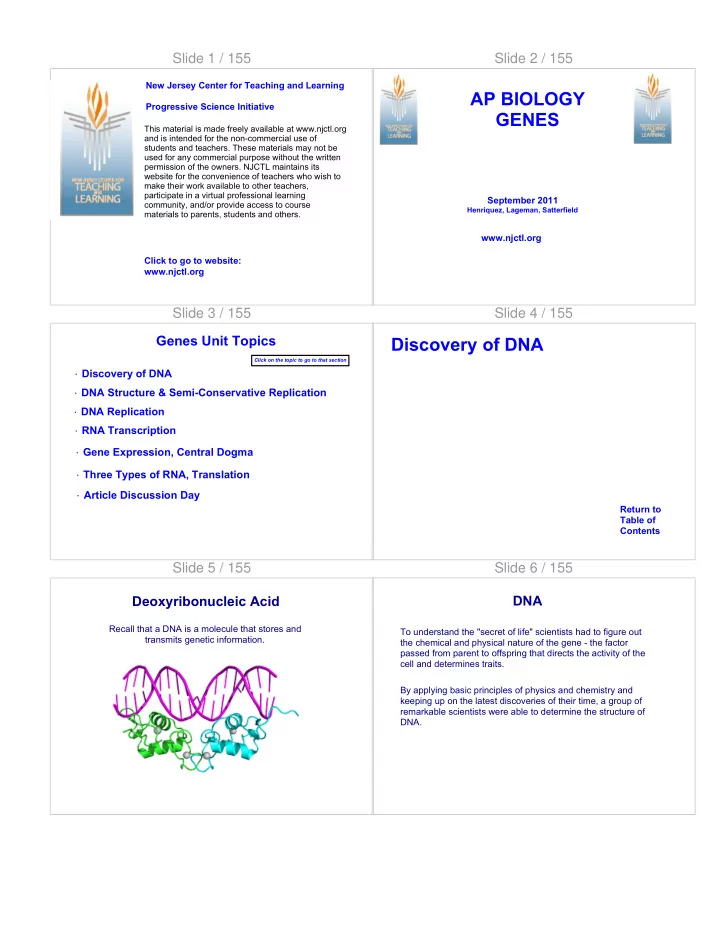

AP BIOLOGY Progressive Science Initiative GENES This material is - - PDF document

Slide 1 / 155

This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others.

Click to go to website: www.njctl.org New Jersey Center for Teaching and Learning Progressive Science Initiative

Slide 2 / 155

AP BIOLOGY GENES

www.njctl.org September 2011

Henriquez, Lageman, Satterfield

Slide 3 / 155 Genes Unit Topics

· Discovery of DNA · DNA Structure & Semi-Conservative Replication · RNA Transcription

Click on the topic to go to that section

· Gene Expression, Central Dogma · Three Types of RNA, Translation · Article Discussion Day · DNA Replication

Slide 4 / 155

Discovery of DNA

Return to Table of Contents

Slide 5 / 155

Recall that a DNA is a molecule that stores and transmits genetic information.

Deoxyribonucleic Acid Slide 6 / 155 DNA

To understand the "secret of life" scientists had to figure out the chemical and physical nature of the gene - the factor passed from parent to offspring that directs the activity of the cell and determines traits. By applying basic principles of physics and chemistry and keeping up on the latest discoveries of their time, a group of remarkable scientists were able to determine the structure of DNA.

Slide 7 / 155 DNA and Modern Medicine

The discovery of the structure and function of DNA has led to astounding leaps in understanding of biology, heredity, and modern medicine. "It's impossible to overstate the importance of knowing the structure of DNA."

• Francis Collins, Director of the Human Genome Project

Click Here to see a DNA timeline

Slide 8 / 155 "Standing on the Shoulders of Giants"

The proof that DNA is the carrier of genetic information involved a number of important historical experiments. These include: Griffith Transformation Experiment Avery-Macleod-McCarty Experiment Hershy-Chase Experiment Contributions of Watson, Crick, Wilkins, and Franklin

Slide 9 / 155 Griffith and Transformation

In 1928 British Scientist Frederick Griffith was conducting experiments with mice to determine how bacteria made people sick. Griffith isolated two different strains of pneumonia bacteria from mice and grew the bacteria on petri dishes in the lab.

Slide 10 / 155 Griffith's Colonies

One strain grew in rough colonies and did not cause disease. The other strain grew in smooth colonies and caused disease.

Did not cause disease Caused disease

R strain colonies S strain colonies

Slide 11 / 155 Mice and the 2 strains

When he injected the mice with the rough (R) strain, they lived. When he injected the mice with the smooth (S) strain, they died. However, when he heated the S strain of bacteria, killing them, and then injected the heat-killed S strain bacteria into the mice, they did not die.

Slide 12 / 155 Mouse Mortality

Heating the S strain killed the bacteria and prevented them from passing disease to the mice.

Slide 13 / 155 Griffith Experiment Part 2

Griffith then mixed heat-killed disease-causing S strain bacteria with live, harmless R strain bacteria and injected this mixture into mice. Before neither heat-killed S strain or live R strain bacteria made the mice sick, but the mixture of the two caused the mice to develop pneumonia and die.

Slide 14 / 155 Griffith: Part 2 Slide 15 / 155 What was in the mice lungs?

Griffith examined the lungs of mice that had been infected with the mixture of dead S strain and live R strain bacteria and found them filled with disease-causing bacteria. This indicated that a chemical factor was transferred from the dead S strain bacteria to the live R strain bacteria that transformed them into disease-causing bacteria.

Slide 16 / 155 What was the chemical factor?

He also noted this factor was passed

• n as the

bacteria reproduced.

Slide 17 / 155

1 What is bacterial transformation?

A

The inheritance of genetic material

B

The exchange of genetic material between strains of bacteria

C

The interaction between strains of bacteria

D

The passage of genetic material from parent to offpsring

Slide 18 / 155

2 Why was Griffith's experiment significant?

A

It showed that a chemical factor transformed R strain bacteria into S strain bacteria

B

It proved dead bacteria could still transmit disease directly to mice

C

It indicated proteins were the source of genetic material

D

None of the above

Slide 19 / 155

Oswald Avery, Colin MacLeod, and Maclyn McCarty were the first to demonstrate that DNA was the substance that caused bacterial transformation. Avery's group built on Griffith's work to determine which chemical was responsible for transforming the R strain bacteria. In the 1930s and 1940s, at the Rockefeller Institute for Medical Research in New York City, Avery and his colleagues suggested that DNA, rather than protein as was believed at the time, was the hereditary material in bacteria.

Avery, Macleod, MacCarty Slide 20 / 155 Avery's Experiment

They mixed the S lysate with R strain bacteria and determined that the contents of cell parts in the S lysate still allowed transformation to occur.

Lysate

First they repeated Griffith's experiment by mixing heat-killed S strain and R strain bacteria and verifying transformation

• ccurred.Then they lysed the S cells by adding detergent.

Detergent disrupts the cell membrane and cell wall, causing the DNA, RNA, proteins and other molecules to spill out.

Slide 21 / 155

Their Three Mixtures

Next they mixed heat-killed S strain lysis containing DNA, RNA, and Protein with R strain bacteria and allocated the mixture into three test tubes: To tube A they added DNase - an enzyme that destroys DNA molecules. To tube B they added RNase. To tube C they added Protease. Finally, they injected each mixture into the mice and waited for results.

Slide 22 / 155

3 What does the enzyme RNase do?

A

Breaks down RNA molecules

B

Synthesizes RNA molecules

C

Breaks down proteins

D

Synthesizes proteins

Slide 23 / 155

4 If DNA were the molecule being transferred from dead S strain bacteria to live R strain bacteria, then the mice injected with DNase treated bacteria would most likely

A

Survive

B

Die

C

Remain unaffected

D

Pass on pneumonia to their offspring

Slide 24 / 155 Avery's Results

The results of the experiment showed that the mice injected with both the RNase and Protease treated bacterial cells died. However, the mice injected with the DNase treated bacterial cells survived. *Destroying the DNA prevented transformation of R strain bacteria.

Slide 25 / 155

5 What did Avery's experiment prove?

A

Bacteria can exchange genetic information

B

DNA is the molecule that causes bacterial transformation

C

RNA and Proteins are the molecules responsible for transferring genetic information

D

DNase breaks down DNA molecules

Slide 26 / 155 Hershey and Chase

Alfred Hershey and Martha Chase conducted a series of experiments helping to confirm that DNA was the genetic material in cells. Hershey and Chase showed that when viruses (made of proteins and DNA) infect bacteria, their DNA enters the host cell but most

• f their proteins do not.

Hershey shared the 1969 Nobel Prize in Physiology for his work involving the genetic nature of viruses.

Slide 27 / 155 The Hershey Chase Experment Slide 28 / 155

6 What would you expect to see if protein had been injected into the cell instead?

A

Red-labeled cells

B

Green-labeled cells

C

Cells containing phosphorous

D

Cells containing oxygen

Slide 29 / 155

DNA Structure & Semi- Conservative Replication

Return to Table of Contents

Slide 30 / 155 Structure of DNA

In 1962, the Nobel Prize in Physiology and Medicine was awarded to James Watson, Francis Crick, and Maurice Wilkins for their determination of the structure of DNA in 1953. Unfortunately, the rules of the prize award state it can only go to the

• living. This meant Wilkin's colleague

Rosalind Franklin who collected all the data they used could not receive honor. Franklin died at the age of 37 in 1958 from ovarian cancer which is thought to be the result of her work with X-ray radiation incurred while doing the research.

Slide 31 / 155 X-ray Crystallography

Franklin and Wilkins used a technique called X-ray crystallography to discover more information about the structure of DNA. X-ray crystallography is a method of determining the arrangements of atoms within a crystal. When X-rays (a type of electromagnetic wave) strike a crystal, they diffract around electrons. The angles and intensities of diffracted beams can be used to determine the position of atoms and chemical bonds.

This diffraction pattern indicated the double helical shape of DNA

Slide 32 / 155 Watson and Crick's Double Helix

Using information from the work of Wilkins and Franklin, James Watson and Francis Crick were the first to propose the double helical nature of DNA. Francis Crick is also well known for coining the term "central dogma" regarding the flow of genetic information from DNA to RNA to protein. The day they discovered the helix in 1953, they are said to have left their lab, walked into a pub in Cambridge, England and interrupted the patrons' lunchtime shouting "we have discovered the secret to life!"

Slide 33 / 155

Double Helix

Slide 34 / 155

7 The scientists associated with the discovery of the structure of DNA were: A Hershey and Chase B Watson, Crick, Wilkins, and Franklin C Avery, MacLeod, and McCarty

Slide 35 / 155

8 These scientists showed that DNA was at the root of bacterial transformation. A Hershey and Chase B Watson, Crick, Wilkins, and Franklin C Avery, MacLeod, and McCarty

Slide 36 / 155

9 Four of the following terms all involve the experiment of Hershey and Chase. Choose the one which does not belong. A helix structure B DNA C virus D host E bacteriophage

Slide 37 / 155 DNA

DNA is made up of two chains of repeating nucleotides.

1 Nucleotide

Slide 38 / 155 DNA Slide 39 / 155 Deoxyribonucleic Acid

DNA is a good archive for genetic information since the bases are protected on the inside of the helix.

Slide 40 / 155

10 If one strand of DNA is CGGTAC, the complementary strand would be:

A GCCTAG B CGGTAC C TAACGT D GCCATG

Slide 41 / 155

11 Four of the following are associated with DNA. Choose the one which is not.

A

uracil

B

thyamine

C

adenine

D

guanine

E

cytosine

Slide 42 / 155

12 If one strand of DNA is AGCTGA, the complementary strand would be:

A TCGACU B TCGACT C AGCTGA D AGTCGA

Slide 43 / 155 Replication

The functions of a cell are determined by its DNA. Cells have to reproduce many times. In complex organisms, trillions of copies are made from one original cell. But when cells reproduce, their DNA has to reproduce as well. The structure of DNA reveals how trillions of copies of the DNA in one of your cells can be made, and be nearly identical each time.

Slide 44 / 155

Consider these three facts: · Each individual strand of DNA is held together by strong covalent bonds. · The two strands are held to one another by weaker hydrogen bonds. · Each base (ACGT) attracts only its complementary base (TGCA)

Replication Slide 45 / 155 DNA Molecule as Template

Each molecule of DNA is made

• f a template strand and a new

strand. The template is used to make the new strand. The template strand is also known as the parent strand since it came from the original DNA molecule. The new strand is also known as the daughter strand. template strand

Slide 46 / 155

DNA nucleotide monomers are made ahead of time and stored in the cell. When it is time for the DNA to replicate itself, the nucleotides are ready to be added to the new growing strand of DNA.

Replication

DNA polymerase is the enzyme responsible for adding each new nucleotide to the growing strand.

Slide 47 / 155 Replication

DNA is anti-parallel. Each strand has two ends: a 5' end and a 3'

• end. Nucleotides can only be added to the -OH end (3`), not the 5`

so all strands grow from the 5' end to the 3' end. Each molecule of DNA is made of

• ne "old" and one

"new" strand. The "old" strand is used as a template to make the "new" strand.

Slide 48 / 155

The template strands

• f the DNA molecule

separate and the new strands are made on the inside.

Semi-Conservative DNA Replication

The new strands are made in the 5' - 3' direction. The result of this process is 2 new DNA molecules each having an old template strand and new strand.

Slide 49 / 155

Two parent strands One parent and

• ne daughter

strand One parent and

• ne daughter

strand

Semi-Conservative DNA Replication

Slide 50 / 155

DNA replication is said to be a Semi-Conservative process. This means that the template DNA strand is partially saved and reused throughout the process. The base sequence on the template strand will allow for the creation of the base sequence on the new strand. 3' ATCGGGTTAACGCGTAAA 5' template strand 5' ______________________ 3' new strand

Semi-Conservative Replication

What is the sequence of the new strand?

Slide 51 / 155

13 The 3' end of a DNA strand has a phosphate at the end. True False

Slide 52 / 155

14 Why does a DNA strand only "grow" in the 5' to 3' direction?

A because DNA can only add nucleotides to the 3' end of the molecule B because DNA can only add nucleotides to the 5' end of the molecule

C because mRNA can only read a DNA molecule from 5' to 3' D because mRNA can only read a DNA molecule from 3' to 5'

Slide 53 / 155

15 If the parent DNA strand is 5' ATCGATACTAC 3', what will the daughter stand be

A 5' TAGCTATGATG 3' B 3' ATCGATACTAC 5' C 5' UAGCUAUGAUG 3' D 3' TAGCTATGATG 5'

Slide 54 / 155

16 "Semi-conservative" means: A the DNA is used slowly B the DNA is sometimes reused C the DNA is partially saved and reused in the process D

• nly part of the DNA is used

Slide 55 / 155

17 Which of the following is a nucleotide unit found in DNA? A ribose + phosphate + thymine B deoxyribose + phosphate + uracil C deoxyribose + phosphate + cytosine D ribose + phosphate + uracil

Slide 56 / 155

DNA Replication

Return to Table of Contents

Slide 57 / 155

In order for DNA replication to occur, DNA strands, which are naturally twisted in the shape of a double helix, must be relaxed, unwound, and opened-up to allow each strand to be

• copied. Then nucleotides must be added to each strand.

Many enzymes are involved in this process.

DNA Replication In-Depth Slide 58 / 155

Topoisomerase binds to the DNA strand and cuts the double helix, causing the molecule to untwist and relax.

DNA Replication In-Depth Slide 59 / 155

Helicase breaks hydrogen bonds between nucleotide base pairs causing the two strands to separate and form a replication fork. Small proteins called single-stranded binding proteins stabilize each strand.

DNA Replication In-Depth Slide 60 / 155

18 Which enzyme causes the double helix to unwind by breaking hydrogen bonds?

A

Topoisomerase

B

Helicase

C

Polymerase

D

RNAse

Slide 61 / 155

Recall in a DNA molecule, DNA strands are antiparallel, meaning that one strand runs from the 3' OH group at one end of the molecule to 5' phosphate group at the other end of the molecule. The other strand runs in the opposite direction from 5' to 3'. At the replication fork, the new strand added in the 5' to 3' direction is referred to as the leading strand. The new strand added in the 3' to 5' direction is called the lagging strand.

DNA Replication In-Depth

5' 3'

Slide 62 / 155

On the leading strand, new complementary nucleotides are added continuously by the enzyme DNA polymerase. *DNA polymerase can only add nucleotides to the 3' end of a parent strand, so the leading strand elongates toward the replication fork in the 5' to 3' direction.

DNA Replication In-Depth Slide 63 / 155

19 DNA Polymerase adds nucleotides in which direction?

A

3' to 5'

B

5' to 3'

C

3' to 5' and 5' to 3'

D

5' to 5'

Slide 64 / 155

The lagging strand elongates away from the replication fork. DNA polymerase cannot add nucleotides to the end of this parent strand continuously, and the process of adding nucleotides discontinuously becomes a bit more complicated.

DNA Replication In-Depth Slide 65 / 155

First an enzyme called DNA primase synthesizes a short RNA primer - a complimentary sequence of RNA that binds to the DNA on the lagging strand.

DNA Replication In-Depth Slide 66 / 155

The RNA primer allows DNA polymerase to bind and add short segments of nucleotides called Okazaki fragments. Okazaki fragments are between 100-200 nucleotides long in eukaryotes and about 1000-2000 nucleotides long in prokaryotes.

DNA Replication In-Depth

5' 3'

Slide 67 / 155

The short Okazaki fragments are joined together by the enzyme DNA ligase to produce a continuous strand.

DNA Replication In-Depth

5' 3'

Click Here for Animation

Slide 68 / 155

20 In this diagram, the highlighted arrows are pointing to

A

The leading strand

B

DNA Polymerase

C

Okazaki Fragments

D

DNA Ligase

Slide 69 / 155

21 The green dot represents which enzyme?

A

Helicase

B

Ligase

C

DNA Primase

D

DNA Polymerase

Slide 70 / 155

22 The highlighted arrow is pointing to the

A

Parent strand

B

Leading strand

C

Lagging strand

D

Okazaki fragment

Slide 71 / 155

23 The highlighted arrow is pointing to the

A

Lagging strand

B

Leading strand

C

Replication fork

D

Replication bubble

Slide 72 / 155

Lagging and leading strands grow simultaneously resulting in the formation of two new DNA molecules.

DNA Replication In-Depth

Click Here for Animation

Slide 73 / 155

DNA Replication In-Depth

Cuts double helix to prepare for replication Breaks H bonds, unwinding DNA strands Adds nucleotides to parent strand Synthesizes RNA Primer Brings together Okazaki fragments Short pieces of nucleotides added to lagging strand

Write the name of the enzyme that matches the description.

Slide 74 / 155

DNA Replication In-Depth

DNA replication begins at specific sites on a chromosome called origins of replication and can occur at many different places on a chromosome simultaneously.

Click Here for Animation

Slide 75 / 155

24 DNA replication is initiated at

A

The origin of replication

B

One site at a time

C

The edges of a chromosome

D

The lagging strand

Slide 76 / 155

RNA Transcription

Return to Table of Contents

Slide 77 / 155 DNA to RNA

We stated earlier in this chapter that the functions of a cell are determined by DNA, and this is true. But DNA cannot function by itself...it needs the help of RNA.

Slide 78 / 155 RNA

Recall that RNA is made up of a sugar molecule and phosphate group "backbone" and a sequence of nitrogen bases: RNA is essential for bringing the genetic information stored in the DNA to where it can be used in the cell. These bases hydrogen bond in pairs: A bonds to U and G bonds to C. Adenine (A) Uracil (U) Guanine (G) Citosine (C)

Slide 79 / 155

25 RNA is more stable than DNA. True False

Slide 80 / 155 Transcription

Transcription is the process by which RNA strands are synthesized from DNA strands. This is the first step in the transport of the genetic information contained in DNA. The process of making RNA from DNA is called transcription because the DNA sequence of nucleotides is being rewritten into the RNA sequence of nucleotides, which differ only

• slightly. The process of transcription is very similar to that of

DNA replication.

Slide 81 / 155 Transcription

In DNA replication both strands are used as templates. Which DNA strand is used to make RNA?

Slide 82 / 155

One of the DNA strands has the code for the protein that will be made from RNA; that code is called the gene. The strand with the genes is called the "non-template strand." This IS NOT the strand that is transcribed. The other strand is the mirror image of the first, it carries the mirror image of the gene, not the gene itself. It is called the "template strand." This IS the strand that gets transcribed into RNA.

Transcription: DNA Strands Slide 83 / 155

non-template strand of DNA template strand of DNA transcription of template strand RNA

Note: the non-template strand of DNA (the gene) matches the new RNA strand This makes sense in that the RNA will be the mirror image

• f the DNA it is transcribed from. And the non-coding strand

is the mirror image of the gene.

Transcription: DNA Strands Slide 84 / 155

template strand non-template strand

DNA Strands

Slide 85 / 155

Transcription proceeds along the DNA molecule, coding an RNA

• molecule. The RNA molecule is

always made from the end with a phosphate group towards the end with a hydroxyl group.

Transcription

Just like in DNA replication, RNA is made from the 5' end to the 3' end.

Slide 86 / 155

RNA DNA A bonds with T U bonds with A G bonds with C C bonds with G

Transcription

Transcription is made possible by the fact that the different bases are attracted to one another in pairs.

Slide 87 / 155

DNA Replication Transcription Two new double-stranded DNA are produced One new single-stranded RNA is produced Adenine from the parent strand bonds with thymine

• n the new daughter

strand of DNA Adenine on the DNA strand bonds with uracil on the new RNA strand. The whole DNA molecule is replicated Only the strand with the code for the gene is transcribed. Synthesis of both occur in the 5' to 3' direction

Replication vs Transcription Slide 88 / 155

26 What was the first genetic storage molecule? A DNA B protein C RNA D amino acid

Slide 89 / 155

27 What molecule is now used to store genetic information? A DNA

B protein

C RNA D amino acid

Slide 90 / 155

28 The strand that is transcribed into RNA is called the A Template Strand

B Non Template Strand

C RNA Strand D Amino Acid Strand

Slide 91 / 155

29 The strand that is NOT transcribed into RNA is called the A Template Strand

B Non Template Strand

C RNA Strand D Amino Acid Strand

Slide 92 / 155

30

Genes are located on the A Template Strand B Non Template Strand C RNA Strand D Amino Acid Strand

Slide 93 / 155

Initiation Elongation Termination Steps of Transcription

Slide 94 / 155

• lymerase

Non- Template Promotor Region

An enzyme called RNA Polymerase attaches to the promoter sequence on the DNA. The Promoter is a specific sequence

• f bases that the RNA polymerase recognizes.

Step 1 - Initiation Slide 95 / 155

RNA Polymerase synthesizes the new RNA by moving down the DNA template strand reading the bases and bringing in the new RNA nucleotides with the proper complementary bases. As the RNA Polymerase runs down the DNA, it actually unwinds the DNA!

Step 2- Elongation

Non- Template new mRNA

Slide 96 / 155

RNA Polymerase gets to a sequence on the DNA called a Termination Sequence. This sequence signals the RNA Polymerase to STOP transcription.

Step 3 - Termination

Non- Template Termination Sequence

• lymerase

The RNA Polymerase falls off the DNA. The new RNA strand separates from the DNA and the DNA recoils into a helix.

Click Here to see an animation

• f Transcription

Slide 97 / 155

31 The transfer of genetic material from DNA to RNA is called: A translation B transcription

C elongation D promotion

Slide 98 / 155

32

What is the function of the promoter sequence on the DNA? A it is where the RNA polymerase recognizes and binds to initiate transcription B it is where the RNA gets copied C it is where the RNA polymerase binds to on the 5' end

• f the DNA initiating transcription

D it is where the RNA polymerase binds to on the 3' end

• f the DNA initiating transcription

Slide 99 / 155

33 If the template strand of DNA is 5' ATAGATACCATG 3', which is the RNA strand produced from transcription

A 5' UAUCUAUGGUAC 3' B 5' TATCTATGGTAC 3' C 3' UAUCUAUGGUAC 5' D 3' TATCTATGGTAC 5'

Slide 100 / 155

34 If the non-template strand of DNA is 3' ACGATTACT 5', which is the RNA strand produced through transcription A 3' TGCTAATGA 5' B 3' UGCUAAUGA 5'

C 5' UGCUAAUGA 3' D 5' ACGAUUAGU 3'

Slide 101 / 155

Gene Expression, Central Dogma

Return to Table of Contents

Slide 102 / 155 Evolution

Remember that back in time, the functions performed directly by RNA were taken over by proteins. The shapes of proteins are determined by the sequence of their amino acids. Proteins must be coded with the correct sequence

• f amino acids to have the right shape.

Slide 103 / 155

The first step in specifying the amino acids to create a protein is to transcribe the DNA code into RNA code. Each DNA molecule is very long, and contains codes for a very large number of proteins. The code for a single protein is transcribed into a single strand of mRNA or messenger RNA. The DNA code necessary to specify a single protein is called a gene.

Transcription and Genes Slide 104 / 155

The gene is coded, on the DNA, with the bases A,T,C and G. Transcribing that code into a strand of mRNA requires converting that DNA code into RNA code with the bases A,U,C and G. It also requires knowing where each gene starts and stops on those very long DNA molecules. This process is the beginning of gene expression.

Transcription and Genes Slide 105 / 155 Gene Expression

Gene expression is the process of taking the code in the nucleic acid and making into the protein.

Slide 106 / 155

35 What is a gene? A segment on the amino acid

B segment on the protein

C segment on the DNA that codes for a protein or RNA D segment on the RNA that codes for codons

Slide 107 / 155

36

What is meant by "gene expression"? A making the protein or RNA coded in the nucleic acid B making amino acids so they can be made into protein C making tRNA only D folding of the protein

Slide 108 / 155

Expressing the information stored on a gene into a protein requires translating: · First from the 4 letter language of DNA to RNA · Then from the 4 letter language of RNA to the 20 letter language of proteins.

DNA to RNA to Protein

Slide 109 / 155

If one letter in the DNA codes one amino acid, there'd be 16 amino acids that couldn't be specified, since DNA only uses 4 letters. If a 2 letter code were used, we could specify up to 16 different amino acids (4 x 4); we'd still be short. So, each amino acid is specified by a 3 letter DNA code; this 3 letter code is called a codon.

Codons Slide 110 / 155

A codon is a 3 base sequence on either DNA or mRNA that "codes" for an amino acid.

The Universal Genetic Code Slide 111 / 155

There are two main roles for the additional codons: punctuation and protection. Codons specify instructions for transcribing from DNA to RNA. For example, the beginning and end of each gene on a strand

• f DNA are specified by codons. Since there are hundreds of

genes on each DNA strand, punctuation is essential.

Codons

All 4 codons above code for the same amino acid - Leucine. Redundant Genetic Code

While a codon can only specify a single amino acid, there is more than one codon that can specify that amino acid.

Slide 112 / 155

This is called a "universal" code because ALL LIFE uses the same genetic code... If there were alternative codes that could work, they would have appeared in nature. This tells us that this code goes back billions of years, beyond LUCA in the first cell... even before that. While we speak of the translation of these codes from those used in DNA, mRNA and proteins; recognize that these translations occur due to very basic properties of the nucleotides and amino acids.

The Universal Genetic Code Slide 113 / 155 The 64 Codons

61 of the codons code for an amino acid 3 of the remaining codons are STOP codons that do not code for an amino acid. They just signal that translation is

• ver.

1 codon that codes for the amino acid methionine is also the START codon. This codon signals the beginning of the translation process.

Slide 114 / 155

37 Each nucleotide triplet in mRNA that specifies an amino acid is called a(n)? A mutagen

B codon

C anticodon D intron

Slide 115 / 155

Second Position

A Adenine B Glycine (Gly) C STOP D Arginine E Valine

38

The codon UAG specifies:

Slide 116 / 155

Second Position

A Adenine B Glycine C STOP D Arginine E Valine 39 The codon GUG specifies:

Slide 117 / 155

A Adenine B Glycine C STOP D Arginine E Aspartic Acid 40 The codon GAG specifies:

Slide 118 / 155

41 Which of the following amino acid sequences corresponds to this mRNA strand? CUCAAGUGCUUC A ser-tyr-arg-gly B val-asp-pro-his C leu-lys-cys-phe D pro-glu-leu-val

Slide 119 / 155 The Central Dogma of Biology

To be used by the cell the DNA information must be transcribed into mRNA strands; then it can be translated into proteins.

DNA RNA Protein

Slide 120 / 155

(Francis Crick)

Slide 121 / 155

42 Which one of the following sequences best describes the flow of information when a gene directs synthesis of a cellular component? A RNA to DNA to RNA to Protein B DNA to RNA to Protein

C Protein to RNA to DNA D DNA to Amino Acid to RNA to Protein

Slide 122 / 155

43 The transfer of genetic material from DNA to RNA is called: A translation B transcription

C elongation D promotion

Slide 123 / 155

Three Types of RNA, Translation

Return to Table of Contents

Slide 124 / 155 Three Types of RNA

mRNA or messenger RNA : carries the information for protein synthesis. This type of RNA is key to The Central Dogma. rRNA or ribosomal RNA : a catalyst for protein synthesis tRNA or transfer RNA : helps in the assembly of amino acids during protein synthesis

Slide 125 / 155

DNA mRNA Protein

transcription translation

The specific RNA that transcribes information from DNA is called Messenger RNA (mRNA); it carries the genetic message to ribosomes, where it is translated.

Messenger RNA (mRNA) Slide 126 / 155

tRNAs transfer amino acids to the ribosome so that the ribosome can covalently bond them together to form the protein. RNA, being single stranded, can fold in

• n itself. In tRNA, the

RNA folds into a t- shape.

tRNA

Slide 127 / 155

Notice the hydrogen bonds between the complementary bases. This is an example of how the sequence of nucleotides in RNA results in a very specific shape.

tRNA Slide 128 / 155

The Anticodon Loop is a 3 base sequence on the tip that is complementary to the codon on the mRNA.

Active sites of tRNA

The Amino Acid Attachment Site is where the amino acid will attach to the tRNA.

Slide 129 / 155

One side of tRNA binds to the correct amino acid. The other side binds to the appropriate location on the mRNA strand, by binding to the complementary codon. Since there are 61 mRNA codes for amino acids, this would seem to require 61 different types of tRNA, one to match each code at one end, and the appropriate amino acid at the other. There are actually 30 - 40 types of tRNA in bacteria and about 50 types in animals. This is possible because of the wobble position on tRNA's anticodon site.

tRNA Slide 130 / 155

This allows the last letter of the mRNA code to violate the complementary pairing rule. In general, the first two letters specify the amino acid, so this works.

Wobble Position Slide 131 / 155

44 Why does tRNA fold into its specific shape? A The sequence and bonding of its amino acids

B The sequence of and bonding of nucleotides

C Its protein structure D A and B

E A and C

Slide 132 / 155

45 The result of tRNA not working would be:

A

ribosomal cell death

B

mRNA errors

C

creation of faulty proteins

D

the synthesis of DNA

Slide 133 / 155

46 Which type of RNA functions as a blueprint for the genetic code? A rRNA B tRNA C mRNA D RNA polymerase

Slide 134 / 155

tRNAs bond to the amino acid specified by their anti-codon. The opposite side of each tRNA, the anti-codon, bonds to the matching codon on the mRNA, creating a string of amino acids in the proper sequence. The ribosome makes covalent bonds between the amino acids. The result is a protein chain with the specified sequence of amino acids.

Translation - An Overview Slide 135 / 155 Translation Step 1- Initiation

5' 3'

The small subunit of the ribosome attaches to the mRNA at the bottom of the start codon (at the 5' end). Then the large subunit

• f the ribosome comes

in over the top.

Slide 136 / 155

The ribosome goes to the 5' end of the mRNA because the 5' end is the beginning of where the gene on the DNA was transcribed into mRNA. Also notice that there are 2 sites within the large subunit: The P-site where the new protein will emerge The A-site where the Amino Acids are delivered

5'

3'

Translation Step 1- Initiation Slide 137 / 155

As the leading edge of the mRNA, with the start code AUG, is exposed in the A site, tRNA with the code UAC enters the site and hydrogen bonds with it, carrying methionine into the ribosome.

A U G UAC

Met

The tRNAs, hydrogen bonded to their specific amino acids, surround the ribosome.

Translation Step 1- Initiation Slide 138 / 155

The methonine is removed from the tRNA and stays in the ribosome to be bonded with the next amino acid. The tRNA leaves the ribosome so another tRNA can enter. Each tRNA will carry the appropriate amino acid into the ribosome to be bonded in the proper sequence, since each tRNA anticoding site matches the coding site on the mRNA, which is located at the A site of the ribosome. Because each tRNA has an anticoding sequence it complimentary base pairs with the codon on the mRNA.

Translation Step 1- Initiation

Slide 139 / 155

47 How does the anticodon on the tRNA and the codon on the mRNA match up? A by hydrogen bonding/complimentary base pairing B by ionic bonding C by peptide bonds D none of the above

Slide 140 / 155

48 Why is Methionine the very first amino acid in all proteins? A because it is coded by the stop codon B because it is coded for by AUG which is the start codon C Methionine is coded for by more than one codon D none of te above

Slide 141 / 155

The 2nd tRNA with its amino acid is delivered into the A-site in the ribosome. The ribosome catalyzes a covalent bond between the amino acids.

Translation Step 2 - Elongation Slide 142 / 155

The tRNA that was in the A-site moves to the P-site and the tRNA that was in the P-site separates from its amino acid and the protein emerges from the P-site The ribosome moves the mRNA using ATP

Translation Step 2 - Elongation

Elongation continues by adding one amino acid after another.

Slide 143 / 155

UAA is 1 of the 3 possible STOP codons.

The ribosome reaches a STOP codon. This signals the end of translation, the completion of the protein.The 2 subunits separate from each other.

Translation Step 3 - Termination Slide 144 / 155

The Result- A protein in its "primary sequence".

Translation Step 3- Termination

Click Here to see animation

• f Translation

Slide 145 / 155

49 What is the first event of translation? A the tRNA comes in

B the small subunit of the ribosome and the 1st tRNA brings in Methionine to the start codon

C elongation happens D the large subunit of the ribosome comes in

Slide 146 / 155

50 During translation, the ribosome binds to a: A DNA B mRNA C protein D peptide bond

Slide 147 / 155

51 What is the first step of translation called? A transcription

B elongation

C termination D initiation

Slide 148 / 155

52 What is the P site of the ribosome? A it is where the amino acids are delivered in

B it is where the protein or peptide will emerge

C it where the tRNA's will deliver in the next amino acid after each translocation D it is where the proteins fold into their 3-d shape

Slide 149 / 155

53 What is the function of the ribosome in translation? A it makes a peptide/covalent bond using the energy from translocation B it makes hydrogen bonds between the codons C it makes covalent/peptide bonds between the codons D none of the above

Slide 150 / 155

54 What does termination in translation involve? A translocation of the ribosome B the ribosome gets to a stop codon and the small and large subunits of the ribosome separate C RNA polymerase falls off the DNA D a tRNA brings in an amino acid

Slide 151 / 155

DNA RNA

PROTEIN

replication

transcription translation

The Central Dogma Slide 152 / 155

55 What is transcription? A the making of DNA from protein

B the making of RNA from amino acids

C the assembly of the protein D the making of mRNA from the DNA code/gene

Slide 153 / 155

56 What is translation? A the assembly of the amino acids from the protein code B assembly of amino acids coded for by the mRNA codons C the making of mRNA D assembly of codons from DNA template

Slide 154 / 155

Article Discussion

Return to Table of Contents

Slide 155 / 155 Articles

Study: DNA is as Stretchy as Nylon Can genes predict athletic performance? Private Companies Own your DNA - Again Intelligence Gene: How Your Parents Determine Half Your Fate
