ANEUVAS TECH. INC. PORTABLE MEDICAL BENCH Kenyon Rowley Project Manager and Financial Manager Katherine Riffle Test Engineer and CAD Engineer Hunter Daniel Logistics Manager and Manufacturing Engineer DR. BECKER - ADVISOR Project

slide-1
SLIDE 1

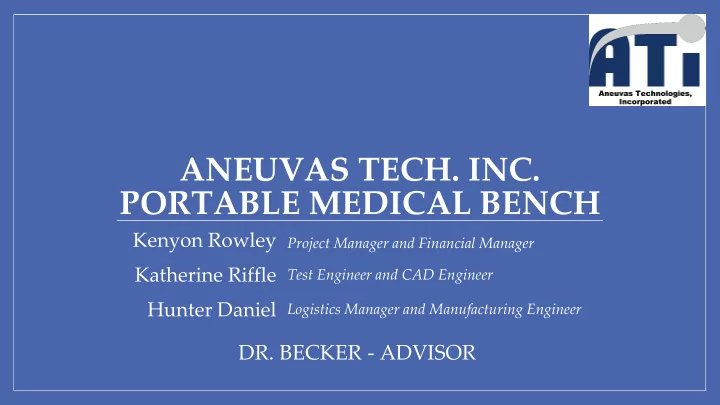

ANEUVAS TECH. INC. PORTABLE MEDICAL BENCH

Kenyon Rowley Katherine Riffle Hunter Daniel

Project Manager and Financial Manager Test Engineer and CAD Engineer Logistics Manager and Manufacturing Engineer

  • DR. BECKER - ADVISOR
slide-2
SLIDE 2

Project Description

Requirements Compatible with medical machines Support clean-room cover Reduce shock during transport Minimal X-Ray interference Compliant with X-Ray machine

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 2

  • Dr. Becker’s X-Ray Machine

Clean Room Hood

slide-3
SLIDE 3

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 3

Project Description/ Concept Generation

How Concepts were Generated Three Parts

  • Wheels/Shock Absorption
  • Tabletop
  • Storage
slide-4
SLIDE 4

Black-Box: Wheels

4

Material Force Design Shock Absorption Reduced Impact Less Noise Easier to Push Better Turning

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench

slide-5
SLIDE 5

5

Shock Absorption MRF Dampener: Too Expensive/ Complex Expensive Instant Shock Absorption Requires Actuation Complex Pneumatic Tires: Simple Design, Cheap Easy Installation Constant Absorption without Actuation Inexpensive

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench

Decomposition Model: Wheels

slide-6
SLIDE 6

Black-Box: Tabletop

6

Raised Spill Guards Wood Up to ½ Inch Raised Platforms Grooved for Hood Base 26” Wide Zipties Polycarbonate Big Enough Workspace Drainage Material Design Contain Spills X-Ray non-interference X-Ray Machine Compliant Protect Machines from Spills Support Hood Fit Through Doors Cord/Wire Guidance

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

slide-7
SLIDE 7

7

Protect Machines from Spills Raised Platforms: Client Preference Easily Cleaned No Tilt Spill Guard Restricted Work Area Drainage: Unnecessary Drainage Performance Drains Loose Liquid Containment of Loose Liquid Difficult to Clean Tilt or Interruption of X Rays

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

Decomposition Model: Tabletop (1)

slide-8
SLIDE 8

8

Cord/Wire Guidance Holes in Table: Stored Machine Vulnerability Uninterrupted Transport Less Obtrusive Spill Guards Around Directly Next to Workspace Spills Through Table Zip-ties: Client Preference Adaptive Removable Already Designed in Hood Keeps Cords out of Spills

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

Decomposition Model: Tabletop (2)

slide-9
SLIDE 9

Black-Box: Storage

9

Material Design Storage Wood Flanges Drawer Dimensions

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

slide-10
SLIDE 10

10

Storage U-Shaped: Too Bulky Less Maneuverability Stable More Storage Desk Drawers: More Access Easy Access Maneuverability

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

Decomposition Model: Storage

Client Preference: U-Shaped with One Drawer

slide-11
SLIDE 11

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 11

Concept Generation: Shock Absorption

  • Initial idea to implement MRF.
  • Instantaneous shock

absorption.

  • Dr. Becker suggested this

concept may be to complex for the need.

  • Went with simpler and cheaper

pneumatic tire design.

MRF Dampner

slide-12
SLIDE 12

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 12

Concept Generation: Tabletop

  • Initial idea to make entire tabletop flat.
  • Dr. Becker suggested we add in raised platforms on

the sides.

  • Increased stability and easier to clean if spills occur.
  • Existing Polycarbonate piece for middle.
  • Slots for hood to slide in.
slide-13
SLIDE 13

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 13

Concept Generation: Storage

  • Initial idea to make U-shaped storage.
  • Simple storage solution.
  • Drawers that pull out instead.
  • U-shaped storage with drawer on one

side.

slide-14
SLIDE 14

Customer Requirements Engineering Requirements

Engineering Requirements Cost Weight Volume Yield Strength Spring Constant Deflection Thickness Temperature

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 14

Concept Selection: CNs and ERs

Durability Reliability Safety Maneuverability Inexpensive Aesthetic Multi-purpose Lightweight

slide-15
SLIDE 15

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 15

Concept Selection: Decision Matrix

slide-16
SLIDE 16

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 16

Concept Selection: Wheels

  • After evaluation through the decision

matrix as well as guidance from Dr. Becker, the pneumatic tire design was chosen.

  • The design is much simpler and

cheaper than the MRF dampner but

  • ffers adequate shock absorption .
  • It will be easily installed to the bench

design.

Pneumatic Wheel

slide-17
SLIDE 17

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 17

Concept Selection: Tabletop CAD REV0

slide-18
SLIDE 18

18 Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

slide-19
SLIDE 19

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 19

Concept Selection: Storage CAD REV0

slide-20
SLIDE 20

20 Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench

slide-21
SLIDE 21

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 21

Concept Selection: Top Customer Requirements

Safety Deflection Durability Weight Reliability Volume

slide-22
SLIDE 22

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 22

Budget Planning: BOM

  • Tabletop (polycarbonate and another polymer/wood)
  • Legs (wood)
  • Pneumatic Tires
  • Storage shelf (wood)
  • Drawer (wood)
  • Drawer slides and wheels (metal/plastic)
  • Storage Cover (polymer)
slide-23
SLIDE 23

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 23

Budget Planning

Materials

  • Tabletop (polycarbonate):
  • Tabletop (polymer/wood):
  • Legs (wood):
  • Pneumatic Tires:
  • Storage shelf (wood):
  • Drawer (wood):
  • Drawer slides and wheels

(metal/plastic):

  • Storage Cover (polymer):

$60* $50 $20** $100** $30** $30** $30** $30 Overall

  • Materials:
  • Spare Parts:
  • Prototyping:
  • Equipment:
  • Contingency:

Total:

** Prices based off McMaster-Carr [1] * Prices based off Grainger [2]

$350 $60 $200 $200 $190 $1000

slide-24
SLIDE 24

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 24

Conclusion

  • Through concept generation and evaluation our team was able to decide on

design paths for the bench.

  • Shock absorption, tabletop, and storage can now be in the developing stage.
  • With CAD designs finished, the next step is discussing these design ideas with
  • Dr. Becker to confirm his satisfaction and begin designing a prototype.
slide-25
SLIDE 25

Questions?

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 25

slide-26
SLIDE 26

Hunter Daniel, October 7, 19F5 - Aneuvas Tech Portable Bench 26

Citations

  • 1. “McMaster-Carr,”[Online]. Available: https://www.mcmaster.com/. [Accessed:

03-Oct-2019].

  • 2. “Grainger Industrial Supply - MRO Products, Equipment & Tools,” Grainger

Industrial Supply - MRO Products, Equipment & Tools. [Online]. Available: https://www.grainger.com/. [Accessed: 03-Oct-2019].

Appendix

slide-27
SLIDE 27

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 27

Appendix: Detailed Tabletop CAD

slide-28
SLIDE 28

Kenyon Rowley, October 7, 19F5 - Aneuvas Tech Portable Bench 28

Appendix: Detailed Storage CAD
