Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector Riccardo Raabe (GANIL) New Opportunities in the Physics Landscape at CERN CERN, May 11 13, 2009 Use direct reactions as spectroscopic tool to study

slide-1

SLIDE 1

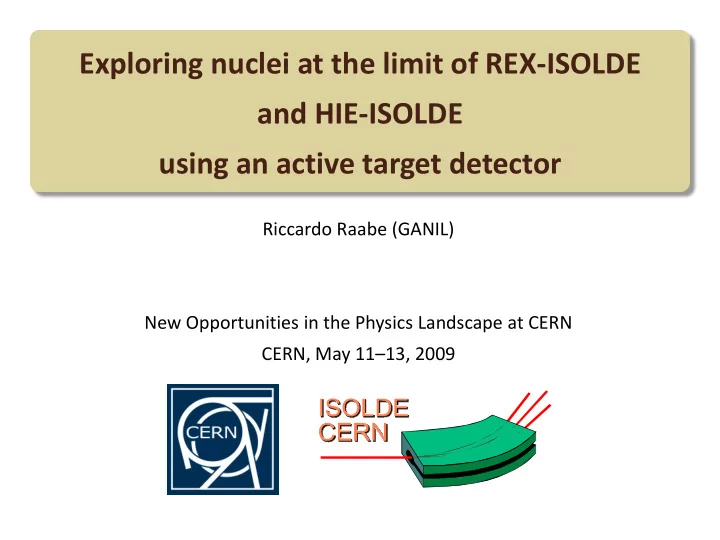

Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Riccardo Raabe (GANIL) New Opportunities in the Physics Landscape at CERN CERN, May 11–13, 2009

slide-2

SLIDE 2

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Light-ion induced transfer reactions (d,p), (d,t), (3He,d)… Selective ⇒ access to structure of states Complementary to beta-decay and Coulomb excitation Use direct reactions as spectroscopic tool to study the evolution of nuclear structure far fom stability

slide-3

SLIDE 3

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Light-ion induced transfer reactions (d,p), (d,t), (3He,d)… Selective ⇒ access to structure of states Complementary to beta-decay and Coulomb excitation Use direct reactions as spectroscopic tool to study the evolution of nuclear structure far fom stability Weakening and disappearance

f shell closures

Shape coexistence Features of the N-N force

slide-4

SLIDE 4

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Light-ion induced transfer reactions (d,p), (d,t), (3He,d)… Selective ⇒ access to structure of states Complementary to beta-decay and Coulomb excitation Use direct reactions as spectroscopic tool to study the evolution of nuclear structure far fom stability Weakening and disappearance

f shell closures

Shape coexistence Features of the N-N force

slide-5

SLIDE 5

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Light-ion induced transfer reactions (d,p), (d,t), (3He,d)… Selective ⇒ access to structure of states Complementary to beta-decay and Coulomb excitation Use direct reactions as spectroscopic tool to study the evolution of nuclear structure far fom stability Weakening and disappearance

f shell closures

Shape coexistence Features of the N-N force Spallation HIE-ISOLDE ⇒ Unique!

slide-6

SLIDE 6

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Solid targets: limit on thickness (resolution, thresholds) ⇒ active target Inverse kinematics, weak beams

slide-7

SLIDE 7

Time-projection chamber Nuclei of gas are the target Electron drift and amplification ⇒ tracking 10 to 100 times thicker than a solid target Spatial and energy resolution Low thresholds

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Solid targets: limit on thickness (resolution, thresholds) ⇒ active target Inverse kinematics, weak beams

slide-8

SLIDE 8

Time-projection chamber Nuclei of gas are the target Electron drift and amplification ⇒ tracking 10 to 100 times thicker than a solid target Spatial and energy resolution Low thresholds Present: Maya (GANIL) Future: ACTAR

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Solid targets: limit on thickness (resolution, thresholds) ⇒ active target Inverse kinematics, weak beams

slide-9

SLIDE 9

Time-projection chamber Nuclei of gas are the target Electron drift and amplification ⇒ tracking 10 to 100 times thicker than a solid target Spatial and energy resolution Low thresholds Transfer reactions possible with the most exotic beams Present: Maya (GANIL) Future: ACTAR

Riccardo Raabe (GANIL) Exploring nuclei at the limit of REX-ISOLDE and HIE-ISOLDE using an active target detector

Solid targets: limit on thickness (resolution, thresholds) ⇒ active target Inverse kinematics, weak beams
