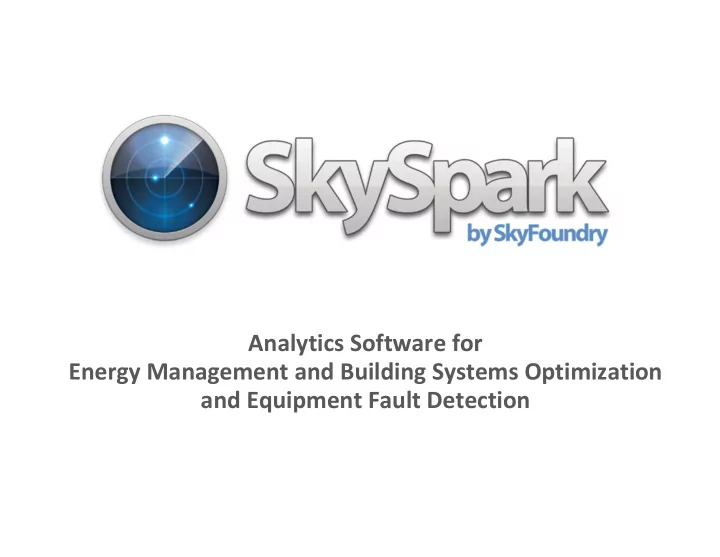

Analytics Software for Energy Management and Building Systems Optimization and Equipment Fault Detection

Data is the Driver

 We now have access to

data… lots of it!

 Building automation system data  Utility data  Metering data  Equipment/asset data  IP/web connected automation

systems and smart devices

 Standard protocols  Standard data formats

 How can we turn the data into useful information?

Hidden in this data are the keys to better building performance

The challenge…

Find what matters… …To You

(quickly, easily, efficiently, automatically)

That’s What SkySpark Does

 Software that automatically looks

for “issues” – we call them sparks

 Across a wide range of data with different sources

and formats

 Processes rules to generate sparks  Easily add new rules without re‐programming

controllers

 The result: Turn operational data into

actionable issues with minimal intervention!

What Customers are Saying

 “Dashboards are great but – I need someone to tell

me when I should look at a dashboard – tell me when there is something important that deserves my attention”

 “as if I had an experienced mechanical engineer

constantly reviewing system operation to find issues – which is simply not sustainable or scalable”

Examples of Issues Real Owners Find

Things That Matter

 Simultaneous heating and cooling in a single unit or across

groups, short cycling, lack of diversity control

 Deviation of energy intensity (kw/sq ft/degree day) from

benchmarks, baselines, goals along with time, duration and cost

 Degradation of cooling or heating performance (i.e., unit runs

but does not deliver expected cooling/heating)

 Economizers open while heating and cooling  Non‐functioning sensors (temp, kw, etc)  Lights or other loads operating when they shouldn’t  Setpoints overridden and not changing with schedules as

expected

 What matters to you?

The Old Way

A very manual process

 View graphics

• f equipment systems

 Review reports or history logs  Alarms…

 need to understand the issue when programming system  single variable ‐ single point in time  simple limit‐based relationships – many systems not

capable of complex alarm logic

 Import data into Excel for manual analysis  No single tool that works across all kinds of data  How do you do this today?

Thinking about “it” in a new way

Business Intelligence software for the physical world of building, energy and equipment data

SkySpark

 Rethink how you organize data  Rethink how you visualize data  Rethink how you analyze data  Rethink how you consume the result

Production data

Three Steps

Bring data into SkySpark

BAS data Utility data Weather data Facility data

Step 2

Give the data meaning via “tags” No need to maintain rigid schemas – add tags whenever you want

• Dimensions
• Relationships
• Location
• Other meaning and descriptors
• Dimensions
• Relationships
• Location
• Other meaning and descriptors

Step 3

Rules and “Sparks”

 Choose or define rules to find exactly

what matters to you

 Sample rule:

 dis: Simultaneous Heating and Cooling

(the text we will display)

 ruleOn: ahu (this is the tag the rule will work on)  ruleFunc: hisPeriodIntersection([heat, cool]) (this is the

rule expression)

 The result – a sample “spark’:

 2010-Oct-03 | Zone Temp Too Hot | Floor-2 Zone-A  And SkySpark automatically generates views to show the issue!

The Result:

Know what your systems are really doing

Automatically scans your data to find what matters Automatically generates views on issues detected Identify an issue once – SkySpark finds it forever Build up libraries of analytic rules to fit your facility needs Convert your domain knowledge to rules – your value continues to build

The “Spark detail” page – shows everything related to the occurrence of an issue

Technology Overview

SkySpark Organize Folio tags Visualize Fresco html5 Apps Analyze Axon functions

3 core components plus open API’s for integration with third party applications

SkyFoundry Apps

Architecture

Runs on Windows, Mac and Linux from laptop to Amazon Cloud Use as an end-to- end product or as a backend DB/analytics engine

You can extend the product by building your own Apps inside it, or by integrating it with your external Apps

A Deeper Look at SkySpark Applications and Tools

Demonstration

A Deeper Look at SkySpark Applications and Tools – Demonstration

The Site Spark App – User’s Dashboard to Review and Investigate Sparks

Spark Detail View Simply click on a spark notification to get an automatically generated view of relevant data items

The Energy App – The Essential Energy Reports in One Simple Tool

Consumption, demand, runtime, rank and exception

• reports. Normalize

by area, degree days and user defined parameters

The KPI App – Presentation of Key Performance Metrics

You can define virtually any KPI you want to display

The Site App – Easy Navigation of all of Your Data

The Site App automatically creates navigation without any additional programming – It interprets tags to automatically create a comprehensive navigation tree Explore any points across any time range

The History App – Ad Hoc Analysis – Chart any Type of Data

Choose data items to be charted and time period

The Report App – Save any View or Query as a Standard Report for Single Click Operation

The Folio App – Directly Query the Database, Add Tags, Explore Relationships

Folio ‐ Function Editor – Write Rules to Analyze Data and Generate Sparks

SkySpark includes a comprehensive library of analytic functions to build rules from as well as a set of standard rules to find virtually any type of fault

• r operational condition

The Spark App – Review, Sort and Export Spark Data, Set up Sparks

The Weather App – Look Specifically at Weather Data

Look at current conditions, forecast, history, and degree days

Summary

SkySpark Value Proposition

 Identify the data that matters to you  Turn your operational data into actionable issues

easily and efficiently

 Rules and sparks allow you to completely rethink

how you create value from operational data

 Transform domain knowledge into analytic rules

that automatically “watch” your facilities

 Improve operation and energy efficiency by

identifying faults, and issues worthy of attention

Applications

 End use application for facility/energy managers  Backend database and analytics engine for third

party HMI offerings

 In house tool for consultants involved in

commissioning/energy analysis

 And, SkySpark is sold as licensed software – install it

• n a local PC or server, or host it in your own cloud.

SkyFoundry never has your data – you’re in control

SkyFoundry Business Model

Enterprise software model

 A partner ‐ focused software company  We focus on creating software tools that enable domain

experts to leverage knowledge and help customers improve facility operations

 Resellers provide implementation services to end customers  Implementation services provided by VARs include:

 Data integration, importing and “tagging”  Developing analytic rules  Building custom visualizations  Channel training/on‐going support services  Developing or integrating with complimentary applications
